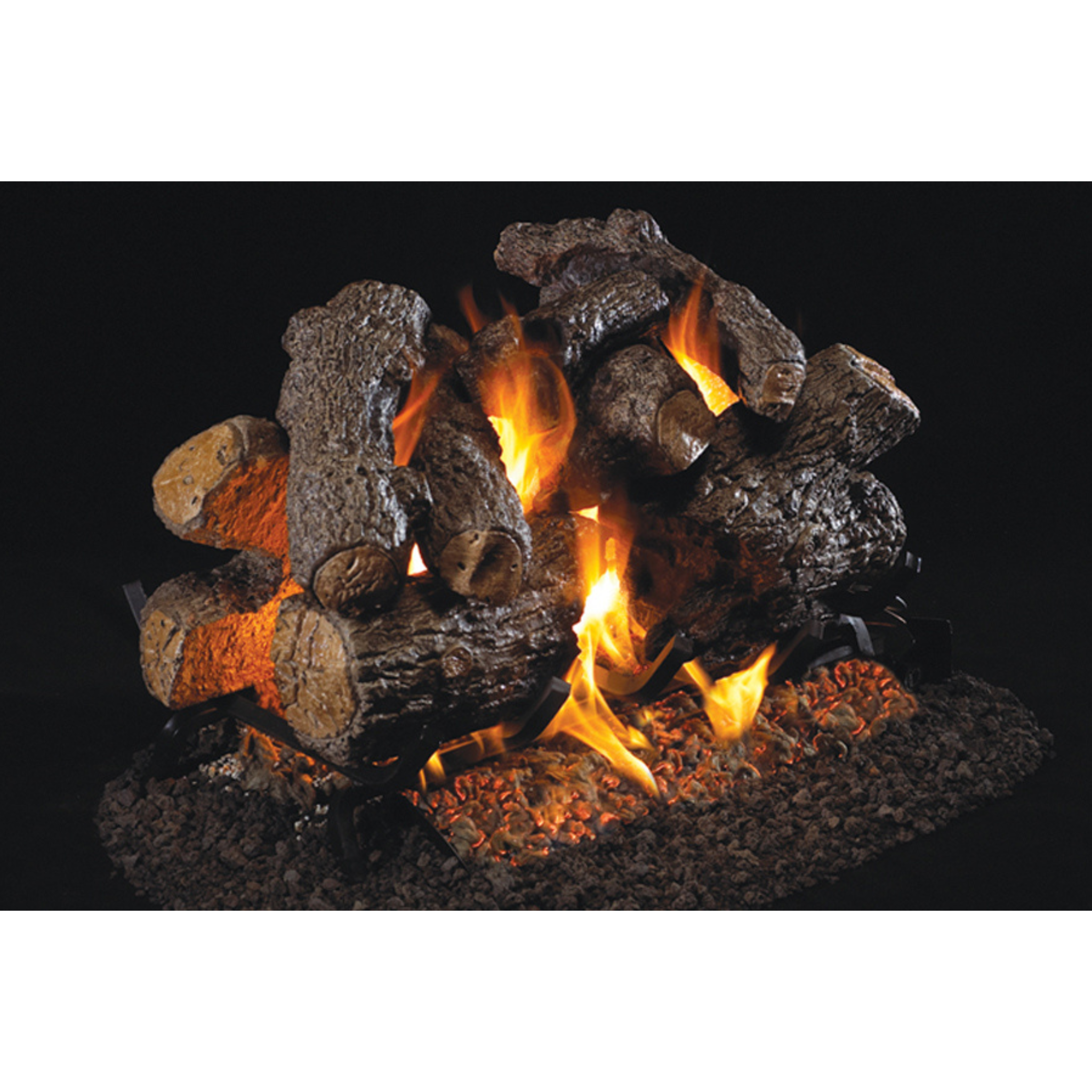

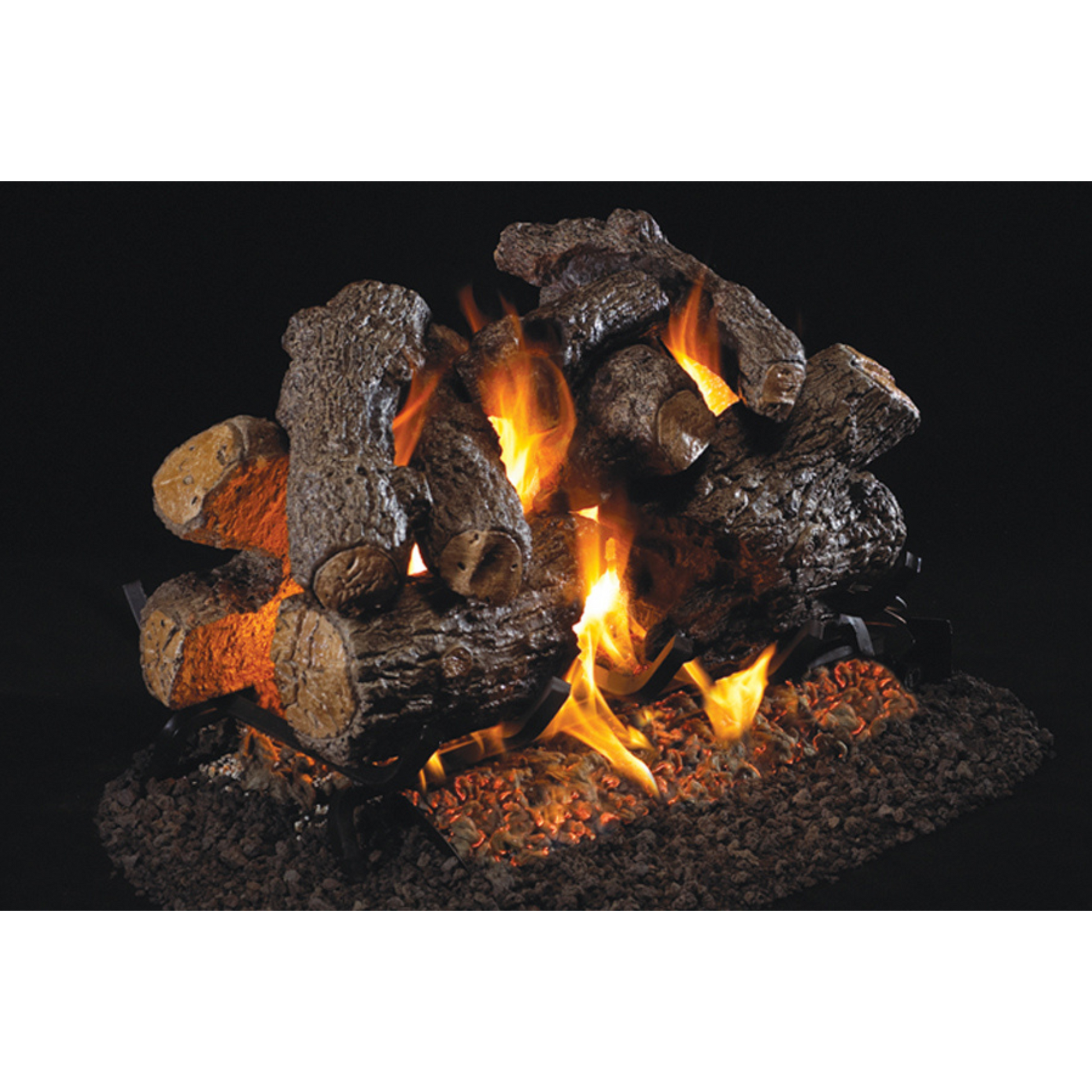

Real Fyre Charred Royal English Oak See-Through Vented Gas Logs

Real Fyre Charred Royal English Oak See-Through is a vented gas log set for a see-through (two-sided) wood-burning fireplace that has a natural gas line. Royal English Oak logs with charred edges and burnt detail.

Who it's for

Right buyer. You have a see-through wood-burning fireplace with a gas line and want the Charred Royal English Oak look finished on both sides.

Wrong buyer. Your fireplace is open on one side; the standard Charred Royal English Oak set fits it and costs less.

How it performs

The Charred Royal English Oak See-Through set is a vented gas fire in a wood-burning fireplace (with a second set of logs facing the other room): the burner runs under and through the logs, the flames are tall and yellow and move like a wood fire's, and the embers glow under them.

Good to know

• Vented logs are decorative: the damper is open and most of the heat goes up the chimney. For heat, the vent-free version of this style is the one.
• The logs never burn away, but they char and darken where the flame touches; that is part of the look.
• Gas use is real: a 24-inch burner on high draws about what a large furnace does. Low is for long evenings.

Dimensions

A see-through fireplace is open on two sides, so there is one width to measure: the narrowest point between the side walls. Depth is the distance from one opening to the other, measured inside any raised lip. Every size needs 17 inches of height.

Your firebox must be at least as large as the row for the size you want. The width allows the burner to sit centered. If you are within an inch of a minimum, order the next size down: a set that is too big disturbs the draft and overheats the valve.

Minimum firebox size with a control (manual pilot or any remote)

Electronic On/Off Remote needs 2 inches more width for its battery and switch box.

Minimum firebox size with Match Light (no valve beside the burner)

The chimney must be at least 15 feet tall, and the firebox floor cannot have an ash lip or a sunken hearth deeper than 3/4 inch on either side. Sizes of 42 inch and larger are not factory-assembled: the burner ships with a separate control kit, and Peterson does not list those sizes with a testing agency, so check your local code before you order.

Clearances

A vented gas log set borrows the fireplace's own clearances: the mantel, hearth and side-wall rules of the wood-burning fireplace it goes into stay exactly as they were built and inspected. What the log set adds is the room the burner and the flames need inside the firebox, below, and three rules: the damper fixed fully open with the clamp supplied, glass doors open or removed whenever the burner runs, and nothing stored or draped within 3 feet of the front of the fireplace.

Documents

• G45-2 see-through with a factory valve: installation and owner's manual
• G45-2 see-through match light and kit-controlled: installation and owner's manual

Details

Warranty

Source: R.H. Peterson Real Fyre limited warranty, printed in the burner manual linked above. Register the set with Peterson after installation.

Heat

Choices and prices

The burner

See-through sets run on one burner, the Real Fyre G45-2. It is a Triple-T burner on a raised platform, with ember burners facing both openings so each room sees a glowing ember bed and a full flame. These logs are heavy, so Peterson pairs them with the heavy-duty version (model GX45-2), which has a stronger grate. Peterson does not sell the heavy-duty burner with a valve assembled at the factory: up to 30 inch, and at 42 inch, any control ships as a separate Real Fyre kit that your installer fits to the burner. The 36 inch burner includes the heavy-duty grate as standard and arrives certified to ANSI Z21.60 with its valve assembled.

Control

Match Light. There is no valve on the burner. You hold a long lighter at the burner and open the gas with your fireplace's wall or floor key, which also sets the flame height. Natural gas only. Some cities require a safety pilot instead, so check with your installer or building department.

Manual Safety Pilot. A small pilot flame stays lit, and you turn a knob at the burner to light the logs. If the pilot ever goes out, the valve shuts off the gas. No batteries and no wiring.

On/Off Remote. A standing pilot plus a handheld remote that turns the fire on and off. It keeps working in a power outage. The remote and receiver run on batteries that come in the box.

Variable Remote. Everything the On/Off Remote does, and the remote also raises and lowers the flame.

Electronic On/Off Remote. No standing pilot. Press On and the system sparks its own pilot, then lights the burner, so you are not burning gas on a pilot all season. It runs on batteries that come in the box and needs a slightly wider firebox (see the fit tables).

Electronic Variable Remote (110V). Electronic ignition with flame height on the remote, powered from a household outlet, so you need 110-volt power at the fireplace.

At 42 inch and larger the choices are Match Light, On/Off Remote and the 110-volt Electronic Variable Remote. The remote controls at those sizes ship as a separate Real Fyre kit for your installer to fit.

Up to 30 inch, every control for this set ships as a separate Real Fyre kit for your installer to fit to the heavy-duty burner.

What arrives

• Log carton: the Charred Royal English Oak See-Through log set with its placement guide. The ember screen and extra embers packed with Charred sets are not used on the see-through burner. Sets of 36 inch and larger ship in more than one carton, and some logs need two people to lift.
• Burner carton: burner, see-through grate, log locators, glowing embers, sand for the burner pan, gas connector kit and damper clamp. Burners with a control also include the valve and regulator, already assembled. Remote versions include the handheld remote, receiver and batteries.
• Control kit carton: with any control except on the 36 inch burner.

Cartons can arrive on different days. Do not start the installation until everything is there.

Installation

A vented set goes into a wood-burning fireplace with a working chimney and a gas line, by a licensed gas installer, in about two hours.

• Gas: a dedicated 1/2-inch line to a shutoff at the fireplace; natural gas at 5 to 7 inches of water column, propane at 11 to 13. The connector runs through a plate in the firebox floor or wall.
• Damper: fixed fully open with the clamp in the box. This is the rule that makes a vented set safe; the fire's exhaust goes up the chimney like a wood fire's.
• Doors: open or removed whenever the burner runs.
• Burner: set on the grate in the center of the firebox, the logs placed by the diagram in the box, embers scattered on the burner, sand or vermiculite in the pan for natural gas, lava rock for propane.
• Controls: a match-light burner uses the fireplace's key valve; a safety-pilot burner has its own valve and knob; an electronic burner takes batteries in the control box or a 110-volt outlet inside the firebox for the plug-in version, and the remote pairs once.
• Codes: match-light burners are not allowed in some cities; the installer knows which. Most jurisdictions want the inspection.

Planning the install

• For see-through (two-sided) wood-burning fireplaces only, masonry or factory-built, with a working chimney. Not for single-sided fireplaces, vent-free fireboxes, direct-vent or B-vent gas fireplaces, or stoves.
• You need a natural gas line into the firebox, 1/2 inch inside diameter or larger, with a shut-off valve outside the firebox.
• The included clamp fixes the damper so it can never close completely. The damper must be fully open whenever the fire is on, glass doors fully open, and a screen in place.
• Installation is by a qualified gas professional. Have the chimney swept first and the set inspected once a year.
• Do not burn wood in the fireplace once the gas logs are installed, and do not leave the fire on unattended or while anyone is sleeping.
• Above 2,000 feet elevation, add a note to your order. Peterson builds high-altitude versions.
