Real Fyre Evening Fyre Charred See-Through Vent-Free Gas Logs

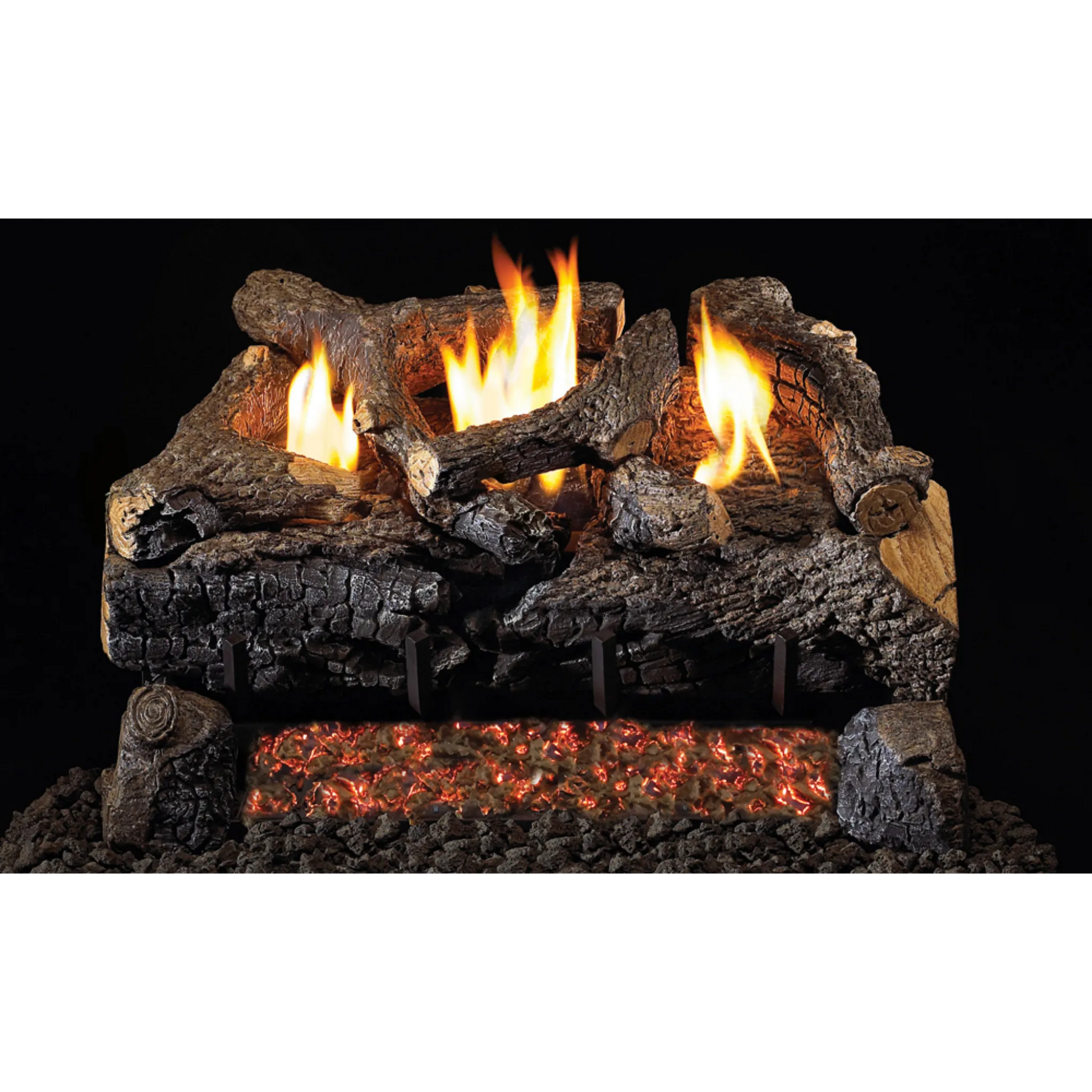

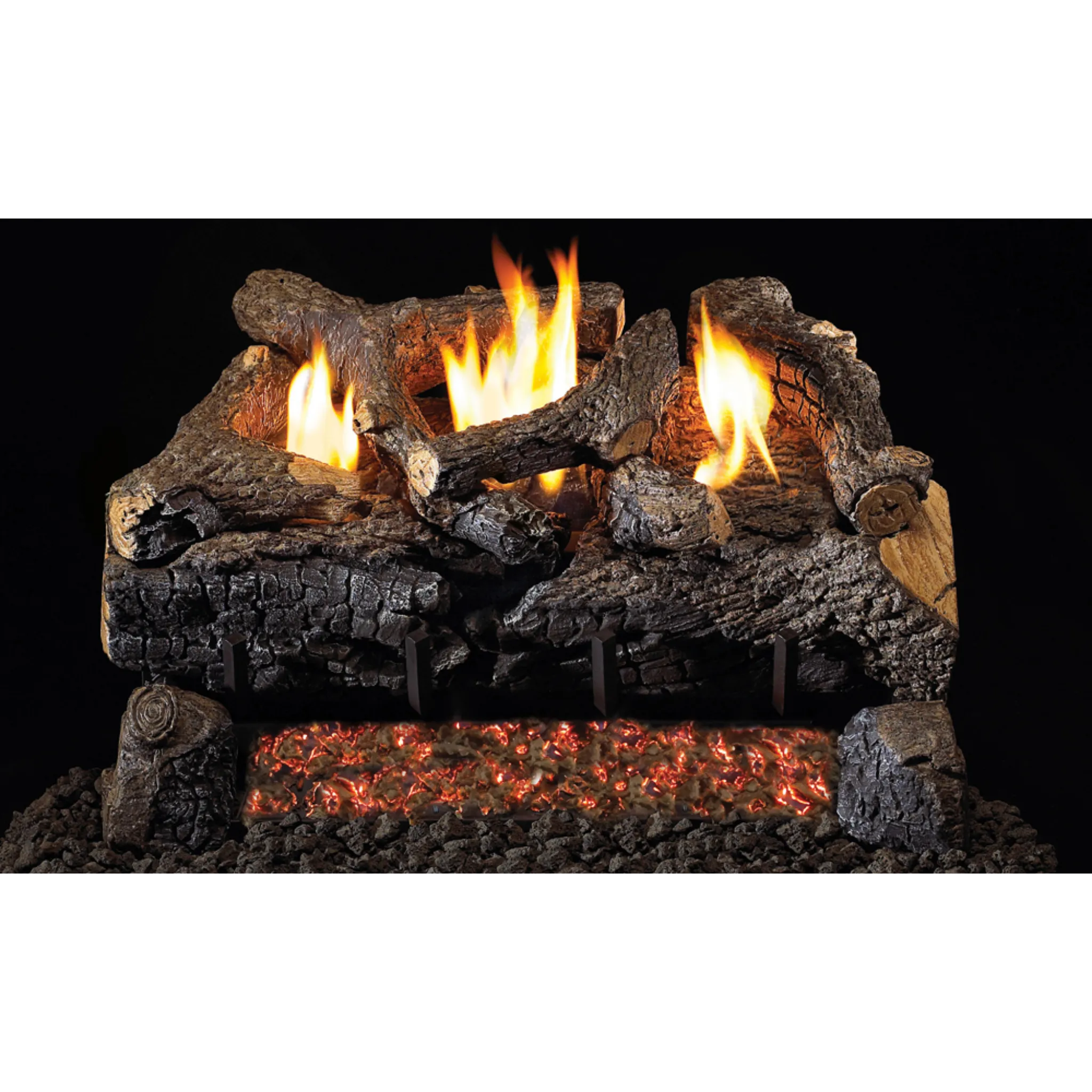

Real Fyre Evening Fyre Charred See-Through is a vent-free gas log set for a see-through (two-sided) fireplace: it burns with the damper closed, so the heat stays in the room. The charred version of Evening Fyre: sculpted, hand-painted logs with heavy charring on the front log, a deep ember bed with Bryte Coals, and two wood-chunk covers that hide the controls.

Who it's for

Right buyer. You want heat from the fireplace as much as the look, your local code allows vent-free heaters, and the room is large enough for the burner; the Evening Fyre Charred set fits a wood-burning fireplace or a listed vent-free firebox.

Wrong buyer. You live where vent-free is not permitted, the set would go in a bedroom or bathroom, or you would rather not have any moisture or odor from a fire in the room; a vented set is the answer.

How it performs

The Evening Fyre Charred See-Through vent-free set is a heater that looks like a fire: all of the burner's heat comes into the room, so a 30,000 BTU set warms a living room the way a small furnace would, with the logs glowing red where the flame runs through them.

Good to know

• A clean-burning flame is a smaller flame; if you want the tall, lazy fire of a wood log, a vented set gives it and a vent-free set does not.
• It puts moisture and the products of combustion into the room. Some people notice the smell on a new set; most do not after the first burns.
• It is not allowed everywhere, and the room must be big enough.

Dimensions

Is vent-free allowed where you live?

Check before you order. California does not allow vent-free gas heaters in homes, and some other states, cities and counties restrict them. Your building department or a local gas installer can tell you in one call. If vent-free is not permitted, this set can still be installed as a vented log set: the damper is clamped open and the chimney must be at least 15 feet tall.

A see-through fireplace is open on two sides, so there is one width to measure: the narrowest point between the side walls. Depth is the distance from one opening to the other. Every size needs 17 inches of height.

It may be installed only in a masonry or UL-127 factory-built wood-burning fireplace, or in a listed vent-free firebox. Do not use it in a factory-built fireplace whose instructions say it has not been tested for vent-free logs. The firebox floor cannot have an ash lip or a sunken hearth deeper than 3/4 inch.

Clearances

In a factory-built fireplace, follow that fireplace maker's clearances. Otherwise Peterson requires:

• Side walls: 6 inches from the side of the fireplace opening to a combustible side wall.
• Ceiling: 42 inches from the top of the opening.
• Above the opening: at least 12 inches of noncombustible material such as brick, stone or marble. With a fireplace hood, 10 inches.
• Mantel: how far a wood mantel may stick out depends on its height. At 20 inches above the opening it may project 2.5 inches without a hood, or 10 inches with one. The manual has the full chart.
• Floor: if the burner sits less than 6 inches above the floor, 12 inches of noncombustible hearth in front of the fireplace.

If you cannot meet these clearances, Peterson says the set must be run with the chimney damper open. A fireplace hood is strongly recommended under a wood mantel.

Documents

• G18-2 see-through vent-free: installation and owner's manual

Details

Warranty

Source: R.H. Peterson Real Fyre limited warranty, printed in the burner manual linked above. Register the set with Peterson after installation.

Heat

Is your room big enough?

A vent-free fire takes its air from the room, so the room has to be large enough for the burner. The rule in the National Fuel Gas Code is 50 cubic feet for every 1,000 BTU. Multiply the room's length, width and height in feet, then multiply by 20: the answer is the most BTU the room can take. Rooms that open into it without a door count as part of the space.

The low setting is available with the variable remote controls. Vent-free heaters over 10,000 BTU may not be installed in a bedroom or a bathroom, so this set is not for those rooms. In a very tightly sealed home, or above 2,000 feet, you may need to open a window an inch or two while it runs.

Choices and prices

The burner

The G18-2 is the see-through version of the G18, with an ember bed facing each room. It arrives with its valve and oxygen depletion sensor pilot already assembled and tested at the factory. The sensor watches the oxygen in the room and shuts the gas off before the level falls below 18 percent.

Control

On/Off Remote. A standing pilot plus a handheld remote that turns the fire on and off. Flame height is set with a knob at the burner. Runs on batteries that come in the box.

Variable Remote. A standing pilot plus a handheld remote that turns the fire on and off and raises and lowers the flame, down to the low setting in the table above. Runs on batteries that come in the box.

What arrives

• Log carton: the Evening Fyre Charred log set with its placement guide and its decorative wood chips.
• Burner carton: burner with valve and ODS pilot assembled, gas connector, glowing embers, Bryte Coals, lava granules, and a damper clamp for vented installations. Remote versions include the handheld remote, receiver and batteries.

Use only the embers and coals that come with the burner. Adding more, or adding other logs or decorations on the burner, causes soot and carbon monoxide.

Installation

A vent-free set goes into a wood-burning fireplace, with the damper open or closed, or into a listed vent-free firebox, by a licensed gas installer.

• Where it is allowed: not in California, not in bedrooms or bathrooms in most states, and not in a room smaller than the burner's minimum; check the room-size table on this page and your local code before ordering.
• Gas: a dedicated 1/2-inch line with a shutoff; the burner's ODS pilot shuts the gas off if the room's oxygen drops.
• Clearances: the mantel and side-wall distances on this page are the burner's own; they apply whatever fireplace it goes into.
• Logs: placed exactly by the diagram; a moved log on a vent-free burner makes soot.
• Controls: manual, remote or thermostat; the electronic versions take batteries or a 110-volt outlet in the firebox.

Planning the install

• It is a supplemental heater, not the main heat for a home, and it must not be left on unattended or while anyone is sleeping.
• Burning gas makes water vapor. If windows start to fog, open a window or the damper a little.
• Expect some odor and light smoke for the first four to six hours of use while factory coatings burn off. Ventilate well during that time.
• Candles, air fresheners, sprays and fresh paint in the room can cause odors when the fire is on.
• Keep ceiling fans and vents from blowing into the fireplace. Glass doors must be fully open and a screen in place.
• Have it cleaned and checked by a qualified technician at least once a year. Peterson requires it for the warranty, and the ODS pilot is sensitive to dust, lint and pet hair.
• Installation is by a qualified gas professional. In Massachusetts that must be a licensed plumber or gas fitter.
• Do not burn wood in the fireplace once the set is installed.
