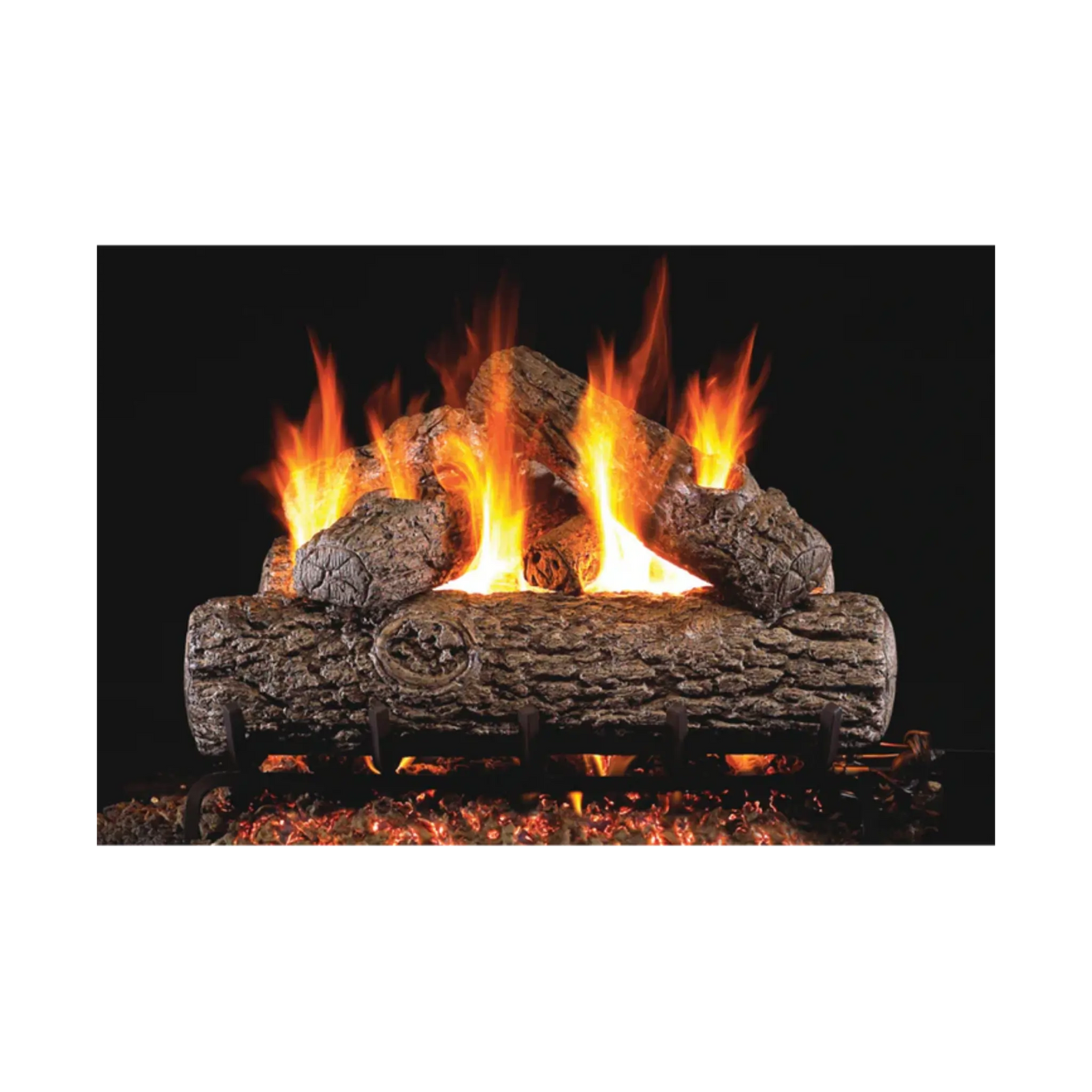

Real Fyre Golden Oak See-Through Vented Gas Logs
At a glance
- Fuel: natural gas. Need propane? Add a note to your order and we will confirm the propane version with you before anything ships.
- Log sizes: 16, 18, 20, 24, 30, 36 and 42 inch.
- Burner: Real Fyre G45-2 See-Through. It is the only burner made for these logs.
- Controls: match light, manual safety pilot, or remote.
- Made by: R.H. Peterson Co. in City of Industry, California.
Description

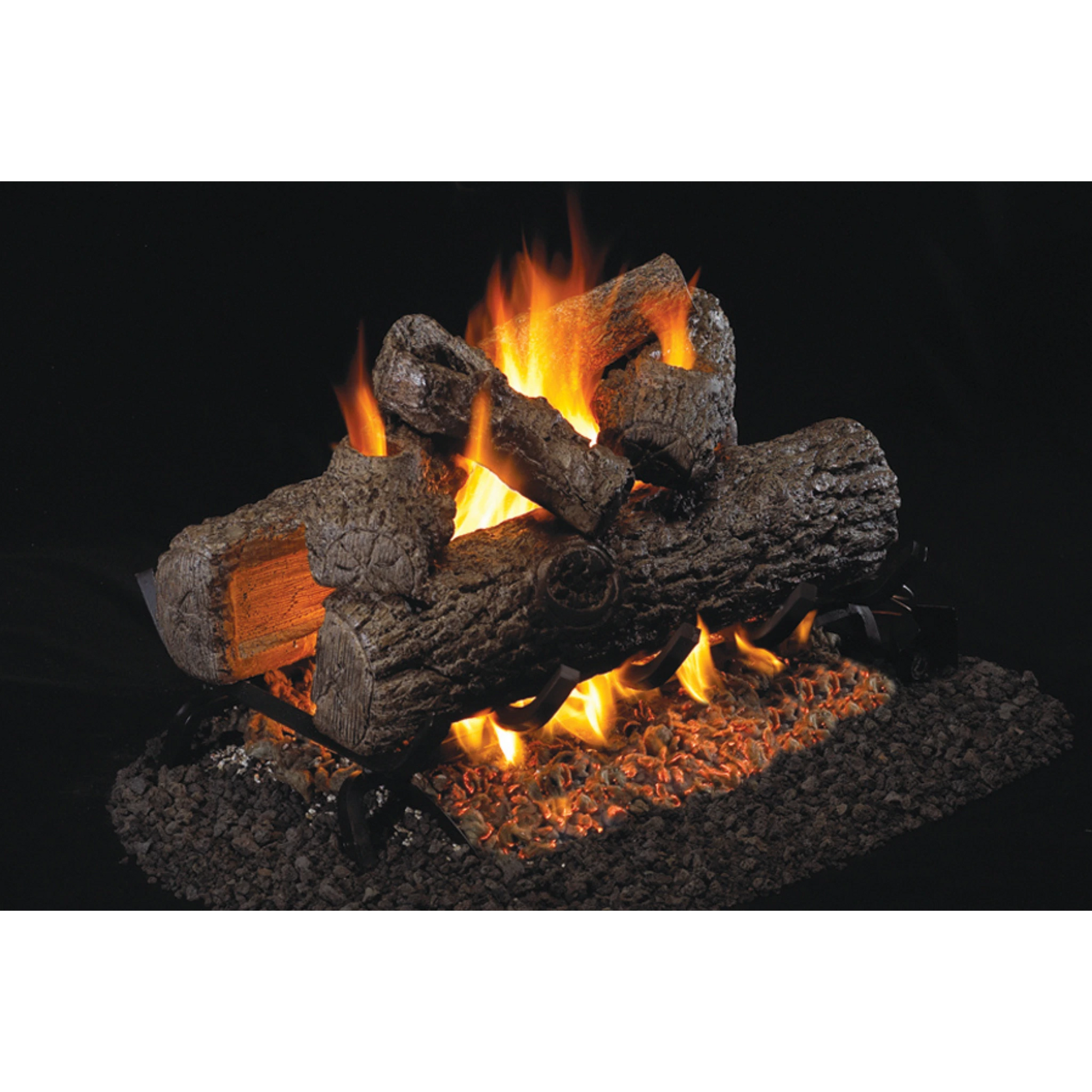

Real Fyre Golden Oak See-Through is a vented gas log set for a see-through (two-sided) wood-burning fireplace that has a natural gas line. The Golden Oak pattern from the Classic series, the lowest-priced Real Fyre log style.
Who it's for
Right buyer. You have a see-through wood-burning fireplace with a gas line and want the Golden Oak look finished on both sides.
Wrong buyer. Your fireplace is open on one side; the standard Golden Oak set fits it and costs less.
How it performs
The Golden Oak See-Through set is a vented gas fire in a wood-burning fireplace (with a second set of logs facing the other room): the burner runs under and through the logs, the flames are tall and yellow and move like a wood fire's, and the embers glow under them.
Good to know
- Vented logs are decorative: the damper is open and most of the heat goes up the chimney. For heat, the vent-free version of this style is the one.
- The logs never burn away, but they char and darken where the flame touches; that is part of the look.
- Gas use is real: a 24-inch burner on high draws about what a large furnace does. Low is for long evenings.
Specifications
Dimensions
A see-through fireplace is open on two sides, so there is one width to measure: the narrowest point between the side walls. Depth is the distance from one opening to the other, measured inside any raised lip. Every size needs 17 inches of height.
Your firebox must be at least as large as the row for the size you want. The width allows the burner to sit centered. If you are within an inch of a minimum, order the next size down: a set that is too big disturbs the draft and overheats the valve.
Minimum firebox size with a control (manual pilot or any remote)
| Log size | Width | Depth |
|---|---|---|
| 16" | 29" | 15" |
| 18" | 30" | 17" |
| 20" | 30" | 17" |
| 24" | 34" | 17" |
| 30" | 40" | 17" |
| 36" | 46" | 22" |
| 42" | 52" | 22" |
Electronic On/Off Remote needs 2 inches more width for its battery and switch box.
Minimum firebox size with Match Light (no valve beside the burner)
| Log size | Width | Depth |
|---|---|---|
| 16" | 25" | 15" |
| 18" | 26" | 17" |
| 20" | 26" | 17" |
| 24" | 30" | 17" |
| 30" | 36" | 17" |
| 36" | 42" | 22" |
| 42" | 48" | 22" |
The chimney must be at least 15 feet tall, and the firebox floor cannot have an ash lip or a sunken hearth deeper than 3/4 inch on either side. Sizes of 42 inch and larger are not factory-assembled: the burner ships with a separate control kit, and Peterson does not list those sizes with a testing agency, so check your local code before you order.
Clearances
A vented gas log set borrows the fireplace's own clearances: the mantel, hearth and side-wall rules of the wood-burning fireplace it goes into stay exactly as they were built and inspected. What the log set adds is the room the burner and the flames need inside the firebox, below, and three rules: the damper fixed fully open with the clamp supplied, glass doors open or removed whenever the burner runs, and nothing stored or draped within 3 feet of the front of the fireplace.
Documents
- G45-2 see-through with a factory valve: installation and owner's manual
- G45-2 see-through match light and kit-controlled: installation and owner's manual
Details
| Log set models | R-2‑16, R-2‑18, R-2‑20, R-2‑24, R-2‑30, R-2‑36, R-2‑42 |
|---|---|
| Burners | G45‑2‑16/19, G45‑2‑18/20, G45‑2‑24, G45‑2‑30, G45‑2‑36, G45‑2‑42. Suffix A, -11, -17 or -02 up to 36 inch; kits APK-10 or EPK-3V-TR at 42 inch and larger |
| Fuel | Natural gas. Not field-convertible to propane |
| Inlet pressure | 5 to 10.5 inches w.c. |
| Gas supply | 1/2 inch minimum inside diameter; larger if the run is over 20 feet |
| Certification | With a factory valve, to 36 inch: ANSI Z21.60 / CSA 2.26. Match light, to 30 inch: ANSI Z21.84 |
| Chimney | 15 feet minimum from hearth to top |
| Ash lip or recess | 3/4 inch maximum |
| Log set shipping weight | 16" about 29 lb, 18" about 37 lb, 20" about 45 lb, 24" about 64 lb, 30" about 96 lb, 36" about 155 lb, 42" about 200 lb |
| Warranty | Refractory ceramic logs: lifetime for the original owner, indoors. Burners: 10 years. SPK-26: 3 years. 17-series valve: 2 years. Other valves, pilots and remotes: 1 year |
Warranty
| Component | Coverage |
|---|---|
| Ceramic refractory logs | Lifetime, for as long as you own them |
| Burner parts, except valves, pilots and controls | 10 years |
| Outdoor stainless steel burners | 5 years |
| Fyre Glass, gems and nuggets | 5 years |
| SPK-26 safety pilot control | 3 years |
| APK-17 control | 2 years |
| All other valves, pilots and controls (batteries excluded) | 1 year |
Source: R.H. Peterson Real Fyre limited warranty, printed in the burner manual linked above. Register the set with Peterson after installation.
Heat
| Log size | With a control | Match Light |
|---|---|---|
| 16" | 50,000 | 45,000 |
| 18" | 85,000 | 80,000 |
| 20" | 85,000 | 80,000 |
| 24" | 105,000 | 90,000 |
| 30" | 110,000 | 90,000 |
| 36" | 110,000 | 130,000 |
| 42" | 150,000 | 150,000 |
Choices and prices
The burner
See-through sets run on one burner, the Real Fyre G45-2. It is a Triple-T burner on a raised platform, with ember burners facing both openings so each room sees a glowing ember bed and a full flame. With any control, sizes up to 36 inch arrive certified to ANSI Z21.60 with the valve already assembled and tested at the factory. At 42 inch and larger the control ships as a separate kit.
Control
Match Light. There is no valve on the burner. You hold a long lighter at the burner and open the gas with your fireplace's wall or floor key, which also sets the flame height. Natural gas only. Some cities require a safety pilot instead, so check with your installer or building department.
Manual Safety Pilot. A small pilot flame stays lit, and you turn a knob at the burner to light the logs. If the pilot ever goes out, the valve shuts off the gas. No batteries and no wiring.
On/Off Remote. A standing pilot plus a handheld remote that turns the fire on and off. It keeps working in a power outage. The remote and receiver run on batteries that come in the box.
Variable Remote. Everything the On/Off Remote does, and the remote also raises and lowers the flame.
Electronic On/Off Remote. No standing pilot. Press On and the system sparks its own pilot, then lights the burner, so you are not burning gas on a pilot all season. It runs on batteries that come in the box and needs a slightly wider firebox (see the fit tables).
Electronic Variable Remote (110V). Electronic ignition with flame height on the remote, powered from a household outlet, so you need 110-volt power at the fireplace.
At 42 inch and larger the choices are Match Light, On/Off Remote and the 110-volt Electronic Variable Remote. The remote controls at those sizes ship as a separate Real Fyre kit for your installer to fit.
What arrives
- Log carton: the Golden Oak See-Through log set with its placement guide. Sets of 36 inch and larger ship in more than one carton, and some logs need two people to lift.
- Burner carton: burner, see-through grate, log locators, glowing embers, sand for the burner pan, gas connector kit and damper clamp. Burners with a control also include the valve and regulator, already assembled. Remote versions include the handheld remote, receiver and batteries.
- Control kit carton: only with a 42 inch or larger set and a control.
Cartons can arrive on different days. Do not start the installation until everything is there.
Installation
A vented set goes into a wood-burning fireplace with a working chimney and a gas line, by a licensed gas installer, in about two hours.
- Gas: a dedicated 1/2-inch line to a shutoff at the fireplace; natural gas at 5 to 7 inches of water column, propane at 11 to 13. The connector runs through a plate in the firebox floor or wall.
- Damper: fixed fully open with the clamp in the box. This is the rule that makes a vented set safe; the fire's exhaust goes up the chimney like a wood fire's.
- Doors: open or removed whenever the burner runs.
- Burner: set on the grate in the center of the firebox, the logs placed by the diagram in the box, embers scattered on the burner, sand or vermiculite in the pan for natural gas, lava rock for propane.
- Controls: a match-light burner uses the fireplace's key valve; a safety-pilot burner has its own valve and knob; an electronic burner takes batteries in the control box or a 110-volt outlet inside the firebox for the plug-in version, and the remote pairs once.
- Codes: match-light burners are not allowed in some cities; the installer knows which. Most jurisdictions want the inspection.
Planning the install
- For see-through (two-sided) wood-burning fireplaces only, masonry or factory-built, with a working chimney. Not for single-sided fireplaces, vent-free fireboxes, direct-vent or B-vent gas fireplaces, or stoves.
- You need a natural gas line into the firebox, 1/2 inch inside diameter or larger, with a shut-off valve outside the firebox.
- The included clamp fixes the damper so it can never close completely. The damper must be fully open whenever the fire is on, glass doors fully open, and a screen in place.
- Installation is by a qualified gas professional. Have the chimney swept first and the set inspected once a year.
- Do not burn wood in the fireplace once the gas logs are installed, and do not leave the fire on unattended or while anyone is sleeping.
- Above 2,000 feet elevation, add a note to your order. Peterson builds high-altitude versions.
Questions
Can I use a see-through set in a regular fireplace?
No. The G45-2 burner and these logs are made for fireplaces that are open on two sides. For a single-sided fireplace, choose the standard Golden Oak set.
Do vented gas logs heat the room?
A little. Vented logs burn with the damper open, the way a wood fire does, so most of the heat goes up the chimney. You feel radiant warmth in front of the fire. Peterson certifies these sets as decorative appliances, not heaters.
Should I order the 18 or the 20 inch?
Both sit on the same 18/20 burner and need the same firebox. The 20 inch logs are longer, so choose by how full you want the firebox to look.
Can I get it in propane?
Yes, by request. Everything on this page is natural gas. Add a note to your order and we will contact you to confirm the propane version before it ships. Propane always requires a safety pilot, so Match Light is not available in propane.
Do I need electricity at the fireplace?
No. The standing-pilot controls need no power at all, and the electronic controls and remotes run on batteries that come in the box. The one exception is the 110-volt Electronic Variable Remote on 42 inch and larger sets.
Can I add a remote later?
Only by adding or replacing the valve. It costs less to choose a remote control now.
