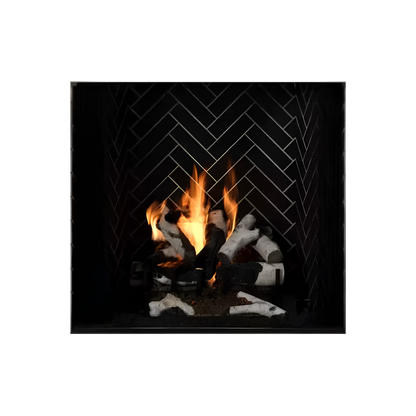

Majestic Ashland Wood Burning Fireplace
The Majestic Ashland is a factory-built wood-burning fireplace with a large open firebox, a steel grate and a choice of brick refractory and doors, in 36, 42 and 50 inch. Sizes: Ashland 36, Ashland 42, Ashland 50. Choose the size, then the refractory and doors that finish it; the price updates as you go.
- Type: Wood Fireplace
- Sizes: 36", 42", 50"
- Fuel: Seasoned firewood
- Made by: Majestic, a Hearth & Home Technologies brand
Who it's for
Right buyer. You want a large open wood-burning fireplace for a new build, with a choice of brick refractory and doors, and gas log options later, in 36, 42 or 50 inch.
Wrong buyer. You want heat from your wood fire; the WarmMajic-II. You want an outdoor fireplace; the Cottagewood or Castlewood.
Will it fit?
Framing the opening
Frame the rough opening below, measured inside the studs. Depth is from the finished face of the wall. Where the vent pipe goes through the framing there is a separate hole; the manual's drawing gives its position.
| Model | Width | Height | Depth |
|---|---|---|---|
| Ashland 36 | 47‑7/8" | 74‑1/2" | 28‑1/2" |
| Ashland 42 | 53‑7/8" | 74‑1/2" | 28‑1/2" |
| Ashland 50 | 61‑7/8" | 74‑1/2" | 28‑1/2" |
Framing notes from the manual
- Ashland 36: Back width: actual 31-1/8, framing 47-7/8. Fireplace opening printed as 36 x 38. If interior of chase will be drywalled, add the thickness. Adjust header height for raised floor under fireplace. Must have 2 in. minimum clearance to header. Framing must be extended straight up 84 in. from base of fireplace.
- Ashland 42: Back width: actual 37-1/8, framing 53-7/8. Fireplace opening printed as 42 x 38. If interior of chase will be drywalled, add the thickness. Adjust header height for raised floor under fireplace. Must have 2 in. minimum clearance to header. Framing must be extended straight up 84 in. from base of fireplace.
- Ashland 50: Back width: actual 45-1/8, framing 61-7/8. Fireplace opening printed as 50 x 38. Framing must be extended straight up 84 in. from base of fireplace. *If interior of chase will be drywalled, add the thickness. **Adjust header height for raised floor under fireplace. 2 x 4 stud header (notches).
The fireplace itself
| Model | Width | Height | Depth |
|---|---|---|---|
| Ashland 36 | 46‑7/8 | 74‑1/8 | 27‑1/2 |
| Ashland 42 | 52‑7/8 | 74‑1/8 | 27‑1/2 |
| Ashland 50 | 60‑7/8 | 74‑1/8 | 27‑1/2 |
Models and prices
| Model | Part | Firebox opening | Fireplace only |
|---|---|---|---|
| Ashland 36 | ASH36-B | 36" x 38" Opening | $3,469 |
| Ashland 42 | ASH42-B | 42" x 38" Opening | $3,999 |
| Ashland 50 | ASH50-B | 50" x 38" opening | $4,789 |
Required to complete: Qty: 1 Refractory Set Flex Duct for Outside Air Kit.
Clearances
Clearances are to combustible materials, from the appliance. They come from the installation manual for this model and depend on how it is vented; the installer confirms them on site.
| Clearance | Minimum |
|---|---|
| Sides | 1‑1/2" |
| Back | 1‑1/2" |
| Front | 48" |
| Ceiling | 7 ft |
| Adjacent wall | 24" |
| Hearth extension | 20" |
| Floor | 0" |
Notes from the manual
Back and sides of unit 1-1/2 in. (except at nailing flanges where it is 1/2 in.). 0 in. to floor. Combustible object 48 in. 7 ft minimum base of fireplace to ceiling. 24 in. from fireplace opening to any perpendicular wall. 2 in. minimum air space clearance around chimney pipe. Hearth extension: raised or flush platform 20 in. minimum (R value of hearth must be equal to or greater than 2.32); figure shows 60 in. overall width with 12 in. each side of the 36 in. opening. Mantel figure 'measured from top of fireplace opening' shows 12 in., 12 in. minimum, 1-1/2 in. maximum (combustible decorative facing), 6 in. minimum and mantel callouts; not transcribed into the structured mantel field.
Heat and burn
An open wood fireplace is not a rated heater, and Majestic publishes no BTU figure for it: the fire warms what it faces by radiation, and most of the heat from the flue goes outdoors. What decides how much fire you get is the firebox: Ashland 36 opens 74-1/2", Ashland 42 opens 74-1/2", Ashland 50 opens 74-1/2", Ashland 36 opens 74-1/8, Ashland 42 opens 74-1/8, Ashland 50 opens 74-1/8, Sides opens 1-1/2", Front opens 7 ft, Adjacent wall opens 20", Floor opens ASH36-B, Ashland 42 opens 42" x 38" Opening, Ashland 50 opens 50" x 38" . Seasoned hardwood, a proper chimney draft and doors closed as the fire burns down give the most warmth for the wood. Where a gas log set is approved for the model, its rating is on the log-set page.
Choose your options
Refractory

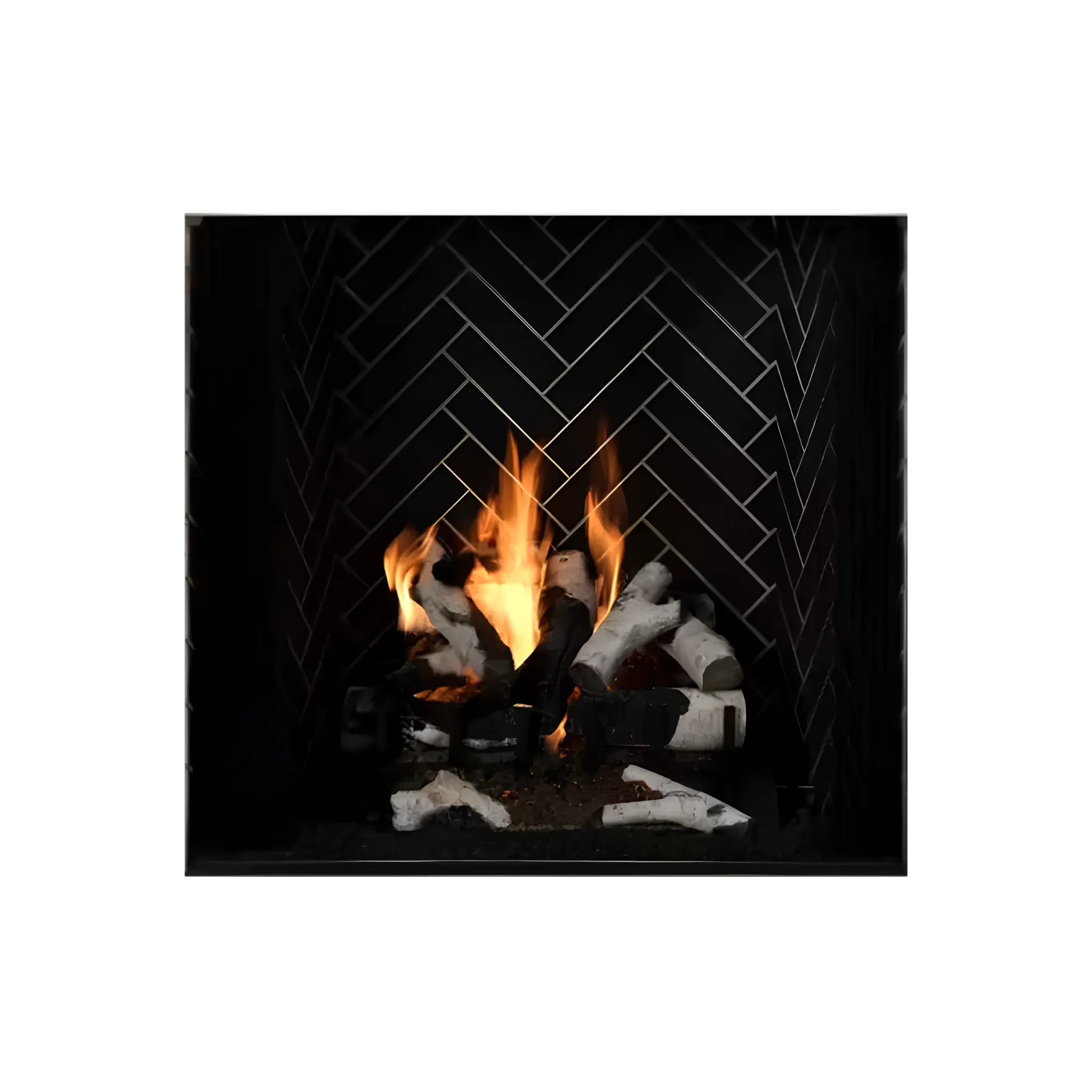

The refractory is the brick lining of the firebox. Traditional is a running bond; herringbone sets the bricks on the diagonal. Both are the same material and price class; the choice is the look.
| Refractory | Part | Price |
|---|---|---|
| 36" Natural Gray Herringbone Refractory Set | WDR3836-H-NG | $1,429 |
| 36" Black Onyx Herringbone Refractory Set | WDR3836-H-BK | $1,889 |
| 36" Masonry Brown Herringbone Refractory Set | WDR3836-H-BR | $1,889 |
| 36" Antler Velvet Herringbone Refractory Set | WDR3836-H-AV | $1,889 |
| 36" Natural Gray Traditional Refractory Set | WDR3836-T-NG | $1,059 |
| 36" Black Onyx Traditional Refractory Set | WDR3836-T-BK | $1,529 |
| 36" Antler Velvet Traditional Refractory Set | WDR3836-T-AV | $1,529 |
| 36" Masonry Brown Traditional Refractory Set | WDR3836-T-BR | $1,529 |
| 10 lbs. Mortar (TRAD: 1 required, HERR: 2 required) | MMMORTR | $101 |
| 42" Natural Gray Herringbone Refractory Set | WDR3842-H-NG | $1,579 |
| 42" Black Onyx Herringbone Refractory Set | WDR3842-H-BK | $2,039 |
| 42" Masonry Brown Herringbone Refractory Set | WDR3842-H-BR | $2,039 |
| 42" Antler Velvet Herringbone Refractory Set | WDR3842-H-AV | $2,039 |
| 42" Natural Gray Traditional Refractory Set | WDR3842-T-NG | $1,509 |
| 42" Antler Velvet Traditional Refractory Set | WDR3842-T-AV | $1,889 |
| 42" Masonry Brown Traditional Refractory Set | WDR3842-T-BR | $1,889 |
| 42" Black Onyx Traditional Refractory Set | WDR3842-T-BK | $1,889 |
| 10 lbs. Mortar (TRAD: 1 required, HERR: 2 required) | MMMORTR | $101 |
| 50" Natural Gray Herringbone Refractory Set | WDR3850-H-NG | $2,299 |
| 50" Antler Velvet Herringbone Refractory Set | WDR3850-H-AV | $2,449 |
| 50" Black Onyx Herringbone Refractory Set | WDR3850-H-BK | $2,449 |
| 50" Masonry Brown Herringbone Refractory Set | WDR3850-H-BR | $2,449 |
| 50" Natural Gray Traditional Refractory Set | WDR3850-T-NG | $1,929 |
| 50" Masonry Brown Traditional Refractory Set | WDR3850-T-BR | $2,079 |
| 50" Black Onyx Traditional Refractory Set | WDR3850-T-BK | $2,079 |
| 50" Antler Velvet Traditional Refractory Set | WDR3850-T-AV | $2,079 |
| 10 lbs. Mortar (TRAD: 1 required, HERR: 2 required) | MMMORTR | $101 |
Doors
Doors close the opening when the fire is out or burning down, and cut the room air drawn up the chimney. Glass bi-fold doors show the fire closed; mesh doors are the screen alternative.
| Doors | Part | Price |
|---|---|---|
| Glass bi-fold door, black | DFG4036BK | $1,749 |
| Glass bi-fold door - Black | DFG4042BK | $2,169 |
| Glass bi-fold door - Black | DFG4050BK | $2,289 |
Chimney and installation
| Venting | Requirement |
|---|---|
| Type | Factory-built wood-burning fireplace chimney (per install manual) |
Chimney requirements, flue sizes and heights are in the install manual; not printed in this guide.
A factory-built wood fireplace is framed into the wall on a combustible floor with the clearances in its manual, and vented with the chimney pipe system listed for it, run inside a chase up through the roof. The pipe, supports, firestops and cap are sold separately and quoted from your installer's plan. Gas log sets and gas starters need the knockouts and a gas line run by an installer.
What arrives
- Steel Grate
- Dual gas knockouts
- Outside Air Kit
- Safety Firescreen
- Attic insulation shield
- UL Listed
- Not Approved in Canada
- The refractory, doors and any accessories ship as their own cartons.
Before you order
- Installation is by a qualified installer, and the fireplace and its chimney are inspected together.
- Framing, clearances, hearth extension and chimney height come from the installation manual for your size. Send us your plan and we will check it before anything ships.
- The chimney system is sold separately and priced from the plan.
- Burn seasoned firewood only. Check local rules on wood-burning appliances before you build.
- Special-order goods ship by freight. Confirm the size and refractory before you order.
How it performs
The Ashland is the big open wood fireplace: a wide brick firebox, a steel grate, a real fire with the smell and the sound, and a hearth people gather in front of. Open, it is a fireplace, not a heater; most of its heat goes up the chimney, and the warmth you feel is the radiant heat on your face. With the doors closed and a gas log set installed later, it becomes a gas fireplace with an open look.
Trade-offs to know
- Not a heat source for the house; the WarmMajic-II or a wood insert is.
- It needs the chimney system the manual lists, run to the height it requires, which is often the larger part of the cost.
- Seasoned wood only, and a sweep every year.
Living with it
Empty ash when it is cold, keep the grate in place, have the chimney swept yearly. The refractory panels crack with age and are replaceable. The doors, if you add them, keep the room's warm air from going up the flue overnight.
Specifications
| Models | ASH36-B, ASH42-B, ASH50-B |
|---|---|
| Type | Factory-built wood-burning fireplace |
| Fuel | Seasoned firewood; vented gas log sets optional where the manual allows |
| Listing | UL/ULC listed |
| Manufacturer | Majestic, a Hearth & Home Technologies brand, USA |
| Viewing area, Ashland 36 | 36 x 38 |
| Weight, Ashland 36 | 200.0 lb |
| Viewing area, Ashland 42 | 42 x 38 |
| Weight, Ashland 42 | 279.0 lb |
| Viewing area, Ashland 50 | 50 x 38 |
| Weight, Ashland 50 | 310.0 lb |
Warranty
| Component | Coverage |
|---|---|
| Firebox and heat exchanger | Limited lifetime (10 years), 3 years labor |
| Castings, medallions and baffles | 10 years, 3 years labor |
| Molded refractory panels | 3 years |
| Glass; blowers and electrical parts | 1 year parts and labor |
| All other parts | 1 year |
Source: Hearth & Home Technologies Limited Lifetime Warranty, the document packed with the appliance and linked from the owner's manual above. "Lifetime" means 20 years for gas appliances, 10 years for wood and pellet appliances and 5 years for standalone gas log sets, counted from the start of coverage, which begins no later than 24 months after the appliance ships from the factory.
Questions people ask
Can I put gas logs in it?
Most Majestic wood fireplaces have gas knockouts and are listed for specific vented gas log sets; the options on this page are the ones Majestic approves for this model. A gas line and installation by a gas fitter are required.
Does it heat the room?
An open wood fireplace is for the look and the radiant warmth in front of it; most of the heat goes up the chimney. Doors help. For heating, look at the WarmMajic-II or a wood insert.
Which chimney pipe does it take?
The pipe system listed in the manual for this model, in the diameter and minimum height it specifies. We quote it from your installer's plan.
Can I return it?
Fireplaces are special-order freight items. Confirm the size, refractory and doors with us before you order, and contact us before returning anything.
What wood should I burn?
Seasoned hardwood, split and dried a year or more, below 20 percent moisture. Wet wood smokes, coats the chimney with creosote and makes a poor fire.
How often does the chimney need sweeping?
Once a year at least, and after every cord or two if you burn nightly. Creosote is the fire risk in any wood fireplace, and a sweep is cheap insurance.
Do I need the doors?
No, but they pay for themselves: closed, they stop room air going up the flue when the fire burns down, and they keep sparks in. Glass doors let you see the fire closed.
Can I add a blower later?
Where the model lists a fan or forced-air kit on this page, yes; it fits into the cabinet without rebuilding. Models without a listed kit are radiant only.
Manuals and drawings
- Ashland 36" Wood Fireplace Architect Guide (MAJ/ASH36_1020) (pages 1-2)
- Ashland 42" Wood Fireplace Architect Guide (MAJ/ASH42_1020) (pages 1-2)
- Ashland 50" Wood Fireplace Architect Guide (MAJ/ASH50_0418) (pages 1-2)
- Install Manual: Ashland (PDF)
- Owners Manual: Ashland (PDF)
- Service Part List: Ashland (PDF)
- Majestic user guides and manuals
