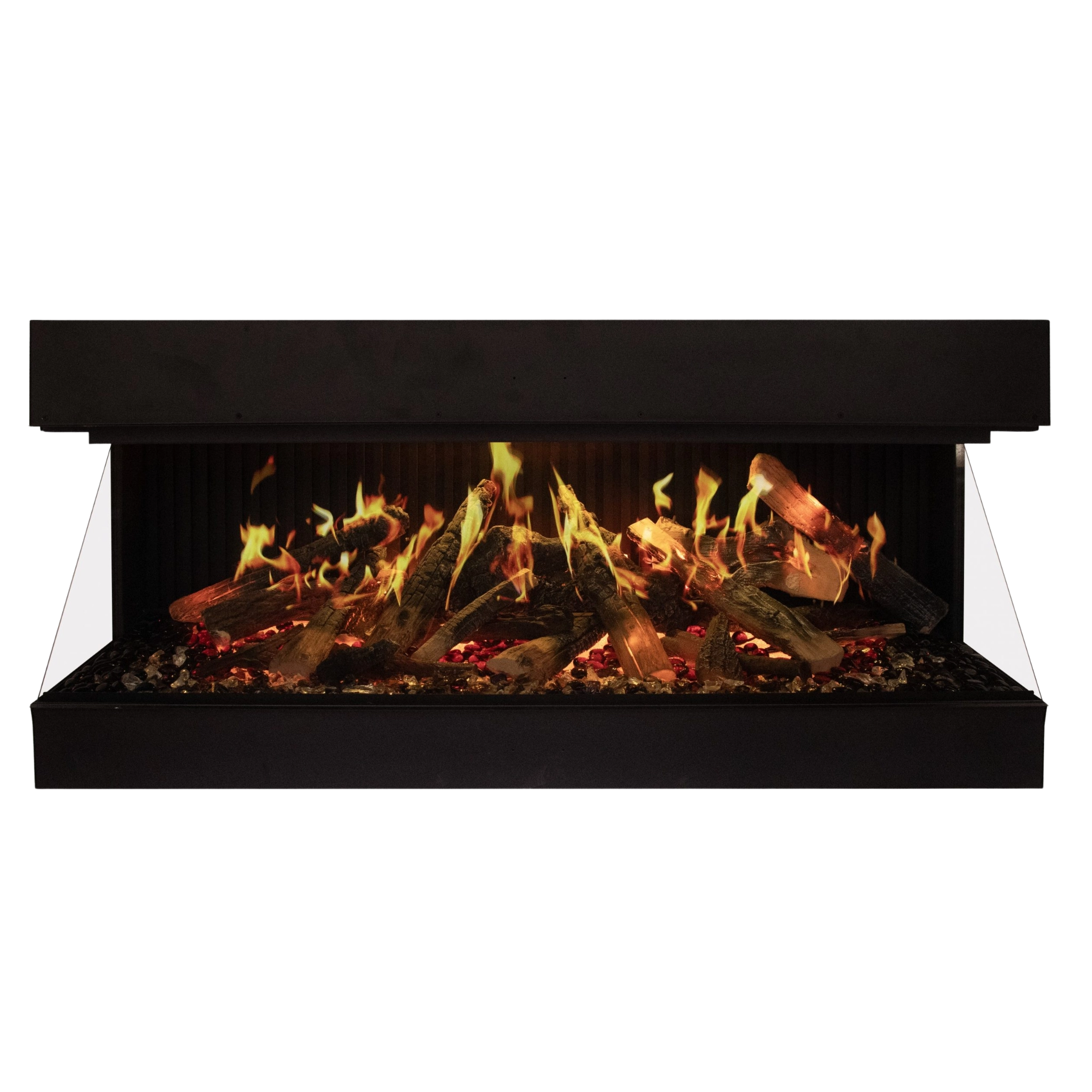

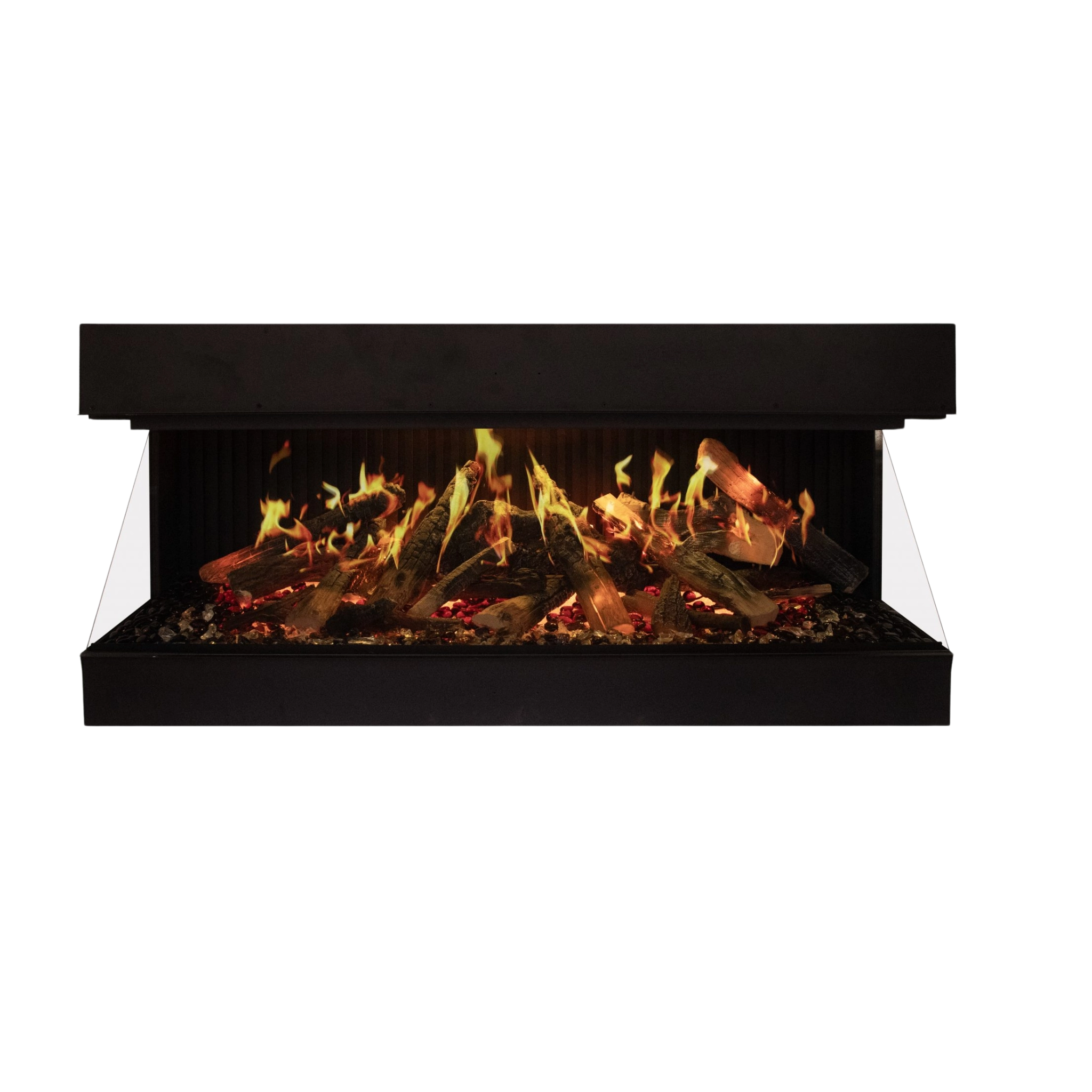

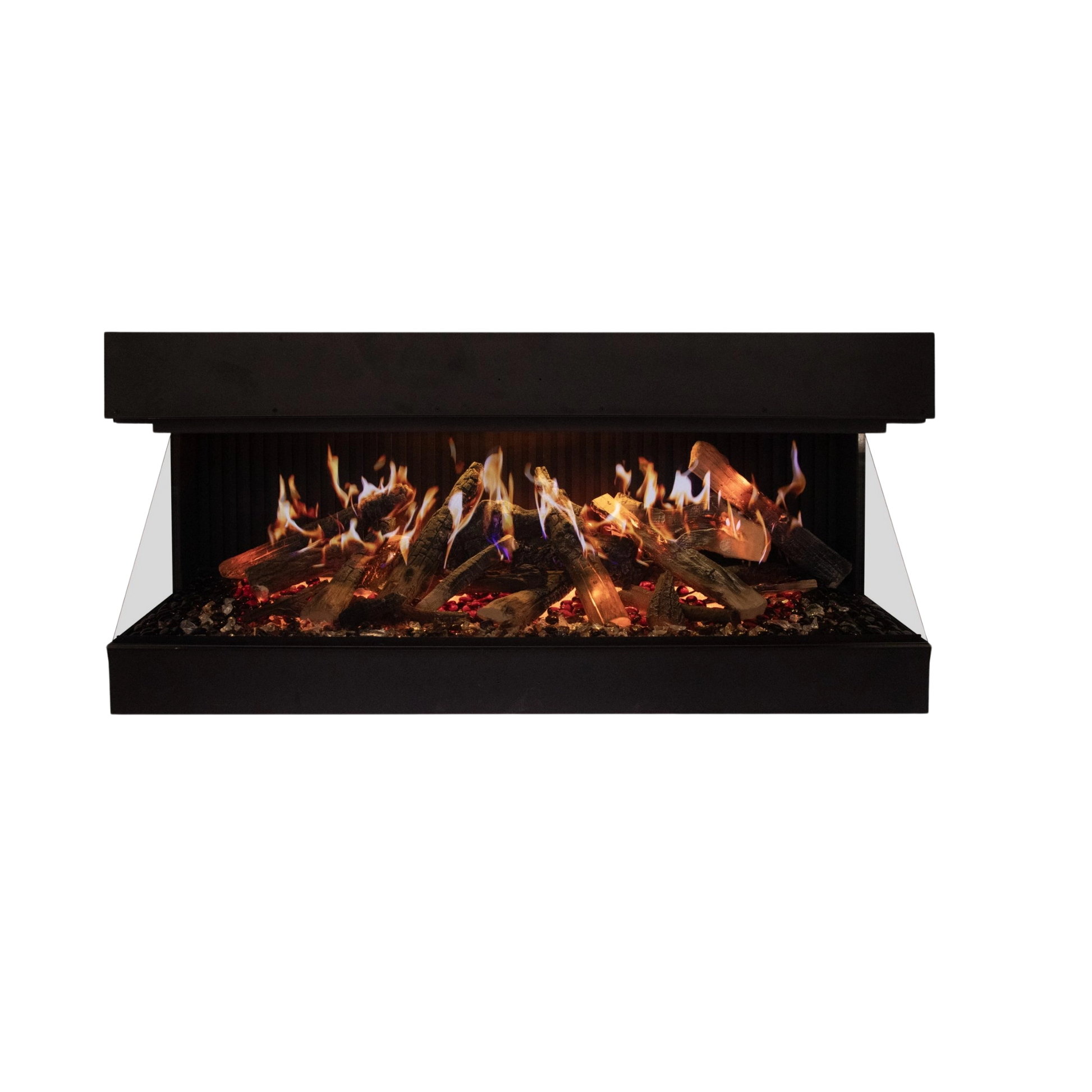

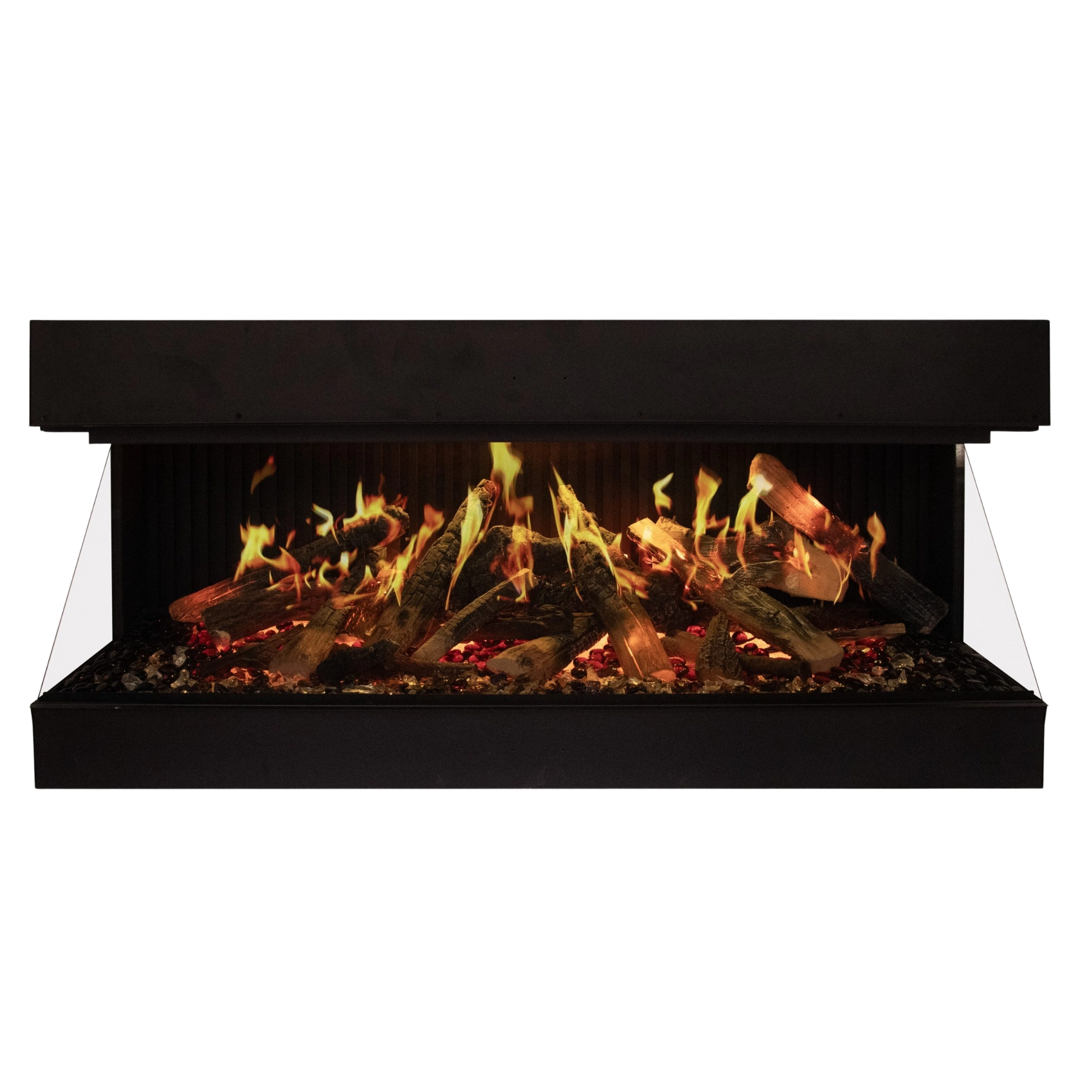

Amantii Signature Multiview Holo Electric Fireplace
At a glance
- Type: Electric Fireplace
- Sizes: 55 inch, 75 inch, 40 inch
- Installs: Built into a framed wall, three-sided, indoor; the Holo version projects the flame on two screens.
- Power: 120-volt plug-in on a dedicated circuit; models with a 240-volt option are hardwired
- Heat: Supplemental, about 400 sq ft on 120 volts
- Made by: Amantii, a Sierra Flame brand, Canada
Description
Amantii Signature Multiview Holo Electric Fireplace is Amantii's flagship three-sided built-in electric fireplace. It comes in 3 sizes: 55 inch, 75 inch, 40 inch. In the box: the fireplace with its glass, plus charcoal media, remote.
Who it's for
Right buyer. You want Amantii's flagship three-sided fire, 55 or 75 inches, with the most flame depth, WiFi and Bluetooth, and, on the Holo, a flame that appears to float.
Wrong buyer. You need outdoor rating or a plug-in install.
How it performs

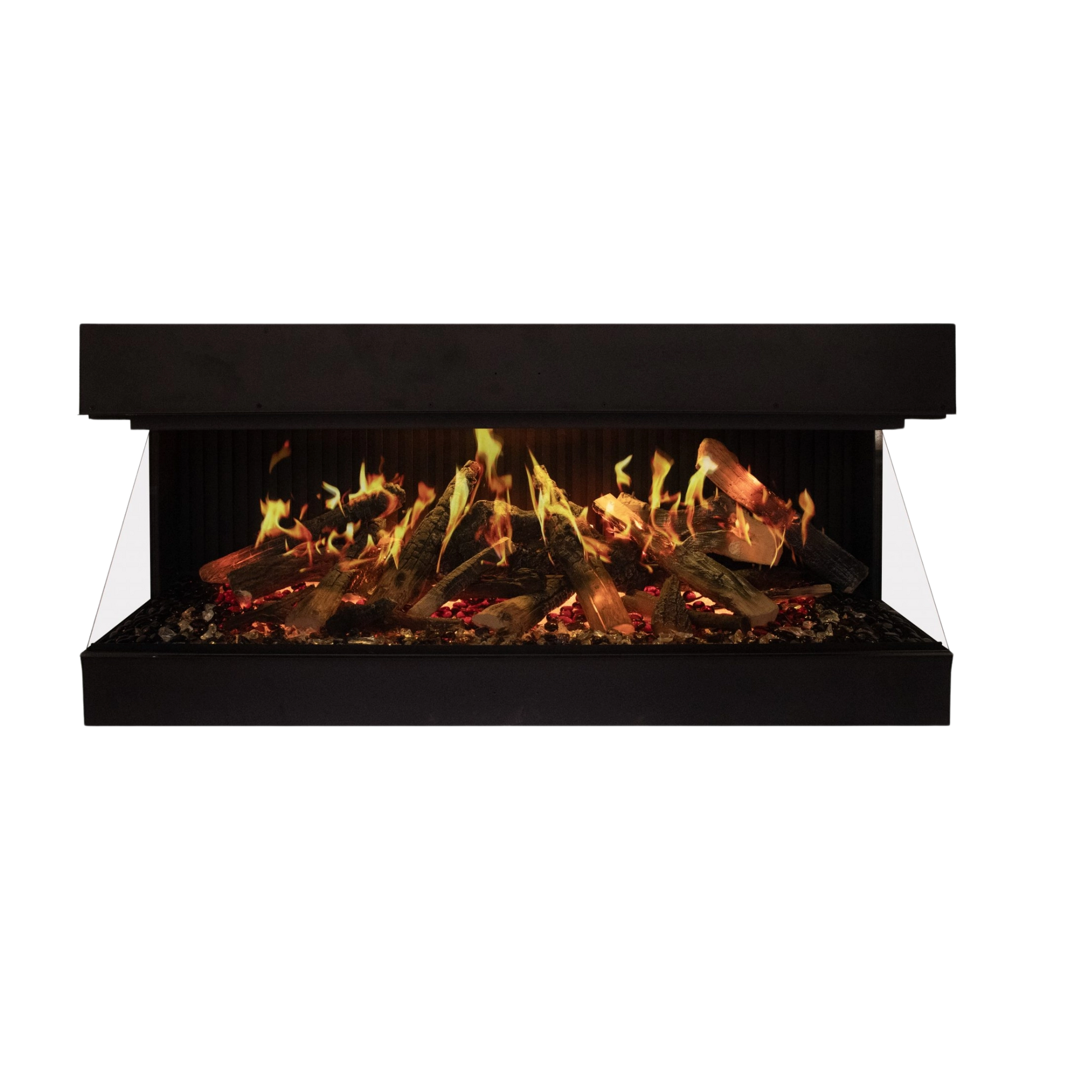

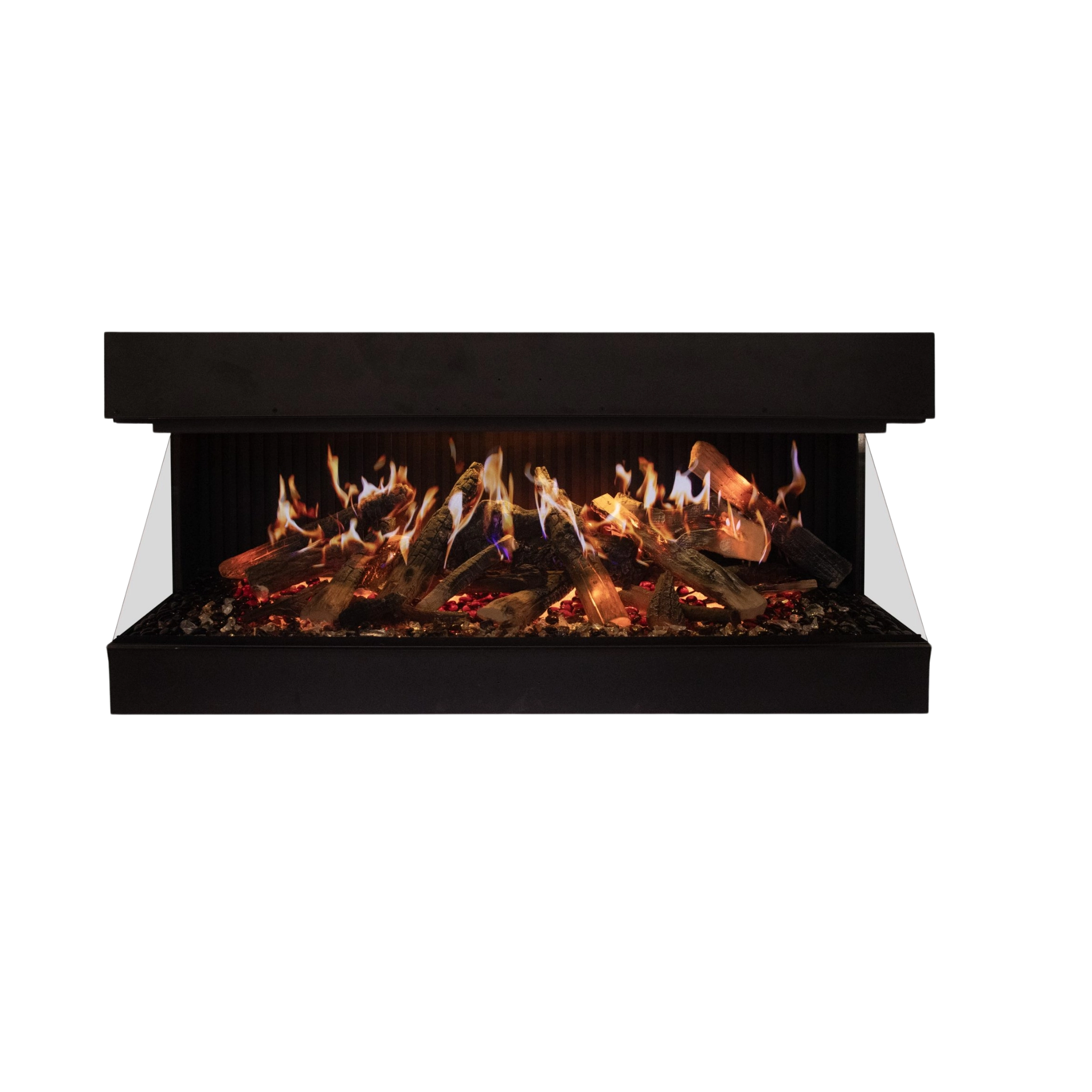

The Signature is the flagship: three-sided, the deepest flame in the line, and on the Holo a flame projected on two screens that appears to float over the charcoal, with smoke and spark effects, 5,000 BTU on 120 volts or 10,000 on 240.
Good to know
- Indoor only.
- The price of the technology; the Tru-View XT XL gives the size for far less.
Specifications
Dimensions
Dimensions from the specification sheet
Height, width and depth of the unit, from Amantii's specification sheets. The wall opening is the unit's width and height plus the clearance in the manual linked below; where Amantii publishes the framing opening it is in the second table. Glass, surround and weight are in the specifications.
| Model | Height | Width | Depth |
|---|---|---|---|
| MULTIVIEW-HOLO-55-SIG | 26‑9/16" | 55" | 19‑7/8" |
| MULTIVIEW-HOLO-75-SIG | 26‑9/16" | 75" | 19‑7/8" |
Clearances
An electric fireplace has no flue and no hot firebox; its clearances are about the heater outlet and the electrical box.
| Clearance | Minimum |
|---|---|
| In front of the heater outlet, to curtains, bedding, furniture | 36" |
| Combustible mantel or shelf above the heater outlet | per the installation manual for the model, linked below |
| Sides and back, to wood framing | 0"; the units are designed to be framed in wood |
| Floor | 0"; no hearth required |
Documents
- MULTIVIEW-HOLO-40-SIG: Manual (PDF)
- MULTIVIEW-HOLO-40-SIG: Spec (PDF)
- MULTIVIEW-HOLO-40-SIG: CAD/BIM/3D
- MULTIVIEW-HOLO-40-SIG: Brochure (PDF)
- MULTIVIEW-HOLO-40-SIG: Wifi Guide (PDF)
- MULTIVIEW-HOLO-40-SIG: Display (PDF)
- MULTIVIEW-HOLO-55-SIG: Manual (PDF)
- MULTIVIEW-HOLO-55-SIG: Spec (PDF)
- MULTIVIEW-HOLO-75-SIG: Manual (PDF)
- MULTIVIEW-HOLO-75-SIG: Spec (PDF)
- Amantii: all product documentation
Details
| Models | MULTIVIEW-HOLO-40-SIG, MULTIVIEW-HOLO-55-SIG, MULTIVIEW-HOLO-75-SIG |
|---|---|
| Type | Electric Fireplace |
| Controls | Multi-function remote; WiFi app |
| Media | See the description |
| Rating | Indoor |
| Manufacturer | Amantii, Sierra Flame, Canada |
Warranty
| Component | Coverage |
|---|---|
| Fireplace, parts and workmanship | 2 years |
| Source | Amantii specification sheet |
Heat
5,000 BTU on 120 V or 10,000 BTU on 240 V. The flames run without heat; the heater is fan-forced from the top of the unit, so nothing shows in front of the glass.
Choices and prices
Sold separately; add them to the cart with the fireplace.
| Part | Accessory | Price |
|---|---|---|
| HOLO-55-BLK-PDS | Amantii Pedestal (Contemporary Pedestal Display with Storage Compartment for M) | $699 |
| HOLO-75-BLK-PDS | Amantii Pedestal (Contemporary Pedestal Display with Storage Compartment for M) | $899 |
What arrives
- The fireplace with its glass, plus charcoal media, remote.
- Media kits, trims, liners and covers ship as their own cartons when you add them.
Installation

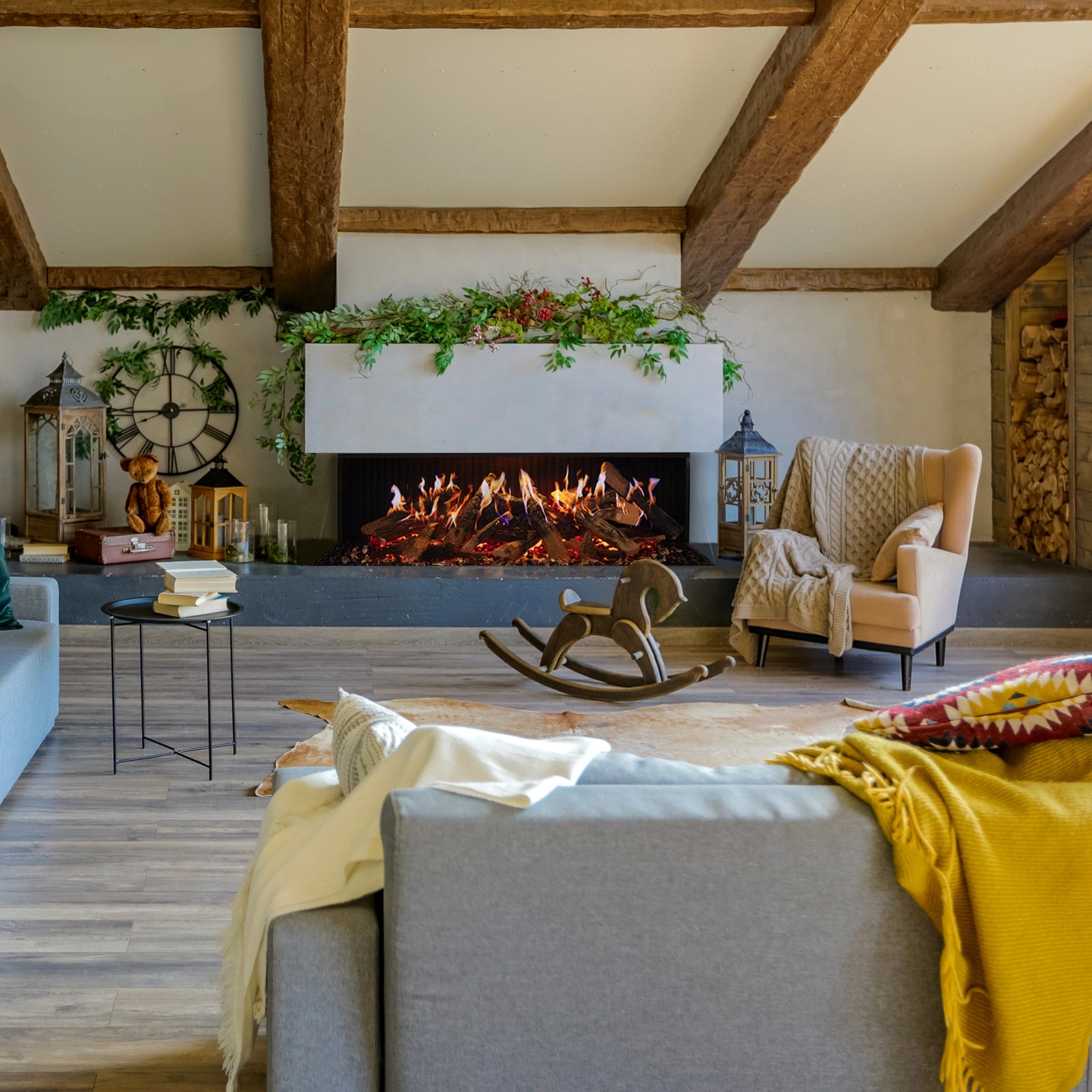

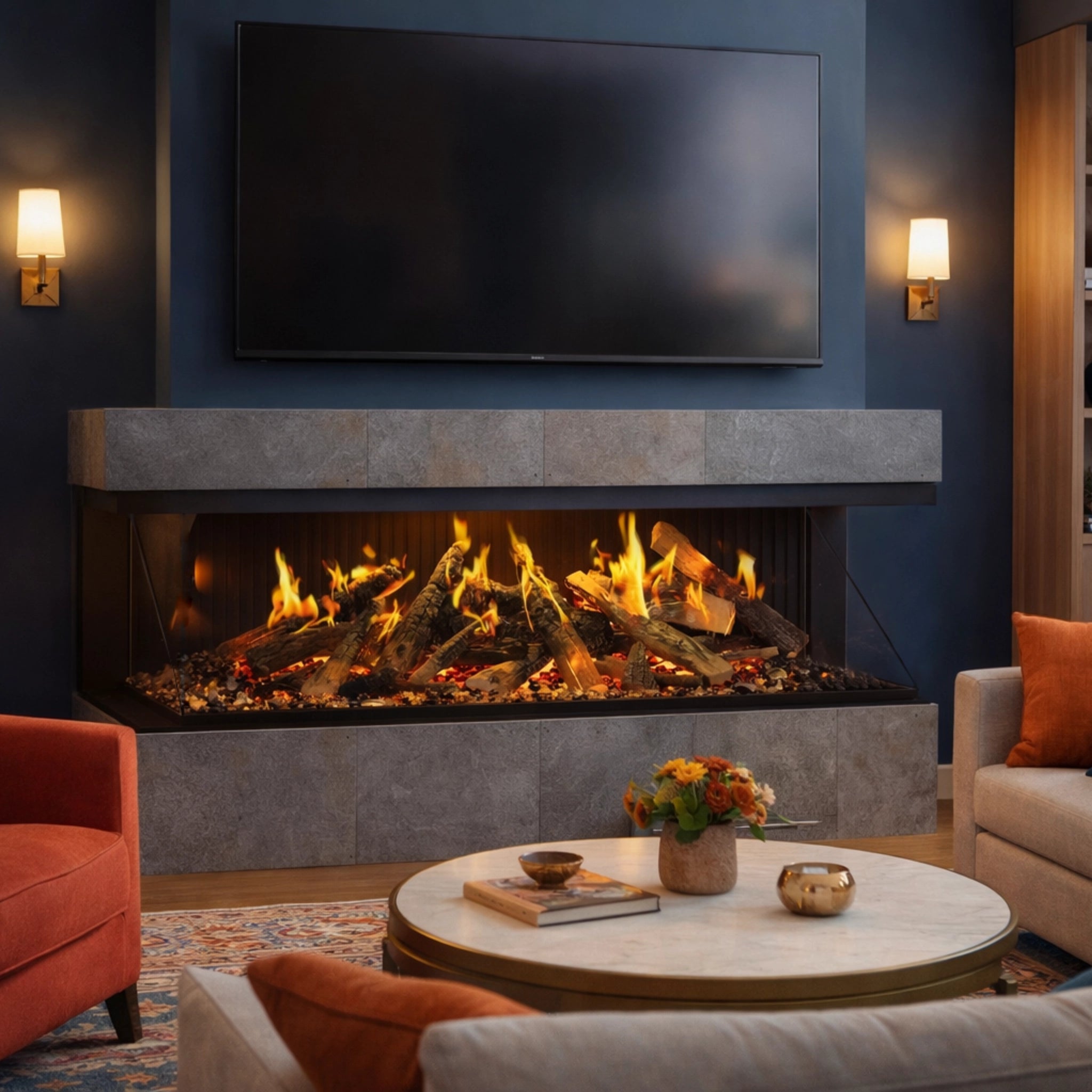

Built in, three-sided, indoor, 19-7/8 in. deep.
Planning the install
- Plug-in models need an outlet on a circuit of their own; no extension cords. 240-volt models need an electrician.
- Built-ins: frame the opening from the specification sheet and confirm with us before you cut.
- Outdoors only where the sheet says indoor-outdoor, and only under cover.
- Special-order goods ship by freight.
Questions
Does it need a dedicated circuit?
Yes. The heater draws around 1,500 watts on 120 volts, most of a 15-amp circuit, so give the fireplace an outlet of its own and never an extension cord. Models with a 240-volt option are hardwired by an electrician.
How much does it heat?
The heater is supplemental: it warms the room you sit in, about 400 square feet on 120 volts, not the house. The flames run without heat on a few watts.
Can it go outdoors?
Only the models Amantii rates indoor-outdoor, and only under cover, protected from rain and direct sun; check the specification sheet linked below for your size.
Can I change the media later?
Yes. The log sets, glass and media kits are separate parts and drop into the media bed; the ones sold on this page are matched to the size.
What does the app do?

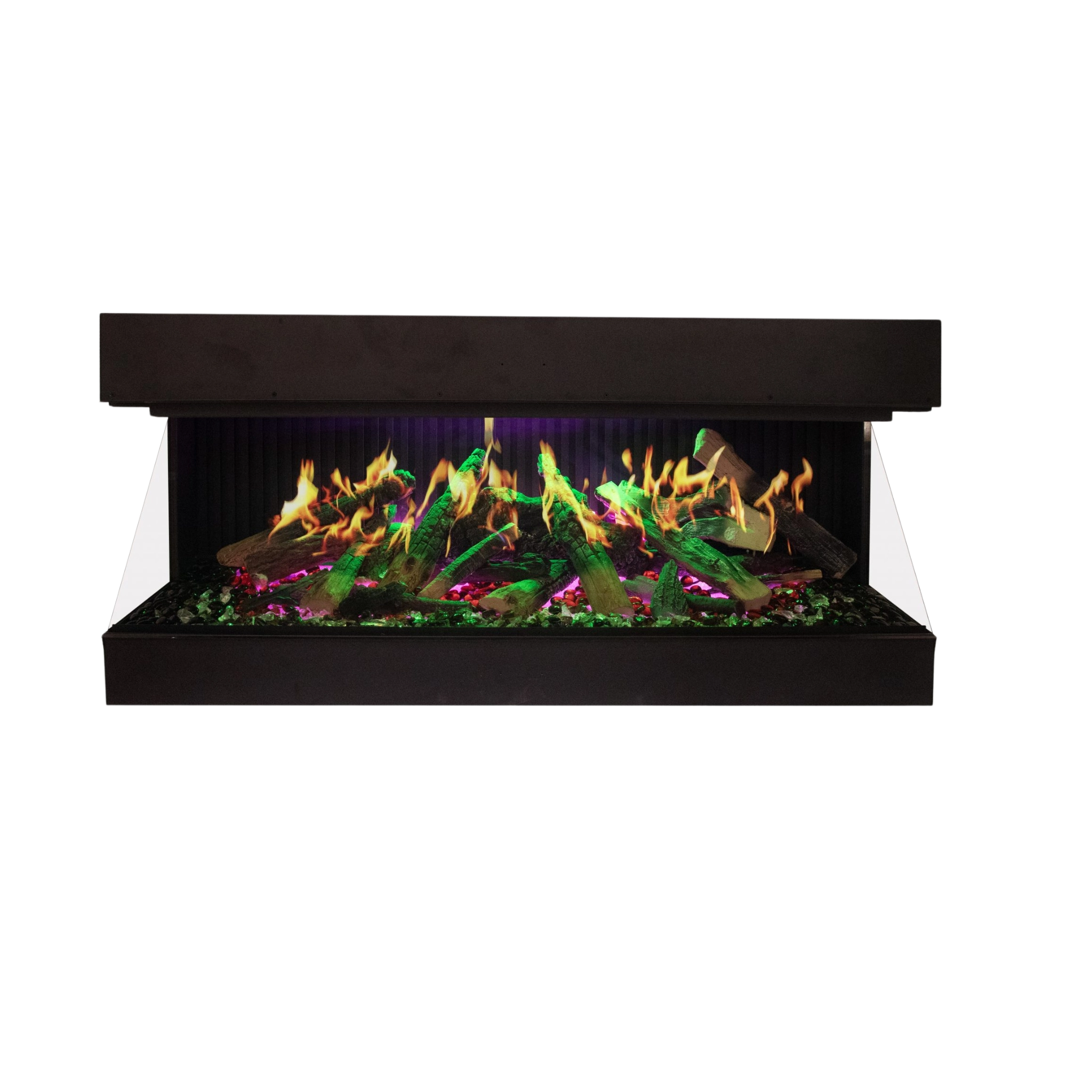

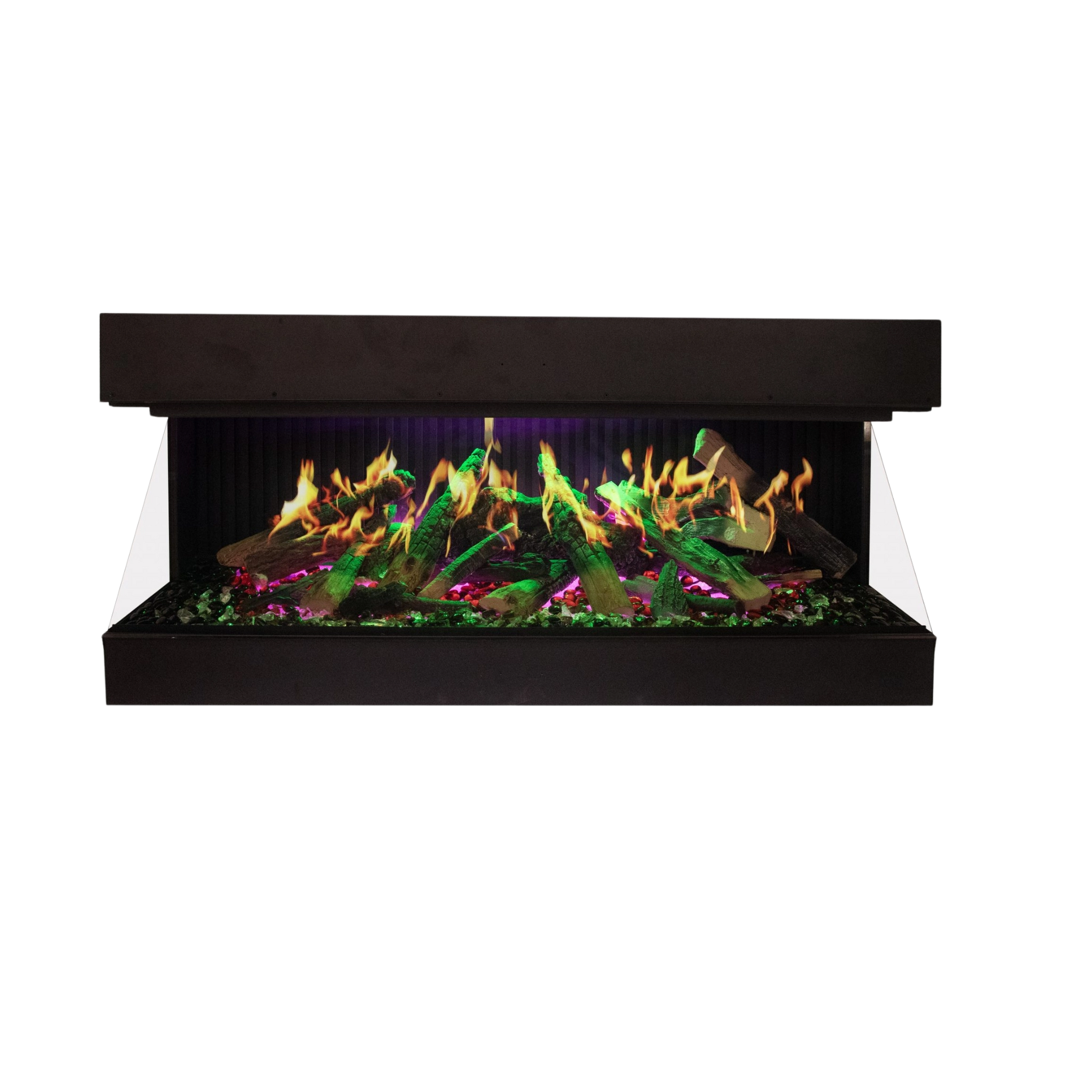

On WiFi models the Amantii app controls power, flame color, brightness and speed, the heater and timers from your phone; the remote in the box does the same from the sofa.
Can I return it?
Electric fireplaces are large, glass-fronted and shipped by freight. Confirm the size and the opening with us before you order, and contact us before returning anything.
