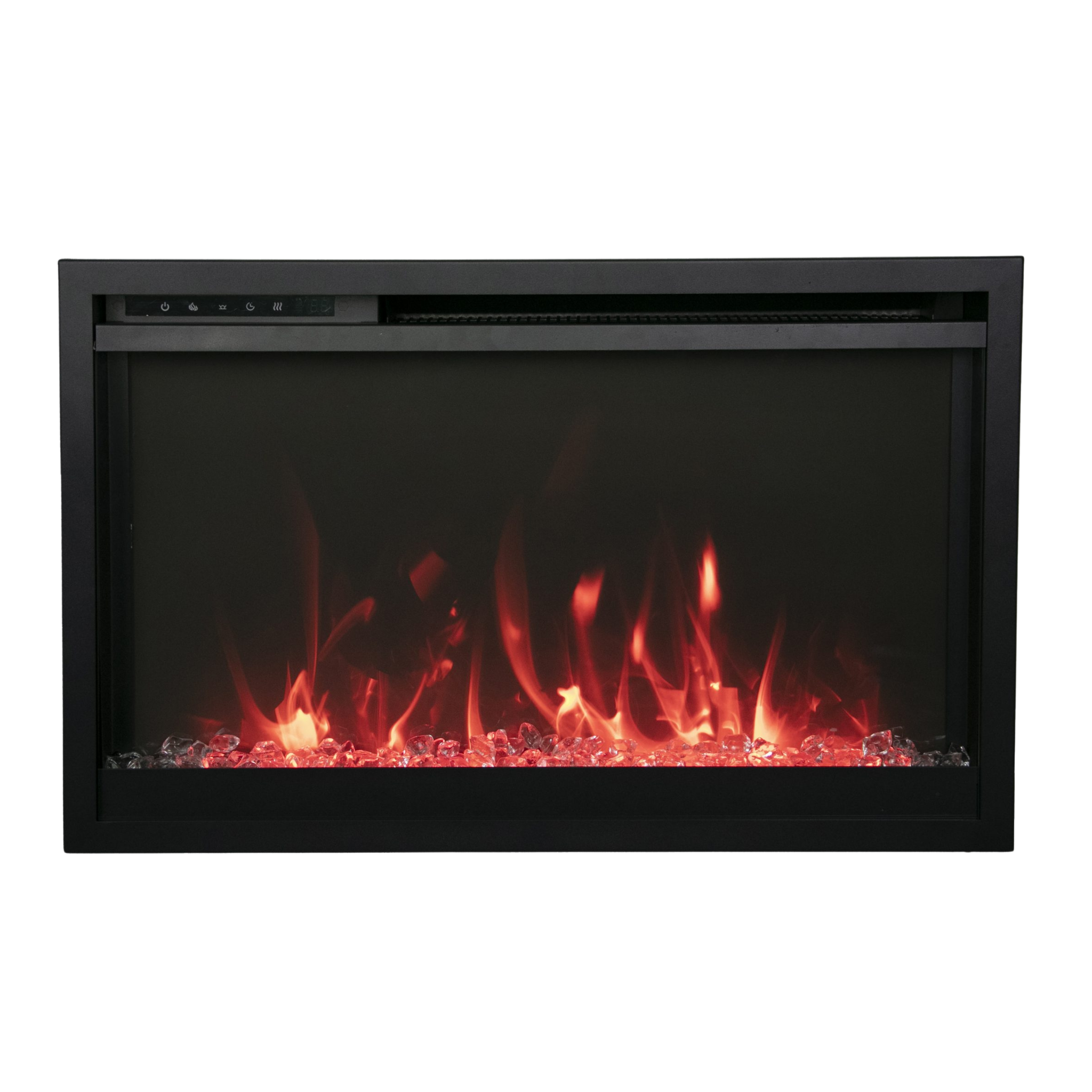

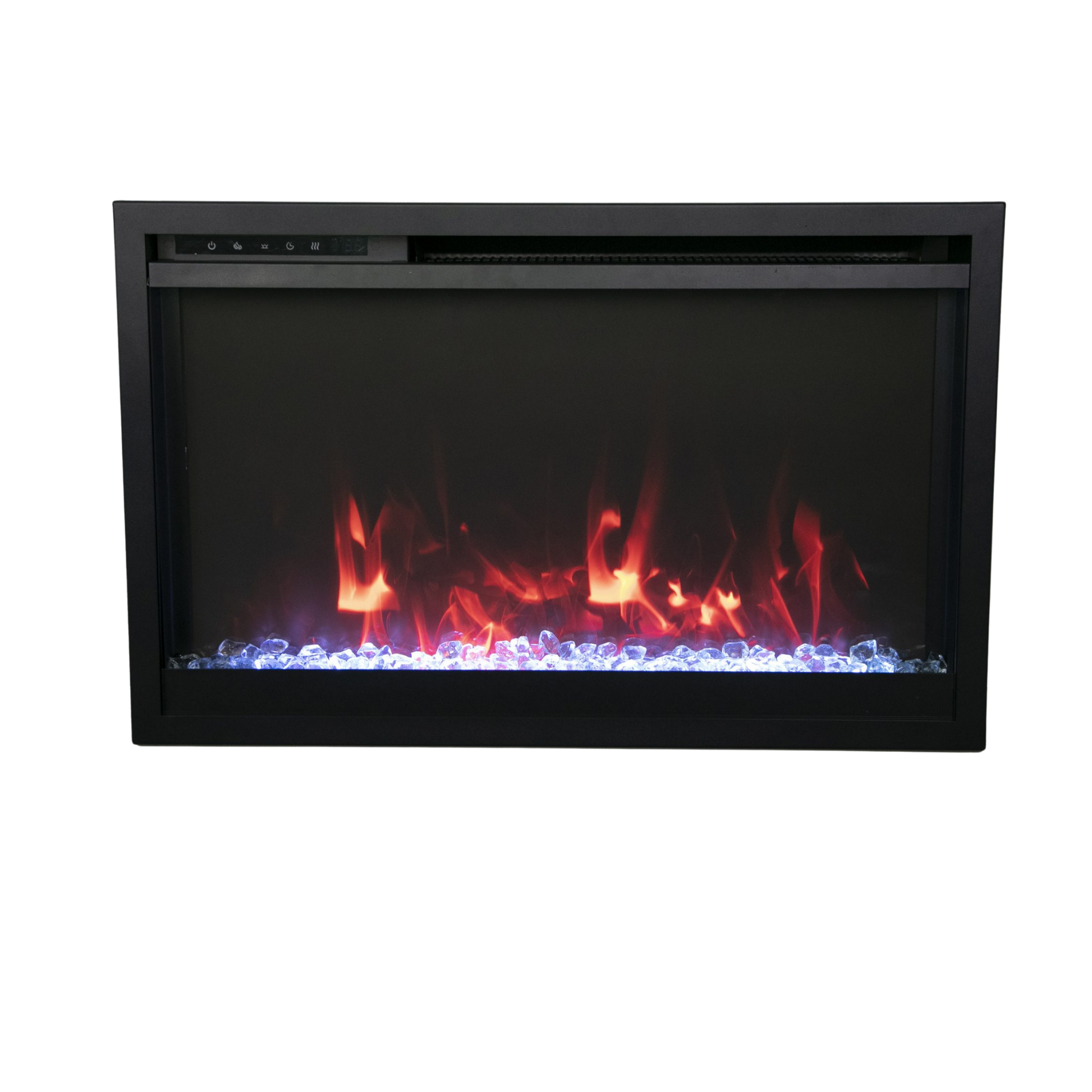

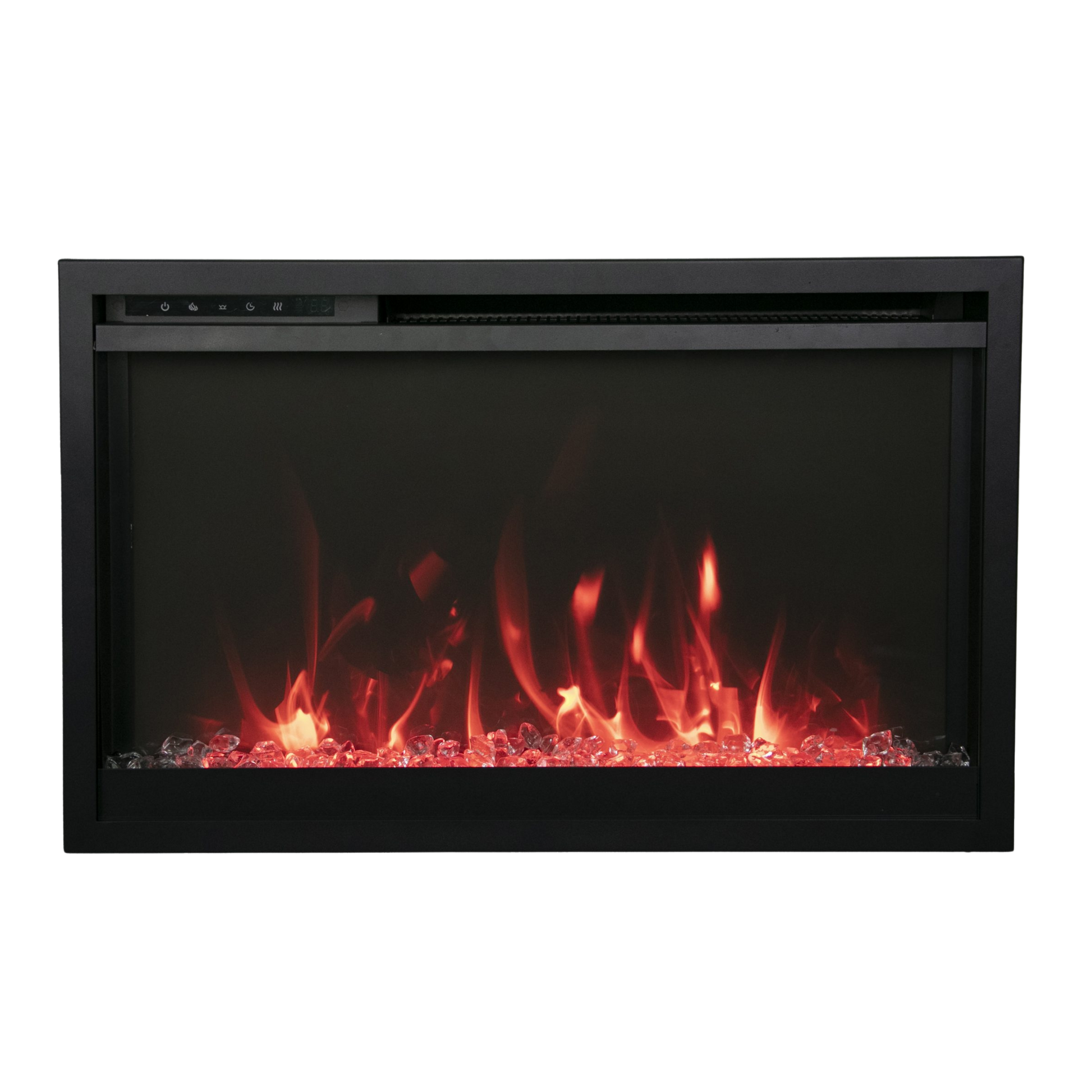

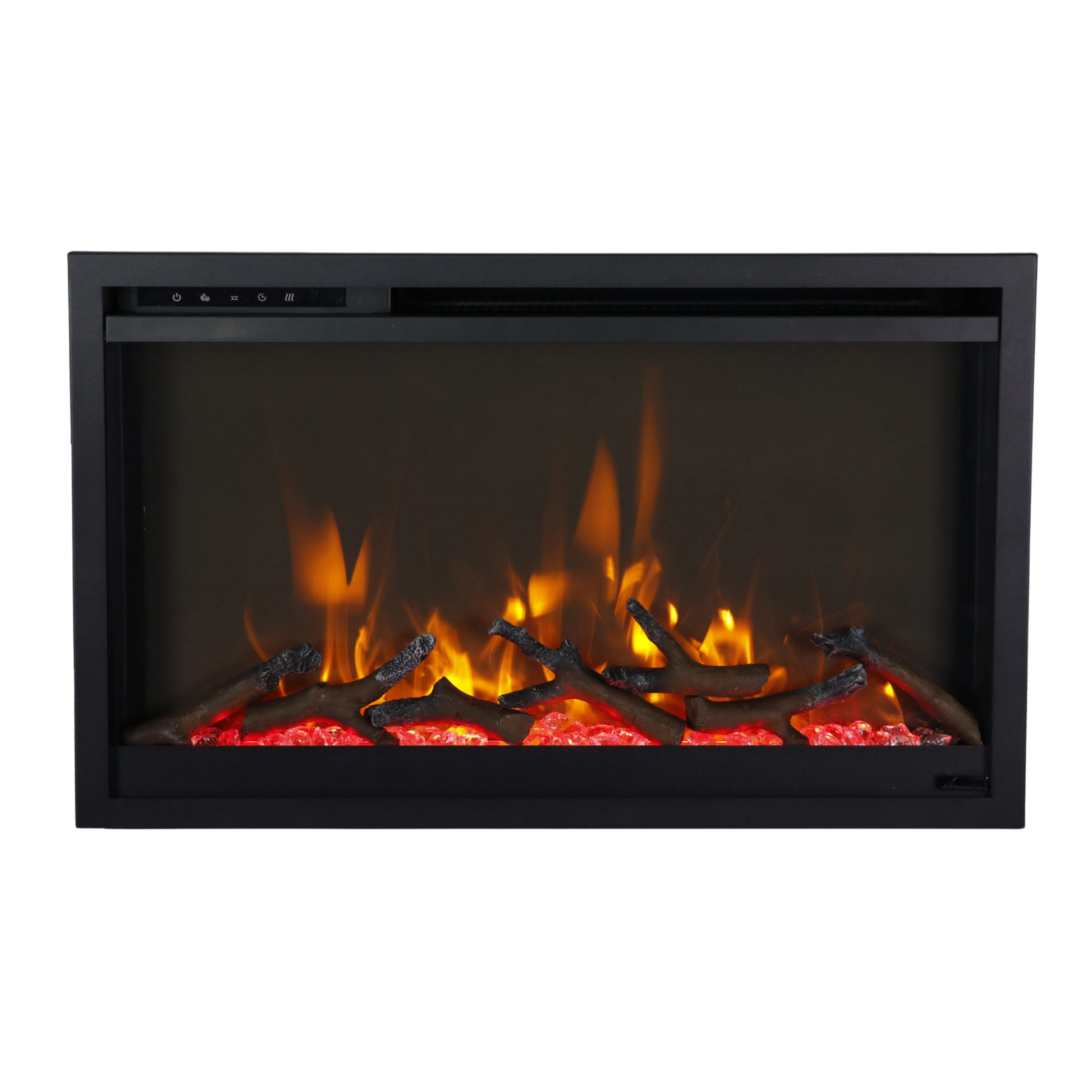

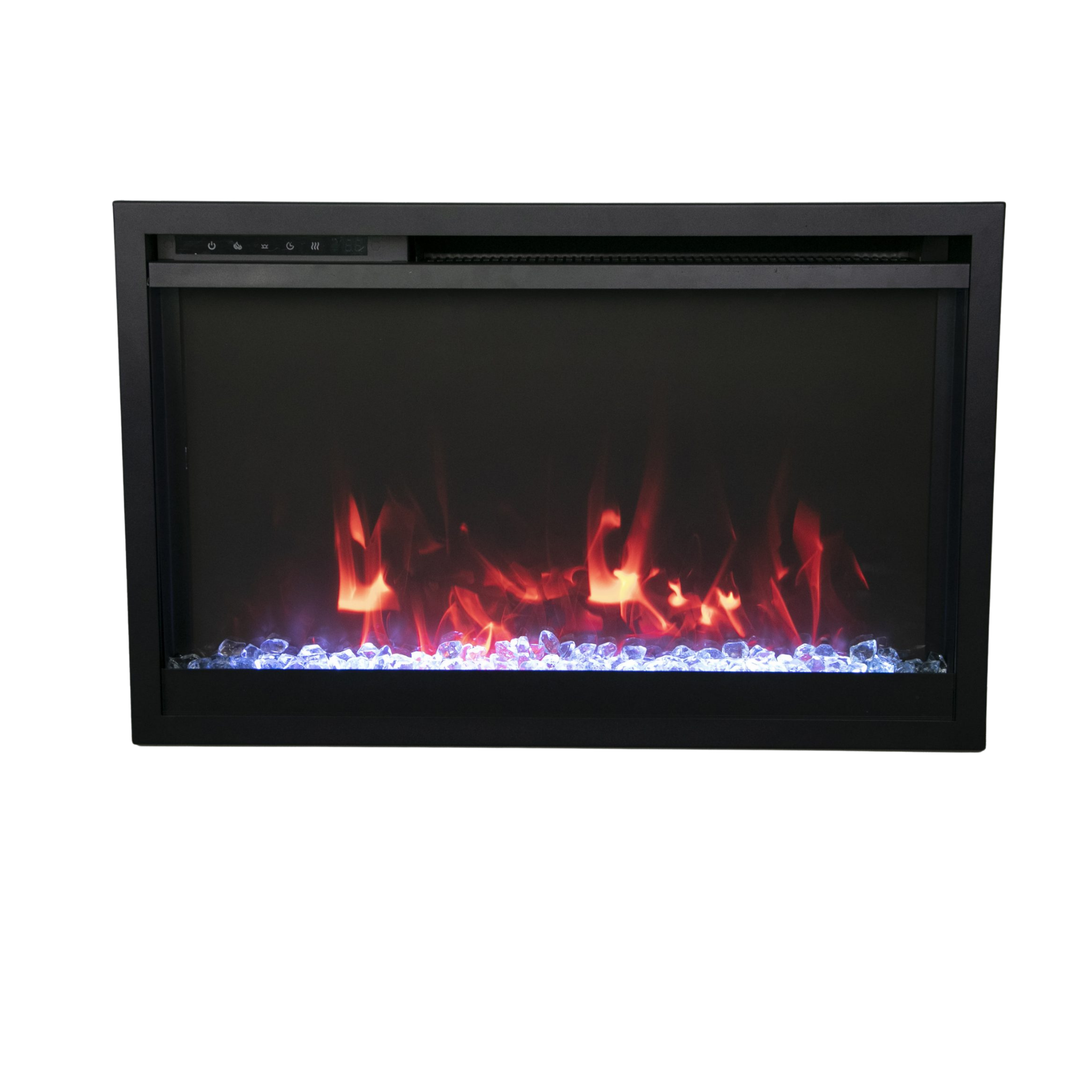

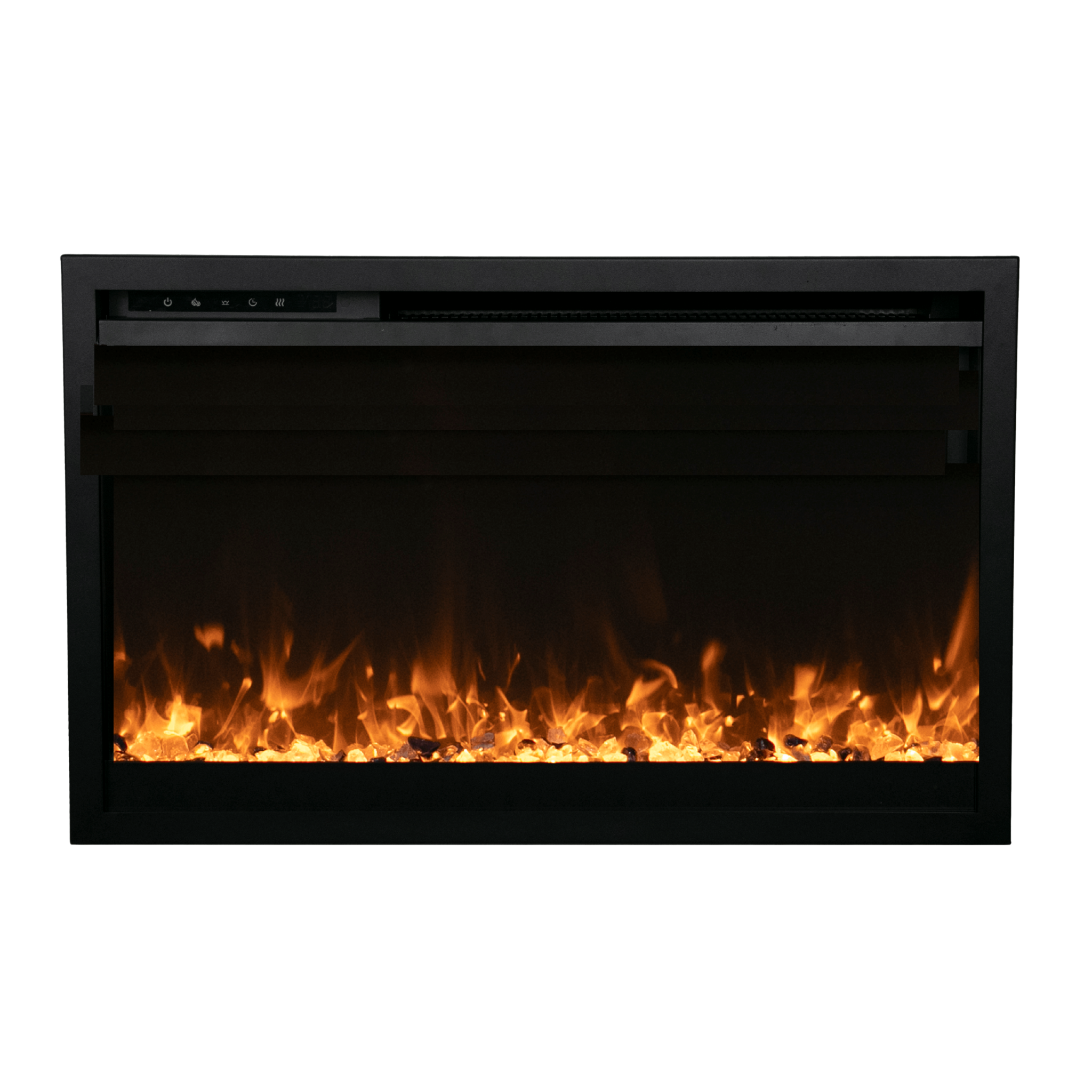

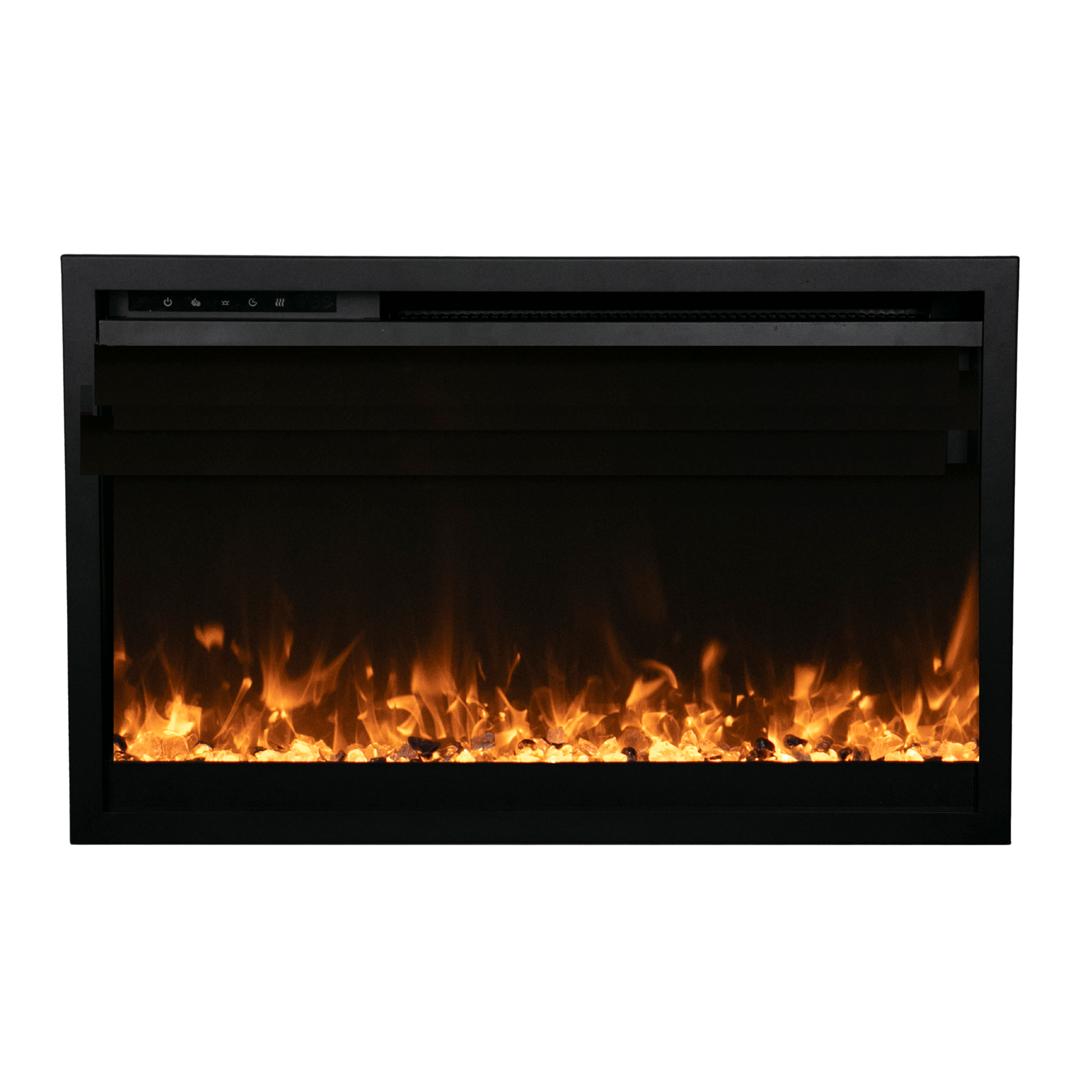

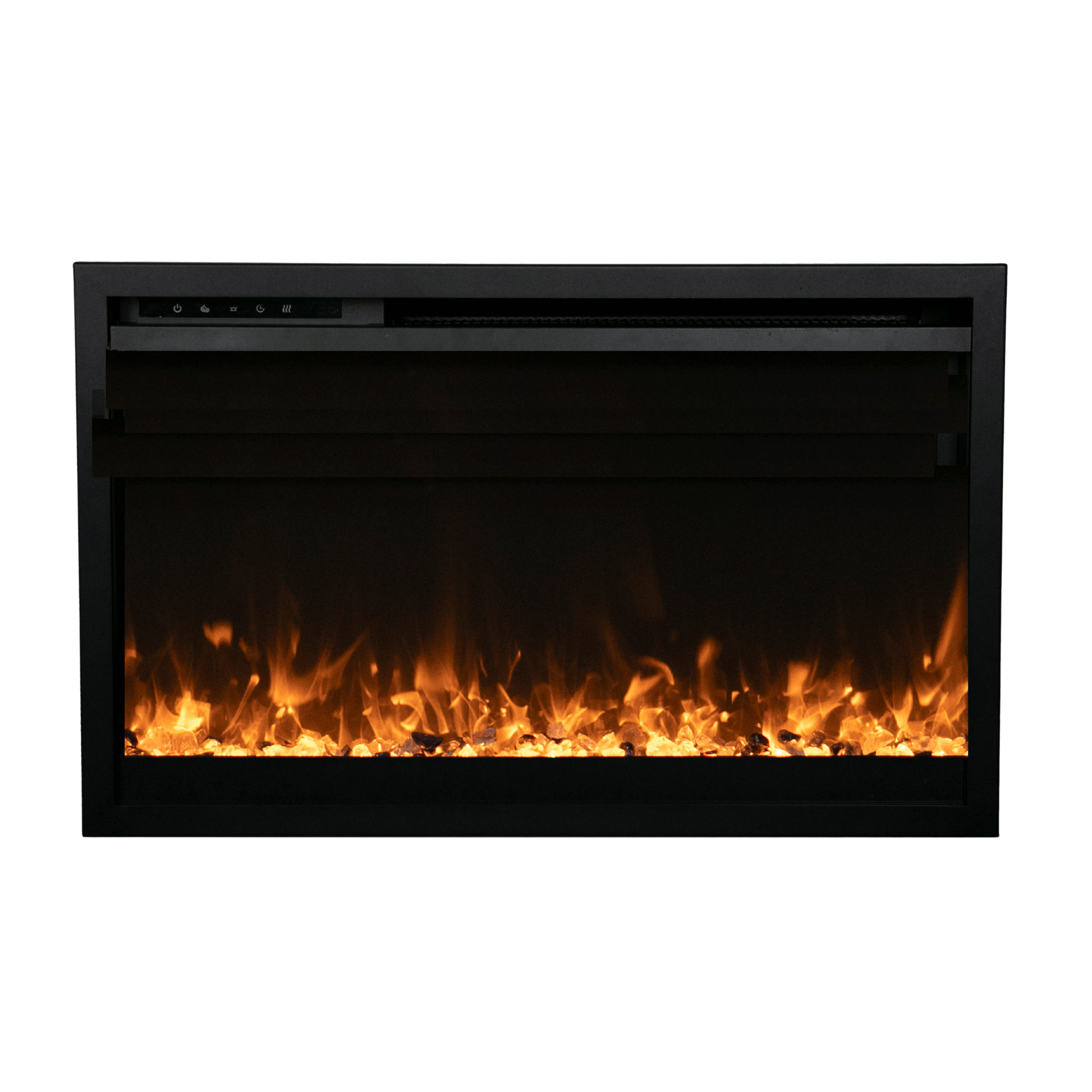

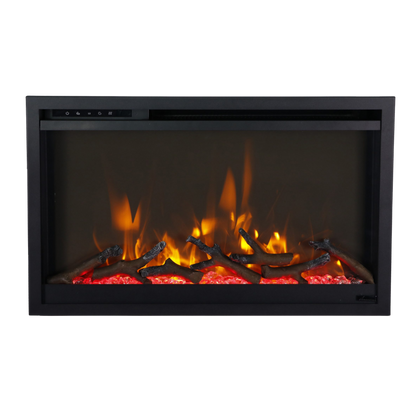

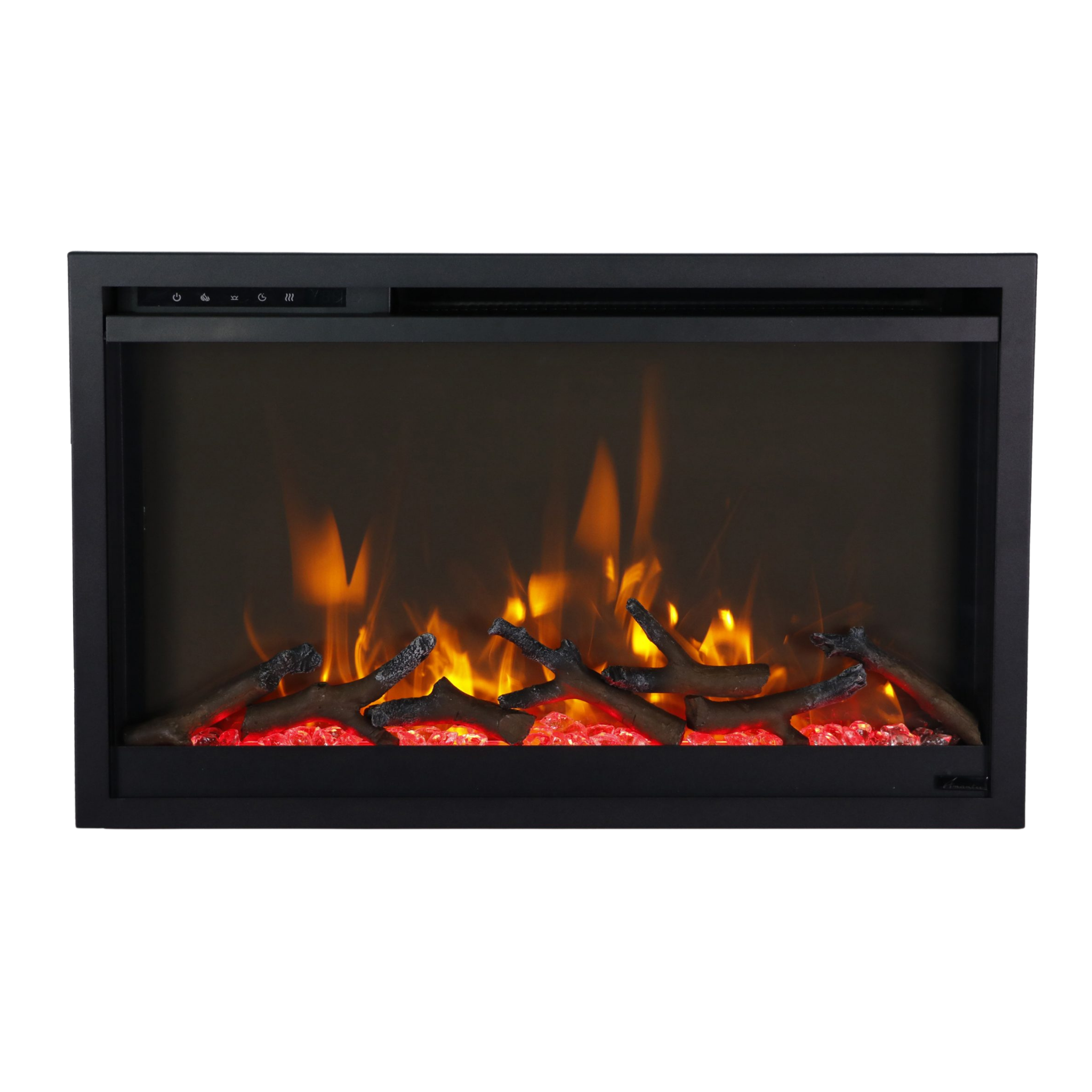

Amantii TRD Xtra Slim Electric Fireplace
At a glance
- Type: Electric Fireplace
- Sizes: 26 inch, 30 inch, 33 inch
- Installs: Slides into an existing wood-burning fireplace opening with a surround or a trim, or builds into a new wall; 120-volt plug-in.
- Power: 120-volt plug-in on a dedicated circuit; models with a 240-volt option are hardwired
- Heat: Supplemental, about 400 sq ft on 120 volts
- Made by: Amantii, a Sierra Flame brand, Canada
Description
Amantii TRD Xtra Slim Electric Fireplace is a traditional-shaped electric fireplace with logs, for an existing opening or a new wall. It comes in 3 sizes: 26 inch, 30 inch, 33 inch. In the box: the fireplace with its glass, plus Design Media Oak LG 12-piece kit, trim, two bags of vermiculite, clear fireglass, remote, grate.
Who it's for
Right buyer. You have a traditional fireplace opening, or you want one, and you want a fireplace-shaped electric fire with logs rather than a linear ribbon of flame.
Wrong buyer. You want a wide linear fire; every other Amantii line is linear. You want heat first; an electric insert is supplemental heat.
How it performs
The TRD is Amantii's traditional-shaped fire: a firebox with a log set, a trim or a surround, in an old fireplace opening or a new wall. The Lumina glows its logs from inside; the Bespoke adds real glass media and Bluetooth sound; the XS is the slim plug-in version; the Signature is the tall 38-inch box with liner colors.
Good to know
- A traditional proportion, so the flame is tall rather than wide; the linear lines suit a modern wall better.
- Trims and surrounds are separate parts and separate decisions.
- An LED flame, decorative up close.
Specifications
Dimensions
Dimensions from the specification sheet
Height, width and depth of the unit, from Amantii's specification sheets. The wall opening is the unit's width and height plus the clearance in the manual linked below; where Amantii publishes the framing opening it is in the second table. Glass, surround and weight are in the specifications.
| Model | Height | Width | Depth |
|---|---|---|---|
| TRD-26-XS | 16‑1/8" | 25‑1/4" | 11‑5/8" |
| TRD-30-XS | 18‑1/2" | 29‑3/8" | 11‑5/8" |
| TRD-33-XS | 21‑5/8" | 31‑3/4" | 11‑5/8" |
Clearances
An electric fireplace has no flue and no hot firebox; its clearances are about the heater outlet and the electrical box.
| Clearance | Minimum |
|---|---|
| In front of the heater outlet, to curtains, bedding, furniture | 36" |
| Combustible mantel or shelf above the heater outlet | per the installation manual for the model, linked below |
| Sides and back, to wood framing | 0"; the units are designed to be framed in wood |
| Floor | 0"; no hearth required |
Documents
- TRD-26-XS: Manual (PDF)
- TRD-26-XS: Spec (PDF)
- TRD-26-XS: Cut-sheet (PDF)
- TRD-26-XS: CAD/BIM/3D
- TRD-26-XS: Brochure (PDF)
- TRD-26-XS: Remote Guide (PDF)
- TRD-30-XS: Spec (PDF)
- TRD-30-XS: CAD/BIM/3D
- TRD-33-XS: Spec (PDF)
- TRD-33-XS: CAD/BIM/3D
- Amantii: all product documentation
Details
| Models | TRD-26-XS, TRD-30-XS, TRD-33-XS |
|---|---|
| Type | Electric Fireplace |
| Controls | Multi-function remote; WiFi app |
| Media | Clear Glass Media |
| Rating | Indoor |
| Manufacturer | Amantii, Sierra Flame, Canada |
| Glass, H x W, TRD-26-XS | 23‑3/8 x 13‑1/4 |
| Surround, H x W, TRD-26-XS | 27‑3/8 x 17‑1/8 with trim |
| Glass, H x W, TRD-30-XS | 27‑1/2 x 15‑1/2 |
| Surround, H x W, TRD-30-XS | 31‑1/2 x 19‑1/2 with trim |
| Glass, H x W, TRD-33-XS | 29‑7/8 x 18‑3/4 |
| Surround, H x W, TRD-33-XS | 33‑7/8 x 22‑5/8 with trim |
Framing opening, W x H x D.
| Model | Framing opening |
|---|---|
| TRD-26-XS | 26‑1/4 x 16‑3/8 x 12 (TRD Lumina chassis; confirm on the XS sheet) |
| TRD-30-XS | 30‑3/8 x 18‑3/4 x 12 (TRD Lumina chassis; confirm on the XS sheet) |
| TRD-33-XS | 32‑3/4 x 21‑7/8 x 12 (TRD Lumina chassis; confirm on the XS sheet) |
Warranty
| Component | Coverage |
|---|---|
| Fireplace, parts and workmanship | 2 years |
| Source | Amantii specification sheet |
Heat
120 V, 12.5 A, 1,465 W (732 low), 27 to 38 W heater off; 5,000 BTU; about 500 sq ft. The flames run without heat; the heater is fan-forced from the top of the unit, so nothing shows in front of the glass.
Choices and prices
Media, trims, liners and covers sold on this page
| Part | What it is | Price |
|---|---|---|
| LOGSET-8PCE-XS | 8 Piece Natural Wood log set (for use in electric fireplaces only) | $169 |
| DESIGN-MEDIA-OAK-18PCE | OAK - 18 Piece Deluxe Media Kit Includes: 18 logs, stones, pebbles & embers | $899 |
What arrives
- The fireplace with its glass, plus Design Media Oak LG 12-piece kit, trim, two bags of vermiculite, clear fireglass, remote, grate.
- Media kits, trims, liners and covers ship as their own cartons when you add them.
Installation
Recessed or semi-flush with the clean reduced trim kit, or as an insert with the surround; outdoor approved.
Planning the install
- Plug-in models need an outlet on a circuit of their own; no extension cords. 240-volt models need an electrician.
- Built-ins: frame the opening from the specification sheet and confirm with us before you cut.
- Outdoors only where the sheet says indoor-outdoor, and only under cover.
- Special-order goods ship by freight.
Questions
Does it need a dedicated circuit?
Yes. The heater draws around 1,500 watts on 120 volts, most of a 15-amp circuit, so give the fireplace an outlet of its own and never an extension cord. Models with a 240-volt option are hardwired by an electrician.
How much does it heat?
The heater is supplemental: it warms the room you sit in, about 400 square feet on 120 volts, not the house. The flames run without heat on a few watts.
Can it go outdoors?
Only the models Amantii rates indoor-outdoor, and only under cover, protected from rain and direct sun; check the specification sheet linked below for your size.
Can I change the media later?
Yes. The log sets, glass and media kits are separate parts and drop into the media bed; the ones sold on this page are matched to the size.
What does the app do?
On WiFi models the Amantii app controls power, flame color, brightness and speed, the heater and timers from your phone; the remote in the box does the same from the sofa.
Can I return it?
Electric fireplaces are large, glass-fronted and shipped by freight. Confirm the size and the opening with us before you order, and contact us before returning anything.
