By Majestic

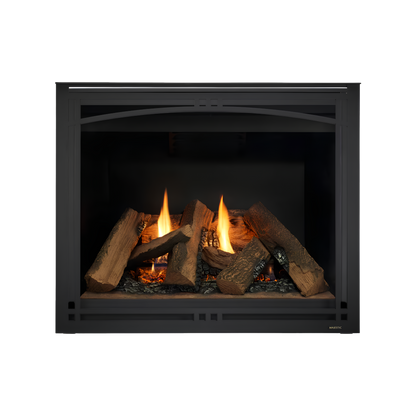

Majestic Cottagewood Outdoor Wood Burning Fireplace

$5,360.00
$5,360.00
Size: 50"
Refractory: Natural Gray – Herringbone
Doors: None
Availability: Low stock: 3 left
SKU: ODCTGWD-50+WDR3350-H-NG+MMMORTR+MMMORTR
Majestic Cottagewood Outdoor Wood Burning Fireplace
$5,360.00
$5,360.00

At a glance

  • Type: Outdoor Wood Fireplace
  • Sizes: 36", 42", 50"
  • Fuel: Seasoned firewood
  • Made by: Majestic, a Hearth & Home Technologies brand

Description

The Majestic Cottagewood is an outdoor wood-burning fireplace with a brick refractory and doors, in 36, 42 and 50 inch, for a patio or outdoor room. It comes in 3 sizes, Cottagewood 36, Cottagewood 42 and Cottagewood 50.

Who it's for

Right buyer. You want a wood-burning fireplace on the patio with a brick refractory and doors, in 36, 42 or 50 inch.

Wrong buyer. You want the convenience of gas outdoors; the Courtyard or Vesper.

How it performs

The Cottagewood is a real wood fire on the patio: a brick-lined firebox with doors, built into a non-combustible enclosure with its own chimney. It is the outdoor room's hearth, and it burns like an indoor fireplace does.

Good to know

  • Outdoors only; it has no damper.
  • The chimney must reach the height the manual gives, 18 feet from the base in most builds.
  • Weather reaches it; doors and a cover help.

Specifications

Dimensions

Framing the opening

Frame the rough opening below, measured inside the studs. Depth is from the finished face of the wall. Where the vent pipe goes through the framing there is a separate hole; the manual's drawing gives its position.

Model Width Height Depth
Cottagewood 36 45‑1/2" 59‑3/4 to top of the starter section 28"
Cottagewood 42 51‑1/2" 59‑3/4" 28‑1/2"
Framing notes from the manual
  • Cottagewood 36: Add drywall thickness. 8 in. extra for the outside air duct. Header on top of the front standoffs, not notched. Chase opening 17 in. minimum with 2 in. air space to the chimney. Freestanding enclosure 61-1/2 W x 61 H minimum, non-combustible.
  • Cottagewood 42: Back width: actual 34-1/2, framing 51-1/2. Firebox opening printed as 42 x 28-1/2. Header MUST NOT be notched. 17 in. chimney framing. *If interior of chase will be drywalled, add the thickness. 8 in. extra space included for outside air connection.

The fireplace itself

Model Width Height Depth
Cottagewood 36 44‑1/2 49‑5/8 27‑1/2
Cottagewood 42 50‑1/2 59‑1/4 27‑1/2

Models and prices

Model Part Firebox opening Fireplace only
Cottagewood 36 ODCTGWD-36-B 36" x 28 1/2" opening $2,769
Cottagewood 42 ODCTGWD-42-B 42" x 28 1/2" opening $2,979
Cottagewood 50 ODCTGWD-50 50" x 33" opening $4,179

Required to complete: Qty: 1 Refractory Set Flex Duct for Outside Air Kit.

Clearances

Clearances are to combustible materials, from the appliance. They come from the installation manual for this model and depend on how it is vented; the installer confirms them on site.

Clearance Minimum
Sides 1"
Back 1"
Front 48"
Adjacent wall 24 from the door opening
Hearth extension 20 in front, 12 each side of the opening, 60 wide, R 1.03 insulation
Floor 0"

Combustible mantel: the deeper it projects, the higher it must sit above the opening.

Mantel projection Minimum height above the opening
12" 12"
Notes from the manual

Combustible trim within 6 in. of the top of the front: 1-1/2 in. maximum projection. 7 ft minimum base to ceiling.

Documents

Details

Models ODCTGWD-36-B, ODCTGWD-42-B, ODCTGWD-50
Type Outdoor wood-burning fireplace
Fuel Seasoned firewood; vented gas log sets optional where the manual allows
Listing UL/ULC listed
Manufacturer Majestic, a Hearth & Home Technologies brand, USA
Viewing area, Cottagewood 36 36 x 28‑5/8
Weight, Cottagewood 36 127.0 lb
Viewing area, Cottagewood 42 42 x 28‑1/2
Weight, Cottagewood 42 154.0 lb

Warranty

Component Coverage
Firebox and heat exchanger Limited lifetime (10 years), 3 years labor
Castings, medallions and baffles 10 years, 3 years labor
Molded refractory panels 3 years
Glass; blowers and electrical parts 1 year parts and labor
All other parts 1 year

Source: Hearth & Home Technologies Limited Lifetime Warranty, the document packed with the appliance and linked from the owner's manual above. "Lifetime" means 20 years for gas appliances, 10 years for wood and pellet appliances and 5 years for standalone gas log sets, counted from the start of coverage, which begins no later than 24 months after the appliance ships from the factory.

Heat

An open wood fireplace is not a rated heater, and Majestic publishes no BTU figure for it: the fire warms what it faces by radiation, and most of the heat from the flue goes outdoors. What decides how much fire you get is the firebox: Cottagewood 36 opens 59-3/4 to top of the starter section, Cottagewood 42 opens 59-3/4", Cottagewood 36 opens 49-5/8, Cottagewood 42 opens 59-1/4, Sides opens 1", Front opens 24 from the door opening, Hearth extension opens 0", 12" opens ODCTGWD-36-B, Cottagewood 42 opens 42" x 28 1/2" opening, Cott. Seasoned hardwood, a proper chimney draft and doors closed as the fire burns down give the most warmth for the wood. Where a gas log set is approved for the model, its rating is on the log-set page.

Choices and prices

Refractory

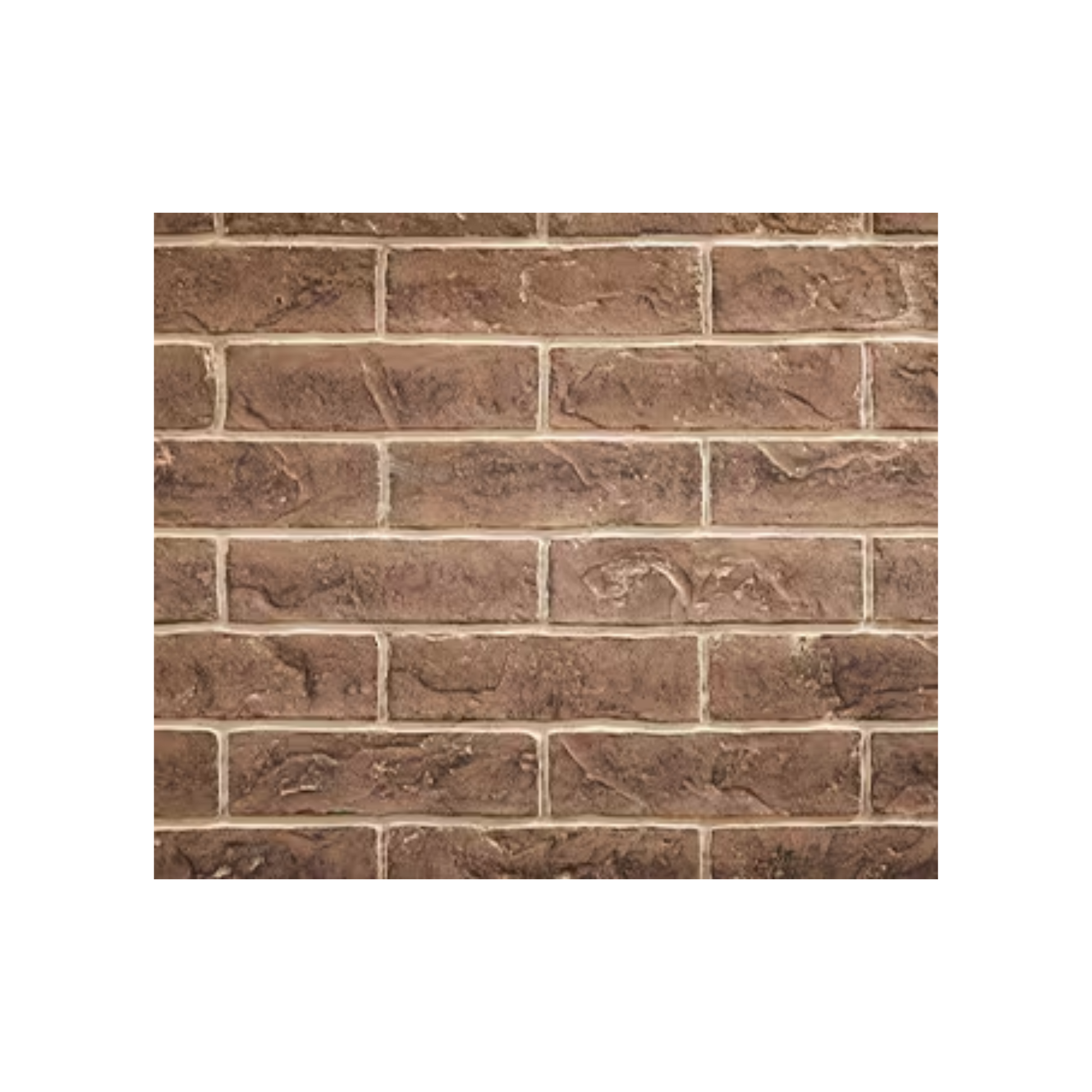

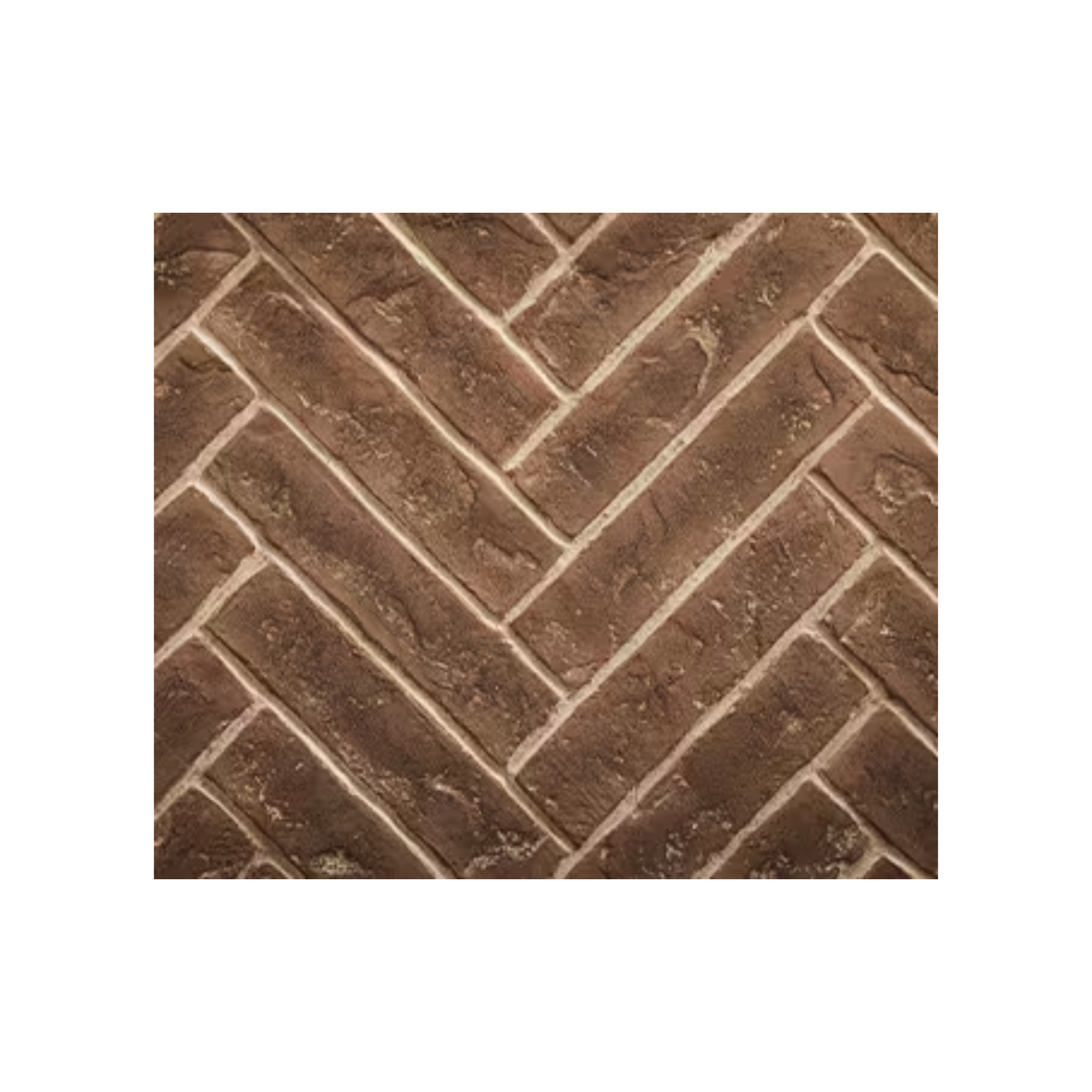

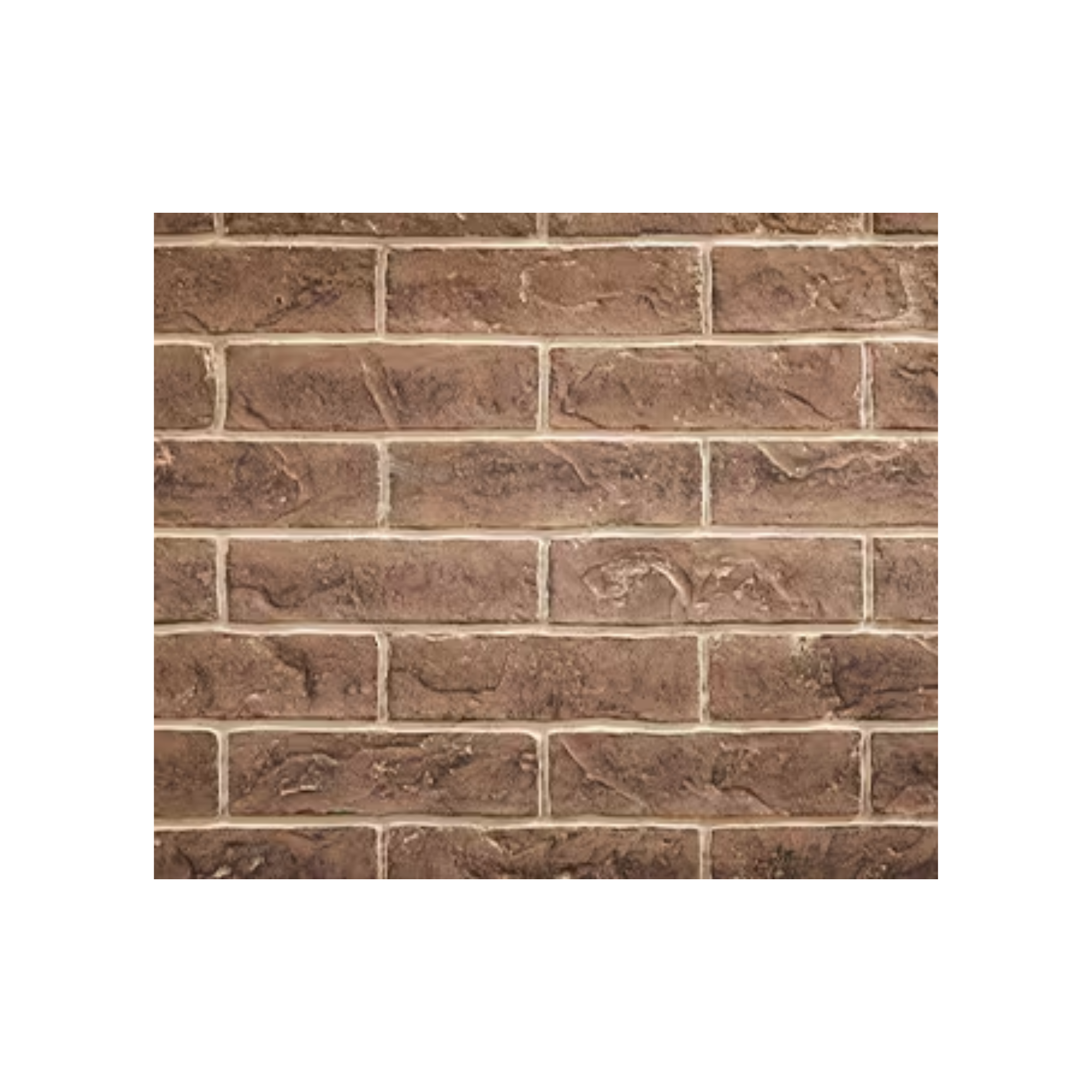

The refractory is the brick lining of the firebox. Traditional is a running bond; herringbone sets the bricks on the diagonal. Both are the same material and price class; the choice is the look.

Refractory Part Price
36" Natural Gray Herringbone Refractory Set WDR2836-H-NG $659
36" Black Onyx Herringbone Refractory Set WDR2836-H-BK $759
36" Masonry Brown Herringbone Refractory Set WDR2836-H-BR $759
36" Natural Gray Traditional Refractory Set WDR2836-T-NG $599
36" Black Onyx Traditional Refractory Set WDR2836-T-BK $699
36" Masonry Brown Traditional Refractory Set WDR2836-T-BR $699
42" Natural Gray Herringbone Refractory Set WDR2842-H-NG $879
42" Black Onyx Herringbone Refractory Set WDR2842-H-BK $979
42" Masonry Brown Herringbone Refractory Set WDR2842-H-BR $979
42" Natural Gray Traditional Refractory Set WDR2842-T-NG $819
42" Masonry Brown Traditional Refractory Set WDR2842-T-BR $919
42" Black Onyx Traditional Refractory Set WDR2842-T-BK $919
50" Natural Gray Herringbone Refractory Set WDR3350-H-NG $979
50" Black Onyx Herringbone Refractory Set WDR3350-H-BK $1,079
50" Masonry Brown Herringbone Refractory Set WDR3350-H-BR $1,079
50" Natural Gray Traditional Refractory Set WDR3350-T-NG $909
50" Masonry Brown Traditional Refractory Set WDR3350-T-BR $1,009
50" Black Onyx Traditional Refractory Set WDR3350-T-BK $1,009
Doors

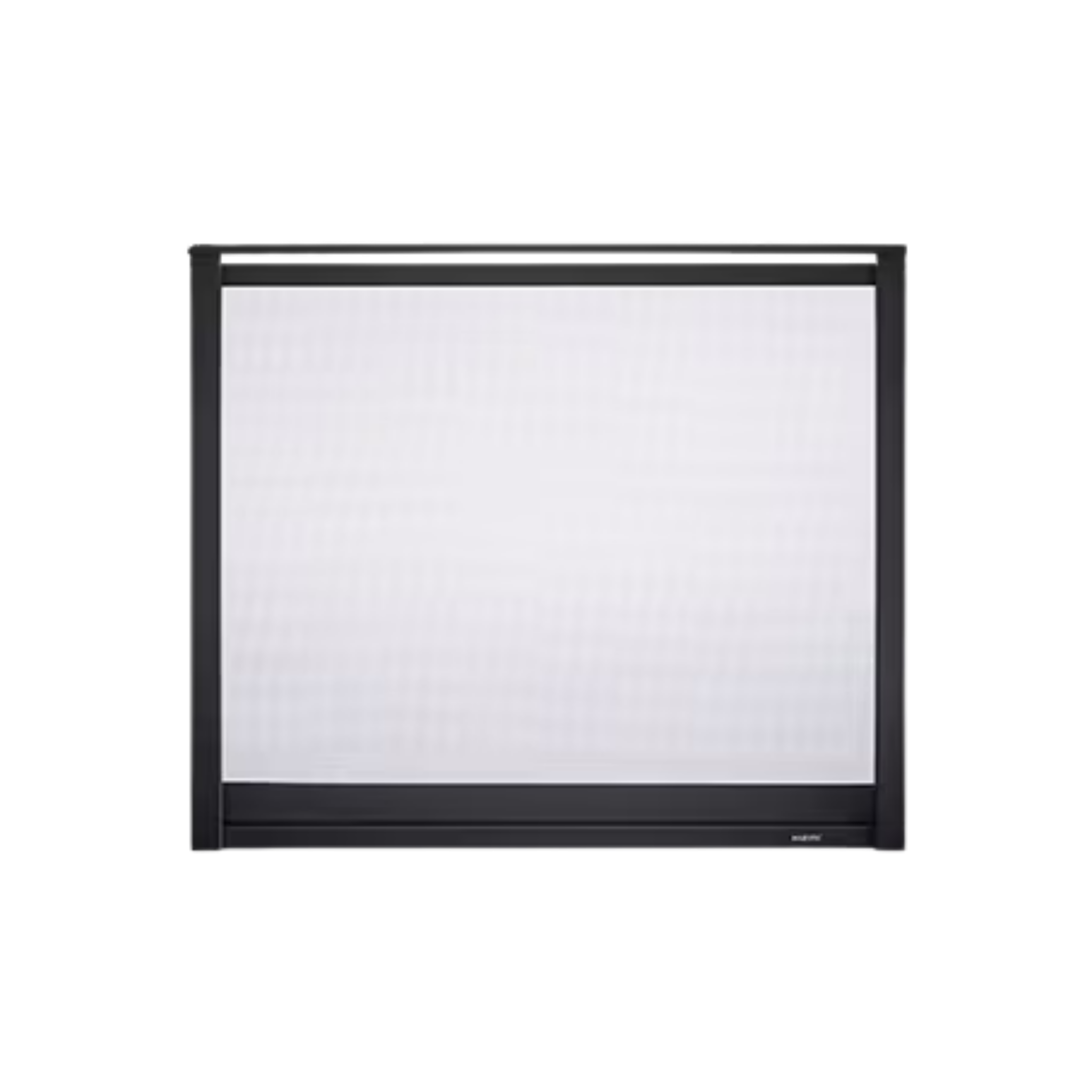

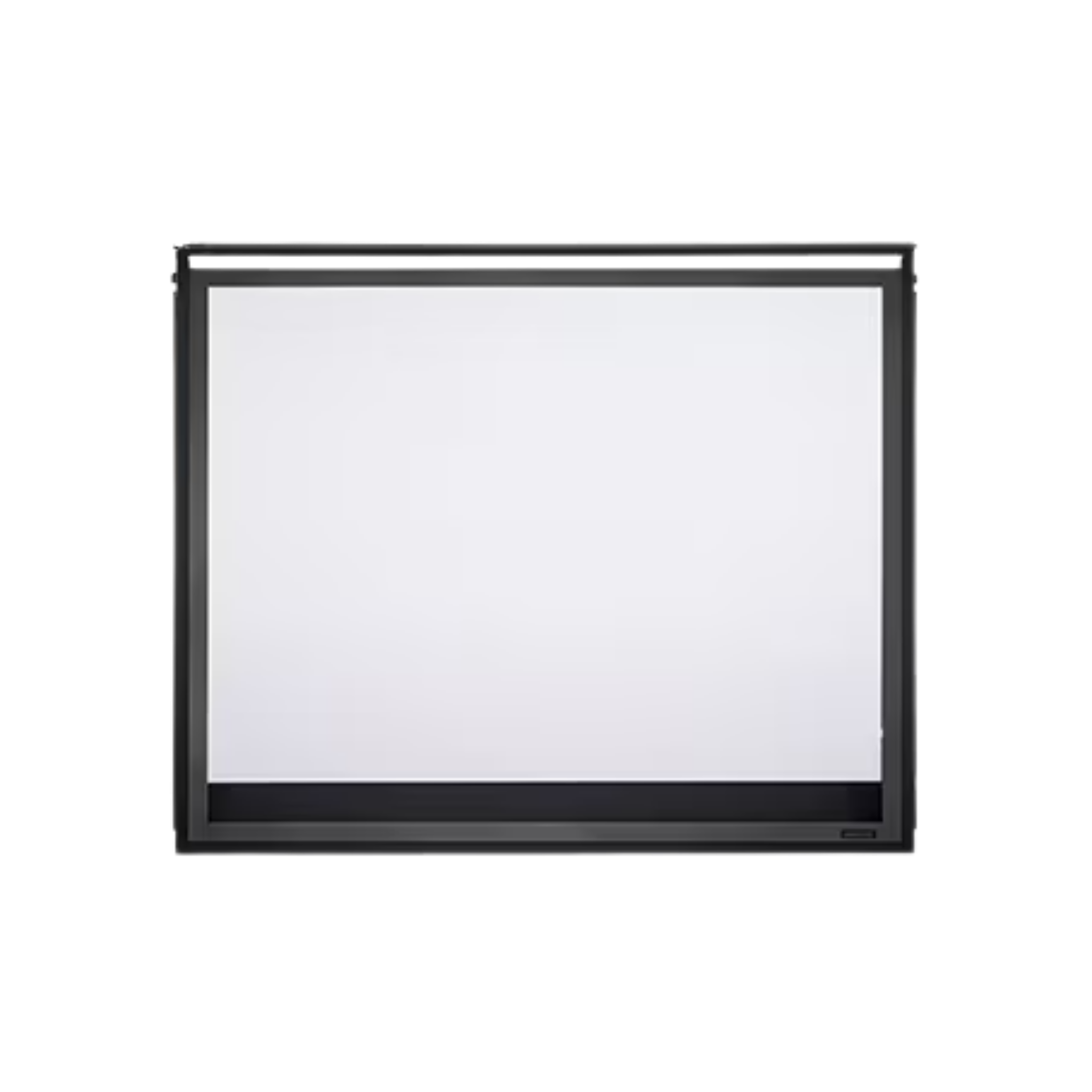

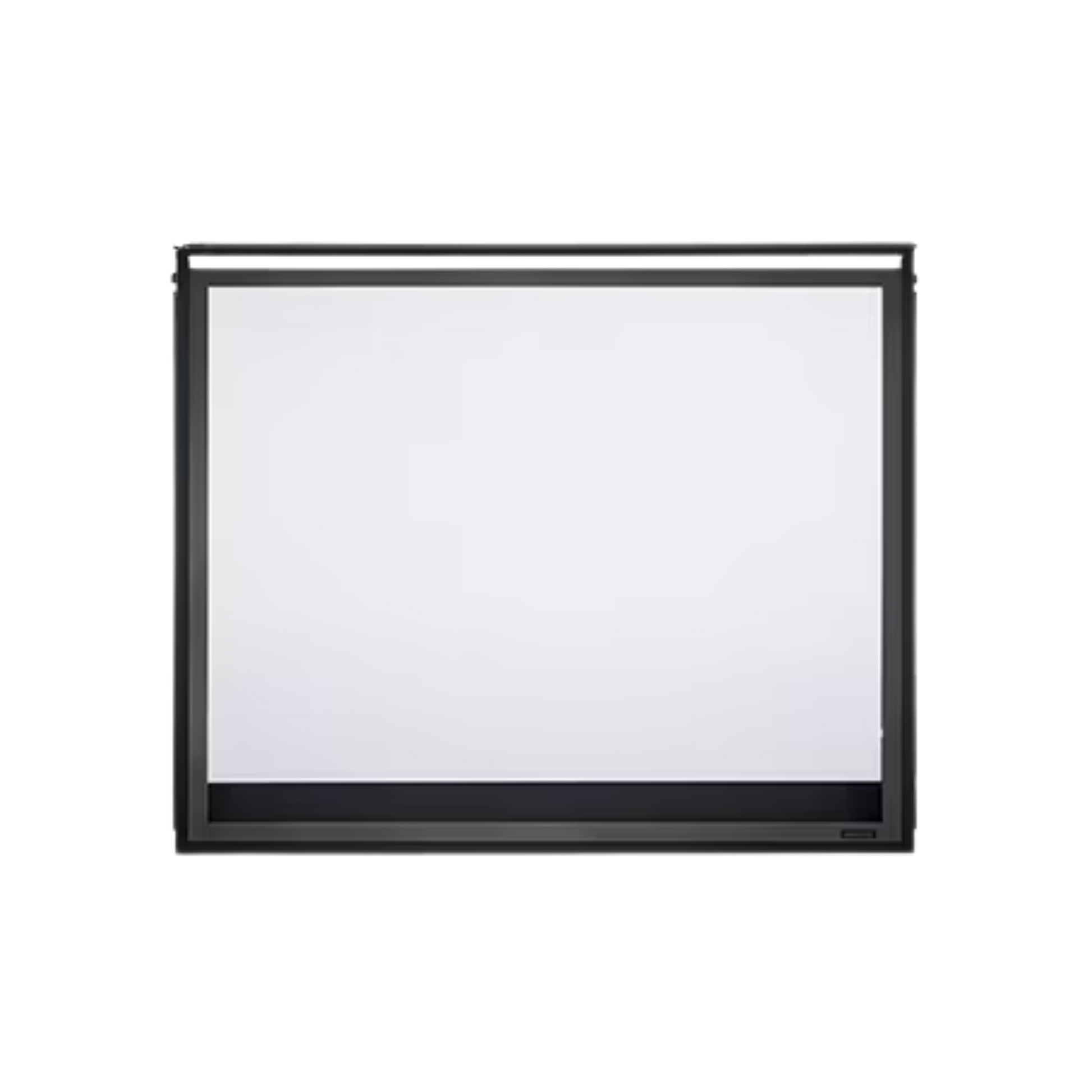

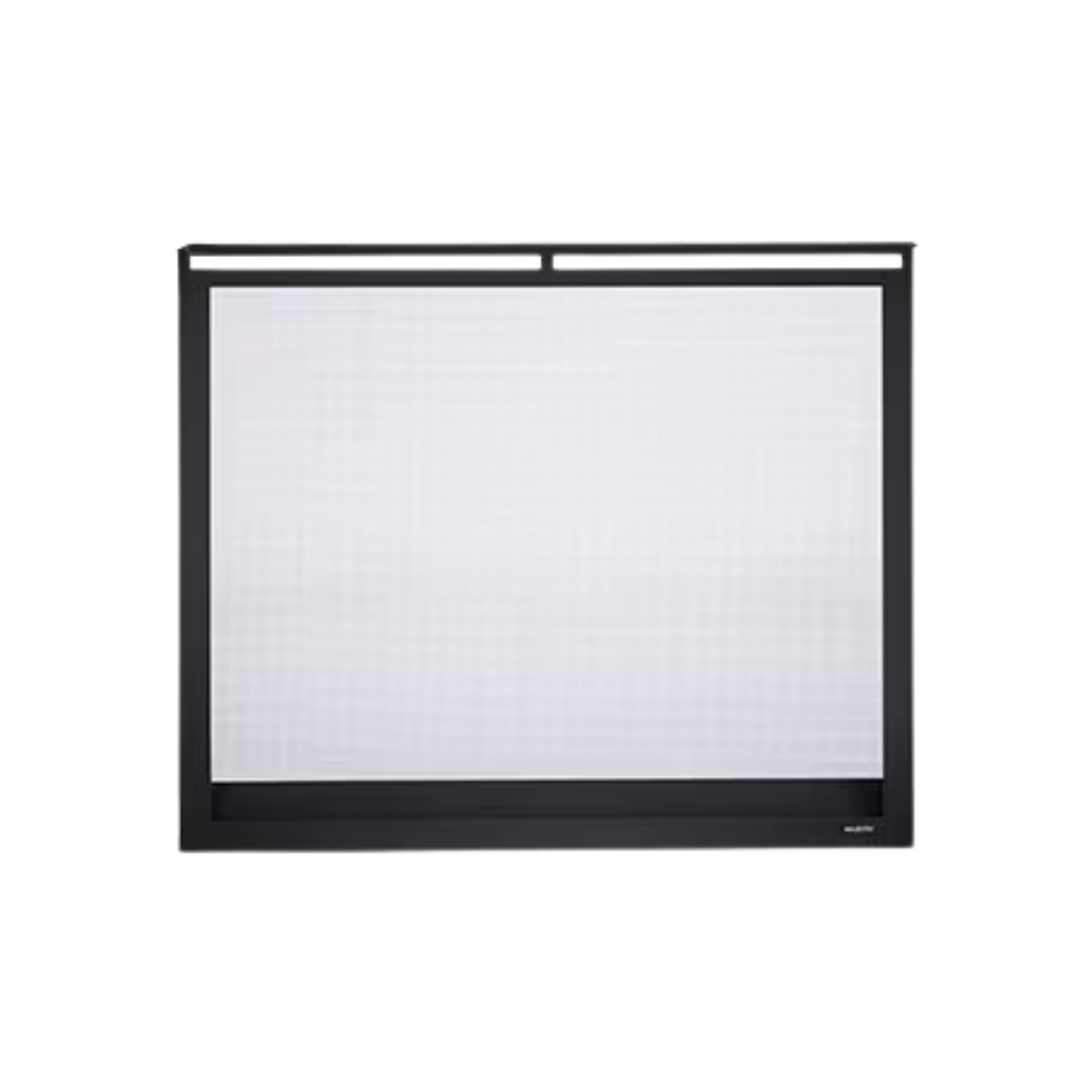

Doors close the opening when the fire is out or burning down, and cut the room air drawn up the chimney. Glass bi-fold doors show the fire closed; mesh doors are the screen alternative.

Doors Part Price
36" Stainless Steel Bi-Fold Doors DM6036-S $539
42" Stainless Steel Bi-Fold Door DM8042-S $679
50" Stainless Steel Bi-Fold Doors DM100-S $1,799

What arrives

  • Steel Grate
  • Dual gas knockouts
  • Outside Air Kit
  • Stainless Steel Safety Firescreen
  • UL/ULC Listed
  • UL Listed
  • Not Approved in Canada
  • The refractory, doors and any accessories ship as their own cartons.

Installation

Venting Requirement
Type Wood chimney, UL 127
Termination 3 ft above the roof and 2 ft above anything within 10 ft
Chimney height 18 ft minimum straight, 18.5 with one offset, 24 with two; 90 ft maximum; 10 ft in a non-combustible freestanding enclosure with the extended smoke shield

Offsets 30 degrees maximum, two pairs, 20 ft between offset and return.

An outdoor wood fireplace is built into a non-combustible enclosure on the patio and vented with its own chimney system to the height the manual requires. The chimney pipe, supports and cap are sold separately and quoted from your installer's plan.

Planning the install

  • Installation is by a qualified installer, and the fireplace and its chimney are inspected together.
  • Framing, clearances, hearth extension and chimney height come from the installation manual for your size. Send us your plan and we will check it before anything ships.
  • The chimney system is sold separately and priced from the plan.
  • Outdoor only. Never install an outdoor fireplace inside a structure.
  • Special-order goods ship by freight. Confirm the size and refractory before you order.

Questions
Can I put gas logs in it?

Most Majestic wood fireplaces have gas knockouts and are listed for specific vented gas log sets; the options on this page are the ones Majestic approves for this model. A gas line and installation by a gas fitter are required.

Does it heat the room?

An open wood fireplace is for the look and the radiant warmth in front of it; most of the heat goes up the chimney. Doors help. For heating, look at the WarmMajic-II or a wood insert.

Which chimney pipe does it take?

The pipe system listed in the manual for this model, in the diameter and minimum height it specifies. We quote it from your installer's plan.

Can I return it?

Fireplaces are special-order freight items. Confirm the size, refractory and doors with us before you order, and contact us before returning anything.

What wood should I burn?

Seasoned hardwood, split and dried a year or more, below 20 percent moisture. Wet wood smokes, coats the chimney with creosote and makes a poor fire.

How often does the chimney need sweeping?

Once a year at least, and after every cord or two if you burn nightly. Creosote is the fire risk in any wood fireplace, and a sweep is cheap insurance.
