Majestic Lanai Outdoor Gas Fireplace
At a glance
- Type: Outdoor Gas Fireplace
- Sizes: 48", 60", 72"
- Fuel: Natural gas; propane model by note
- Ignition: IntelliFire
- Made by: Majestic, a Hearth & Home Technologies brand
Description

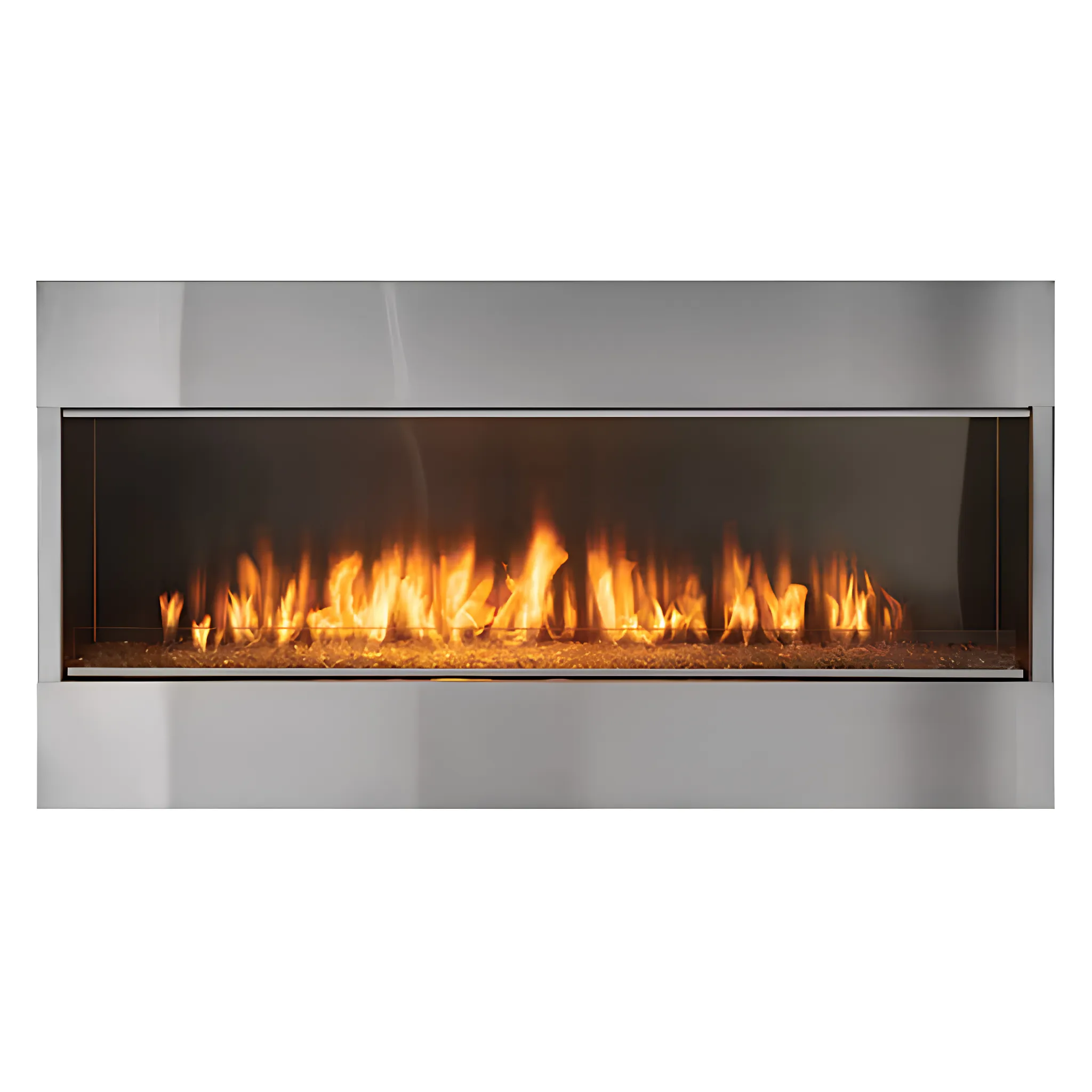

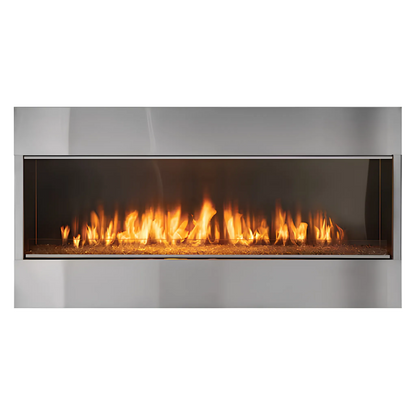

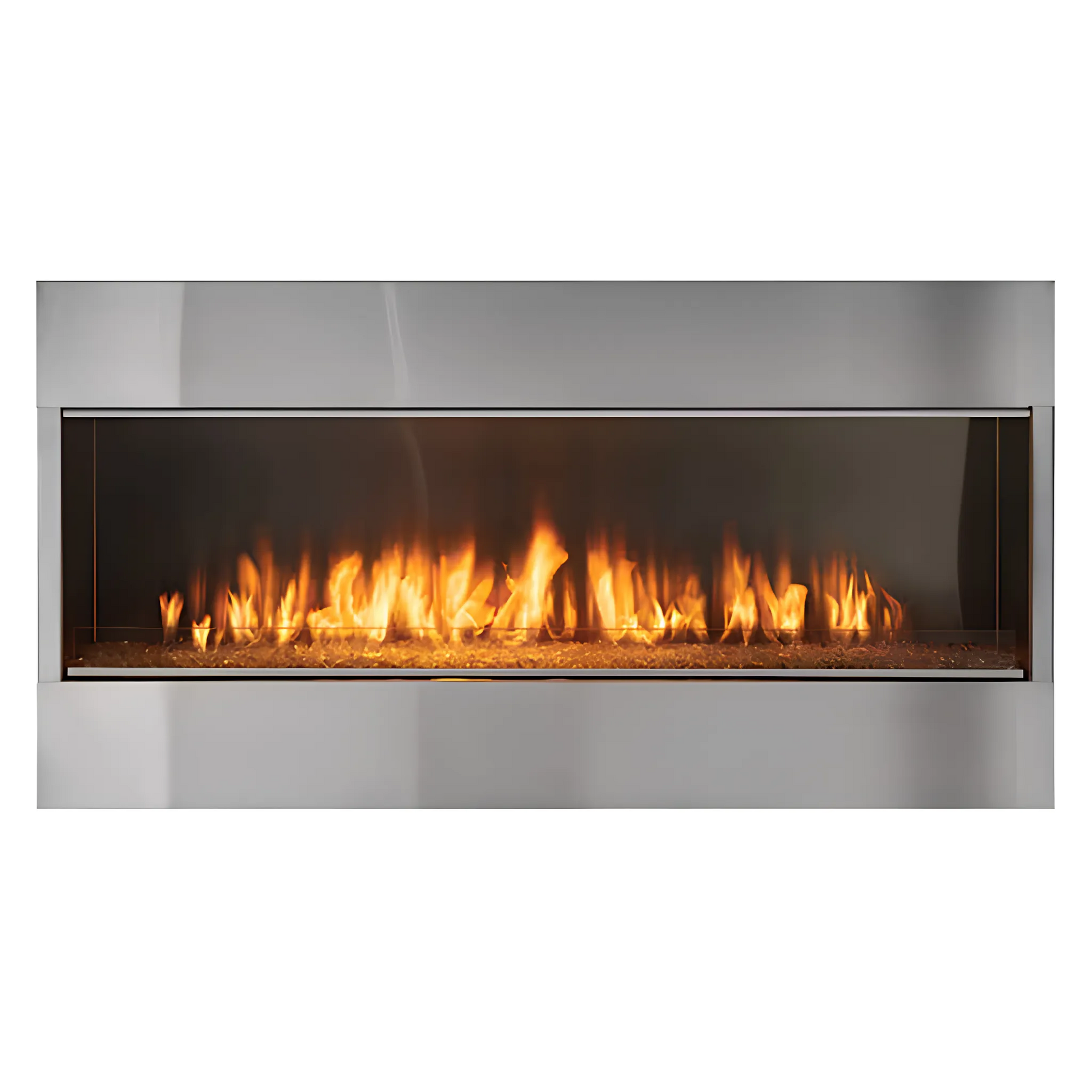

The Majestic Lanai is a linear outdoor gas fireplace with a stainless steel burner and glass media, in 48, 60 and 72 inch, for a patio wall or outdoor kitchen. It comes in 3 sizes: 48", 60", 72".
Who it's for
Right buyer. You want a linear outdoor gas fireplace with glass media in a patio wall or outdoor kitchen, in 48, 60 or 72 inch.
Wrong buyer. You want it seen from both sides of a wall; the Lanai See-Through. You want a traditional open firebox; the Courtyard or Vesper.
How it performs

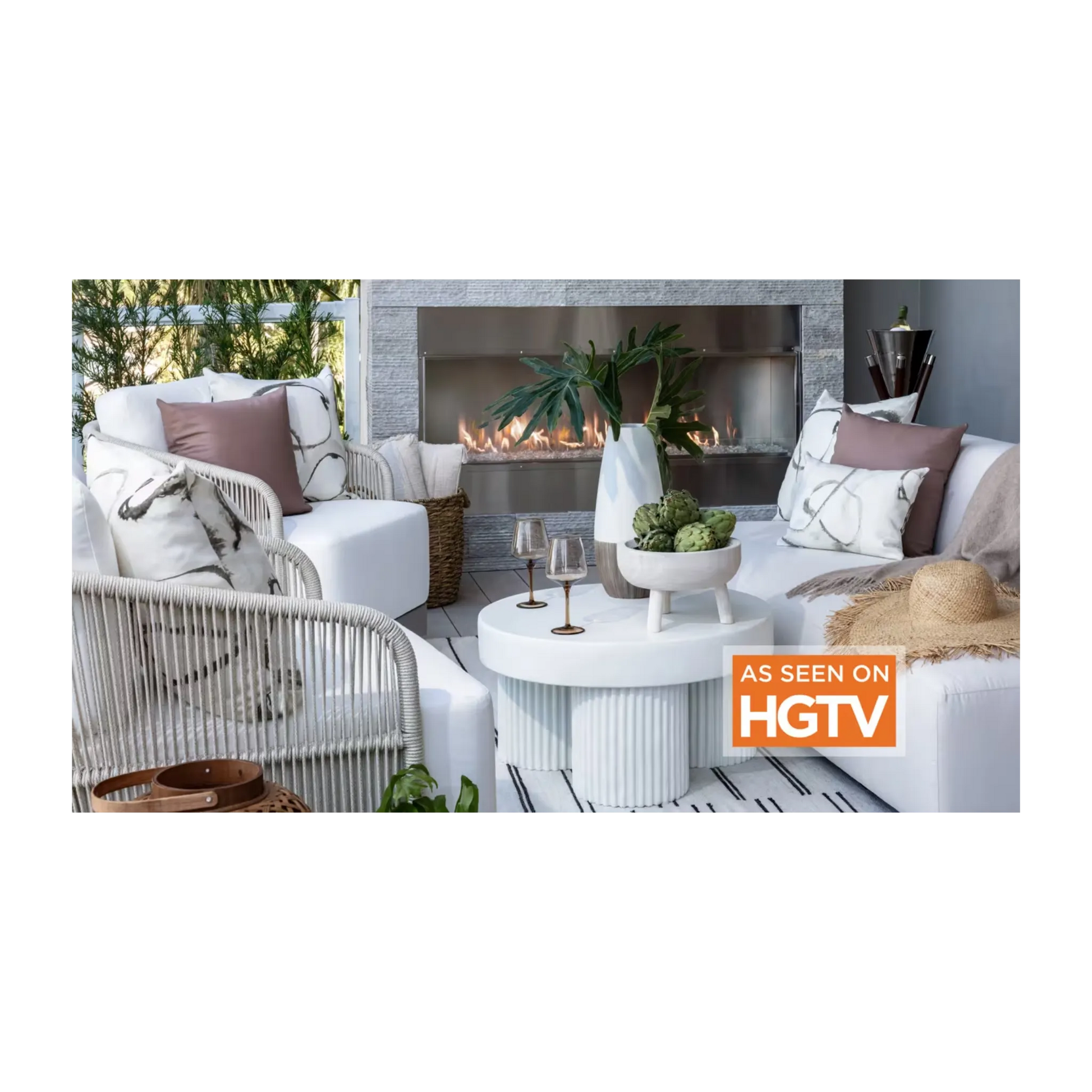

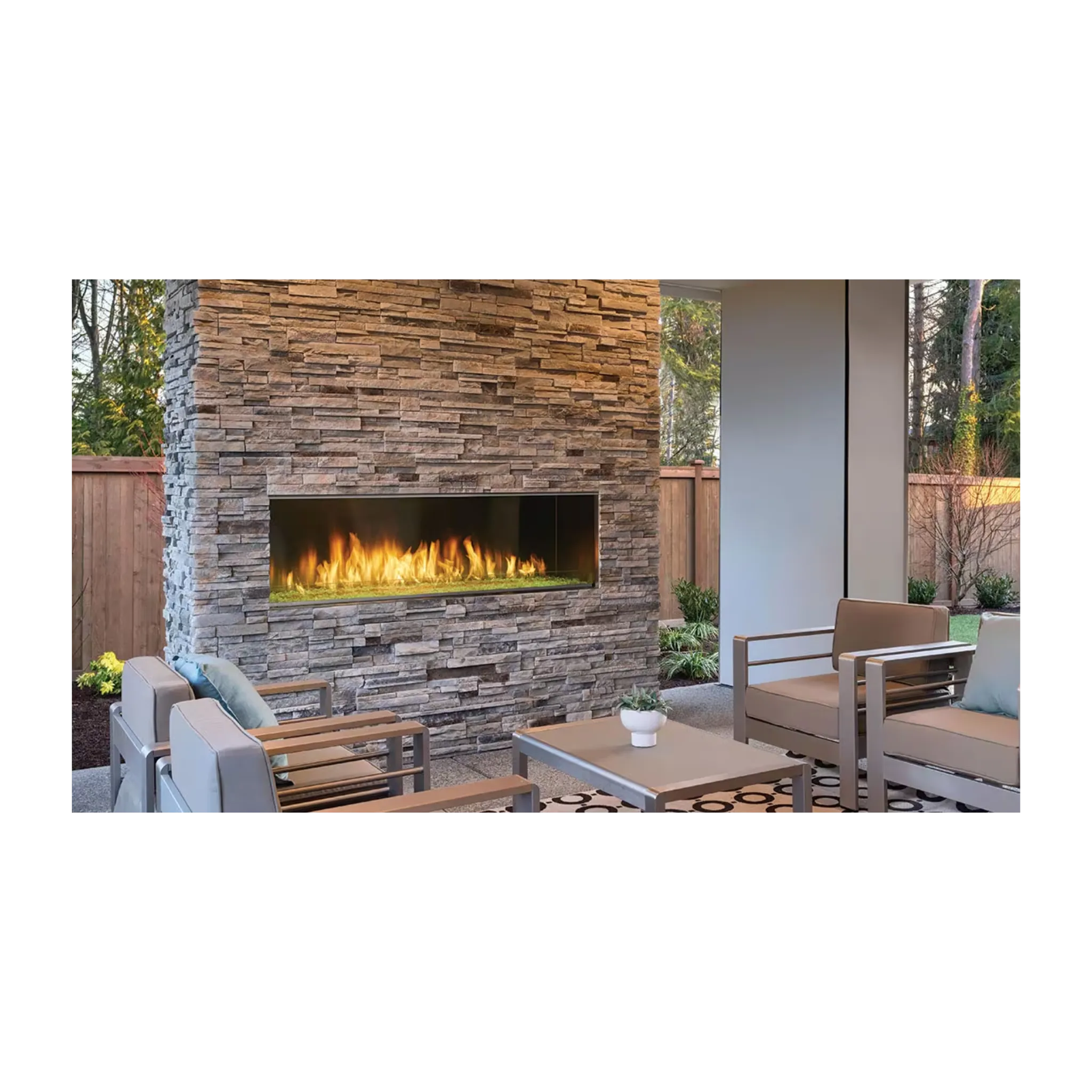

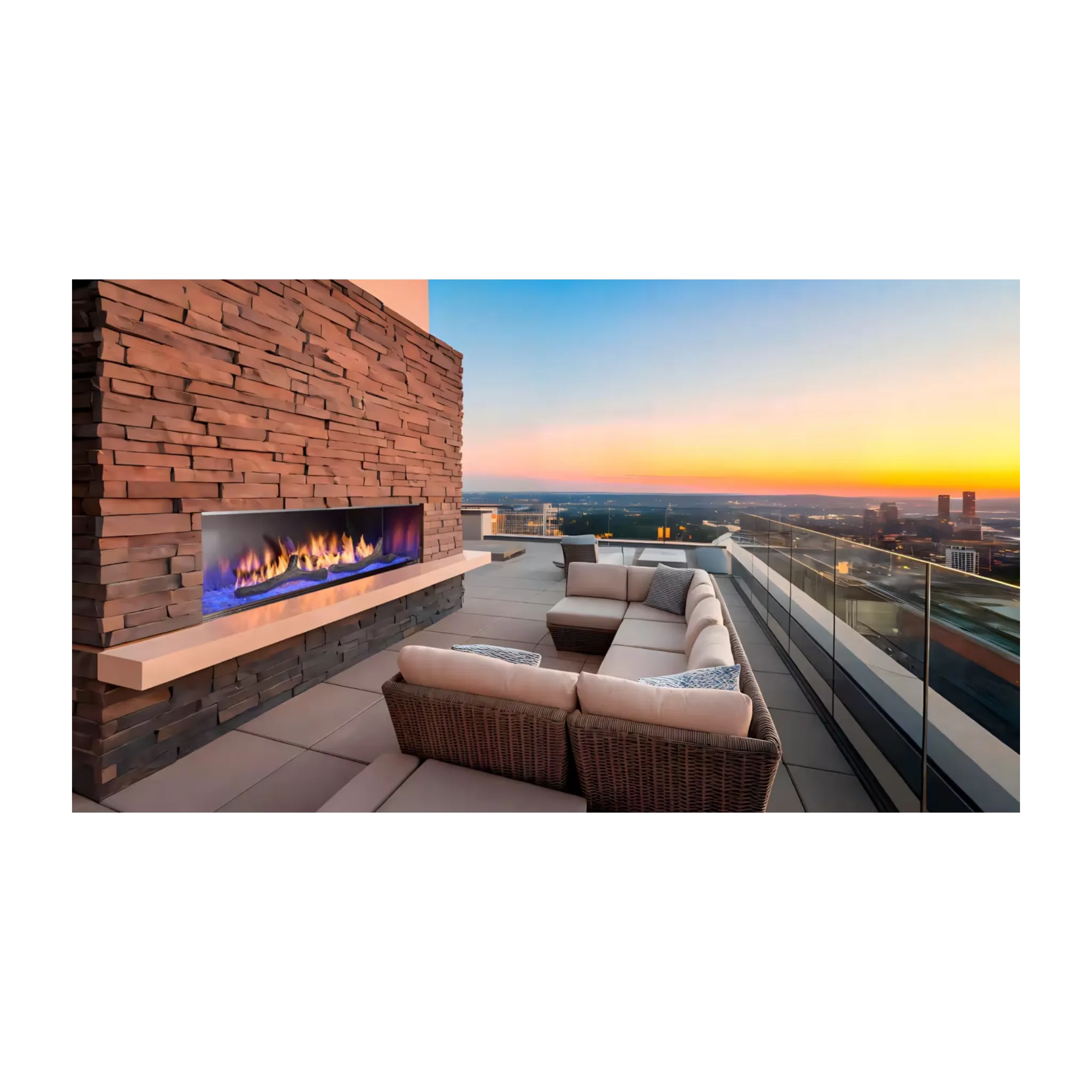

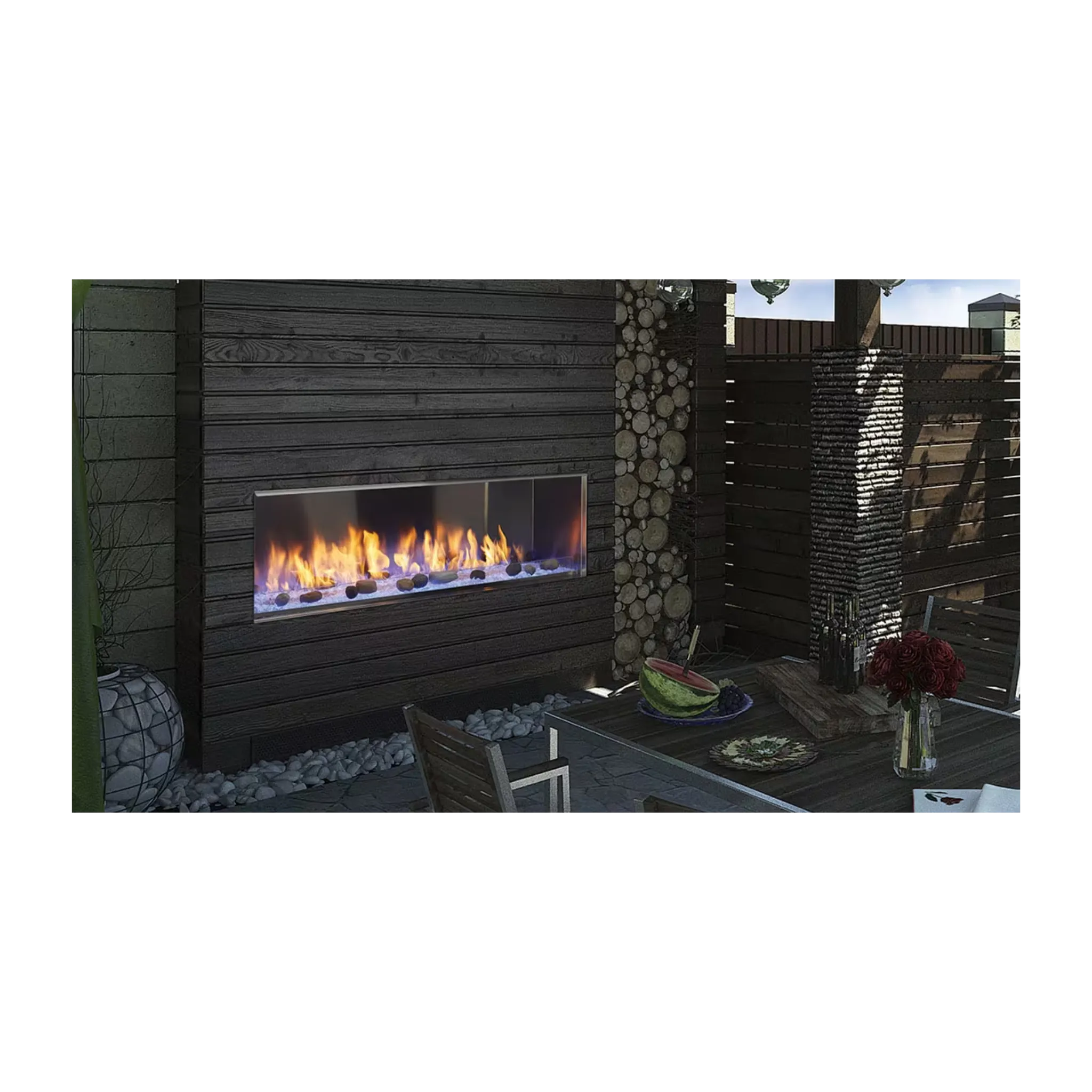

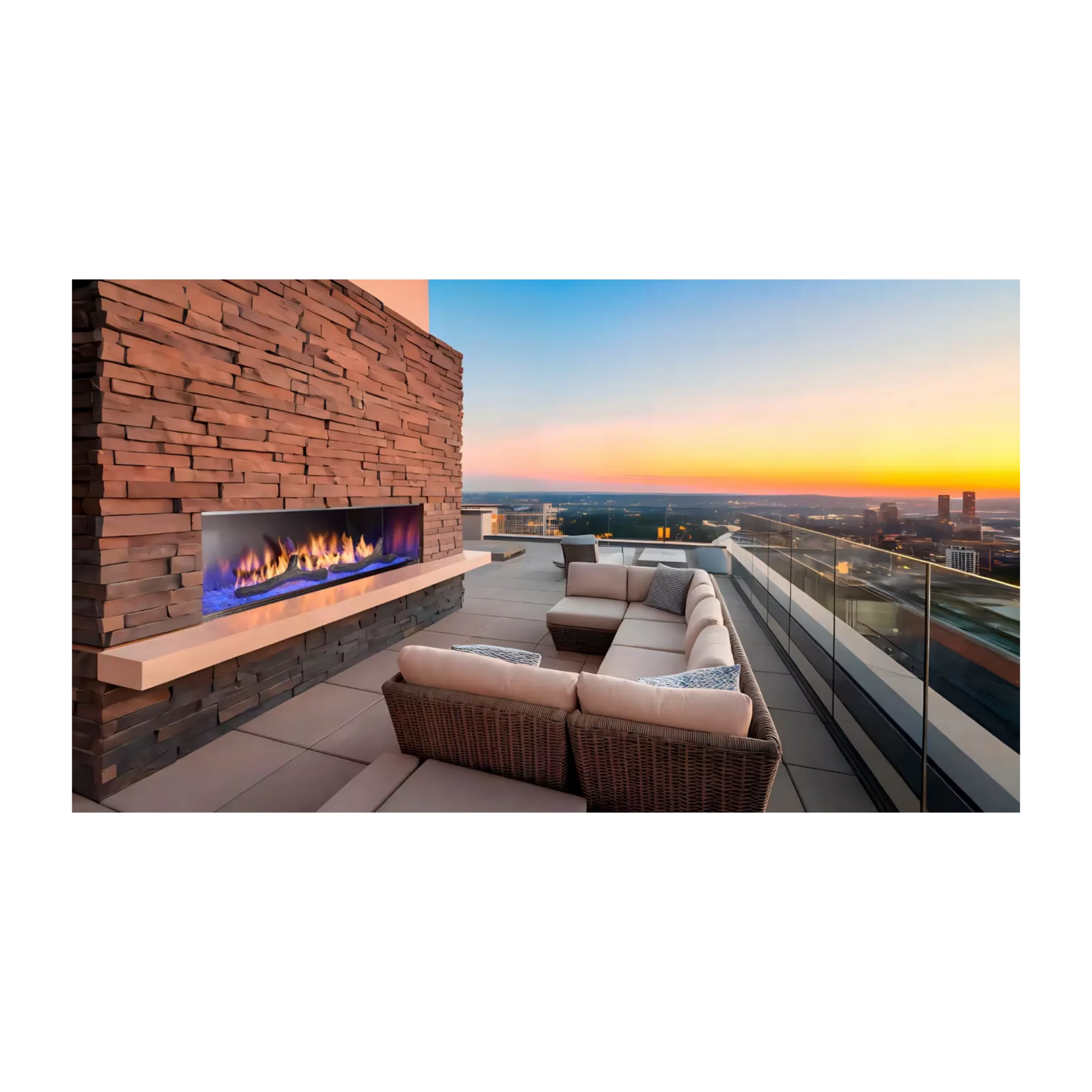

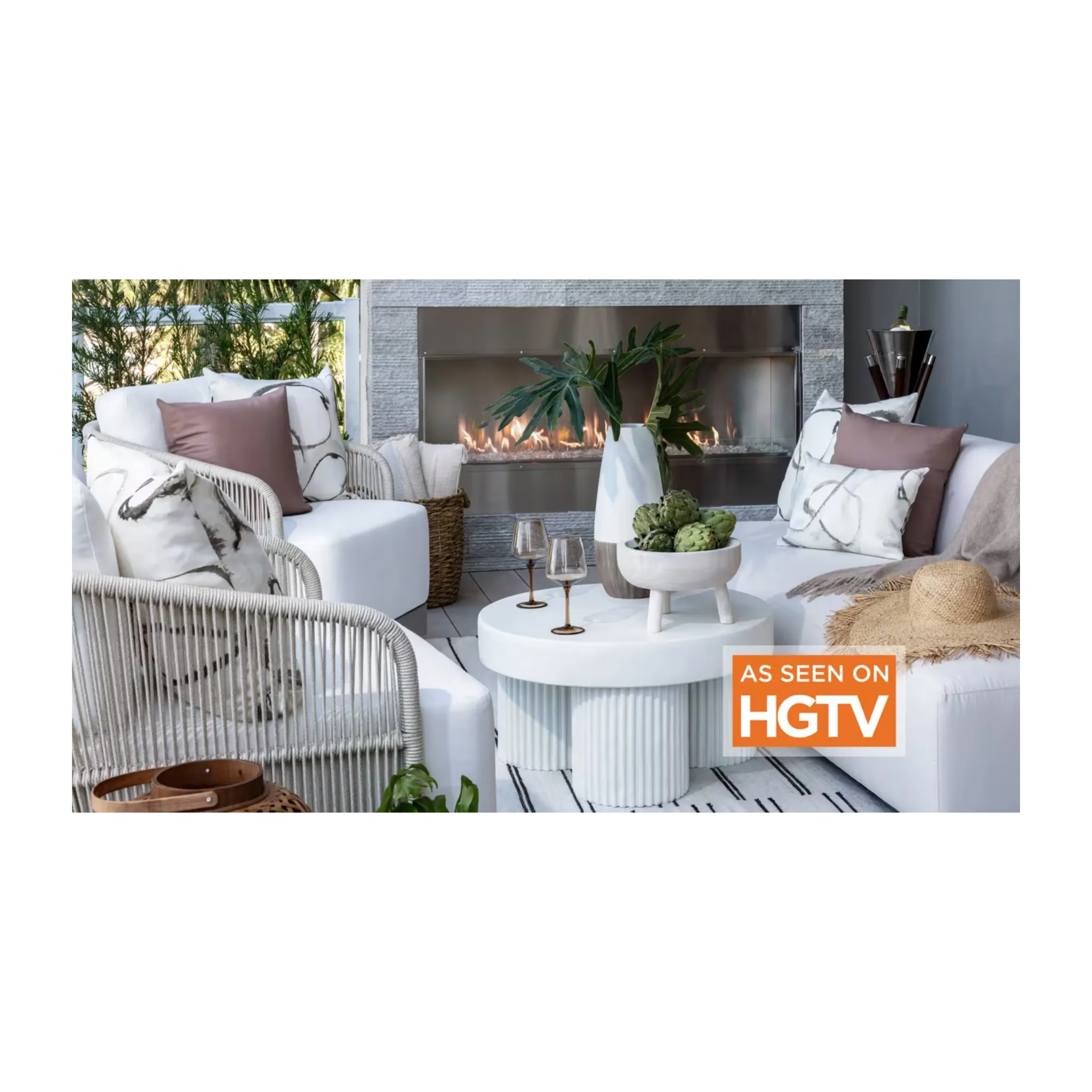

The Lanai is a linear outdoor fire, 48 to 72 inches of flame over glass media with LED lighting, built into a patio wall or an outdoor kitchen. It is decorative first and warming second; sit close and the radiant heat is real.
Good to know
- Outdoors only, and only where the manual's definition of outdoors is met: no cover, or a cover with no more than two walls, or three walls with 30 percent of the perimeter open.
- It needs drainage under it and a non-combustible enclosure.
Specifications
Dimensions
Framing the opening
Frame the rough opening below, measured inside the studs. Depth is from the finished face of the wall. Where the vent pipe goes through the framing there is a separate hole; the manual's drawing gives its position.
| Model | Width | Height | Depth |
|---|---|---|---|
| Lanai 48 | 52‑3/4" | 39‑3/4" | 13‑3/8" |
| Lanai 60 | 64‑3/4" | 39‑3/4" | 13‑3/8" |
Framing notes from the manual
- Lanai 48: Non-combustible sheathing above the appliance; 8 in. cement board supplied. Same manual: Lanai 60 framing 64-3/4 W, Lanai 72 framing 76-3/4 W, both 39-3/4 H x 13-3/8 D.
- Lanai 60: Back width: actual 64-1/8, framing 64-3/4. 12 in. cement board (supplied for minimum height installations) extends above minimum framing dimensions.

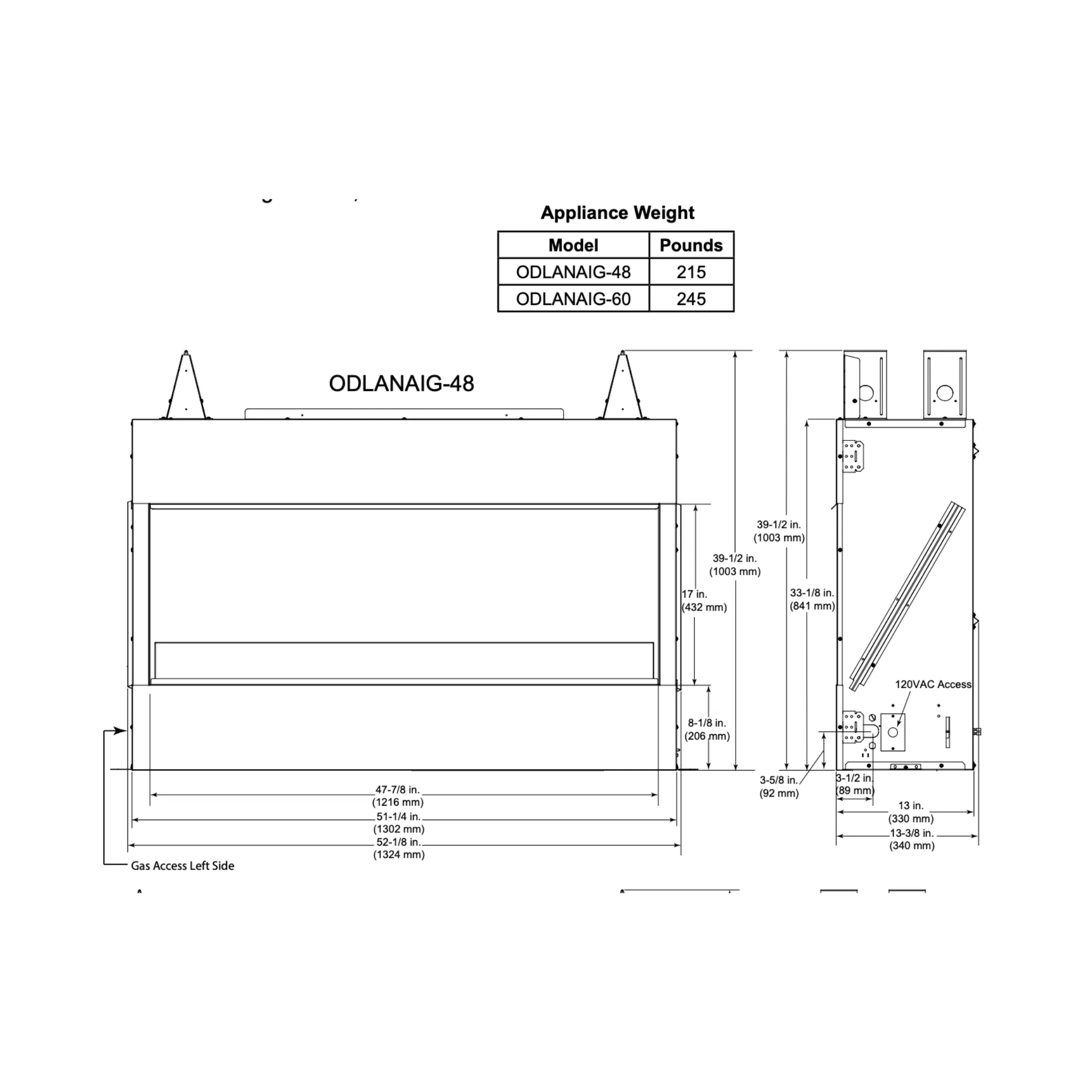

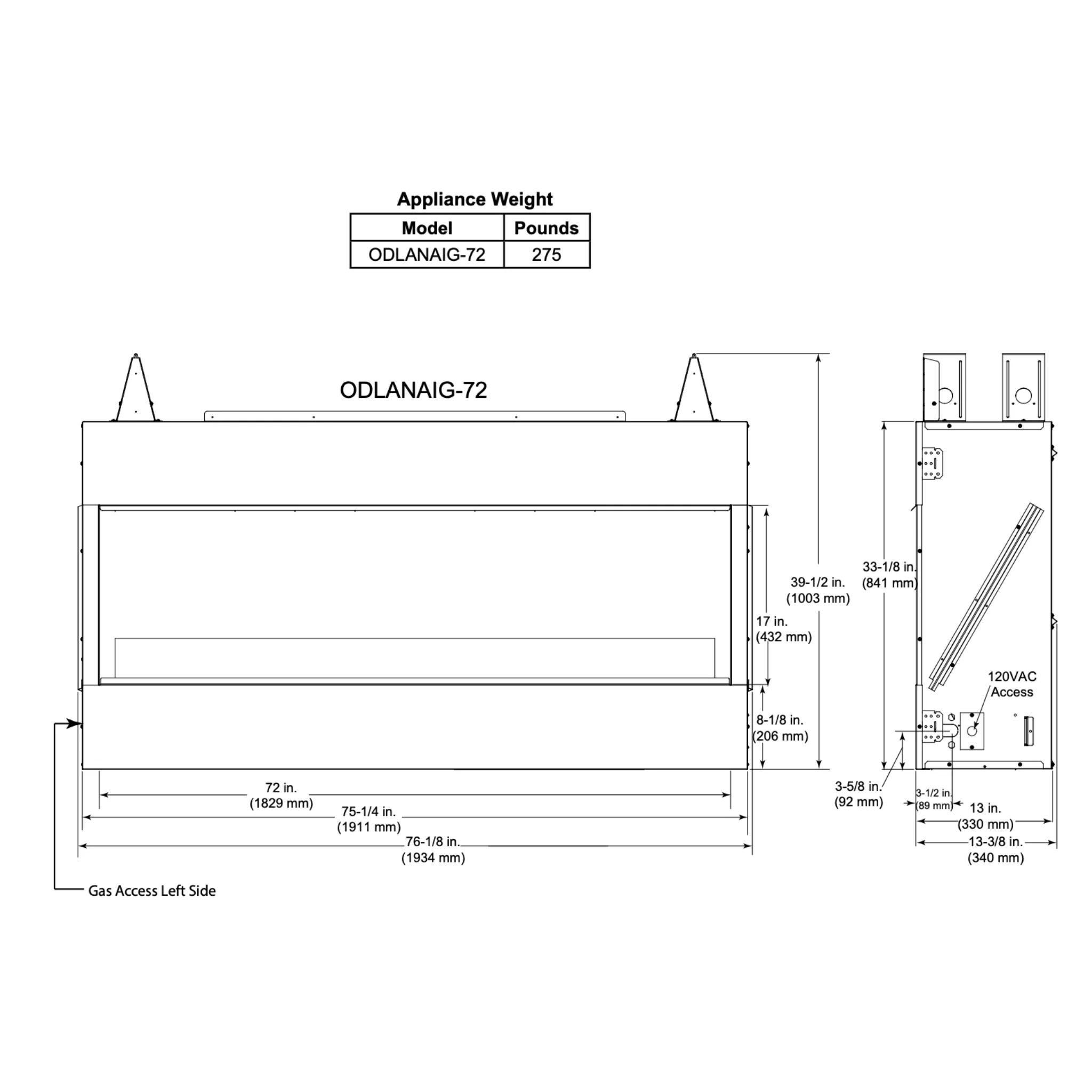

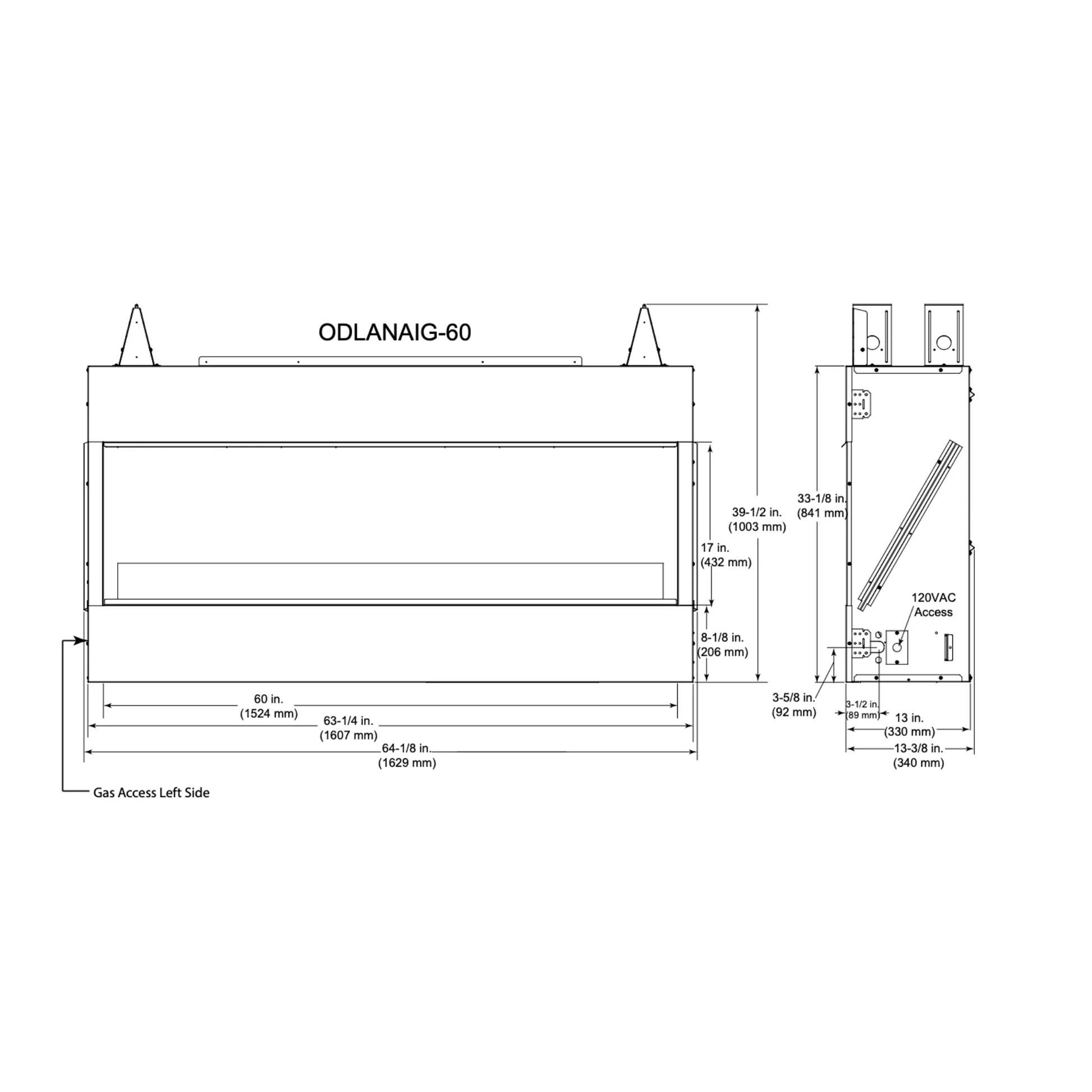

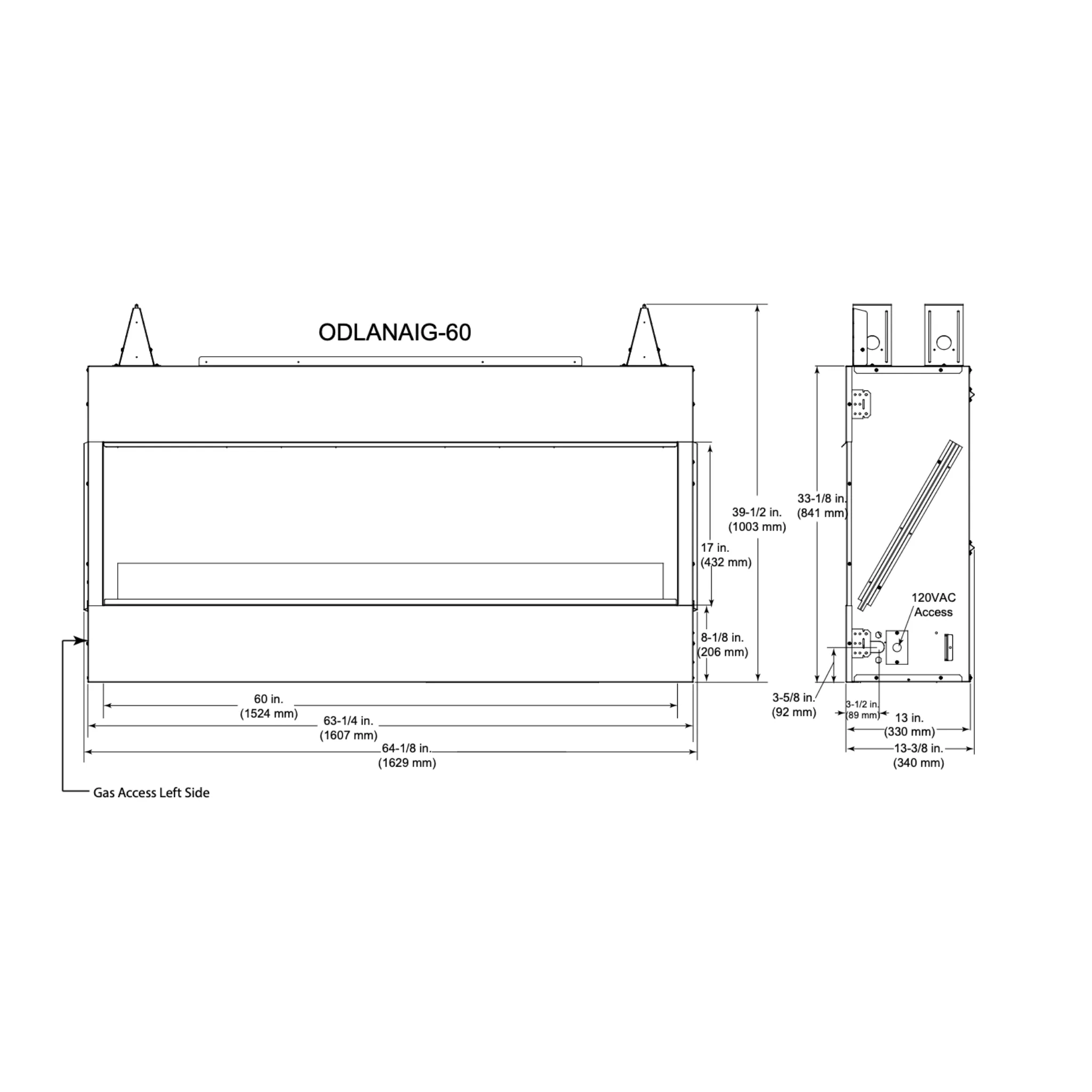

The fireplace itself
| Model | Width | Height | Depth |
|---|---|---|---|
| Lanai 48 | 52‑1/8 | 39‑1/2 | 13‑3/8 |
| Lanai 60 | 64‑1/8 | 39‑1/2 | 13‑3/8 |
Models and prices
Heat input is the range from the low to the high flame setting on natural gas and on propane. The LP model has the same price; order it by note.
| Model | Part | BTU per hour, NG | BTU per hour, LP | Fireplace only |
|---|
Required to complete: Units are built NG. Conversion kit. The options below are the ones sold on this page; each is matched to its size.
Clearances
Clearances are to combustible materials, from the appliance. They come from the installation manual for this model and depend on how it is vented; the installer confirms them on site.
| Clearance | Minimum |
|---|---|
| Sides | 1/2 air space |
| Back | 1/2 air space |
| Front | 36 to a combustible object |
| Ceiling | 39 from top of opening |
| Adjacent wall | 4 on one side only |
| Hearth extension | not required |
Combustible mantel: the deeper it projects, the higher it must sit above the opening.
| Mantel projection | Minimum height above the opening |
|---|---|
| 2‑1/2" | 18" |
| 6" | 20" |
| 8" | 22" |
| 12" | 24" |
Notes from the manual
Non-combustible mantel: 0, 2, 4 and 6 in. above the opening for the same projections. Clearances to windows and doors 12 in. (24 in. if vinyl), soffit 39 in., electrical service 24 in. beside and 12 in. above.
Documents
- Lanai 60 Outdoor Gas Fireplace Architect Guide (GS/HHT/Lanai-ODLANAIG60_0421) (pages 1-2)
- Install Manual: Lanai Series (PDF)
- Install Manual: Lanai ODLANAIG-51 (PDF)
- Owners Manual: Lanai Series (PDF)
- Owners Manual: Lanai ODLANAIG-51 (PDF)
- Service Part List: Lanai 48 (ODLANAIG-48) (PDF)
- Service Part List: Lanai (ODLANAIG-51) (PDF)
- Service Part List: Lanai 60 (ODLANAIG-60) (PDF)
- Service Part List: Lanai 72 (ODLANAIG-72) (PDF)
- Majestic user guides and manuals
Details
| Models | — |
|---|---|
| Type | Outdoor gas fireplace |
| Fuel | Natural gas; propane model at the same price |
| Heat input | See the table above |
| Ignition | IntelliFire Touch intermittent pilot with battery backup |
| Controls | Wall switch; RC400 remote and IntelliFire app with the Wi-Fi module |
| Electrical | 120 V for fan, lights and accessories |
| Manufacturer | Majestic, a Hearth & Home Technologies brand, USA |
| Viewing area, Lanai 48 | 47‑7/8 x 17 |
| Weight, Lanai 48 | 215 lb |
| Viewing area, Lanai 60 | 60 x 17 |
| Weight, Lanai 60 | 245.0 lb |
Warranty
| Component | Coverage |
|---|---|
| Firebox and heat exchanger | Limited lifetime (20 years), 3 years labor |
| Burners, logs and metal or fiber refractory made by HHT | 10 years, 1 year labor |
| Cement refractory panels, glass liner panels | 3 years |
| Glass; electrical components (ignition modules, remotes and wall switches, valves, pilots, blowers, junction boxes, harnesses, transformers, lights) | 1 year parts and labor |
| All other parts | 1 year |
Source: Hearth & Home Technologies Limited Lifetime Warranty, the document packed with the appliance and linked from the owner's manual above. "Lifetime" means 20 years for gas appliances, 10 years for wood and pellet appliances and 5 years for standalone gas log sets, counted from the start of coverage, which begins no later than 24 months after the appliance ships from the factory.
Heat
Heat input per hour on natural gas and on propane, low to high, and the efficiency where the maker publishes it.
| Model | BTU, natural gas | BTU, propane | Efficiency |
|---|---|---|---|
| Lanai 48 | 55,000 | 55,000 | — |
| Lanai 60 | 65,000 | 65,000 | — |
Choices and prices
Fans, heat management and controls
Available for this fireplace and priced by Majestic. Ask us to add any of them to your order.
| Item | Part | Price |
|---|---|---|
| 48" Lanai outdoor linear fireplace with IntelliFire Ignition, Single-sided | ODLANAIG-48 | $4,639 |
| 60" Lanai outdoor linear fireplace with IntelliFire Ignition, Single-sided | ODLANAIG-60 | $5,009 |
| LANAI 72" Outdoor Gas Fireplace, NG | ODLANAIG-72 | $5,609 |
What arrives
- Multicolored LED lights
- 55,000 BTUs (NG & LP)
- Crystal glass media
- 48" x 17" viewing area
- Glass wind guard
- UL/ULC listed

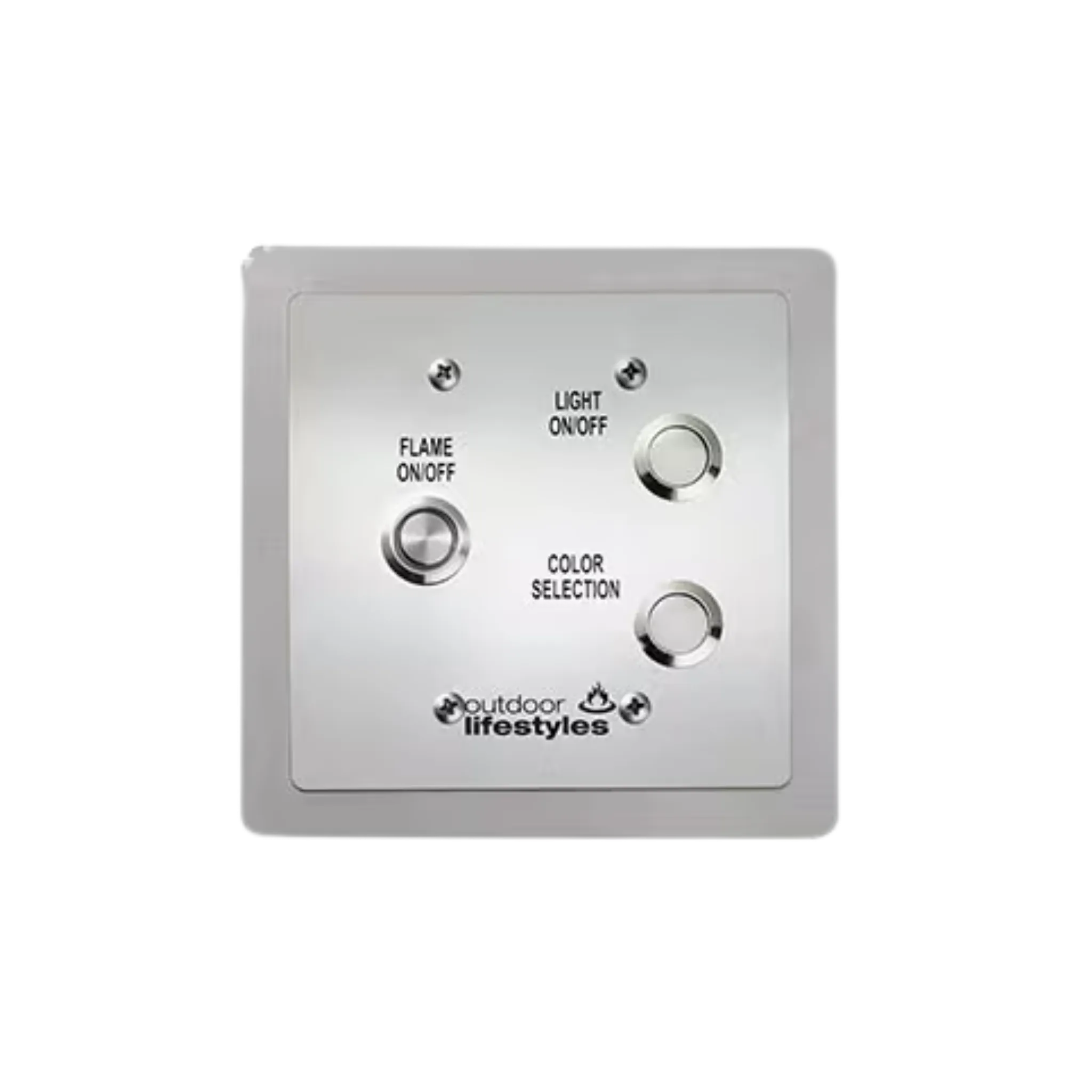

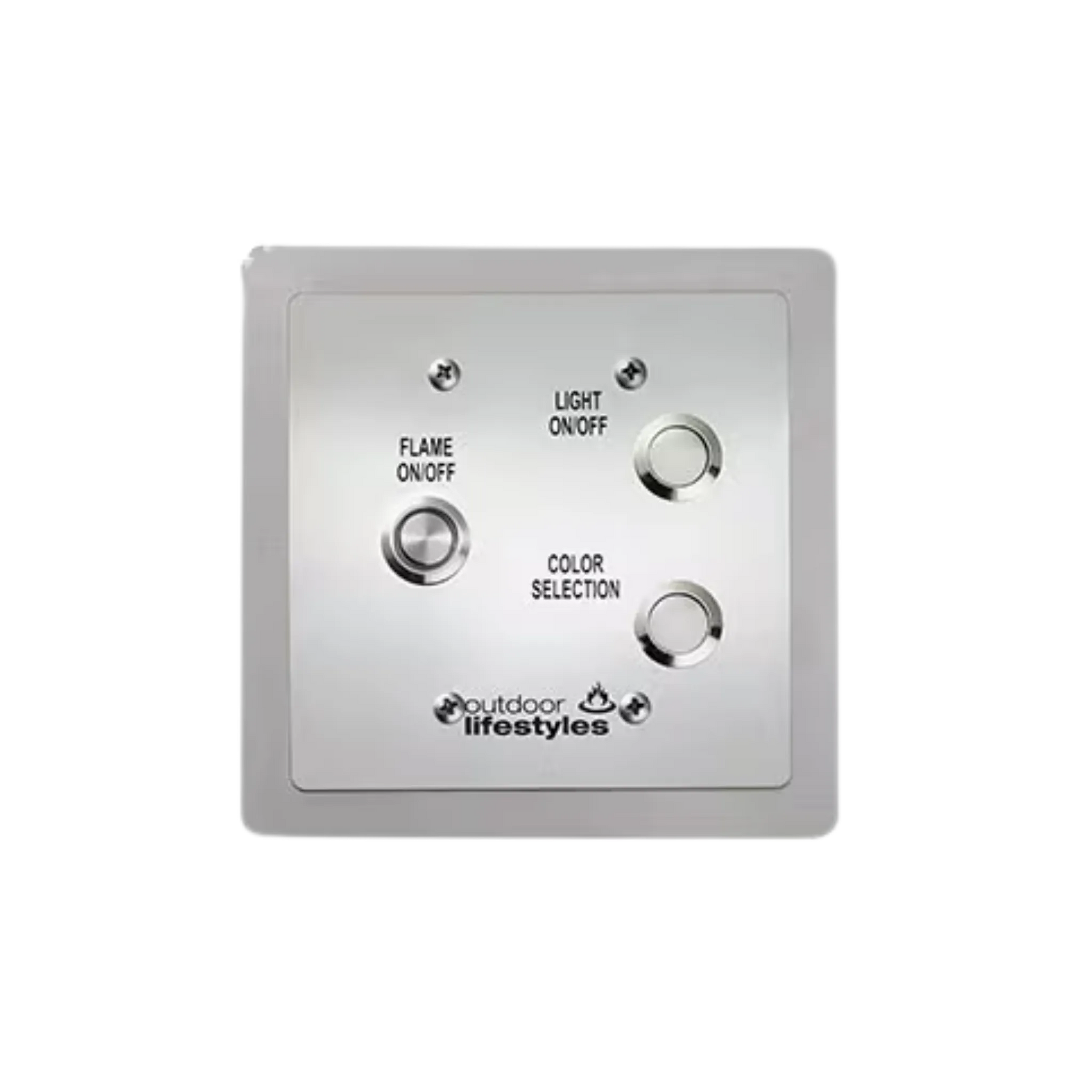

- Wall control with 15' of wire and
- junction box
- Gas flex connector
- 65,000 BTUs (NG & LP)
- 60" x 17" viewing area
- Wall control with 14' of wire and
- 72" x 17" viewing area
- The front, interior and any accessories ship as their own cartons.
Installation
| Venting | Requirement |
|---|---|
| Type | No venting; outdoor decorative appliance |
Counts as outdoors only with no overhead cover, or a cover with no more than two side walls, or three walls with at least 30 percent of the perimeter permanently open. Insect screen allowed; no solar screen. Drainage from under the unit; optional drain pan ODLANAIG-48DP.
No venting. Outdoor gas fireplaces burn in the open air and are built with stainless and weather-rated components. The unit is installed in a non-combustible enclosure per the manual, outdoors only unless the model is rated indoor-outdoor.
Planning the install
- Installation is by a licensed gas installer. The fireplace, its venting and the gas line are inspected together, and the warranty depends on it.
- Framing, clearances to combustibles, mantel heights and the vent run come from the installation manual for your size. Send us your plan and we will check it before anything ships.
- Venting is sold separately and priced from the installer's plan: the pipe, elbows and termination depend on where the vent exits. Ask us for a vent quote with your order.
- Propane: every model is also made in an LP version at the same price. Add a note to your order and we will confirm the LP model before it ships.
- A 120-volt outlet or junction box at the fireplace is needed for the fan, lights and accessories; the ignition itself has battery backup.
- Special-order goods ship by freight. Confirm the size and the front before you order.
Questions
Can it go indoors?
Only the models Majestic rates indoor-outdoor, and only installed as the manual describes, with the required venting. Outdoor-only models must stay outside.
Does it need electricity?
The IntelliFire models need 120 volts for the ignition, fan and lights; the match-lit and manual-ignition models do not.
What is a front, and why is it required?
A Majestic direct-vent fireplace ships as the firebox and glass. The front is the finished face that covers the frame and the vents: a clean-face trim that disappears into the wall, or a decorative front with a screen. The fireplace cannot be finished without one, which is why the page will not let you order without choosing it.
What is IntelliFire Touch?
Majestic's intermittent-pilot ignition system. There is no standing pilot burning all year; the fireplace lights when you turn it on, from the wall switch, the remote or the app. It has a battery backup, so it still lights in a power outage. Flame height, the fan and the lights are controlled from the RC400 remote or the IntelliFire app with the Wi-Fi module.
Can I get it in propane?
Yes. Add a note to your order and we will confirm the LP model, which is the same price.
Can I return it?
Fireplaces are special-order freight items. Confirm the size, the front and the interior with us before you order, and contact us before returning anything.
