Majestic Pioneer III Outdoor Wood Burning Fireplace
At a glance
- Type: Outdoor Wood Fireplace
- Sizes: Arched Front, Rectangular Front
- Fuel: Seasoned firewood
- Made by: Majestic, a Hearth & Home Technologies brand
Description
The Majestic Pioneer III is the larger outdoor wood-burning fireplace in the Pioneer line, with an arched or rectangular front. It comes in 2 sizes: Arched Front, Rectangular Front.
Who it's for
Right buyer. You want the larger Pioneer outdoor wood fireplace with an arched or rectangular front.
Wrong buyer. A smaller patio; the Pioneer II.
How it performs
The Pioneer III is the larger Pioneer, same arched or rectangular front, for the bigger patio.
Good to know
- Outdoors only.
- Chimney per the manual.
Specifications

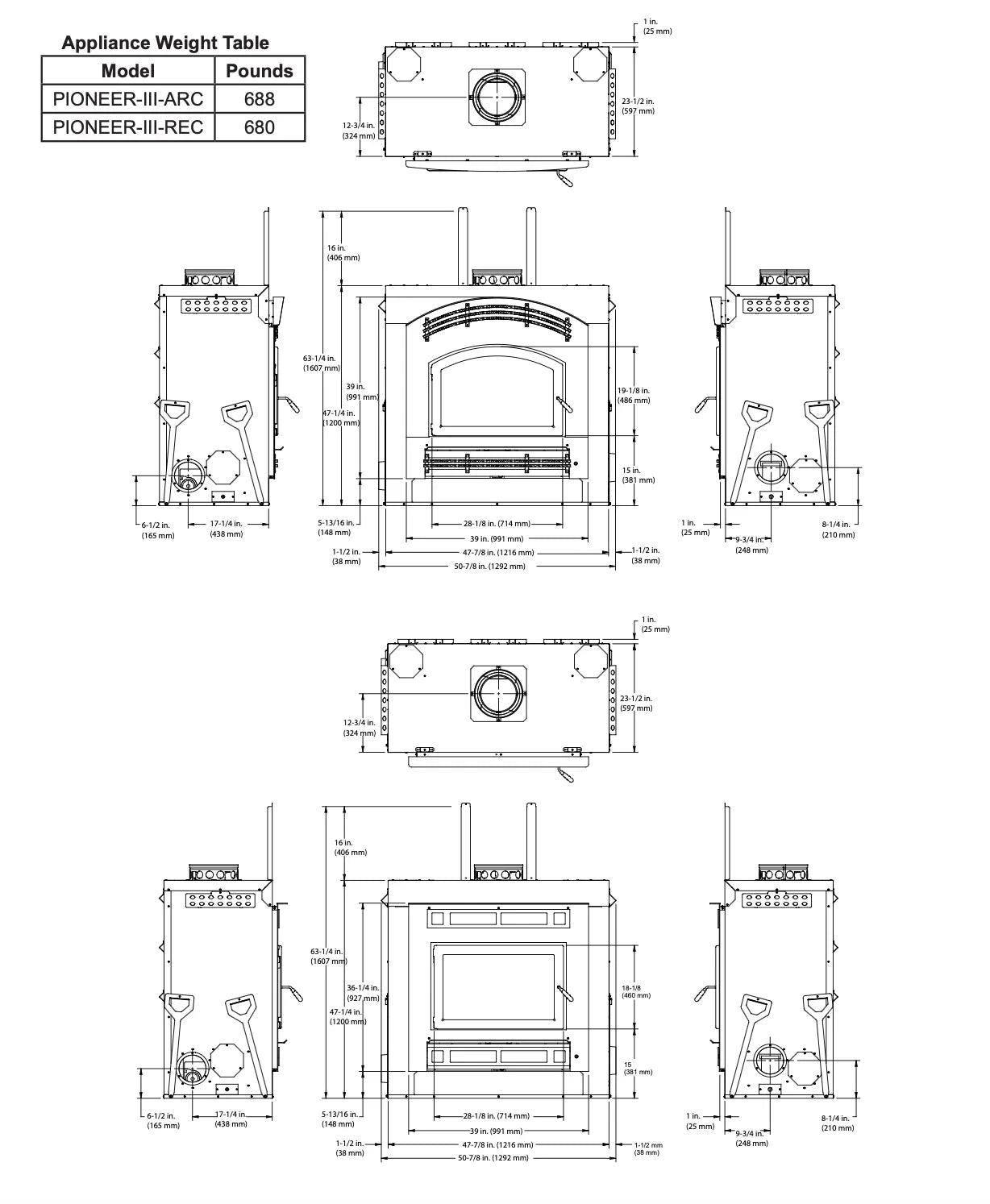

Dimensions
Framing the opening
Frame the rough opening below, measured inside the studs. Depth is from the finished face of the wall. Where the vent pipe goes through the framing there is a separate hole; the manual's drawing gives its position.
| Model | Width | Height | Depth |
|---|---|---|---|
| Pioneer III | 51" | 63‑1/4" | 24‑1/2" |
Framing notes from the manual
- Pioneer III: Back width: actual 47-7/8, framing 51. Allow 12 in. minimum cavity depth if using an elbow/bend for the required fan air. Faceplate to sidewall 16 in.
The fireplace itself
| Model | Width | Height | Depth |
|---|---|---|---|
| Pioneer III | 47‑7/8 | 47‑1/4 | 23‑1/2 |
Models and prices
| Model | Part | Firebox opening | Fireplace only |
|---|
Required to complete: Front Advanced Technology Product.
Clearances
Clearances are to combustible materials, from the appliance. They come from the installation manual for this model and depend on how it is vented; the installer confirms them on site.
| Clearance | Minimum |
|---|---|
| Adjacent wall | 16" |
Notes from the manual
Faceplate to sidewall 16 in. Mantel clearances are from bottom of appliance to lower edge of mantel or trim (figure not transcribed). Owner manual clear space: 48 in. front of fireplace.
Documents
- Pioneer III EPA Wood-burning Fireplace Architect Guide (WFP/QDF/PioneerIII_0419; Quadra-Fire-branded edition) (pages 1)
- Install Manual: Pioneer (PDF)
- Owners Manual: Pioneer (PDF)
- Service Part List: PIONEER-II-ARC / PIONEER-II-REC (PDF)
- Majestic user guides and manuals
Details
| Models | — |
|---|---|
| Type | Outdoor wood-burning fireplace |
| Fuel | Seasoned firewood; vented gas log sets optional where the manual allows |
| Listing | UL/ULC listed |
| Manufacturer | Majestic, a Hearth & Home Technologies brand, USA |
| Weight, Pioneer III | 688.0 lb |
Warranty
| Component | Coverage |
|---|---|
| Firebox and heat exchanger | Limited lifetime (10 years), 3 years labor |
| Castings, medallions and baffles | 10 years, 3 years labor |
| Molded refractory panels | 3 years |
| Glass; blowers and electrical parts | 1 year parts and labor |
| All other parts | 1 year |
Source: Hearth & Home Technologies Limited Lifetime Warranty, the document packed with the appliance and linked from the owner's manual above. "Lifetime" means 20 years for gas appliances, 10 years for wood and pellet appliances and 5 years for standalone gas log sets, counted from the start of coverage, which begins no later than 24 months after the appliance ships from the factory.
Heat
An open wood fireplace is not a rated heater, and Majestic publishes no BTU figure for it: the fire warms what it faces by radiation, and most of the heat from the flue goes outdoors. What decides how much fire you get is the firebox: Pioneer III opens 63-1/4", Pioneer III opens 47-1/4. Seasoned hardwood, a proper chimney draft and doors closed as the fire burns down give the most warmth for the wood. Where a gas log set is approved for the model, its rating is on the log-set page.
Choices and prices
Other options on this page
| Item | Part | Price |
|---|---|---|
| Wood Fireplace with Rectangular door, classic black | PIONEER-III-REC | $6,279 |
| Wood Fireplace with Arch door, classic black | PIONEER-III-ARC | $6,279 |
| Forged arch front, classic black | DF-PIII-FA | $1,479 |
| Mission arch front, classic black | DF-PIII-MA | $809 |
| Mission rectangular front, classic black | DF-PIII-MR | $809 |
What arrives
- Attic insulation shield
- Smart Burn Technology
- 4.1 cu/ft firebox
- Single cast iron door
- 400 CFM fan system
- Fan air kit grill
- Welded steel firebox
- CAK4A
- Outside air hood
- The refractory, doors and any accessories ship as their own cartons.
Installation
| Venting | Requirement |
|---|---|
| Type | Factory-built chimney |
| Pipe | SL300 series pipe; vent size 8 inches (owner's manual) |
An outdoor wood fireplace is built into a non-combustible enclosure on the patio and vented with its own chimney system to the height the manual requires. The chimney pipe, supports and cap are sold separately and quoted from your installer's plan.
Planning the install
- Installation is by a qualified installer, and the fireplace and its chimney are inspected together.
- Framing, clearances, hearth extension and chimney height come from the installation manual for your size. Send us your plan and we will check it before anything ships.
- The chimney system is sold separately and priced from the plan.
- Outdoor only. Never install an outdoor fireplace inside a structure.
- Special-order goods ship by freight. Confirm the size and refractory before you order.
Questions
Can I put gas logs in it?
Most Majestic wood fireplaces have gas knockouts and are listed for specific vented gas log sets; the options on this page are the ones Majestic approves for this model. A gas line and installation by a gas fitter are required.
Does it heat the room?
An open wood fireplace is for the look and the radiant warmth in front of it; most of the heat goes up the chimney. Doors help. For heating, look at the WarmMajic-II or a wood insert.
Which chimney pipe does it take?
The pipe system listed in the manual for this model, in the diameter and minimum height it specifies. We quote it from your installer's plan.
Can I return it?
Fireplaces are special-order freight items. Confirm the size, refractory and doors with us before you order, and contact us before returning anything.
What wood should I burn?
Seasoned hardwood, split and dried a year or more, below 20 percent moisture. Wet wood smokes, coats the chimney with creosote and makes a poor fire.
How often does the chimney need sweeping?
Once a year at least, and after every cord or two if you burn nightly. Creosote is the fire risk in any wood fireplace, and a sweep is cheap insurance.
