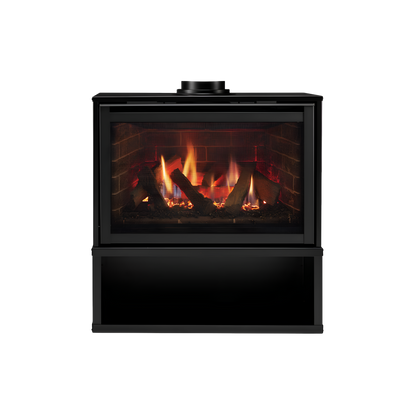

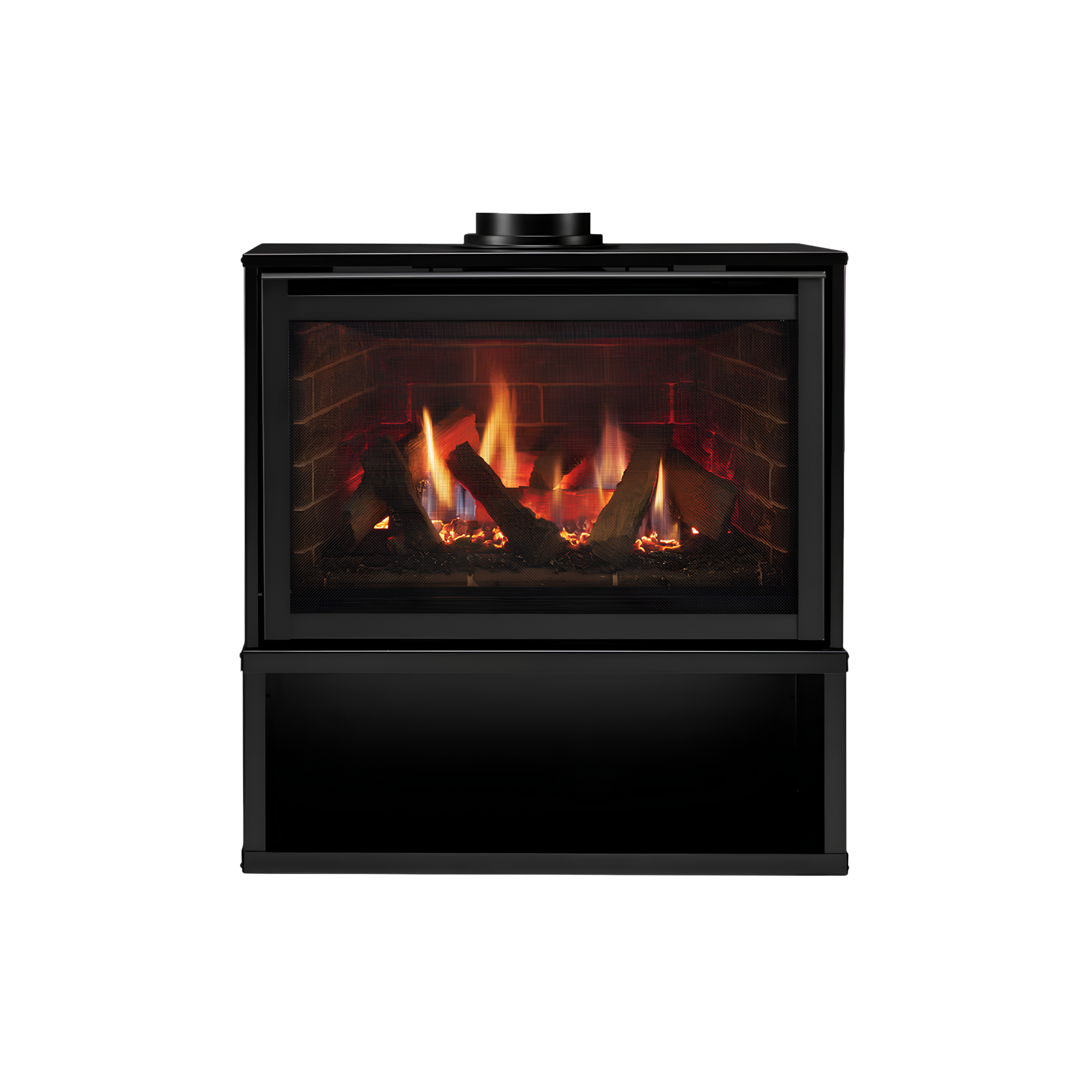

Majestic Ruby Freestanding Direct Vent Gas Stove
At a glance
- Type: Freestanding Gas Stove
- Sizes: Standard, Black Glass Liner, Tavern Brown Brick – Traditional, Cottage Red Brick – Traditional
- Fuel: Natural gas; propane model by note
- Ignition: IntelliFire
- Made by: Majestic, a Hearth & Home Technologies brand
Description

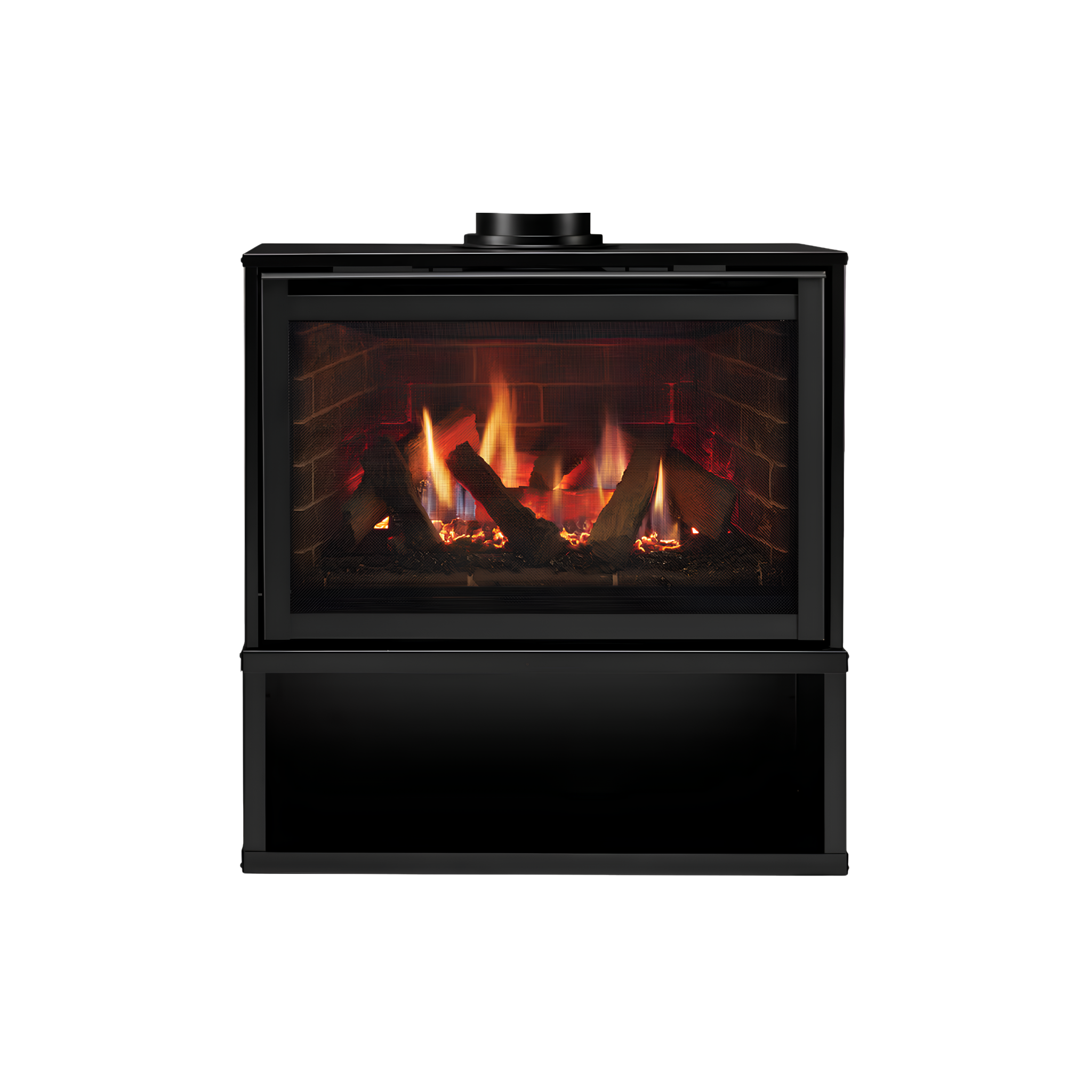

The Majestic Ruby Freestanding is the Ruby 30 firebox on a cabinet base, a direct-vent gas stove that stands against a wall and vents out the back or through the roof, with a log set and IntelliFire Touch. It comes in 4 sizes: Standard, Black Glass Liner, Tavern Brown Brick – Traditional, Cottage Red Brick – Traditional.
Who it's for
Right buyer. You have no fireplace and want a gas stove that stands against a wall and vents straight out the back, with the Ruby firebox, a log set and a remote.
Wrong buyer. You have a fireplace to fill; the Ruby insert uses the same firebox and costs less. You want the largest glass; the Trilliant Freestanding.
How it performs

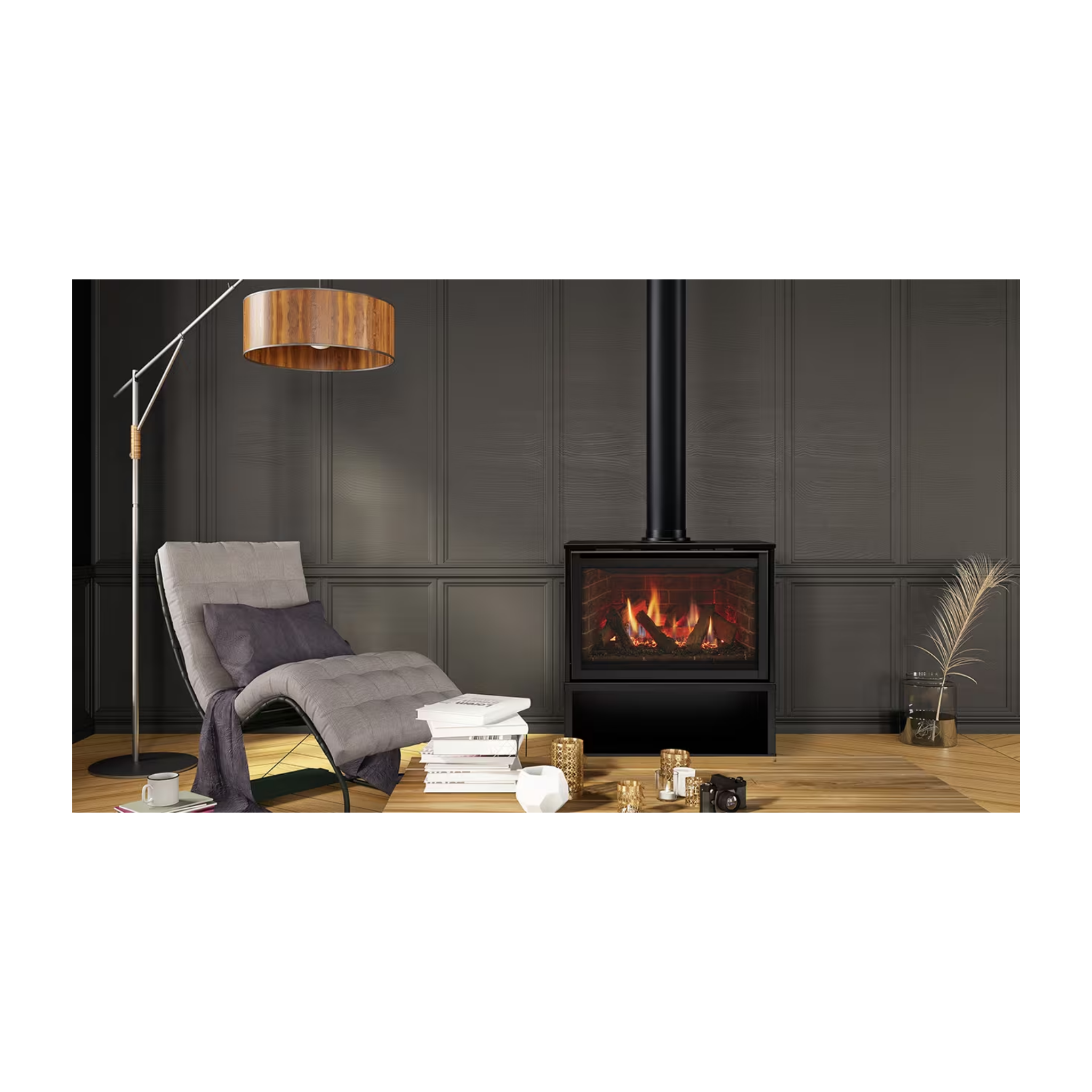

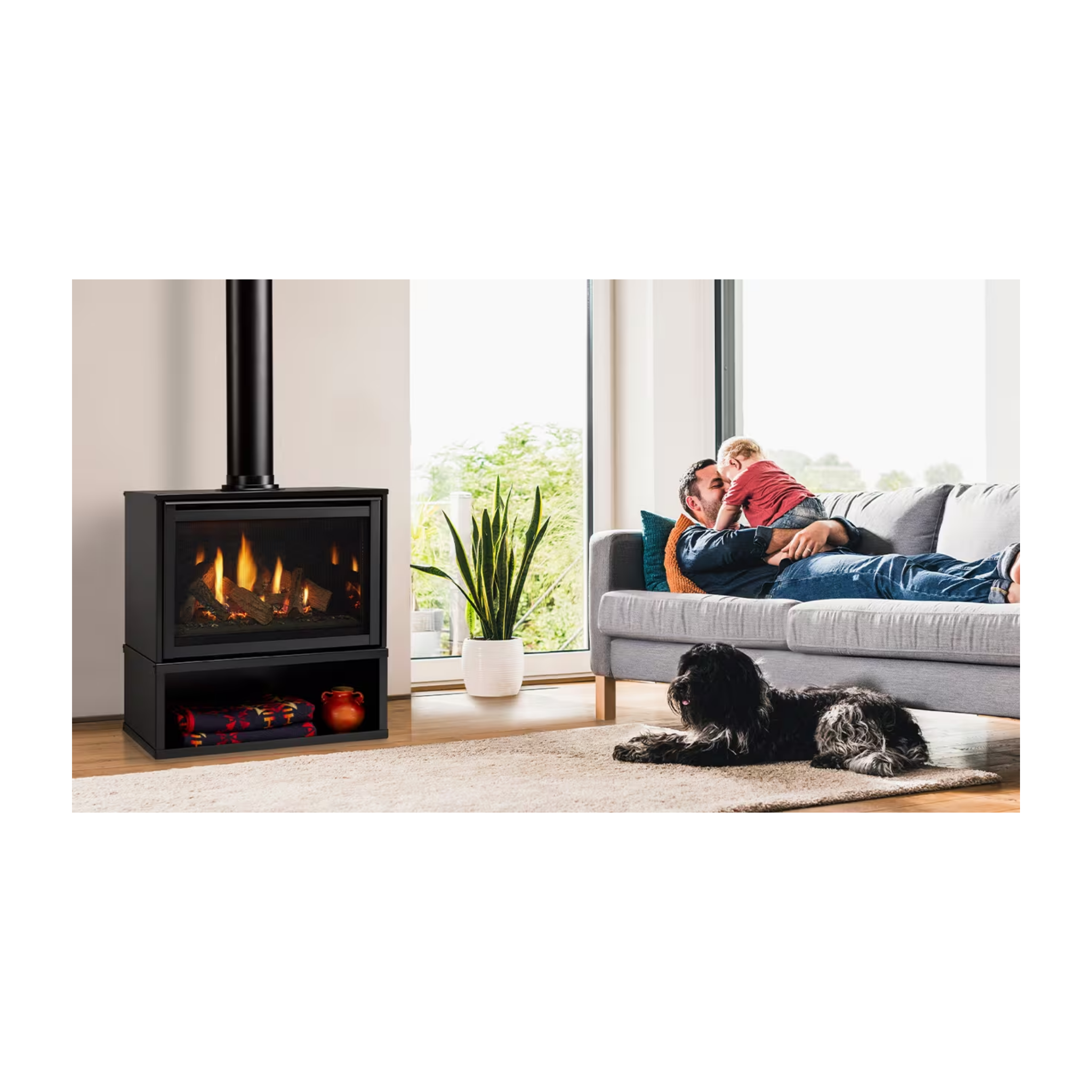

The Ruby Freestanding is the Ruby 30 insert on a cabinet: the same firebox and fire, standing against a wall where there is no fireplace, vented straight up or out the back. It is the answer for a room that never had a chimney.
Good to know
- Vertical venting only; the pipe goes up, with at most a short horizontal run.
- The cabinet, adapter and front are separate parts that must all be ordered.
Specifications

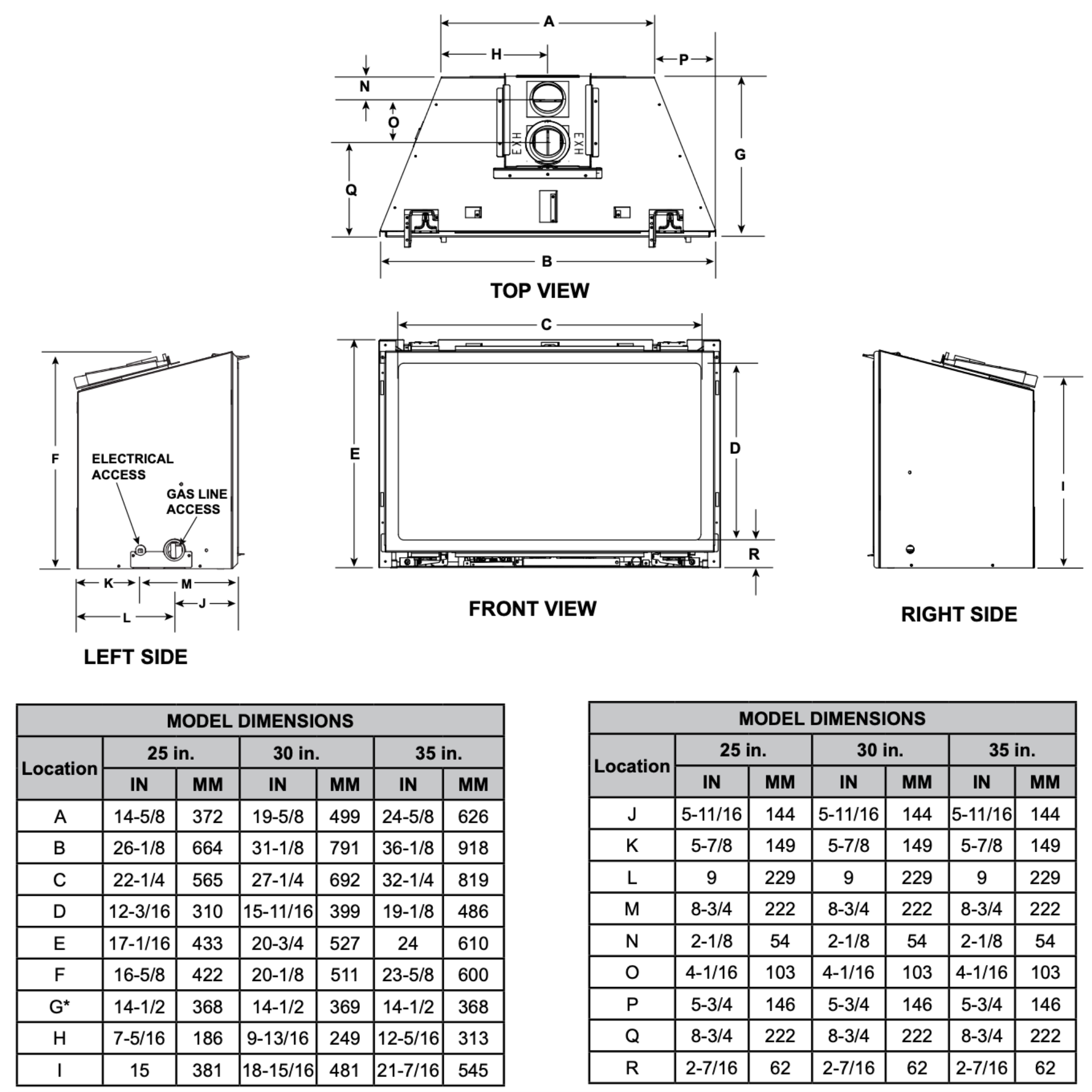

Dimensions
Framing the opening
Frame the rough opening below, measured inside the studs. Depth is from the finished face of the wall. Where the vent pipe goes through the framing there is a separate hole; the manual's drawing gives its position.
| Model | Width | Height | Depth |
|---|---|---|---|
| Ruby 30 Freestanding | -" | -" | -" |
The fireplace itself
| Model | Width | Height | Depth |
|---|---|---|---|
| Ruby 30 Freestanding | — | — | — |
Models and prices
Heat input is the range from the low to the high flame setting on natural gas and on propane. The LP model has the same price; order it by note.
| Model | Part | BTU per hour, NG | BTU per hour, LP | Fireplace only |
|---|
Required to complete: INFIT-30-BK CK-30. The options below are the ones sold on this page; each is matched to its size.
Clearances
Clearances are to combustible materials, from the appliance. They come from the installation manual for this model and depend on how it is vented; the installer confirms them on site.
| Clearance | Minimum |
|---|---|
| Sides | 5 (8 if the fan will be removed through the back) |
| Back | 3 (5 if the fan will be removed through the back) |
| Ceiling | 75 in an alcove |
Notes from the manual
Alcove 44 in. wide, 36 in. maximum depth. Corner: flue center 20-3/4 in. from the wall. No hearth pad required; may sit on carpet; vinyl needs a 12 in. hearth in front the width of the appliance. The cabinet requires the ADP-CK30 adapter and the INFIT-30-BK front.
Documents
- Install Manual: CK-30 Cabinet Kit (PDF)
- Install Manual: Ruby 25,30,35 IFT (PDF)
- Owners Manual: Ruby 25,30,35 IFT (PDF)
- Service Part List: Ruby 30 w/IFT (RUBY30IN/RUBY30IL) (PDF)
- Majestic user guides and manuals
Details
| Models | — |
|---|---|
| Type | Freestanding direct-vent gas stove |
| Fuel | Natural gas; propane model at the same price |
| Heat input | See the table above |
| Ignition | IntelliFire Touch intermittent pilot with battery backup |

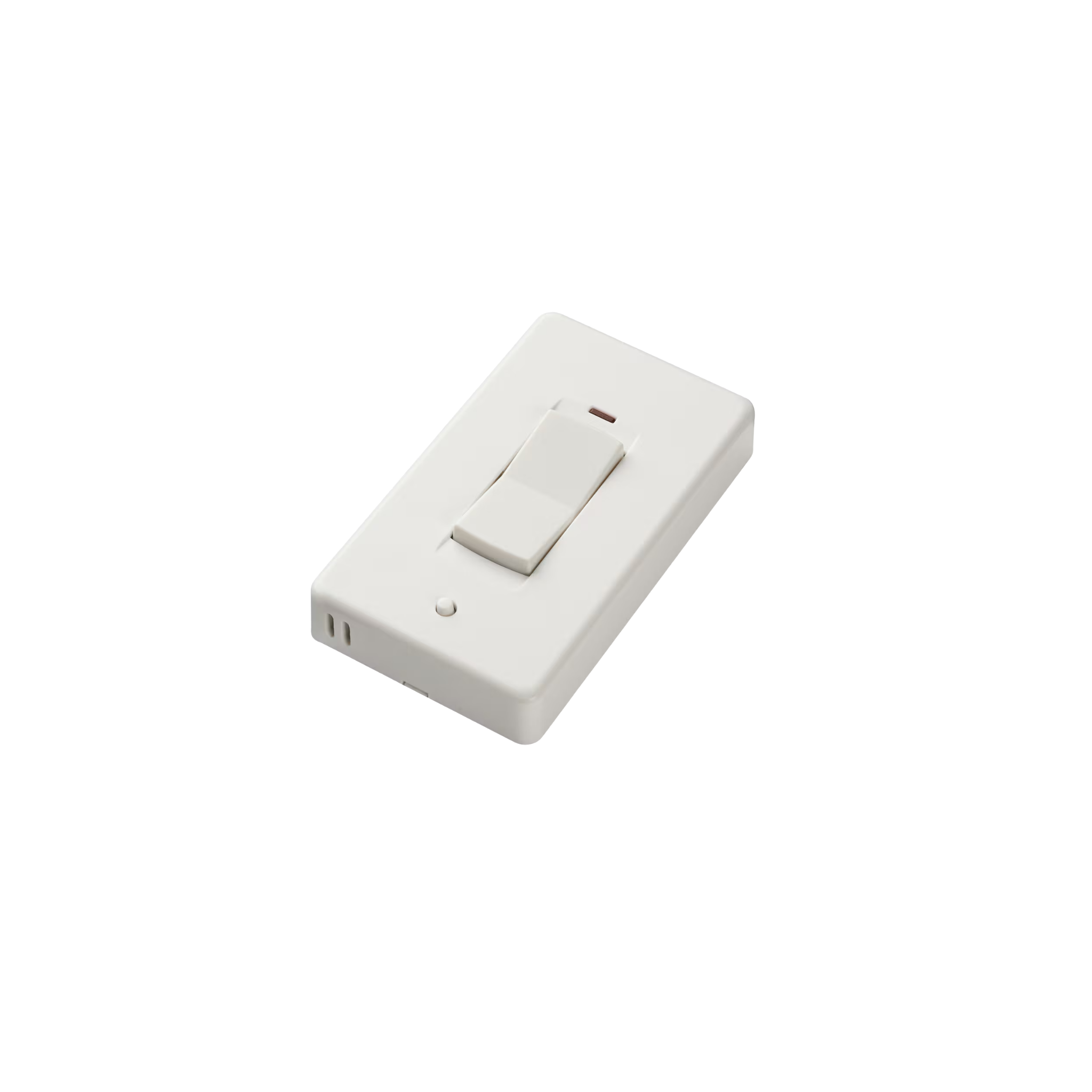

| Controls | Wall switch; RC400 remote and IntelliFire app with the Wi-Fi module |
| Electrical | 120 V for fan, lights and accessories |
| Manufacturer | Majestic, a Hearth & Home Technologies brand, USA |
| Weight, Ruby 30 Freestanding | 70.0 lb |
Warranty
| Component | Coverage |
|---|---|
| Firebox and heat exchanger | Limited lifetime (20 years), 3 years labor |
| Burners, logs and metal or fiber refractory made by HHT | 10 years, 1 year labor |
| Cement refractory panels, glass liner panels | 3 years |
| Glass; electrical components (ignition modules, remotes and wall switches, valves, pilots, blowers, junction boxes, harnesses, transformers, lights) | 1 year parts and labor |
| All other parts | 1 year |
Source: Hearth & Home Technologies Limited Lifetime Warranty, the document packed with the appliance and linked from the owner's manual above. "Lifetime" means 20 years for gas appliances, 10 years for wood and pellet appliances and 5 years for standalone gas log sets, counted from the start of coverage, which begins no later than 24 months after the appliance ships from the factory.
Heat
Heat input per hour on natural gas and on propane, low to high, and the efficiency where the maker publishes it.
| Model | BTU, natural gas | BTU, propane | Efficiency |
|---|---|---|---|
| Ruby 30 Freestanding | — | — | — |
Choices and prices
Front
The front is the finished face of the fireplace. A clean-face trim frames the glass with a thin edge for a built-in look; overlap and arched fronts sit on the wall and carry a screen.
| Front | Part | Price |
|---|---|---|
| Steel cabinet with pedestal base for use with 30" gas inserts | CK-30 | $1,099 |
Interior and media
The interior is what you see behind the fire: a brick liner, a reflective black glass liner, or glass media in place of logs.
| Interior or media | Part | Price |
|---|---|---|

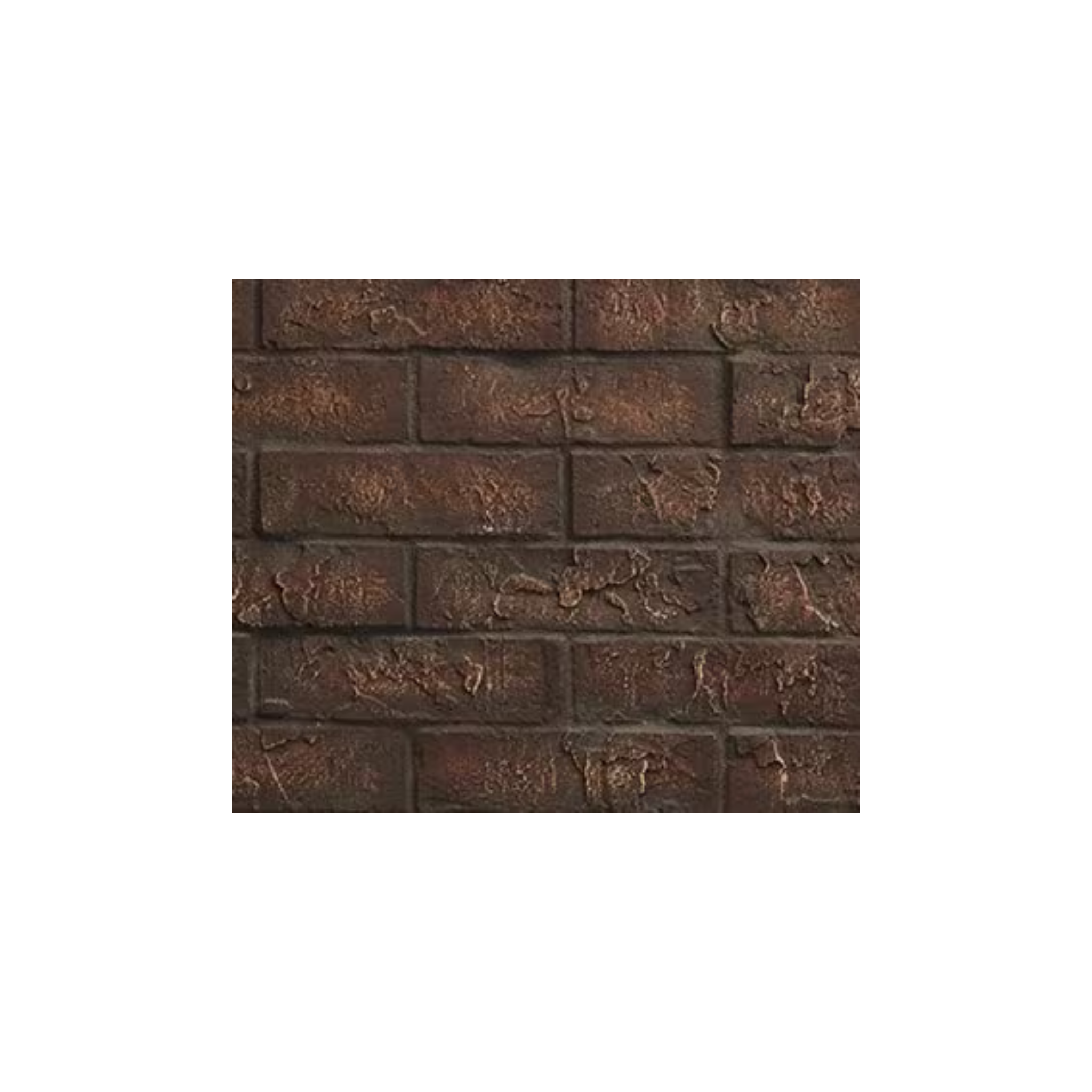

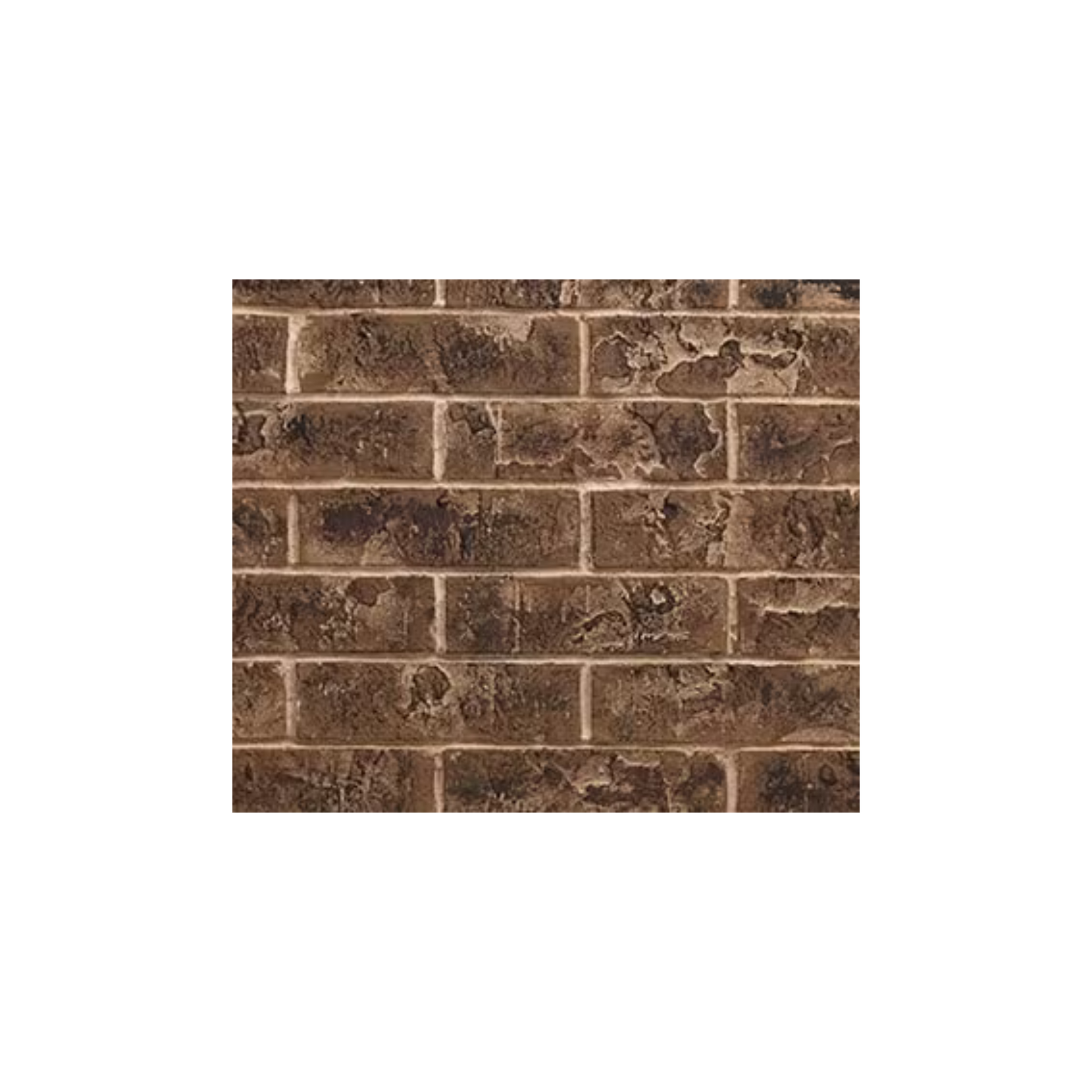

| Traditional 30" Brick interior panels - Tavern Brown | BRICKMI30TB | $319 |

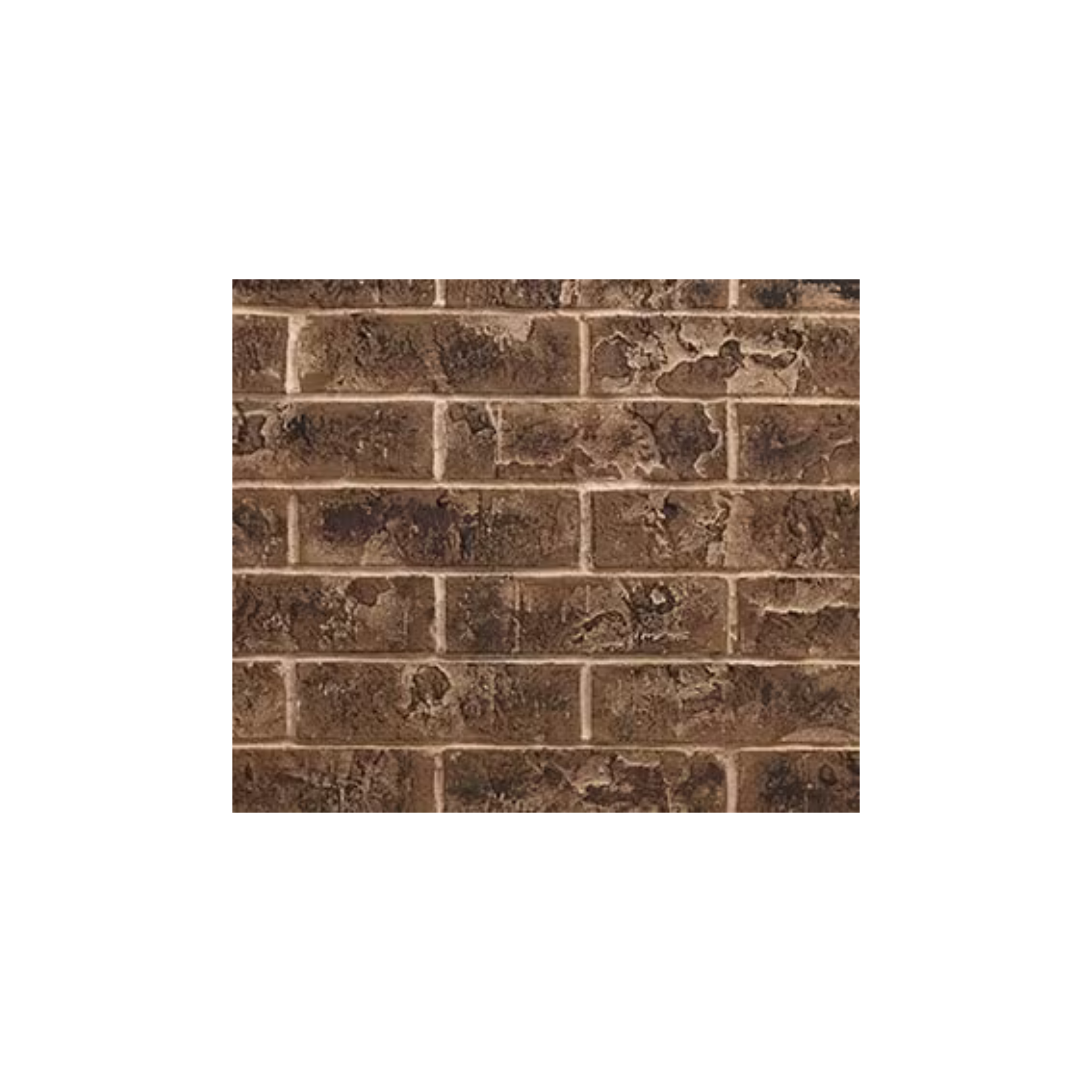

| Traditional 30" Brick interior panels - Cottage Red | BRICKMI30CR | $319 |
Fans, heat management and controls
Available for this fireplace and priced by Majestic. Ask us to add any of them to your order.
| Item | Part | Price |
|---|---|---|
| Medium 30" direct vent gas fireplace insert with intellifire touch system (NG) | RUBY30IN | $3,109 |

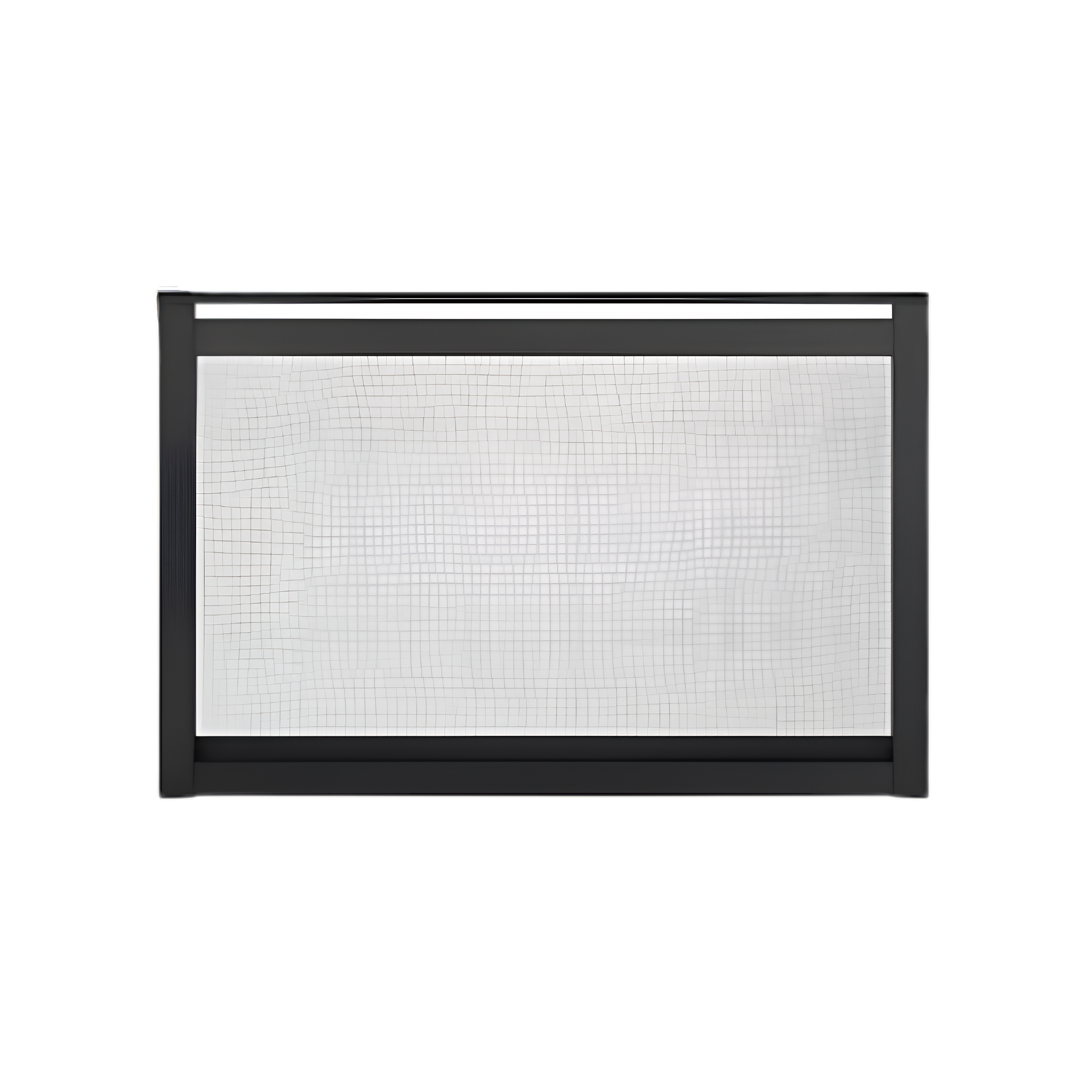

| Inside fit 30" screen front - Black | INFIT-30-BK | $399 |
| Adapter kit (required for use with CK-30) | ADP-CK30 | $239 |

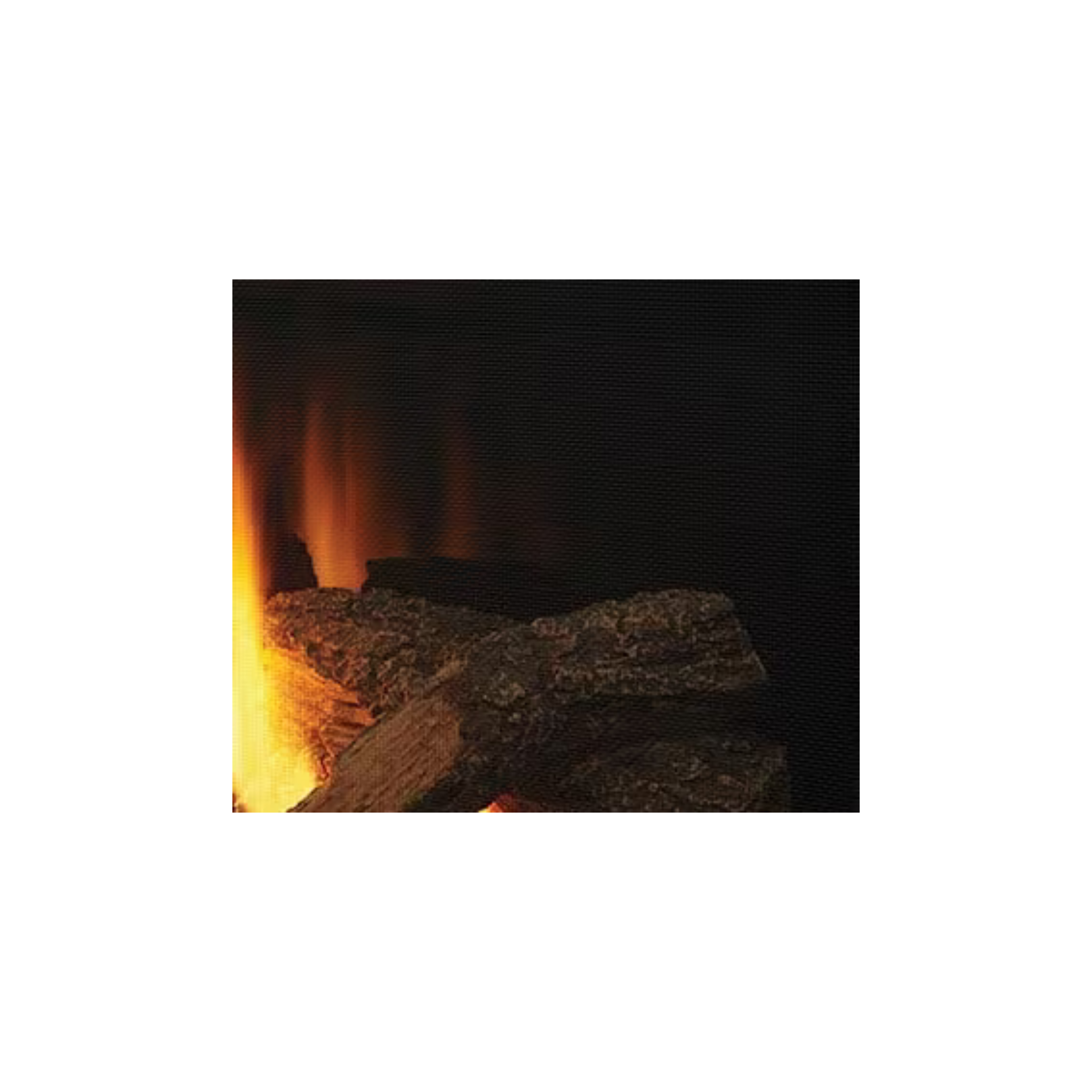

| Reflective Black Glass Liner 30" traditional units | LINER-BK-30 | $589 |
What arrives
- Electrical Cord - 10' 3" Left
- (NG)
- Gas Flex Connector
- IntelliFire Touch Ignition System
- 8 Ceramic Fiber Split Logs

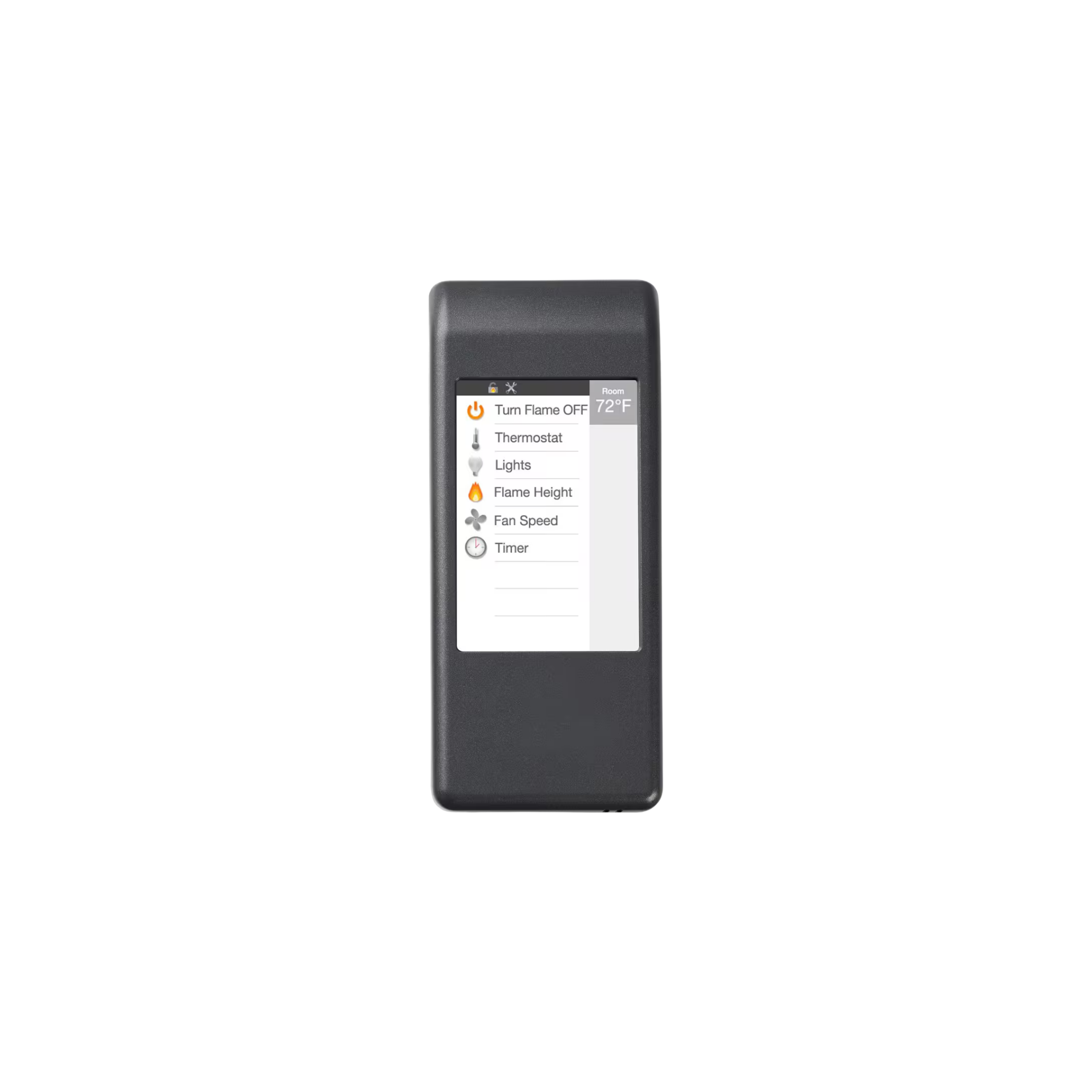

- RC400 Remote Control
- GFK-160A Variable Fan
- Ceramic Glass
- Glowing Embers/Mystic Embers
- Battery Back Up
- The front, interior and any accessories ship as their own cartons.
Installation
| Venting | Requirement |
|---|---|
| Type | Direct vent, vertical only |
| Pipe | HHT SLP, DuraVent DirectVent Pro or ICC; existing Class A chimney with the LINK-STOVE kit; masonry chimney with the conversion kit |
| Min vertical | 10 ft straight up (4 ft before any horizontal run) |
| Max vertical | 40 ft |
| Max horizontal | 2 ft with 10 ft of rise |
Horizontal termination not allowed. Pipe clearance 3 in. above, 1 in. beside.

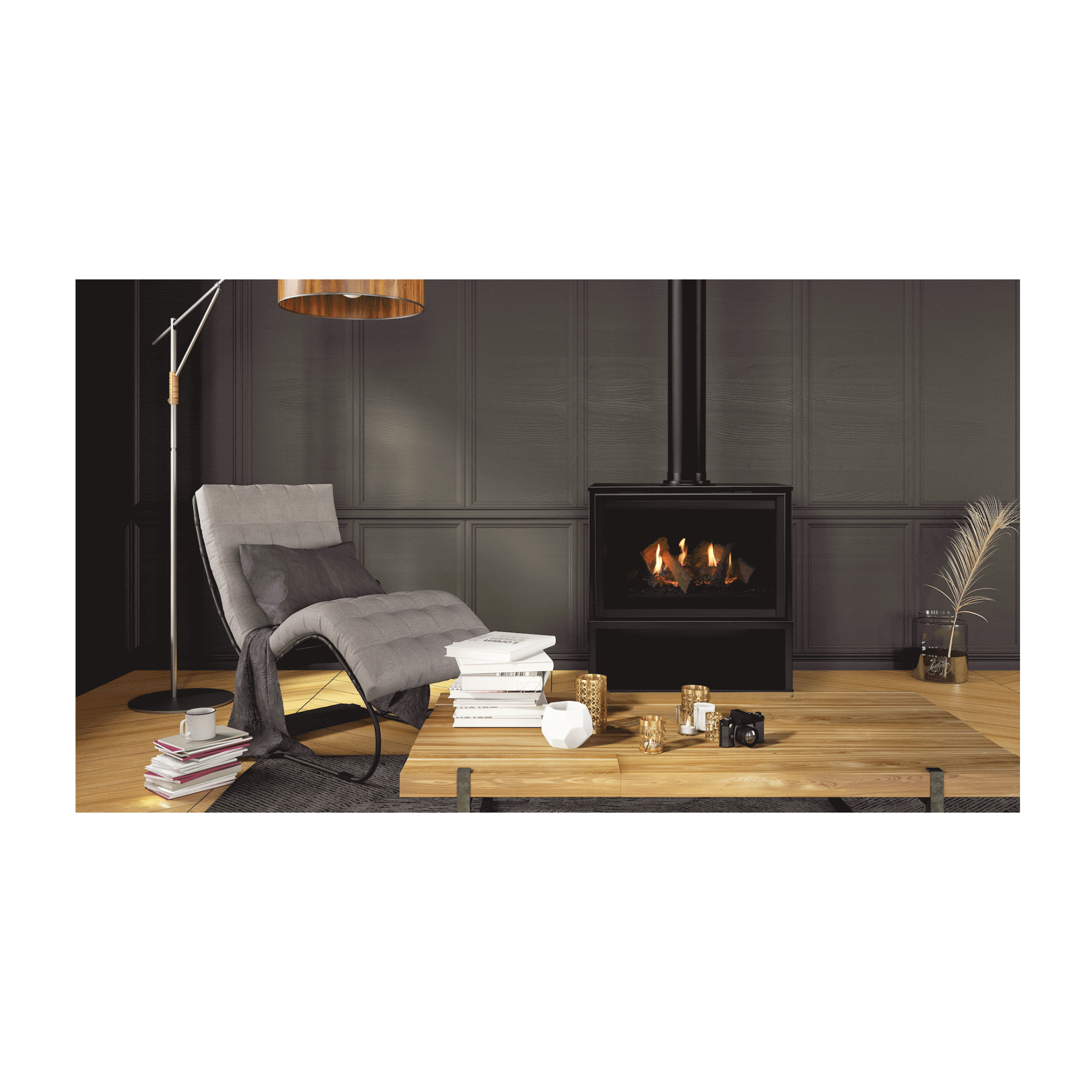

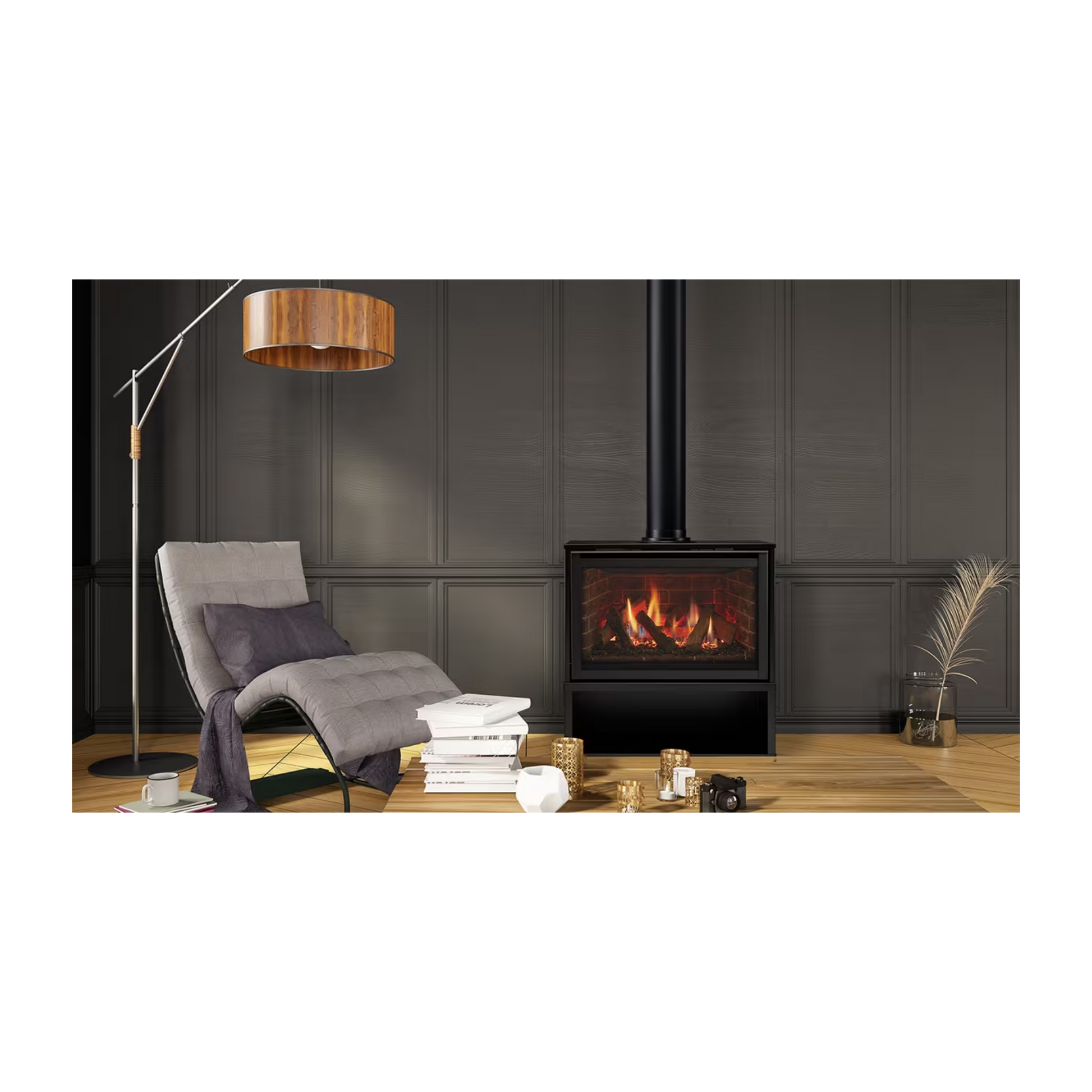

The stove stands on the floor on its cabinet and vents through a direct-vent pipe straight out the back wall or up through the roof; no chimney is needed. The vent pipe and termination are sold separately and quoted from your installer's plan.
Planning the install
- Installation is by a licensed gas installer. The fireplace, its venting and the gas line are inspected together, and the warranty depends on it.
- Framing, clearances to combustibles, mantel heights and the vent run come from the installation manual for your size. Send us your plan and we will check it before anything ships.
- Venting is sold separately and priced from the installer's plan: the pipe, elbows and termination depend on where the vent exits. Ask us for a vent quote with your order.
- Propane: every model is also made in an LP version at the same price. Add a note to your order and we will confirm the LP model before it ships.
- A 120-volt outlet or junction box at the fireplace is needed for the fan, lights and accessories; the ignition itself has battery backup.
- Special-order goods ship by freight. Confirm the size and the front before you order.
Questions
Does it need a hearth pad?
The stove sits on its own cabinet base. Floor and wall clearances are in the installation manual; send us your plan and we will check them.
What is a front, and why is it required?
A Majestic direct-vent fireplace ships as the firebox and glass. The front is the finished face that covers the frame and the vents: a clean-face trim that disappears into the wall, or a decorative front with a screen. The fireplace cannot be finished without one, which is why the page will not let you order without choosing it.
What is IntelliFire Touch?

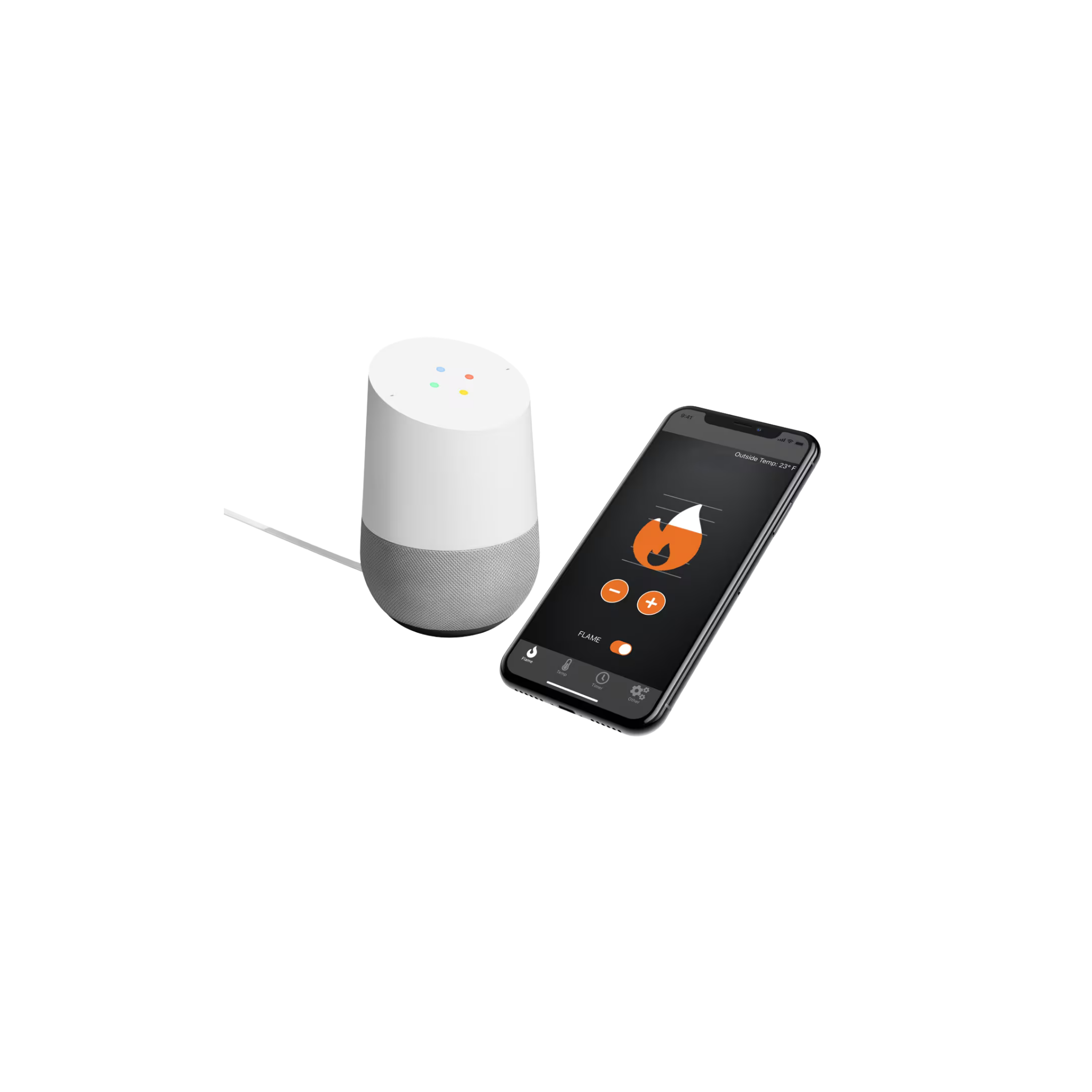

Majestic's intermittent-pilot ignition system. There is no standing pilot burning all year; the fireplace lights when you turn it on, from the wall switch, the remote or the app. It has a battery backup, so it still lights in a power outage. Flame height, the fan and the lights are controlled from the RC400 remote or the IntelliFire app with the Wi-Fi module.
Does it heat the room?
Yes. A direct-vent fireplace is a sealed heater: it draws combustion air from outside and sends its exhaust outside, so all the heat from the glass goes into the room. With the optional fan it warms a good-sized room; the passive heat and heat-zone kits move heat to another room or out of the wall above.
How is it vented?
Through a coaxial direct-vent pipe out the top or the rear, to a termination on the roof or through an outside wall. No chimney is needed. The pipe, elbows and cap are sized to your house and sold separately.
Can I get it in propane?
Yes. Add a note to your order and we will confirm the LP model, which is the same price.
