By Majestic

Echelon II direct vent gas fireplace

$5,234.00
$5,234.00
Shipping calculated at checkout.
Model: Echelon II 36
Burning Display: Diamond
Front : Black
Availability: In stock
Collections:
MajesticJade series direct vent gas fireplace
Jade series direct vent gas fireplace
Mercury direct vent gas fireplace
MajesticMercury direct vent gas fireplace
$5,234.00
$5,234.00

The Majestic Echelon II Direct Vent Gas Fireplace offers a sleek, contemporary design that enhances any living space. Its expansive glass panels provide a captivating view of active flames, creating a warm and inviting atmosphere. With customizable interior options and LED ember bed lighting, you can tailor the fireplace to match your décor. The IntelliFire Touch ignition system ensures convenient control, while the direct vent technology efficiently expels combustion exhaust, maintaining clean indoor air. Whether you're entertaining guests or enjoying a quiet evening at home, the Echelon II fireplace combines style and functionality to elevate your living experience.

Performance

Fuel: Natural Gas
Heating Area:

  • Echelon II 36: Up to 700 ft²
  • Echelon II 48: Up to 1,300 ft²
  • Echelon II 60: Up to 2,150 ft²
  • Echelon II 72: Up to 2,400 ft²

Max Heat Output:

  • Echelon II 36: 30,000 BTU/h
  • Echelon II 48: 40,000 BTU/h
  • Echelon II 60: 50,000 BTU/h
  • Echelon II 72: 58,000 BTU/h

Efficiency:

  • Echelon II 36: 61.0% (AFUE)
  • Echelon II 48: 61.0% (AFUE)
  • Echelon II 60: 61.0% (AFUE)
  • Echelon II 72: 61.0% (AFUE)

Viewing Area:

  • Echelon II 36: 35-1/2″ × 12-1/2″
  • Echelon II 48: 47-1/2″ × 12-1/2″
  • Echelon II 60: 59-1/2″ × 12-1/2″
  • Echelon II 72: 71-1/2″ × 12-1/2″

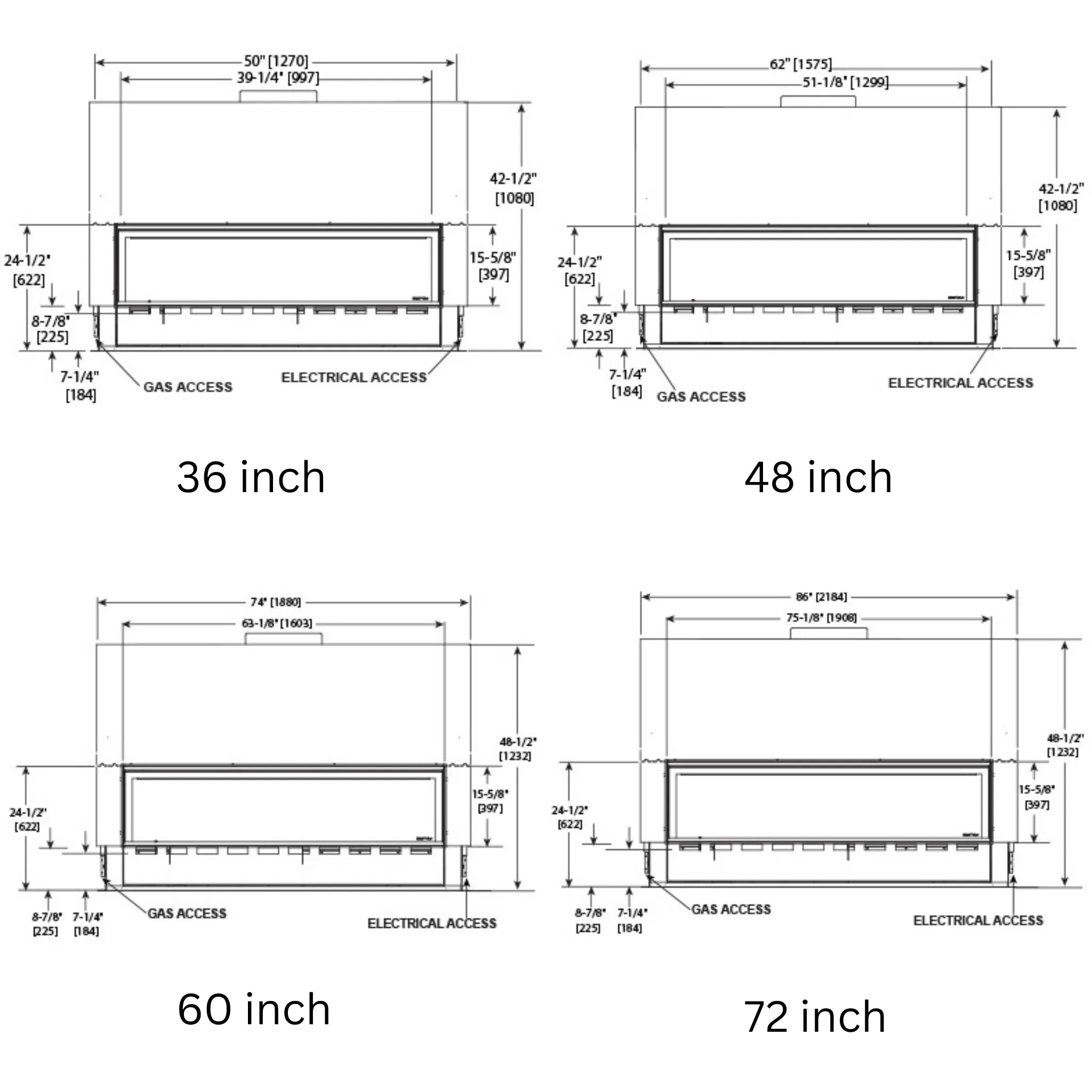

Dimensions

Unit Size (H × W × D):

  • Echelon II 36: 41-3/4″ × 46-3/16″ × 17-1/8″
  • Echelon II 48: 41-3/4″ × 58″ × 17-1/8″
  • Echelon II 60: 41-3/4″ × 70″ × 17-1/8″
  • Echelon II 72: 41-3/4″ × 82″ × 17-1/8″

Framing Dimensions (H × W × D):

  • Echelon II 36: 42″ × 48-1/4″ × 18-1/4″
  • Echelon II 48: 42″ × 60-1/4″ × 18-1/4″
  • Echelon II 60: 48″ × 72-1/4″ × 18-1/4″
  • Echelon II 72: 48″ × 84-1/4″ × 18-1/4″

Weight:

  • Echelon II 36: 240 lb
  • Echelon II 48: 290 lb
  • Echelon II 60: 340 lb
  • Echelon II 72: 390 lb

Chimney: 5″ × 8″ direct vent system

Features

Combustion Type: Sealed Direct Vent
Certification: ANSI Certified
Log Set: Optional Driftwood logs or stones
Glass Door: Ceramic glass

Size chart
Parts manual
Owner's manual
Installation manual
