Majestic Jade Direct Vent Gas Fireplace
The Majestic Jade is a linear direct-vent gas fireplace that comes ready for either look: a split-oak log set and glass media are both in the box, with LED accent lighting and a clean-face front, in 32 and 42 inch. Sizes: Jade 32, Jade 42, Jade 42. Choose the size, then the front and interior that finish it; the price updates as you go.
- Type: Gas Fireplace
- Sizes: 32", 42"
- Fuel: Natural gas; propane model by note
- Ignition: IntelliFire
- Made by: Majestic, a Hearth & Home Technologies brand
Who it's for
Right buyer. You want a linear direct-vent gas fireplace and cannot decide between logs and glass media, because the Jade ships with both and LED accent lighting, in 32 or 42 inch, with a clean-face front.

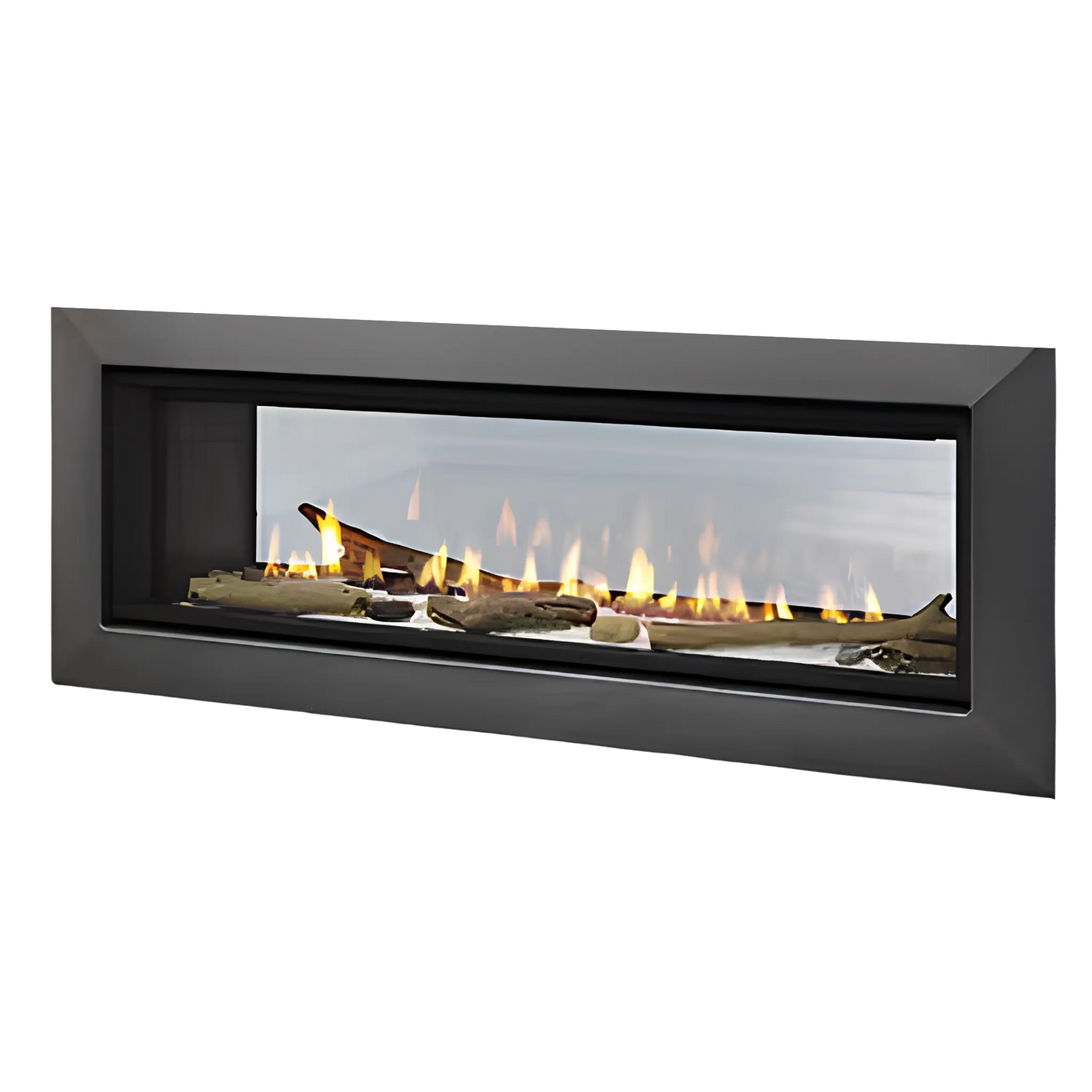

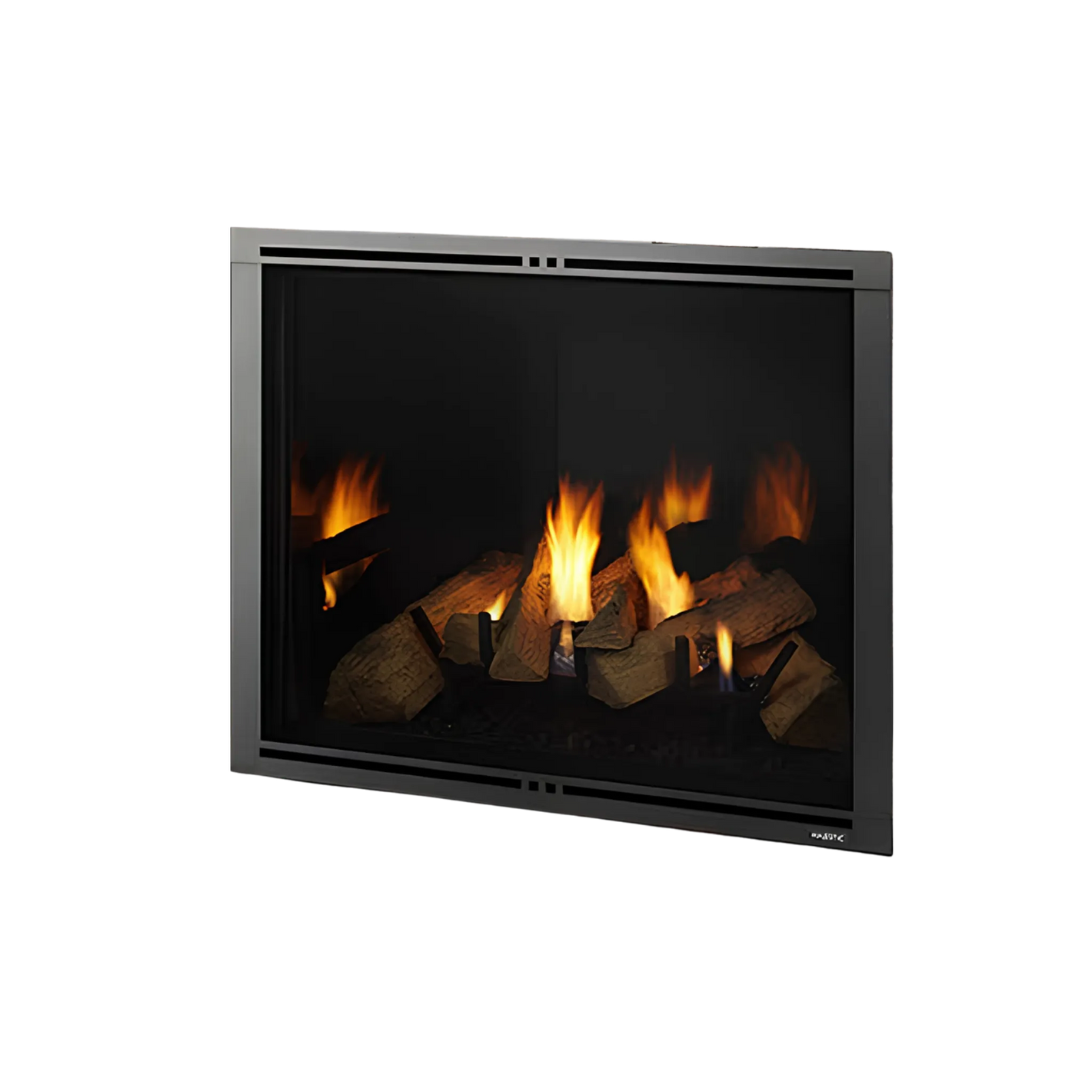

Wrong buyer. You want a wall over 42 inches; that is the Echelon II. You want a tall traditional firebox with a big log set; that is the Marquis II or Meridian.
Will it fit?
Framing the opening
Frame the rough opening below, measured inside the studs. Depth is from the finished face of the wall. Where the vent pipe goes through the framing there is a separate hole; the manual's drawing gives its position.
| Model | Width | Height | Depth |
|---|---|---|---|
| Jade 32 | 37" | 36‑1/2" | 17‑3/4" |
| Jade 42 | 49" | 32‑3/4" | 17‑3/4" |
Framing notes from the manual
- Jade 32: Back width: actual 25-3/4, framing 37. Header: two 2 x 4s or two 2 x 6s installed on end. Vent framing hole 10 x 10; center of hole 1 in. above center of horizontal vent pipe; do not pack with insulation or other material. See install manual for alcove installation.
- Jade 42: Back width: actual 37-3/4, framing 49. Header: two 2 x 4s or two 2 x 6s installed on end. Vent framing hole 10 x 10; center of hole 1 in. above center of horizontal vent pipe; do not pack with insulation or other material. See install manual for alcove installation.
The fireplace itself
| Model | Width | Height | Depth |
|---|---|---|---|
| Jade 32 | 36 | 38‑1/16 | 17‑3/4 |
| Jade 42 | 48 | 33‑11/16 | 17‑3/4 |
Models and prices
Heat input is the range from the low to the high flame setting on natural gas and on propane. The LP model has the same price; order it by note.
| Model | Part | BTU per hour, NG | BTU per hour, LP | Fireplace only |
|---|---|---|---|---|
| Jade 32 | JADE32IN-B | 13,250 to 19,000 | 12,750 to 16,500 | $2,809 |
| Jade 42 | JADE42IL-B | 17,500 to 25,250 | 17,500 to 25,500 | $3,459 |
| Jade 42 | JADE42IN-B | 17,500 to 25,250 | 17,500 to 25,500 | $3,459 |
Required to complete: Front. The options below are the ones sold on this page; each is matched to its size.
Clearances
Clearances are to combustible materials, from the appliance. They come from the installation manual for this model and depend on how it is vented; the installer confirms them on site.
| Clearance | Minimum |
|---|---|
| Sides | 1/2" |
| Back | 1/2" |
| Front | 36" |
| Ceiling | 31" |
| Floor | 0" |
Notes from the manual
Ceiling clearance measured from top of appliance opening. Non-combustible floor 0; combustible flooring 0. Non-combustible mantel: 14 in. min. bottom of mantel to top of appliance opening (per p.2 figure). 18 in. required when Passive Heat Side Discharge Kit is installed. Combustible mantel charts printed as graphics on p.2, not transcribed; guide refers to install manual Section 10.C.
Heat and gas
Heat input per hour on natural gas and on propane, low to high, and the efficiency where the maker publishes it.
| Model | BTU, natural gas | BTU, propane | Efficiency |
|---|---|---|---|
| Jade 32 | 19,000 | 16,500 | — |
| Jade 42 | 25,250 | 23,500 | — |
Choose your options
Front
The front is the finished face of the fireplace. A clean-face trim frames the glass with a thin edge for a built-in look; overlap and arched fronts sit on the wall and carry a screen.
| Front | Part | Price |
|---|---|---|
| Clean Face Trim - Black | CFTF-32-BK | $459 |
| Clean Face Trim - New Bronze | CFTF-32-NB | $529 |
| Clean Face Trim - Gun Metal | CFTF-32-GM | $529 |
| Picture frame front - Black | PFF-32-BK | $789 |
| Clean Face Trim - Black | CFTF-42-BK | $499 |
| Clean Face Trim - Gun Metal | CFTF-42-GM | $569 |
| Clean Face Trim - New Bronze | CFTF-42-NB | $569 |
| Picture frame front - Black | PFF-42-BK | $809 |
Interior and media
The interior is what you see behind the fire: a brick liner, a reflective black glass liner, or glass media in place of logs.
| Interior or media | Part | Price |
|---|---|---|
| Fade-resistant reflective black glass interior panels | GLASS-32LINEAR | $619 |
| Fade-resistant reflective black glass interior panels | GLASS-42LINEAR | $659 |
Installation and venting
| Venting | Requirement |
|---|---|
| Type | Direct vent |
Direct vent: a sealed coaxial pipe carries exhaust out and combustion air in, through the roof or an outside wall, with no chimney. The vent pipe, elbows and termination are sold separately and quoted from your installer's plan.
What arrives
- If installing a Passive Heat Kit you
- cannot use a fan
- If ordering lights or fan, must order
- IFT-RC400
- IntelliFire Touch ignition system
- Bronze glass media
- Tempered glass
- Junction box & Battery backup
- Manual gas valve shut-off and flex
- connector
- 4" x 6-5/8" top vent collar
- Manual gas value shut-off and flex
- 4" x 6-58" top vent collar
- The front, interior and any accessories ship as their own cartons.
Before you order
- Installation is by a licensed gas installer. The fireplace, its venting and the gas line are inspected together, and the warranty depends on it.
- Framing, clearances to combustibles, mantel heights and the vent run come from the installation manual for your size. Send us your plan and we will check it before anything ships.
- Venting is sold separately and priced from the installer's plan: the pipe, elbows and termination depend on where the vent exits. Ask us for a vent quote with your order.
- Propane: every model is also made in an LP version at the same price. Add a note to your order and we will confirm the LP model before it ships.
- A 120-volt outlet or junction box at the fireplace is needed for the fan, lights and accessories; the ignition itself has battery backup.
- Special-order goods ship by freight. Confirm the size and the front before you order.
How it performs
The Jade is the linear fireplace that keeps both looks in the box: set it up with the split-oak logs for a traditional fire or with the glass media for a modern one, and change your mind later. Once the installer has set the flame height and the fan, the fireplace runs from the wall switch, the RC400 remote or the app: press once and the pilot lights, the burner catches, and the glass warms in a few minutes. The 32-inch heats a bedroom-sized room and the 42 a living room; both take the fan and heat-management kits.
Trade-offs to know
- A direct-vent fireplace is sealed behind glass; there is no open fire and no smell of wood. People who want that choose a wood fireplace or the open-front Reveal.
- The front is a separate purchase and a separate decision; the fireplace cannot be finished without one.
- The venting run decides where it can go; a long or complicated run adds to the installation more than the fireplace does.
Living with it
Have the fireplace serviced once a year, before the season: the installer cleans the burner and the glass inside, checks the vent and the gasket. The glass gets a haze on the inside in the first weeks as the paint cures; that cleans off. Keep the remote's batteries fresh and the app on the WiFi for firmware updates. The fan is the only moving part you will hear.
Specifications
| Models | JADE32IN-B, JADE42IL-B, JADE42IN-B |
|---|---|
| Type | Direct-vent gas fireplace |
| Fuel | Natural gas; propane model at the same price |
| Heat input | See the table above |
| Ignition | IntelliFire Touch intermittent pilot with battery backup |
| Controls | Wall switch; RC400 remote and IntelliFire app with the Wi-Fi module |
| Electrical | 120 V for fan, lights and accessories |
| Manufacturer | Majestic, a Hearth & Home Technologies brand, USA |
| Weight, Jade 32 | 100.0 lb |
| Weight, Jade 42 | 138.0 lb |
Warranty
| Component | Coverage |
|---|---|
| Firebox and heat exchanger | Limited lifetime (20 years), 3 years labor |
| Burners, logs and metal or fiber refractory made by HHT | 10 years, 1 year labor |
| Cement refractory panels, glass liner panels | 3 years |
| Glass; electrical components (ignition modules, remotes and wall switches, valves, pilots, blowers, junction boxes, harnesses, transformers, lights) | 1 year parts and labor |
| All other parts | 1 year |
Source: Hearth & Home Technologies Limited Lifetime Warranty, the document packed with the appliance and linked from the owner's manual above. "Lifetime" means 20 years for gas appliances, 10 years for wood and pellet appliances and 5 years for standalone gas log sets, counted from the start of coverage, which begins no later than 24 months after the appliance ships from the factory.
Questions people ask
What is a front, and why is it required?
A Majestic direct-vent fireplace ships as the firebox and glass. The front is the finished face that covers the frame and the vents: a clean-face trim that disappears into the wall, or a decorative front with a screen. The fireplace cannot be finished without one, which is why the page will not let you order without choosing it.
What is IntelliFire Touch?
Majestic's intermittent-pilot ignition system. There is no standing pilot burning all year; the fireplace lights when you turn it on, from the wall switch, the remote or the app. It has a battery backup, so it still lights in a power outage. Flame height, the fan and the lights are controlled from the RC400 remote or the IntelliFire app with the Wi-Fi module.
Does it heat the room?
Yes. A direct-vent fireplace is a sealed heater: it draws combustion air from outside and sends its exhaust outside, so all the heat from the glass goes into the room. With the optional fan it warms a good-sized room; the passive heat and heat-zone kits move heat to another room or out of the wall above.
How is it vented?
Through a coaxial direct-vent pipe out the top or the rear, to a termination on the roof or through an outside wall. No chimney is needed. The pipe, elbows and cap are sized to your house and sold separately.
Can I get it in propane?
Yes. Add a note to your order and we will confirm the LP model, which is the same price.
Can I return it?
Fireplaces are special-order freight items. Confirm the size, the front and the interior with us before you order, and contact us before returning anything.
What size gas line does it need?
A dedicated 1/2-inch line is typical for one fireplace; the manual gives the inlet pressure and the installer sizes the run. Natural gas needs 5 to 7 inches of water column at the appliance, propane 11 to 13.
Can it run in a power cut?
The IntelliFire Touch ignition has battery backup, so the fire lights and runs with the power off. The fan and lights need 120 volts and wait for it to return.
Manuals and drawings
- Jade 32 Architect Guide (MAJ_JADE32IN-B_0220) (pages 1-2)
- Jade 42 Architect Guide (MAJ_JADE42IN-B_0822) (pages 1-2)
- Install Manual: Jade Series (PDF)
- Install Manual: Jade 32 & 42 (PDF)
- Owners Manual: Jade Series (PDF)
- Owners Manual: Jade 32 & 42 (PDF)
- Service Part List: Jade 32 (JADE32IN) (PDF)
- Service Part List: Jade 32 Rev B (PDF)
- Service Part List: Jade 42 (JADE42IN / JADE42IL) (PDF)
- Service Part List: Jade 42 Rev B (PDF)
- Majestic user guides and manuals
