Performance
Fuel: Dry cordwood (16″ recommended)
Heating Area: 250–1,200 ft²
Max Heat Output: 45,000 BTU/h
Burn Time: Up to 5 hours
Efficiency: 74% (HHV), 79% (LHV), up to 80% optimal
Firebox Volume: 1.8 ft³
Emissions: 1.8 g/h

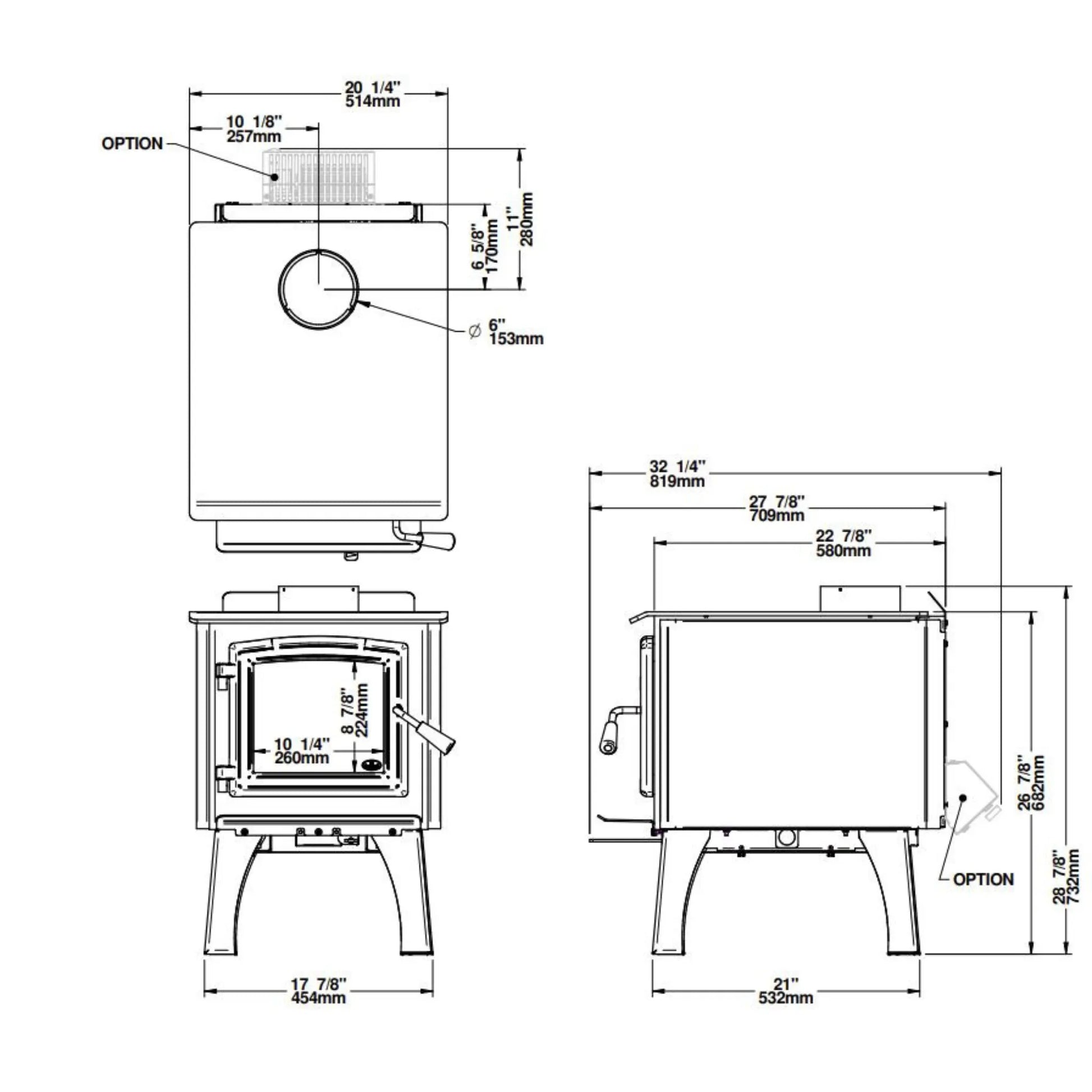

Dimensions
Unit Size (H × W × D): 28 ⅞″ × 20 ¼″ × 27 ⅞″
Weight: 317 lb
Chimney: 6″ diameter, minimum 12′ height
Clearances (US, double-wall pipe): Back: 6″ Side: 12″ Corner: 6″ Top: 84″
Features
Combustion Type: Non-catalytic
Certification: EPA 2020 approved
Max Log Length: 17″
Glass Door: Ceramic, air-wash system; viewing area 10¼″ × 8⅞″
