Performance
Fuel: Dry cordwood (16″ recommended)
Heating Area: 500–2,100 ft²
Max Heat Output: 75,000 BTU/h
Burn Time: Up to 8 hours
Efficiency: ~77% optimal (72% HHV / 77% LHV)
Firebox Volume: 2.4 ft³
Emissions: 2.3 g/h

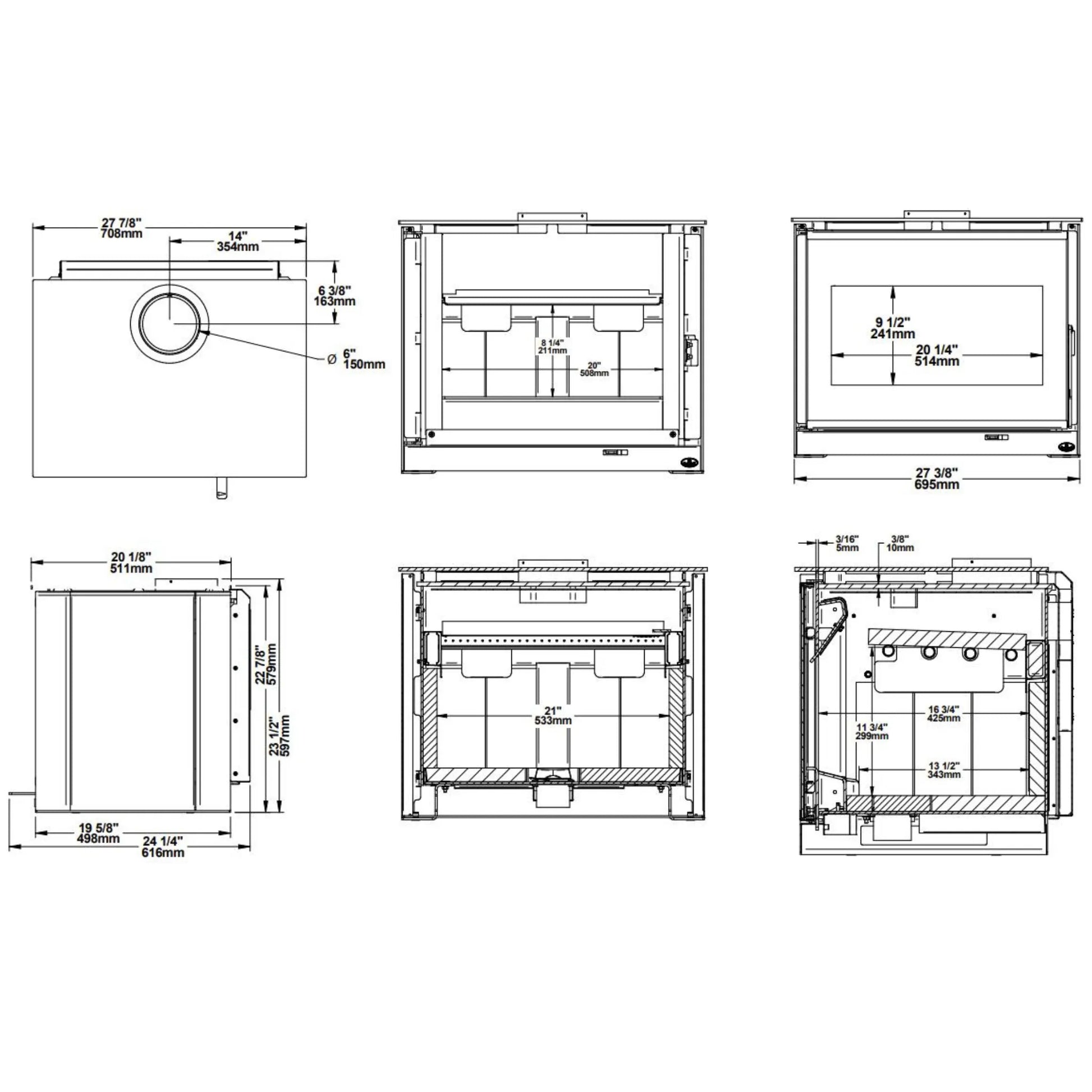

Dimensions
Unit Size (H × W × D): 35 5/8″ × 27 7/8″ × 24 1/4″
Weight: 439 lb
Chimney: 6″ diameter, minimum 12′ height
Clearances (US, double‑wall pipe): Back: 6″ Side: 16″ Corner: 7″ Top: 84″
Features
Combustion Type: Non‑catalytic
Certification: EPA 2020 approved
Max Log Length: 20″
Glass Door: Ceramic, air‑wash system, viewing area ~ 20 1/4" X 9 1/2"
