Majestic Echelon II Gas Fireplace — Homeowner Guide

Quick Overview

The Majestic Echelon II is a clean-face direct vent gas fireplace built for modern wall installations. It is designed for wide viewing areas, strong heat output, and a streamlined finish that feels more architectural than a standard fireplace.

What’s included

• direct vent gas fireplace in natural gas, with propane available if needed
• required black clean-face front
• bronze glass media
• IntelliFire Touch ignition system
• RC400 remote control
• battery backup
• ceramic glass
• clear LED dimmable lighting

The Quick Truth (and quick specs)

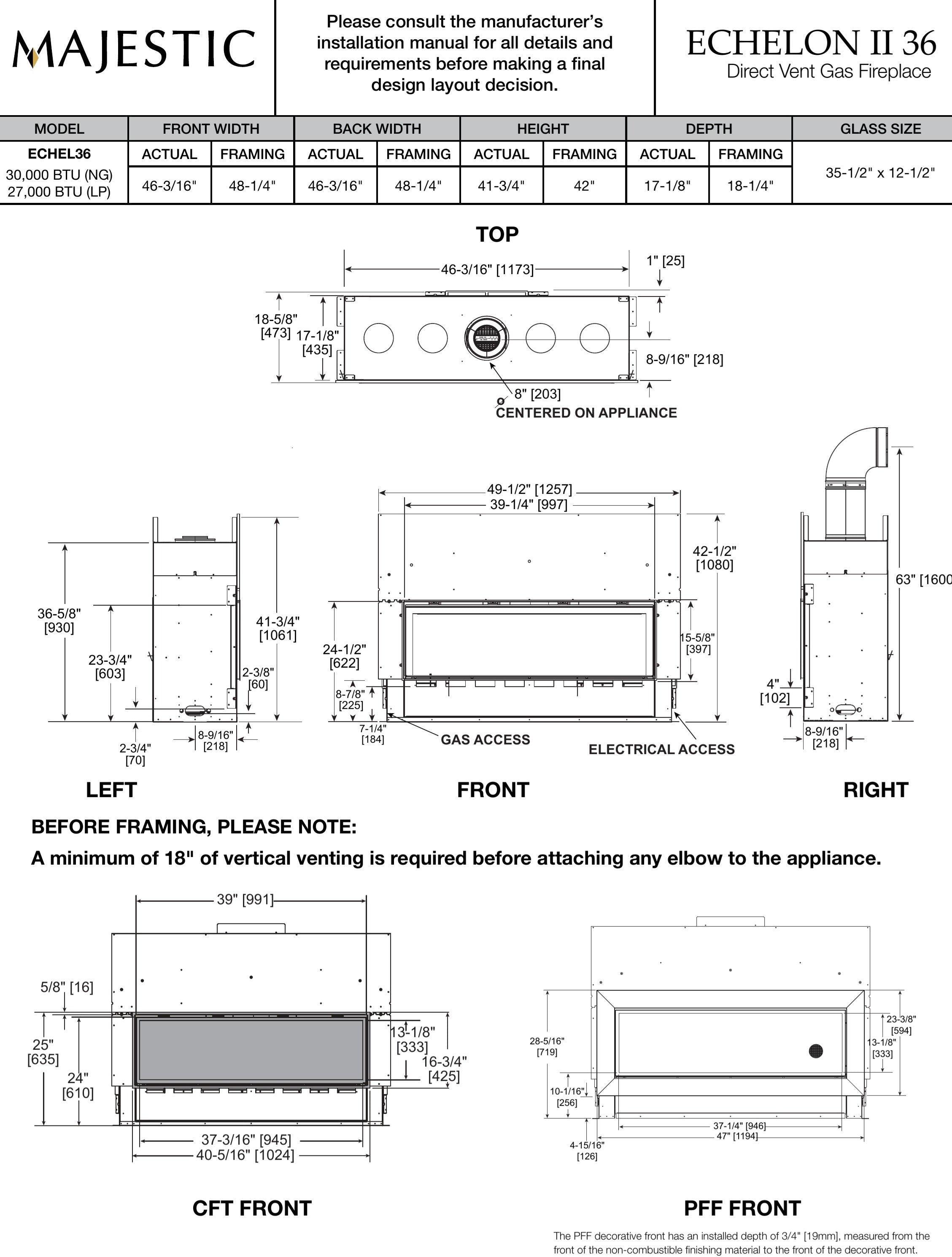

36 inch

• up to 30,000 BTU
• glass size: 35-1/2 x 12-1/2
• framing: 48-1/4 wide x 42 high x 18-1/4 deep
• actual unit: 46-3/16 wide x 41-3/4 high x 17-1/8 deep
• weight: about 240 lbs
• 8 inch direct vent
• minimum 18 inches vertical rise before first elbow

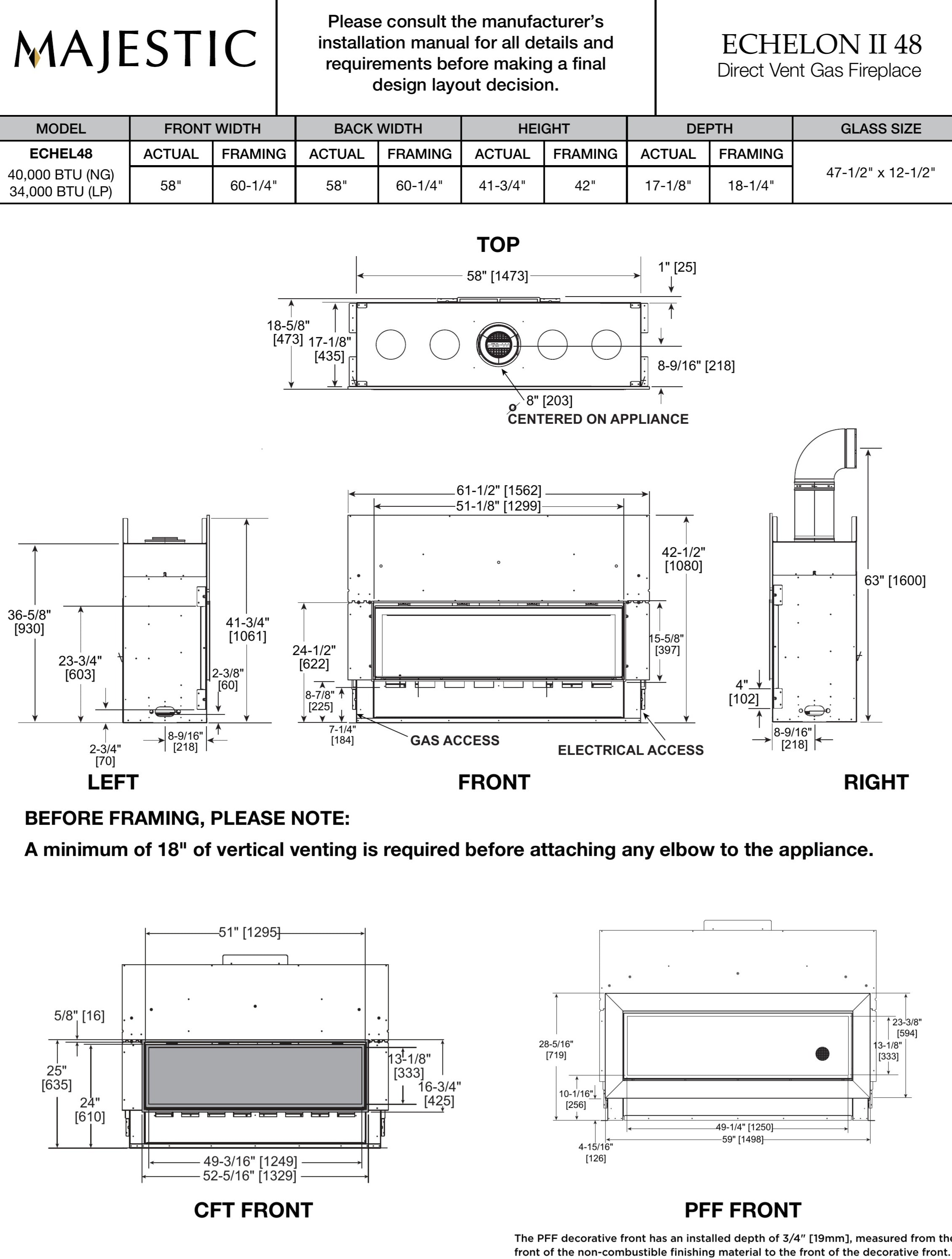

48 inch

• up to 40,000 BTU
• glass size: 47-1/2 x 12-1/2
• framing: 60-1/4 wide x 42 high x 18-1/4 deep
• actual unit: 58 wide x 41-3/4 high x 17-1/8 deep
• weight: about 290 lbs
• 8 inch direct vent
• minimum 18 inches vertical rise before first elbow

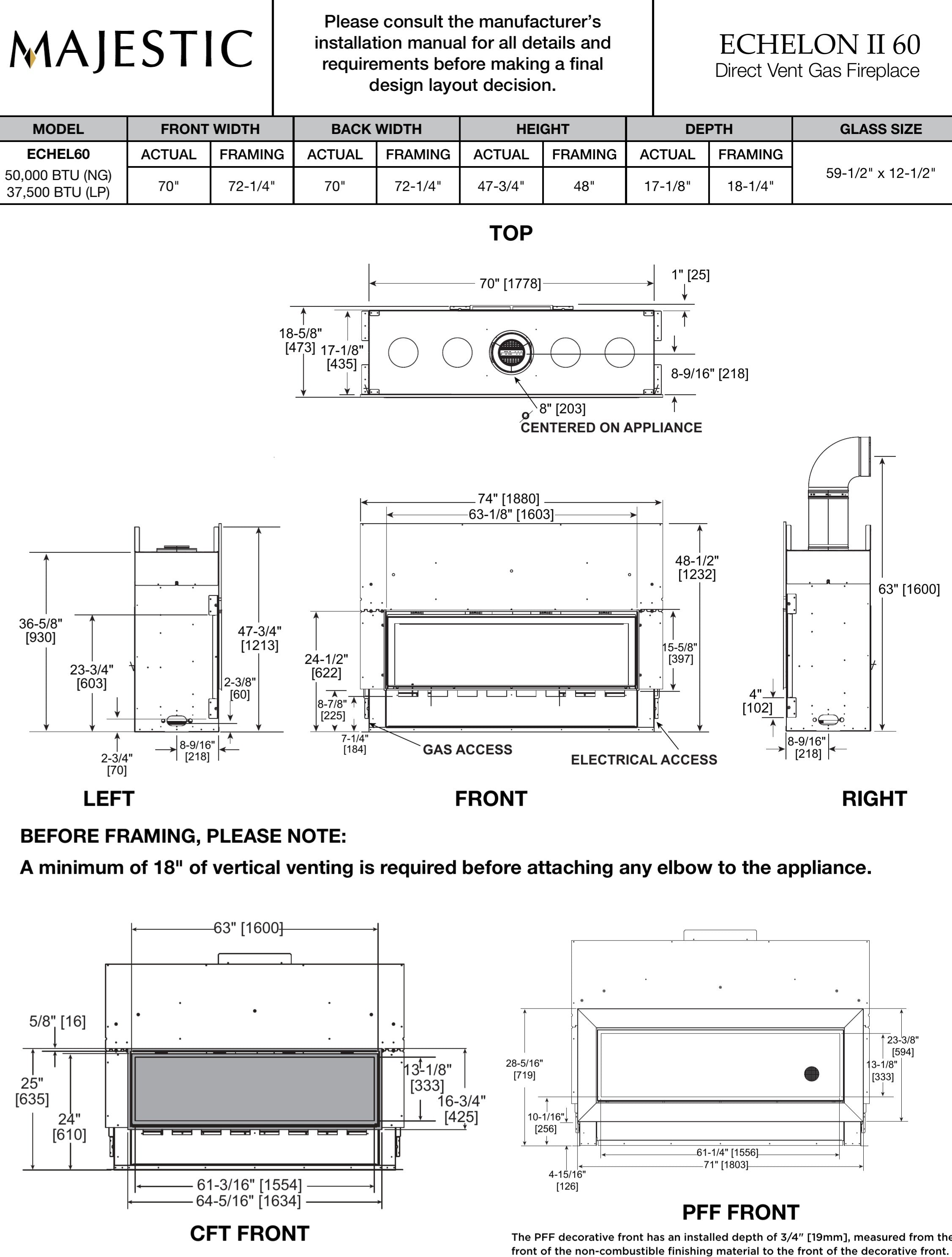

60 inch

• up to 50,000 BTU in natural gas
• up to 37,500 BTU in propane
• glass size: 59-1/2 x 12-1/2
• framing: 72-1/4 wide x 48 high x 18-1/4 deep
• actual unit: 70 wide x 47-3/4 high x 17-1/8 deep
• weight: about 340 lbs
• 8 inch direct vent
• minimum 18 inches vertical rise before first elbow

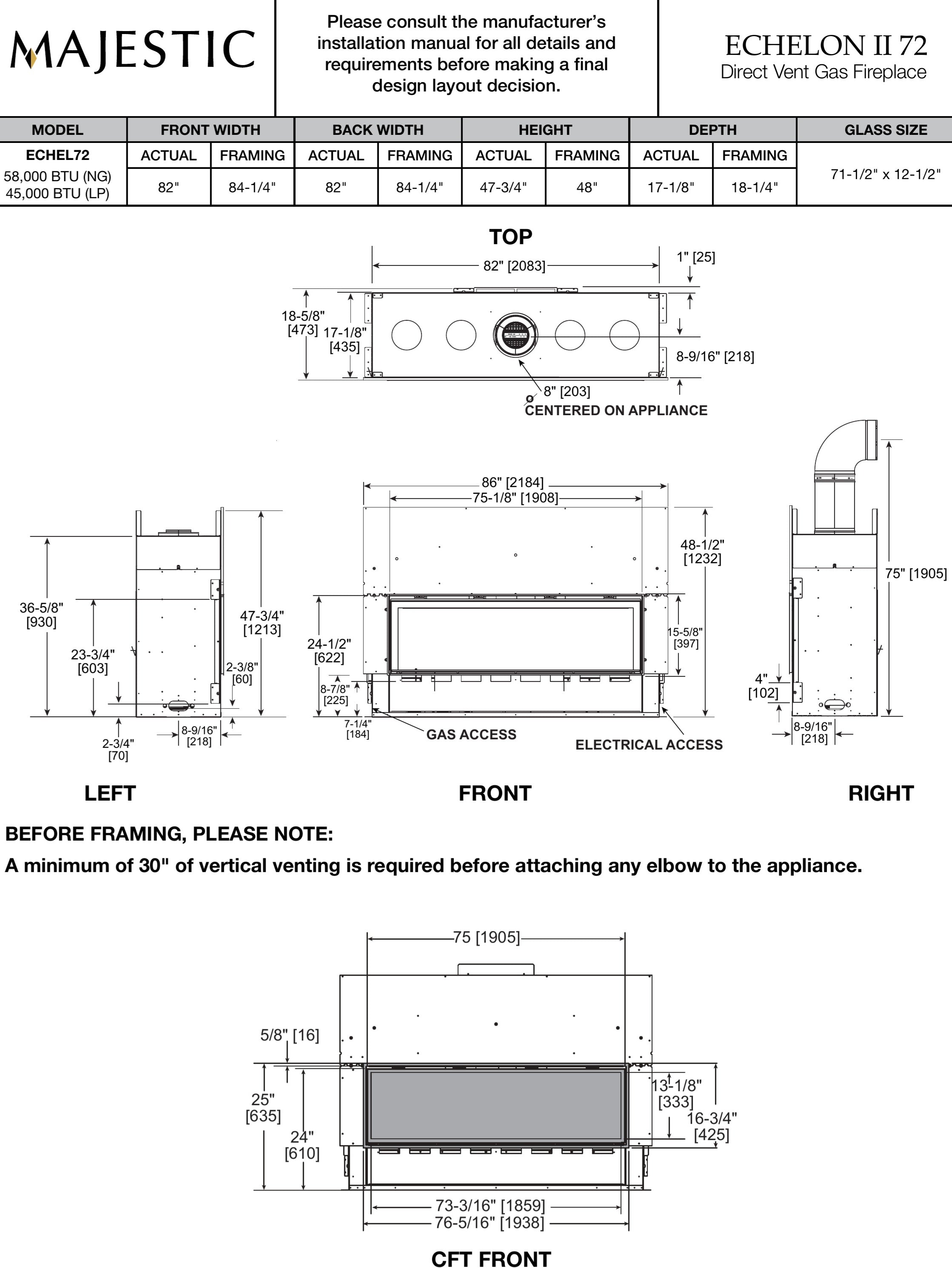

72 inch

• up to 58,000 BTU in natural gas
• up to 45,000 BTU in propane
• glass size: 71-1/2 x 12-1/2
• framing: 84-1/4 wide x 48 high x 18-1/4 deep
• actual unit: 82 wide x 47-3/4 high x 17-1/8 deep
• weight: about 400 lbs
• 8 inch direct vent
• minimum 30 inches vertical rise before first elbow

Will it fit my project?

Echelon II is made for framed installations, not existing fireplace openings. The 36 and 48 work well in more standard living spaces, while the 60 and 72 are better suited for larger feature walls and more dramatic layouts.

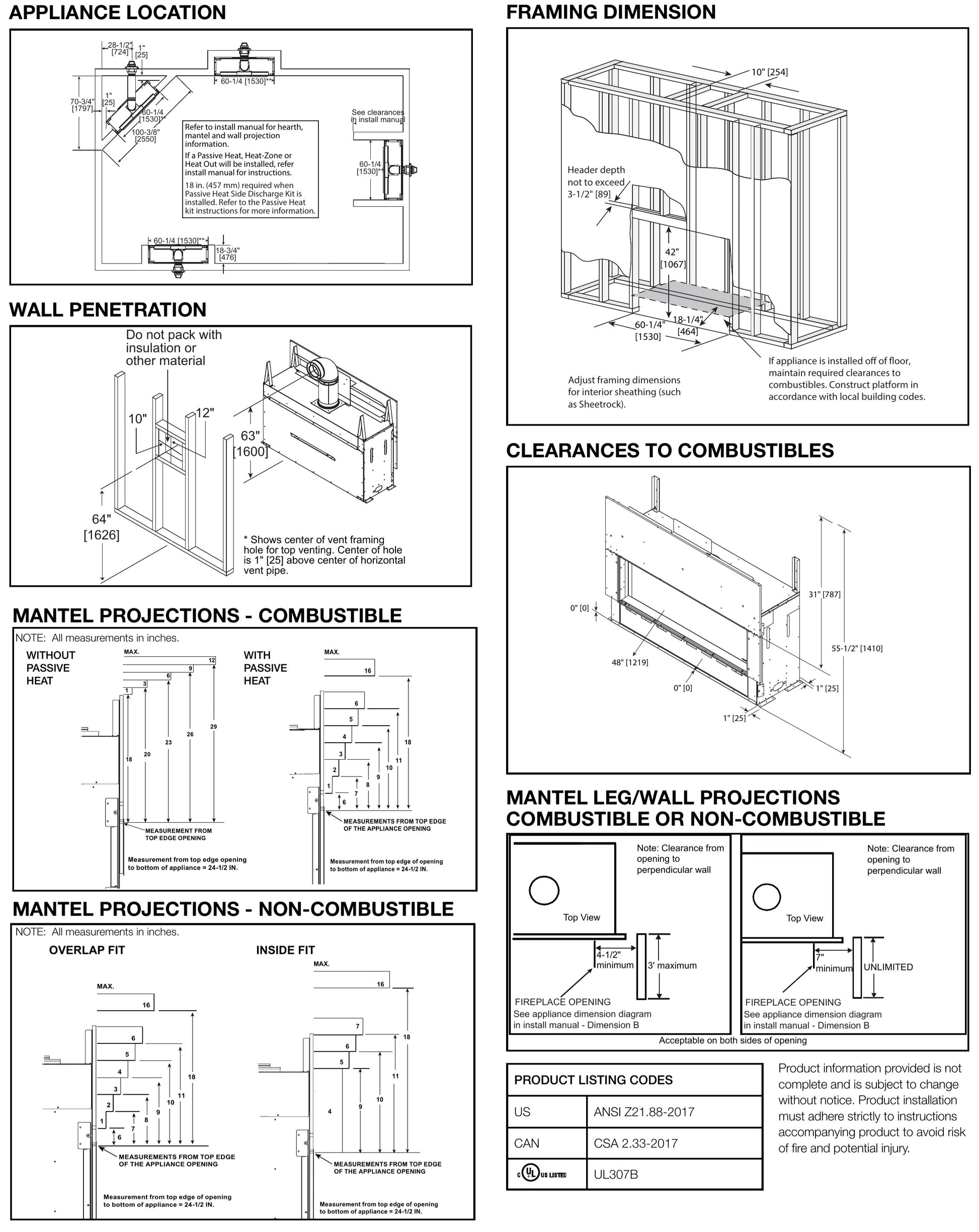

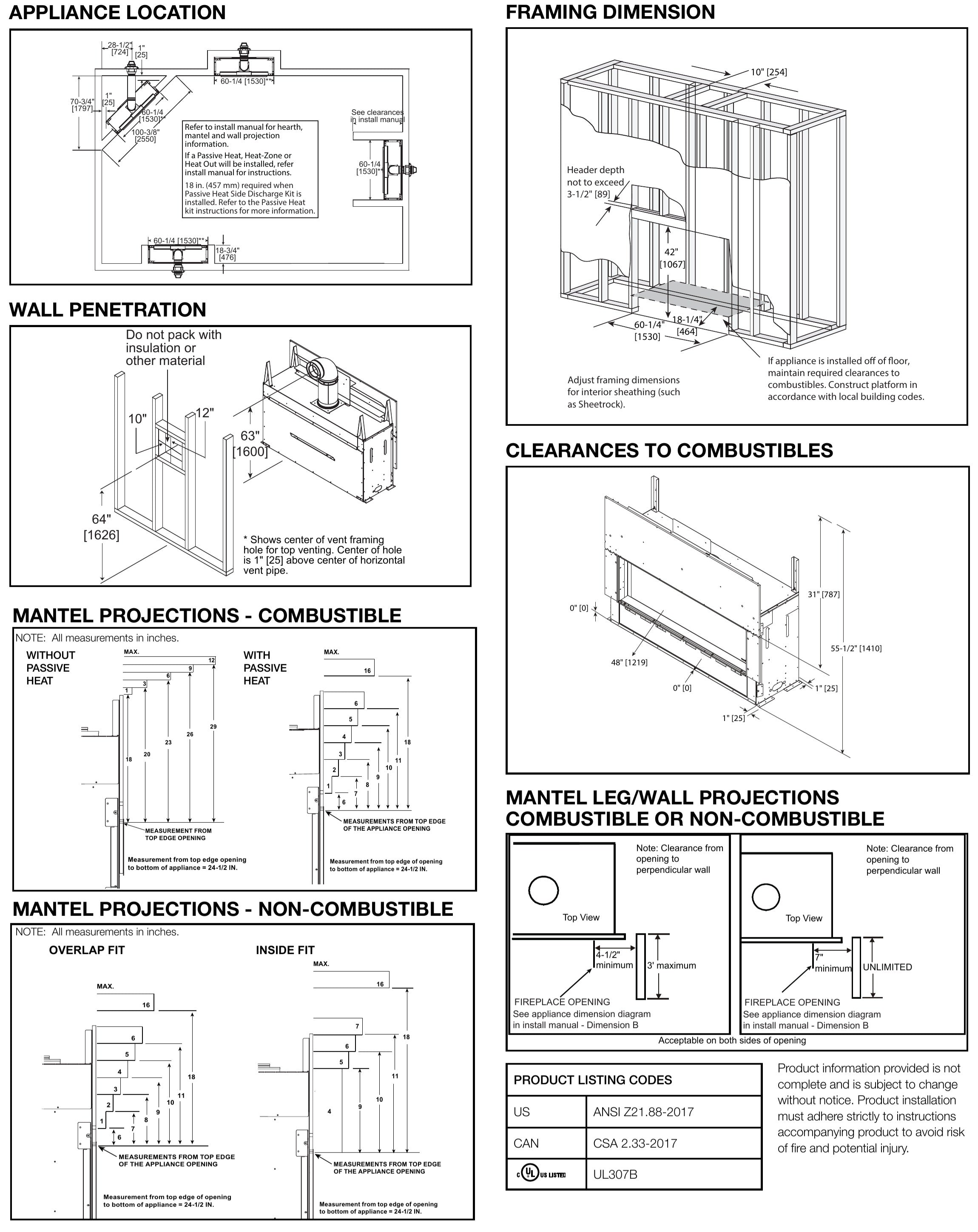

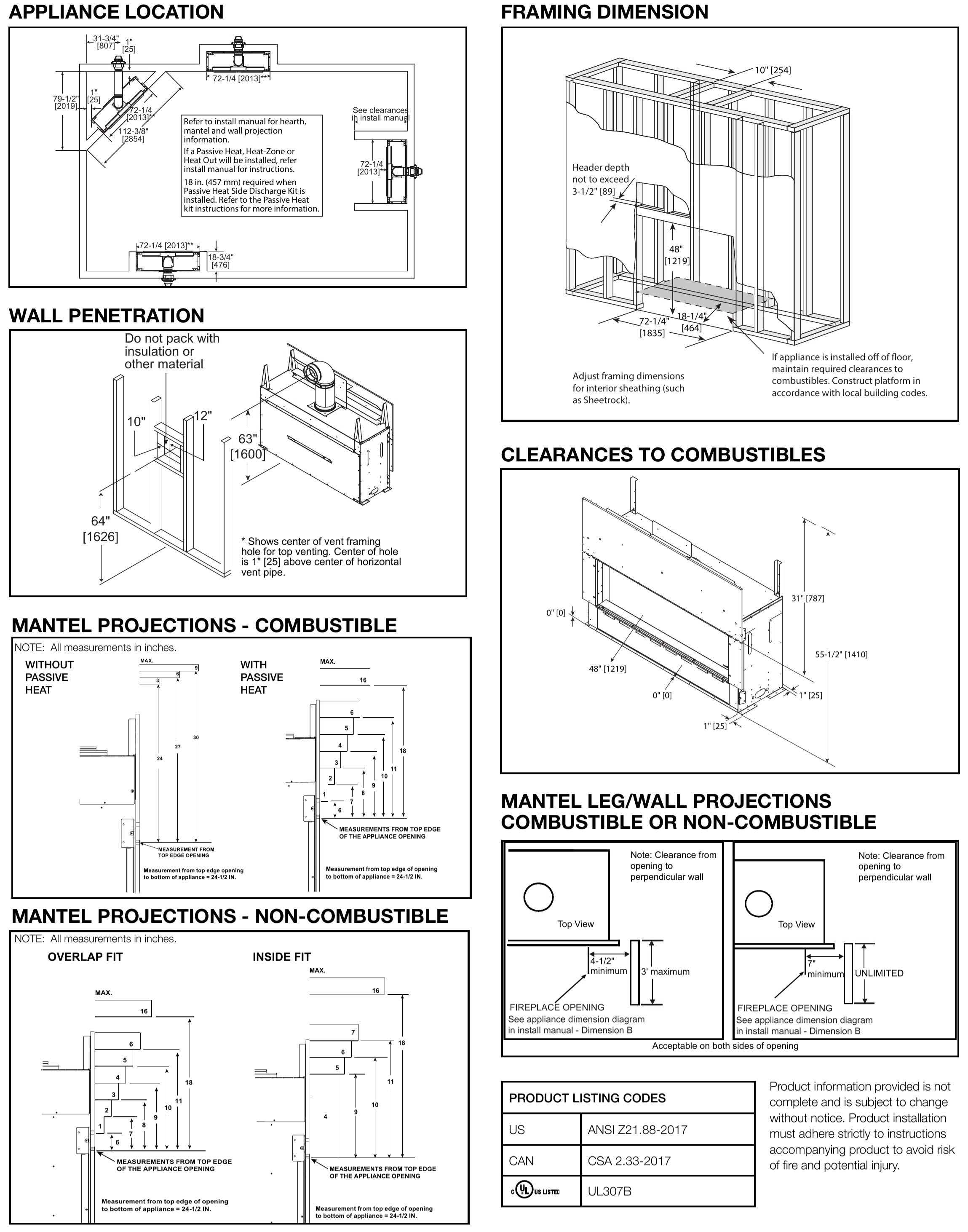

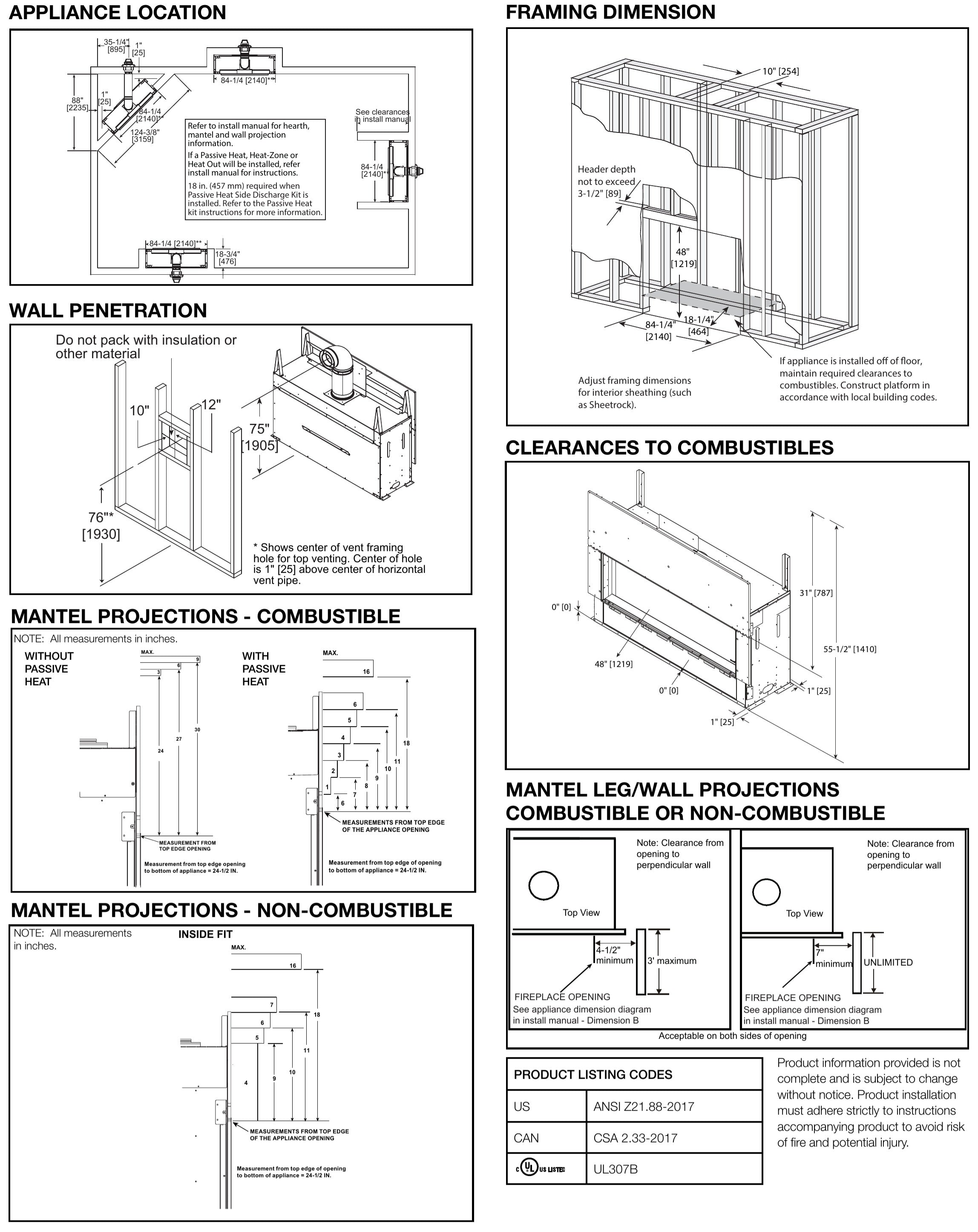

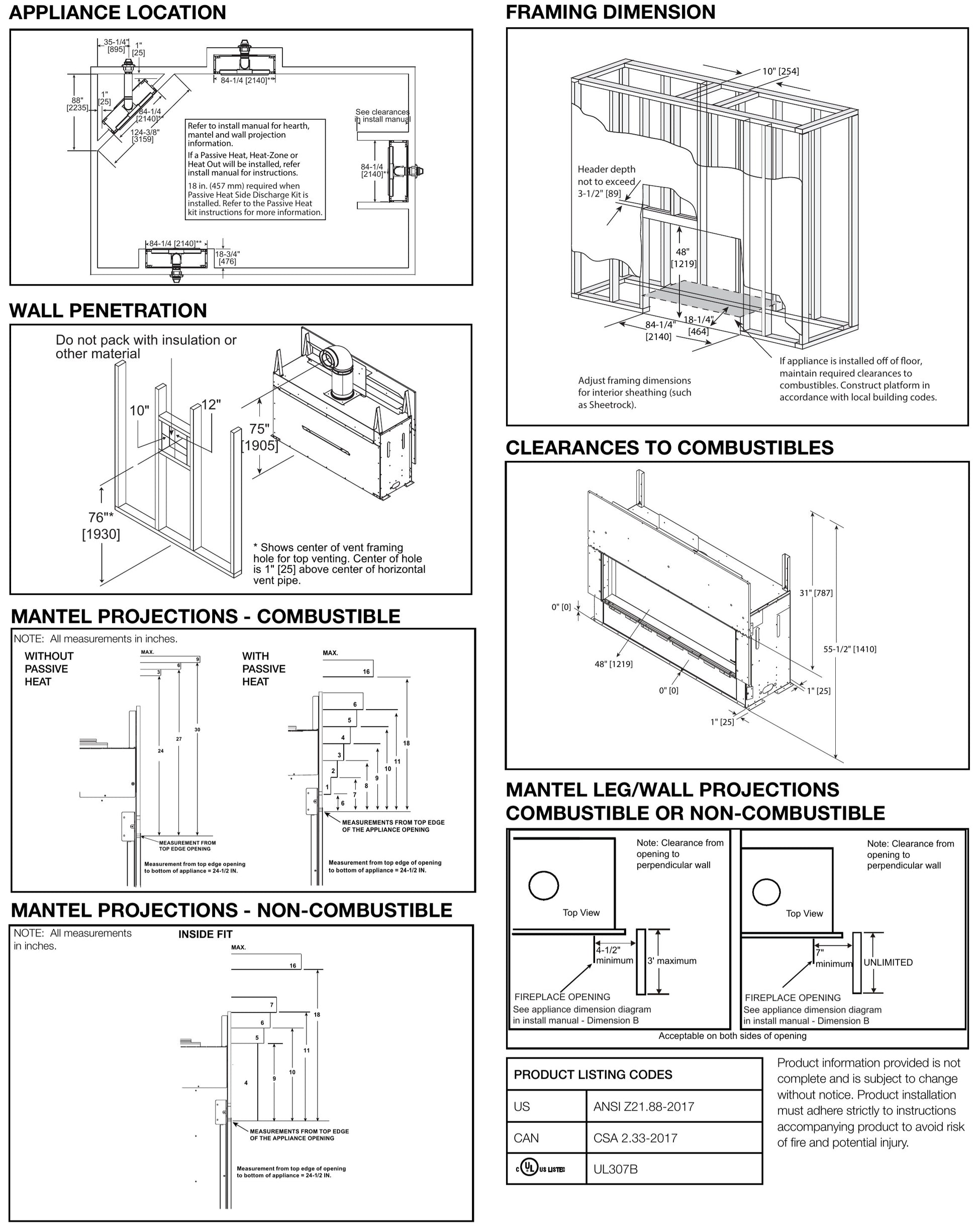

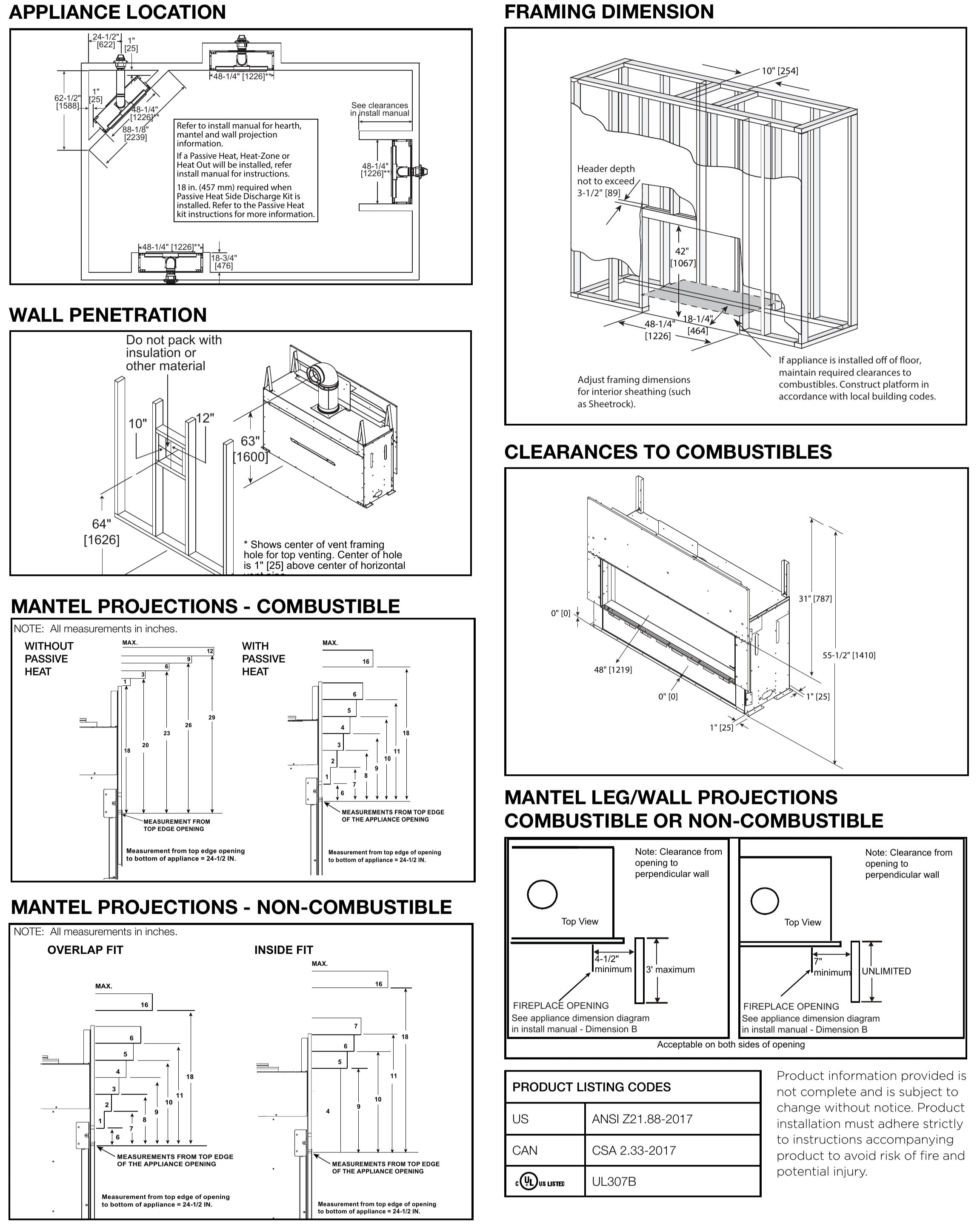

Clearances (simple)

• 0 clearance to floor
• 0 clearance to back
• 1 inch side clearance
• 1 inch front clearance
• minimum 7 inches from opening to perpendicular wall on one side, unlimited on the other side
• header depth should not exceed 3-1/2 inches

If heat management kits are added, the layout and clearances can change, so those projects should follow the matching installation instructions.

What installation typically includes

• wall framing and structural opening
• 8 inch direct vent pipe and termination
• gas line connection
• electrical hookup for lighting and controls
• unit placement and testing
• finish materials around the opening

Optional upgrades

• alternate front finishes
• reflective black glass interior panels
• driftwood or log sets
• Heat-Zone, Passive Heat, or Heat-Out kits
• Wi-Fi control module

Bottom line

The Echelon II is built for modern fireplace designs where width, flame presentation, and a clean finished look matter. The larger sizes, especially the 60 and 72, are best when the fireplace is meant to become a true centerpiece wall.
