By Majestic

Majestic Pier Peninsula Gas Fireplace

$6,036.00
$6,036.00
Interior: Standard
Availability: Low stock: 1 left
SKU: PIER-DV36IN+MSFR-36-BK+MSFR-36-BK+MSEP-36-BK
Majestic Pier Peninsula Gas Fireplace
$6,036.00
$6,036.00

At a glance

  • Type: Gas Fireplace
  • Sizes: Standard, Black Glass, Weathered Tavern Brown Brick
  • Fuel: Natural gas; propane model by note
  • Ignition: IntelliFire
  • Made by: Majestic, a Hearth & Home Technologies brand

Description

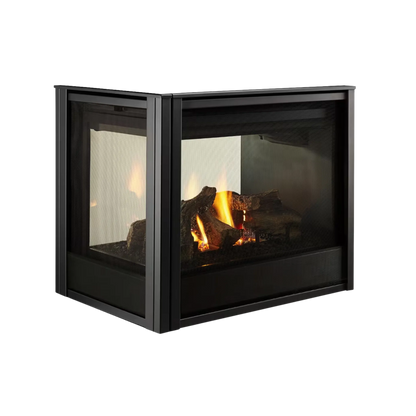

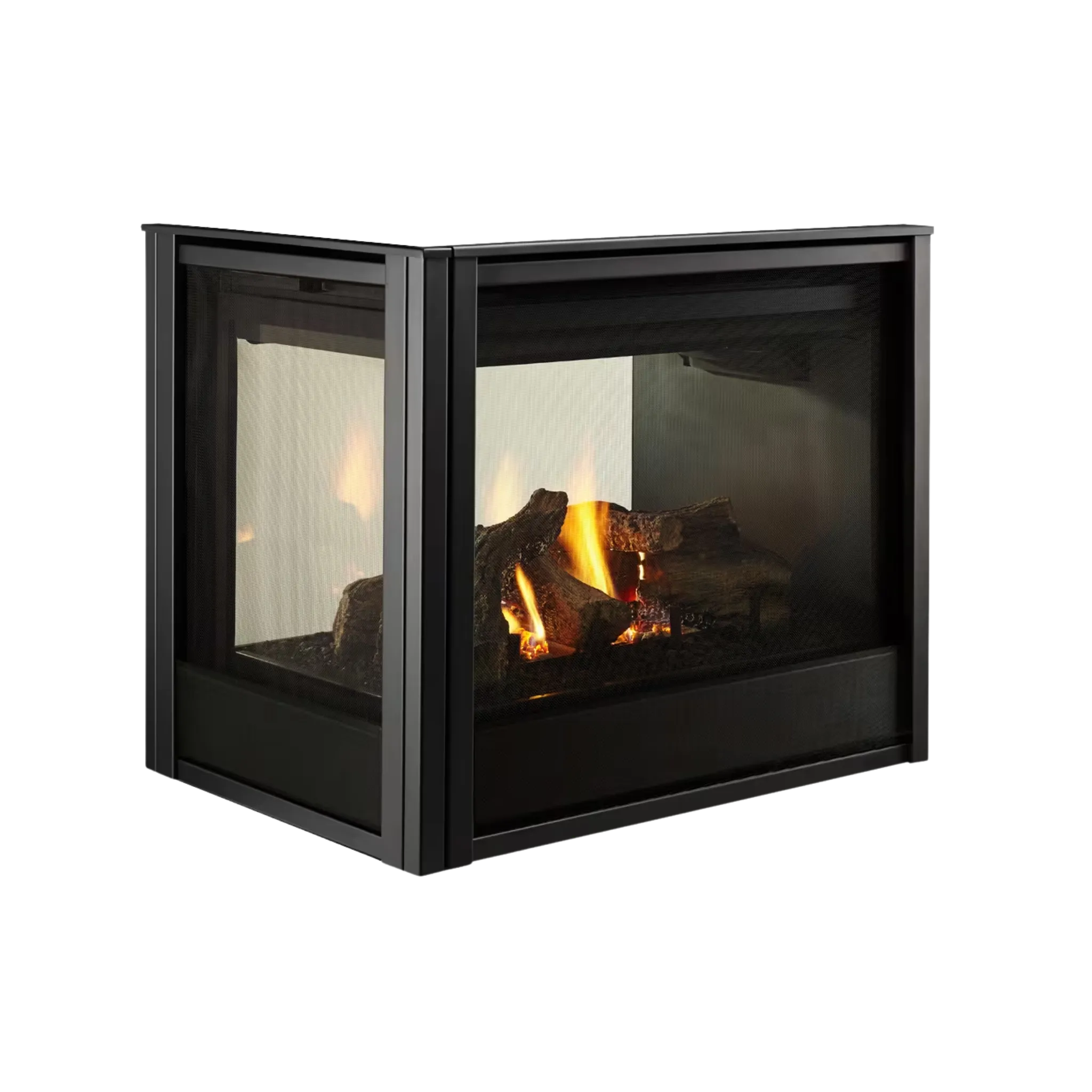

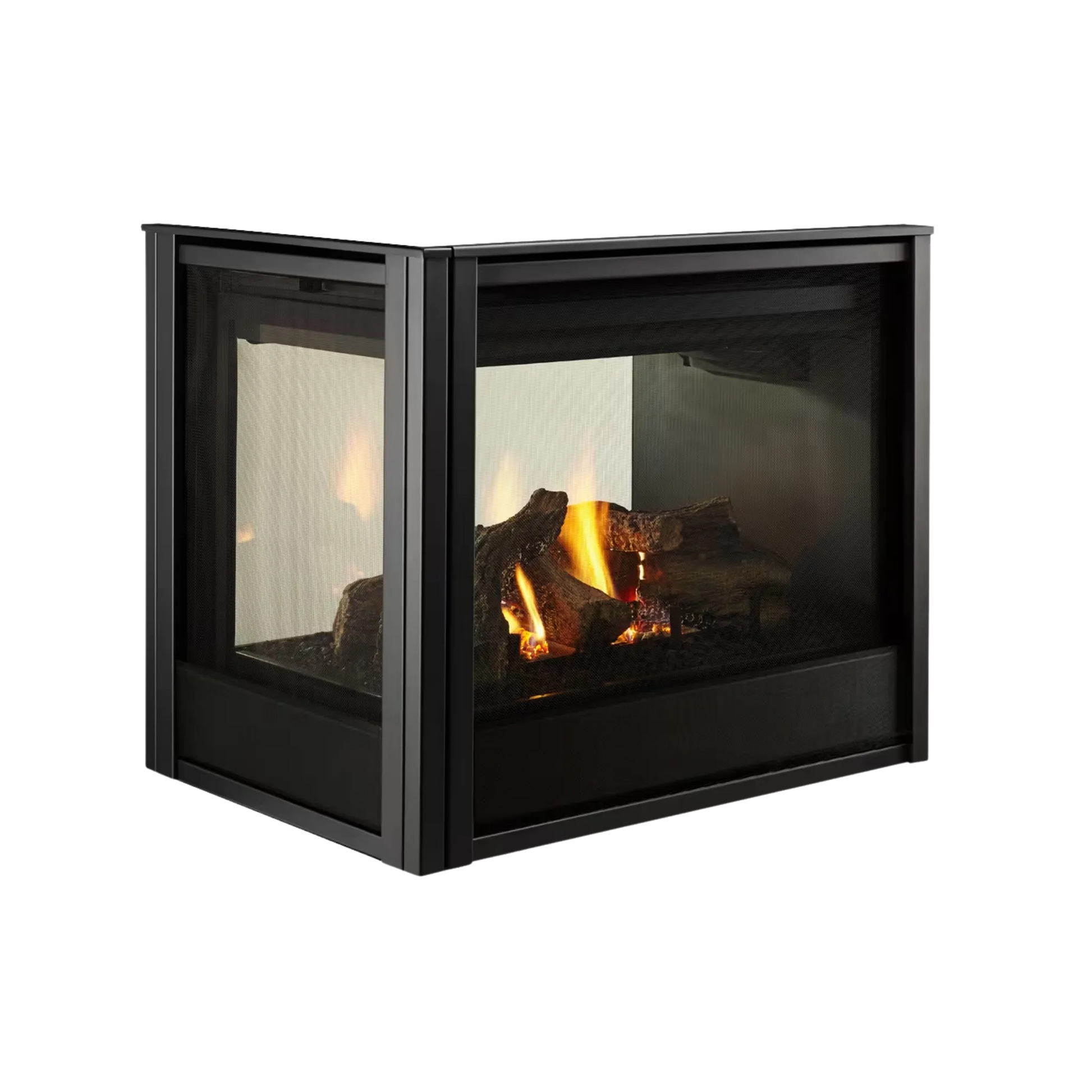

The Majestic Pier is a three-sided peninsula direct-vent gas fireplace, 36 inches wide, seen from the front and both sides, with a log set and IntelliFire Touch. It comes in 3 sizes: Standard, Black Glass, Weathered Tavern Brown Brick.

Who it's for

Right buyer. You are building a peninsula or a room divider and want a gas fireplace seen from the front and both sides, 36 inches wide, with a log set and IntelliFire Touch.

Wrong buyer. The fireplace goes against a wall; a single-sided unit costs less and heats better. You want it seen from two rooms front and back; that is the See-Through.

How it performs

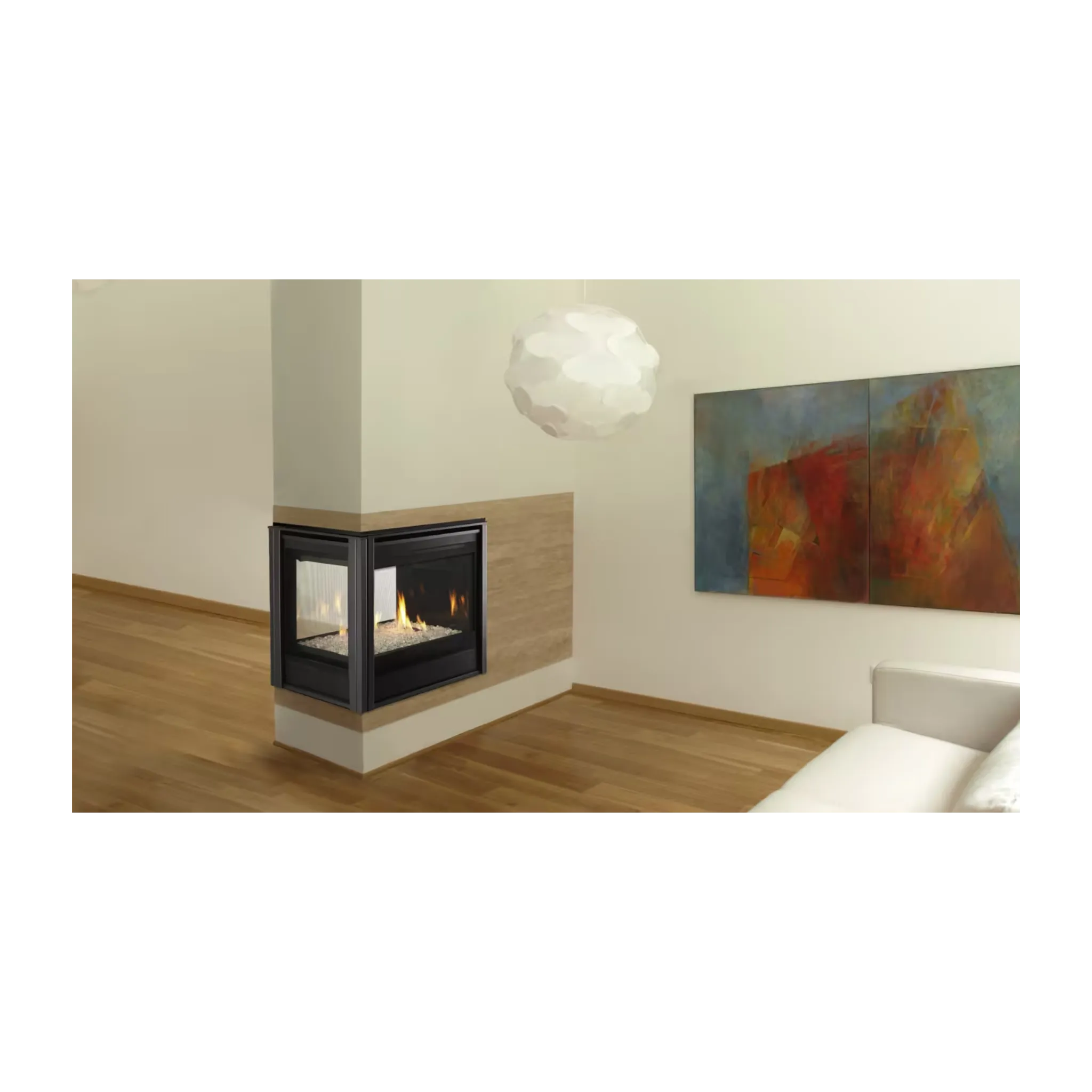

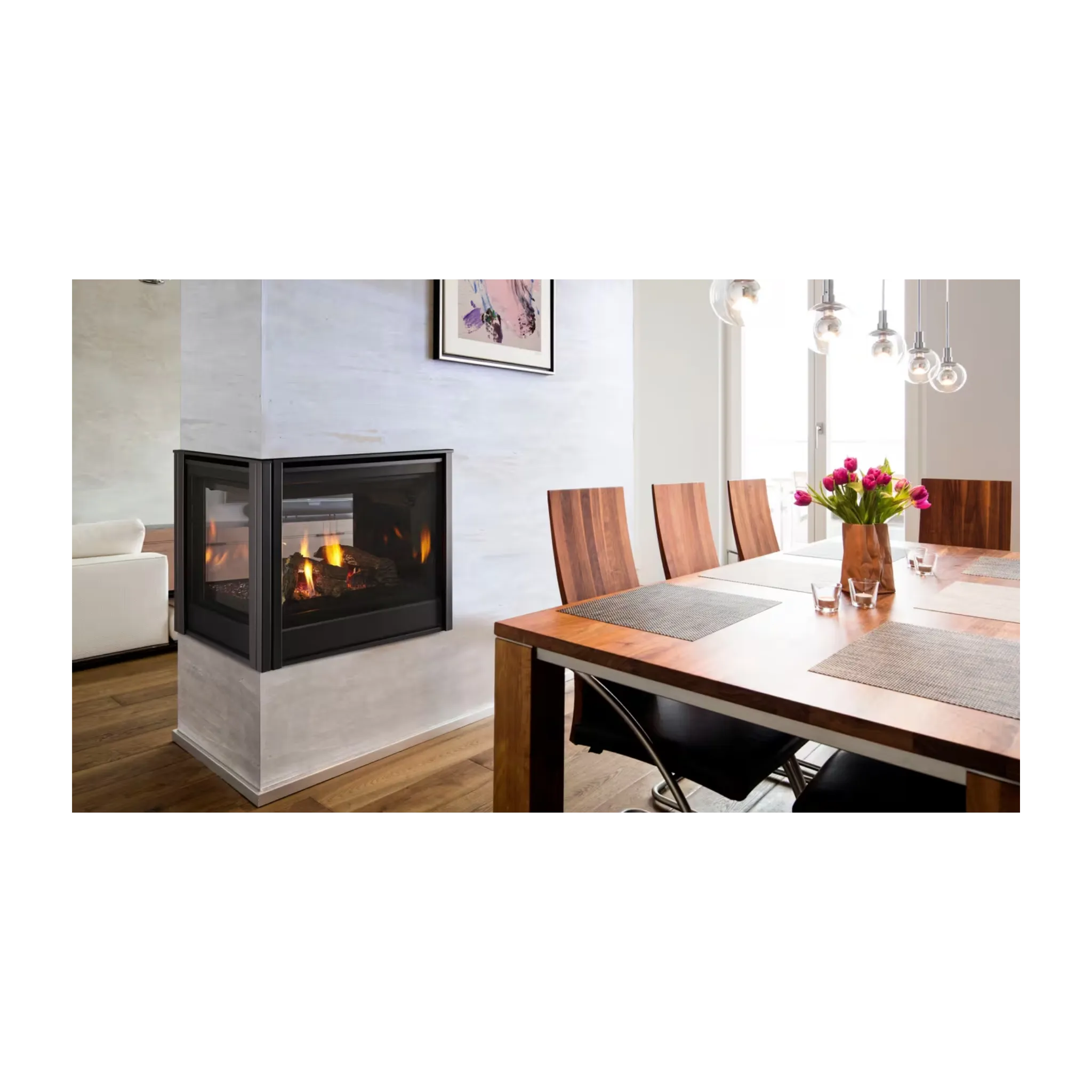

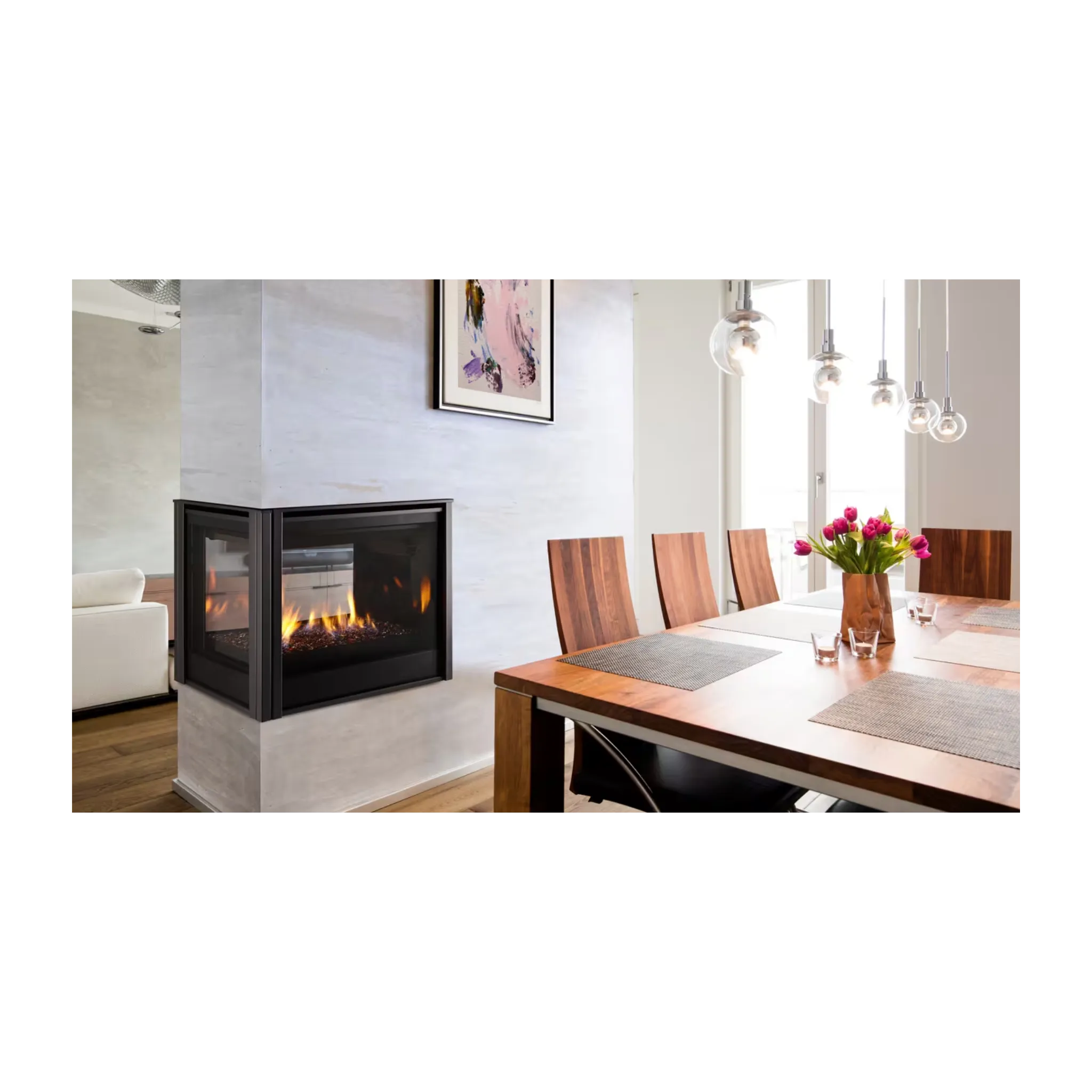

The Pier is seen from three sides: front and both ends, which makes it the fireplace for a peninsula or a room divider that ends in the open.

Good to know

  • A direct-vent fireplace is sealed behind glass; there is no open fire and no smell of wood.
  • The front is a separate purchase and a separate decision; the fireplace cannot be finished without one.
  • The venting run decides where it can go; a long or complicated run adds to the installation more than the fireplace does.

Specifications

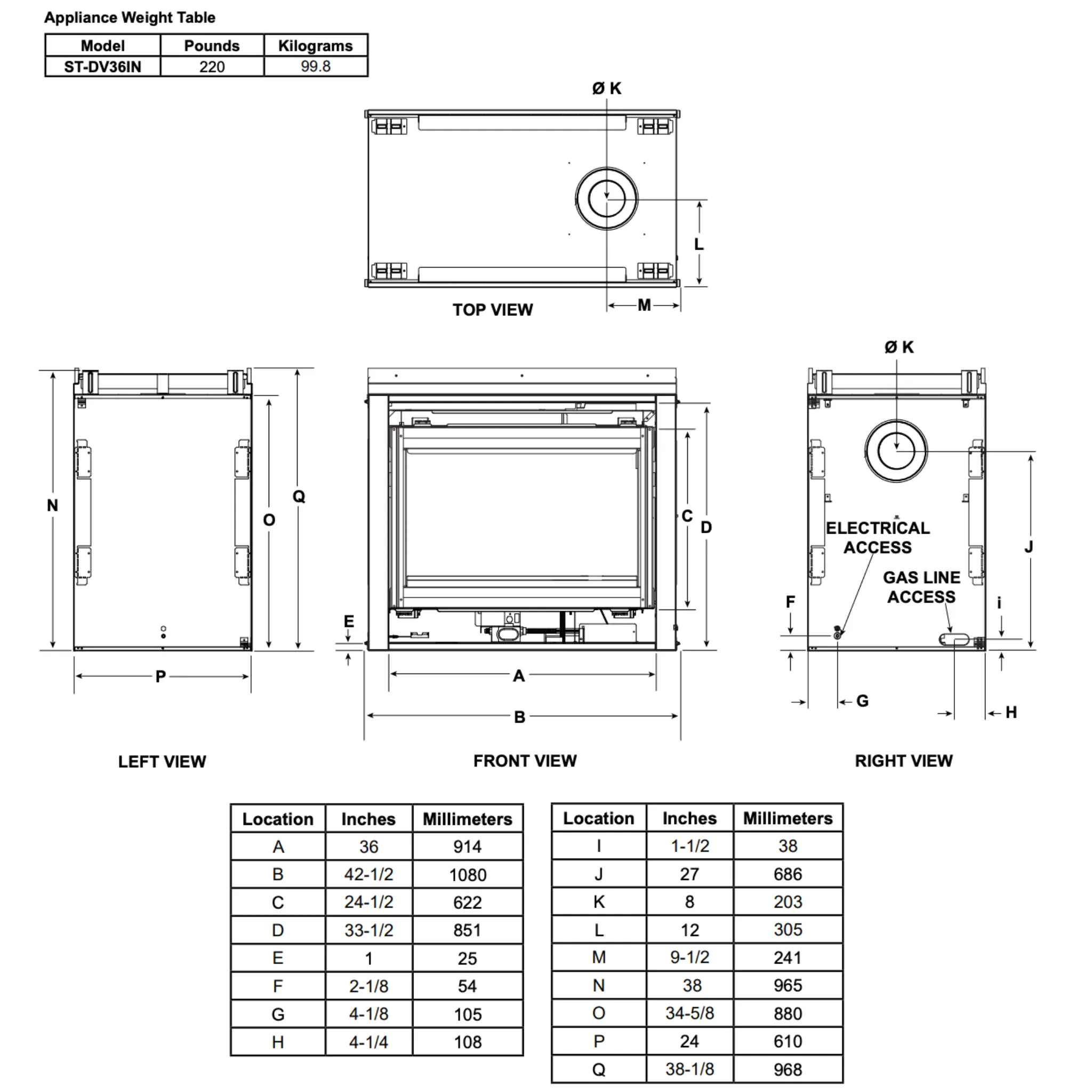

Dimensions

Framing the opening

Frame the rough opening below, measured inside the studs. Depth is from the finished face of the wall. Where the vent pipe goes through the framing there is a separate hole; the manual's drawing gives its position.

Model Width Height Depth
Pier 36 40" 38‑1/8" 23"
Framing notes from the manual
  • Pier 36: Back width: actual 40-1/2, framing 40. Vent framing hole 10 x 12; center of hole 1 in. above center of horizontal vent pipe (centers 42-3/4/27; *43-3/4/*28).

The fireplace itself

Model Width Height Depth
Pier 36 40‑1/2 38 24

Models and prices

Heat input is the range from the low to the high flame setting on natural gas and on propane. The LP model has the same price; order it by note.

Model Part BTU per hour, NG BTU per hour, LP Fireplace only
Pier 36 PIER-DV36IN 38,000 to 21,000 35,500 to 20,000 $4,899

Required to complete: Fronts (x2) End panel (x1). The options below are the ones sold on this page; each is matched to its size.

Clearances

Clearances are to combustible materials, from the appliance. They come from the installation manual for this model and depend on how it is vented; the installer confirms them on site.

Clearance Minimum
Sides 1/2"
Front 36"
Ceiling 31"
Floor 0"
Notes from the manual

Area to combustibles: clearance to ceiling 31; combustible/non-combustible floor 0; ends of appliance 1/2; glass sides of appliance 36. Mantel projection charts (combustible/non-combustible) printed as graphics, not transcribed.

Documents

Details

Models PIER-DV36IN
Type Direct-vent gas fireplace
Fuel Natural gas; propane model at the same price
Heat input See the table above
Ignition IntelliFire Touch intermittent pilot with battery backup

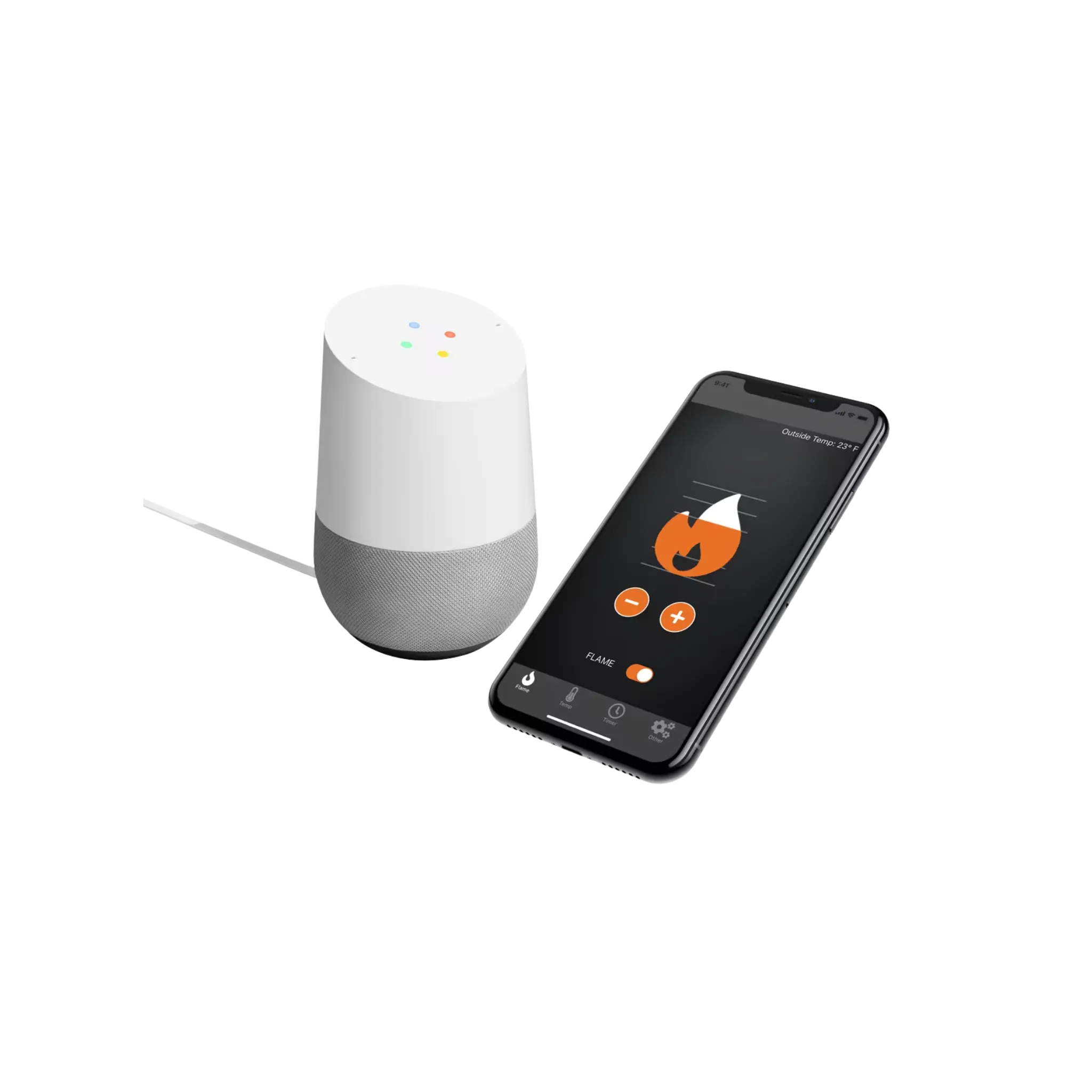

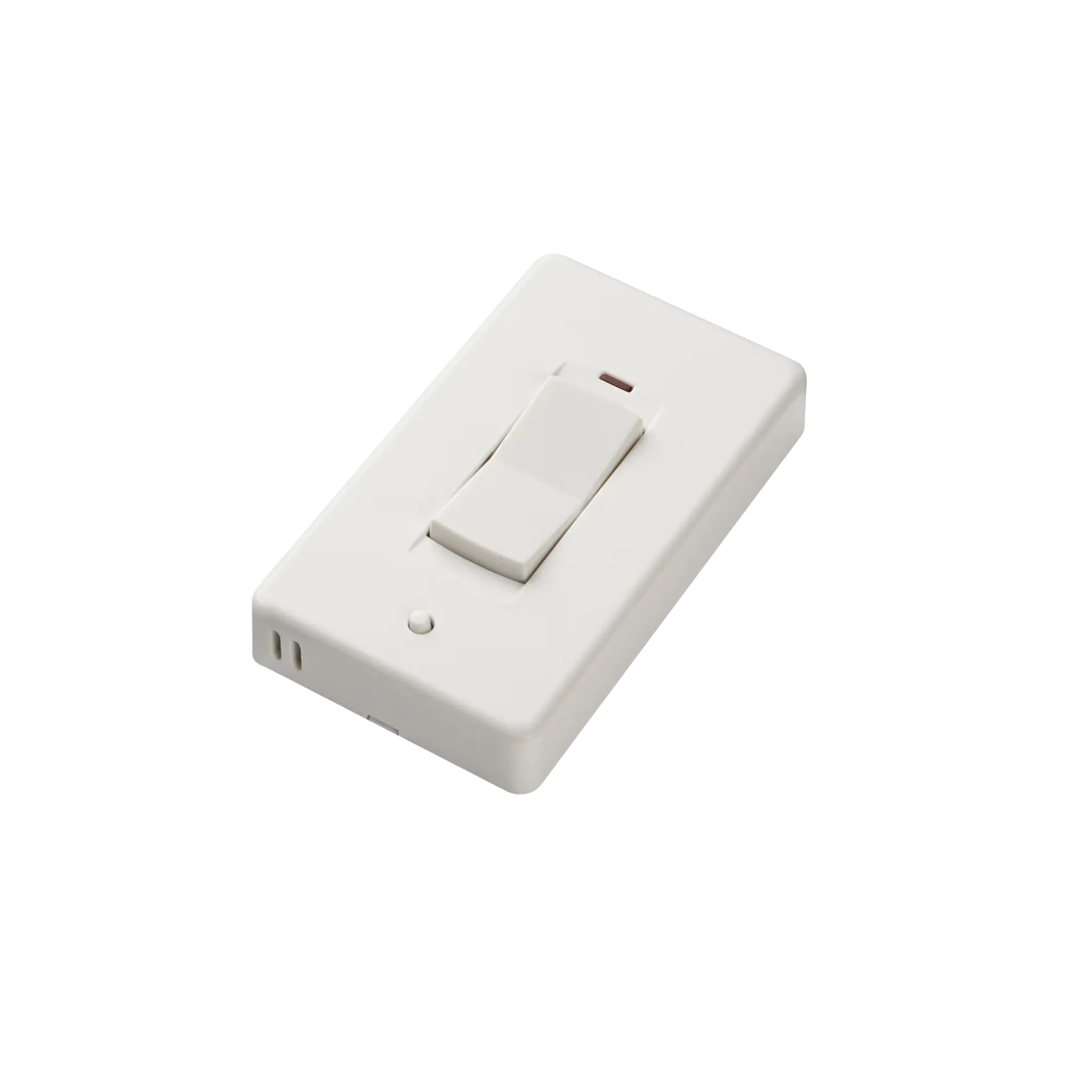

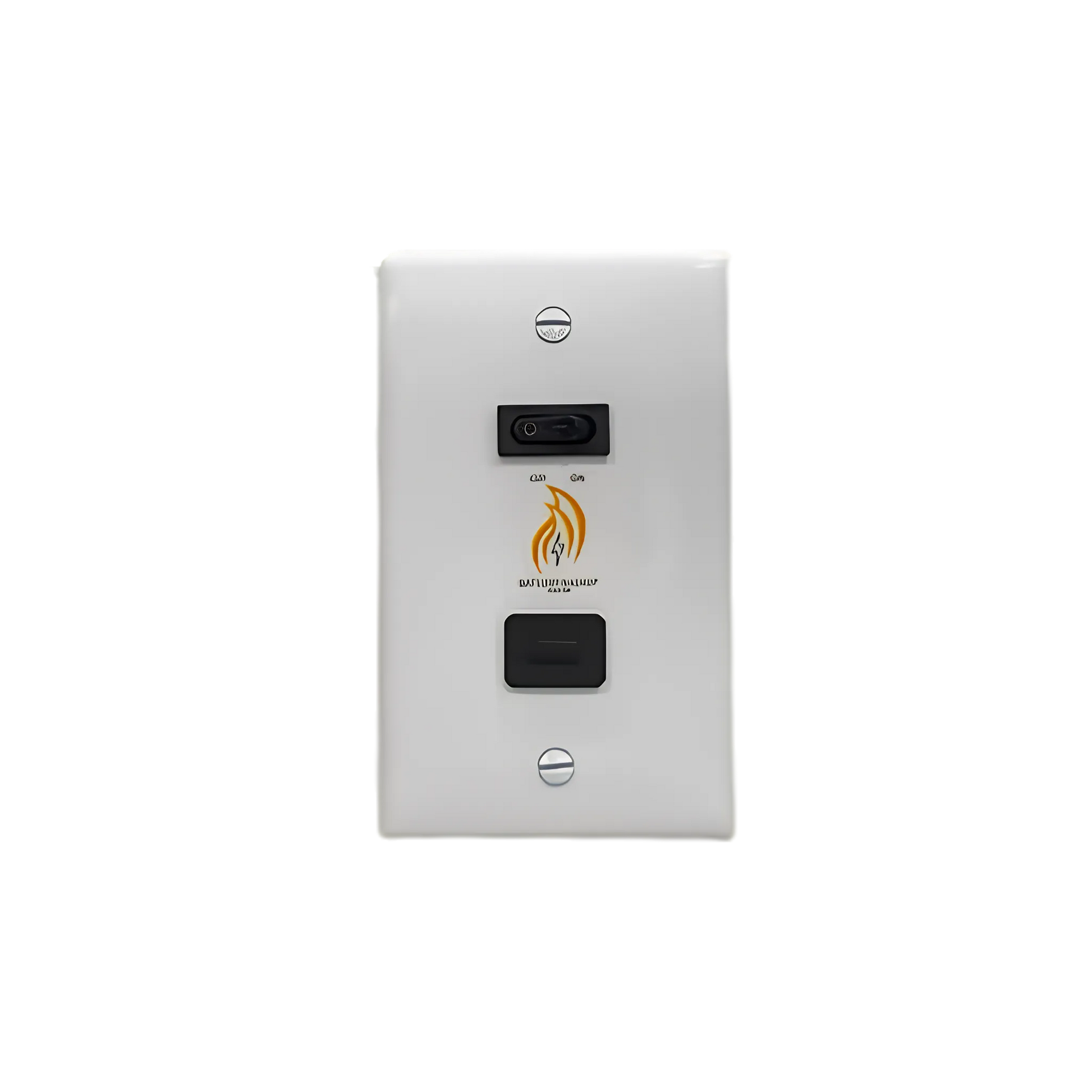

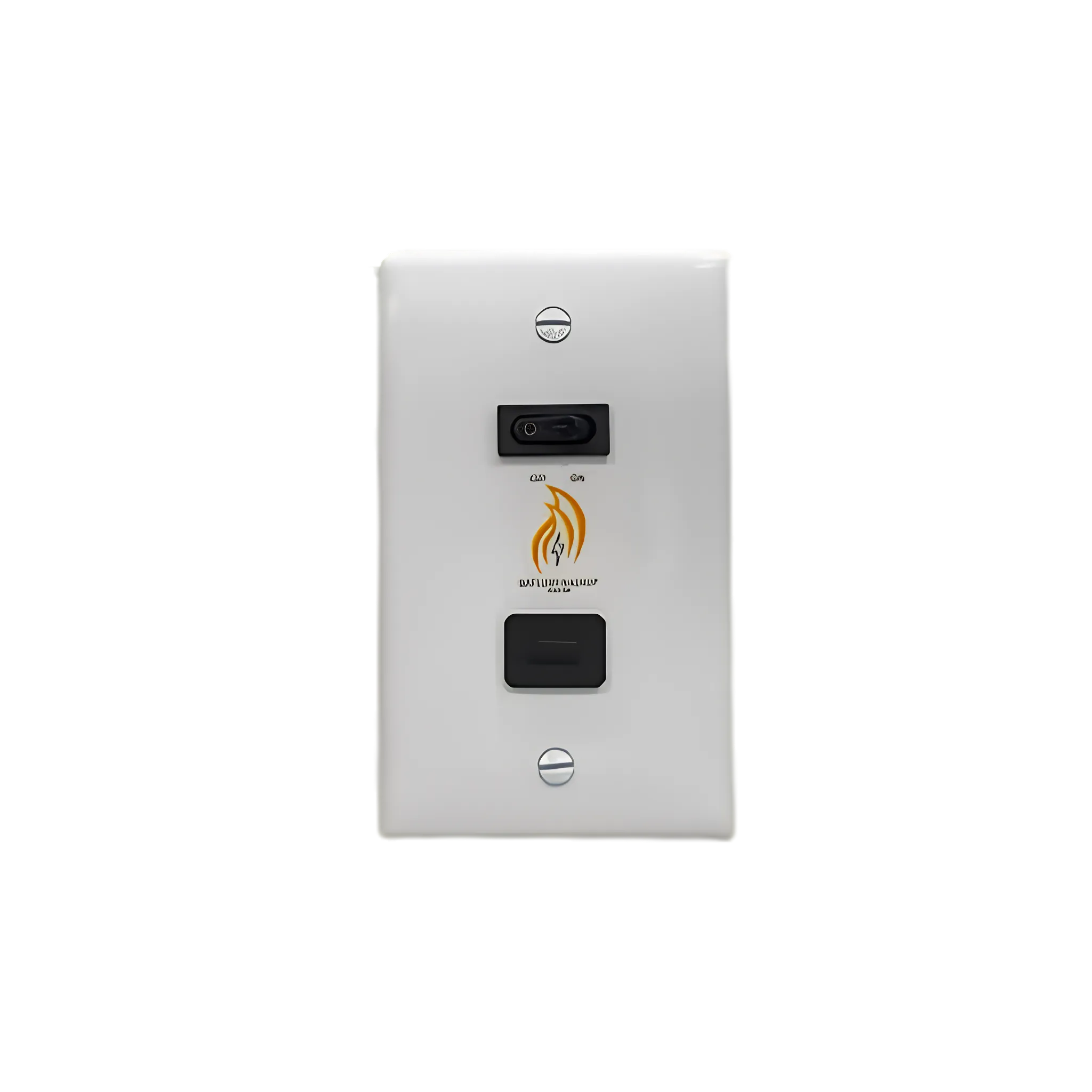

Controls Wall switch; RC400 remote and IntelliFire app with the Wi-Fi module
Electrical 120 V for fan, lights and accessories
Manufacturer Majestic, a Hearth & Home Technologies brand, USA
Weight, Pier 36 220.0 lb

Warranty

Component Coverage
Firebox and heat exchanger Limited lifetime (20 years), 3 years labor
Burners, logs and metal or fiber refractory made by HHT 10 years, 1 year labor
Cement refractory panels, glass liner panels 3 years
Glass; electrical components (ignition modules, remotes and wall switches, valves, pilots, blowers, junction boxes, harnesses, transformers, lights) 1 year parts and labor
All other parts 1 year

Source: Hearth & Home Technologies Limited Lifetime Warranty, the document packed with the appliance and linked from the owner's manual above. "Lifetime" means 20 years for gas appliances, 10 years for wood and pellet appliances and 5 years for standalone gas log sets, counted from the start of coverage, which begins no later than 24 months after the appliance ships from the factory.

Heat

Heat input per hour on natural gas and on propane, low to high, and the efficiency where the maker publishes it.

Model BTU, natural gas BTU, propane Efficiency
Pier 36 21,000 to 38,000 20,000 to 35,500 —

Choices and prices

Front

The front is the finished face of the fireplace. A clean-face trim frames the glass with a thin edge for a built-in look; overlap and arched fronts sit on the wall and carry a screen.

Front Part Price

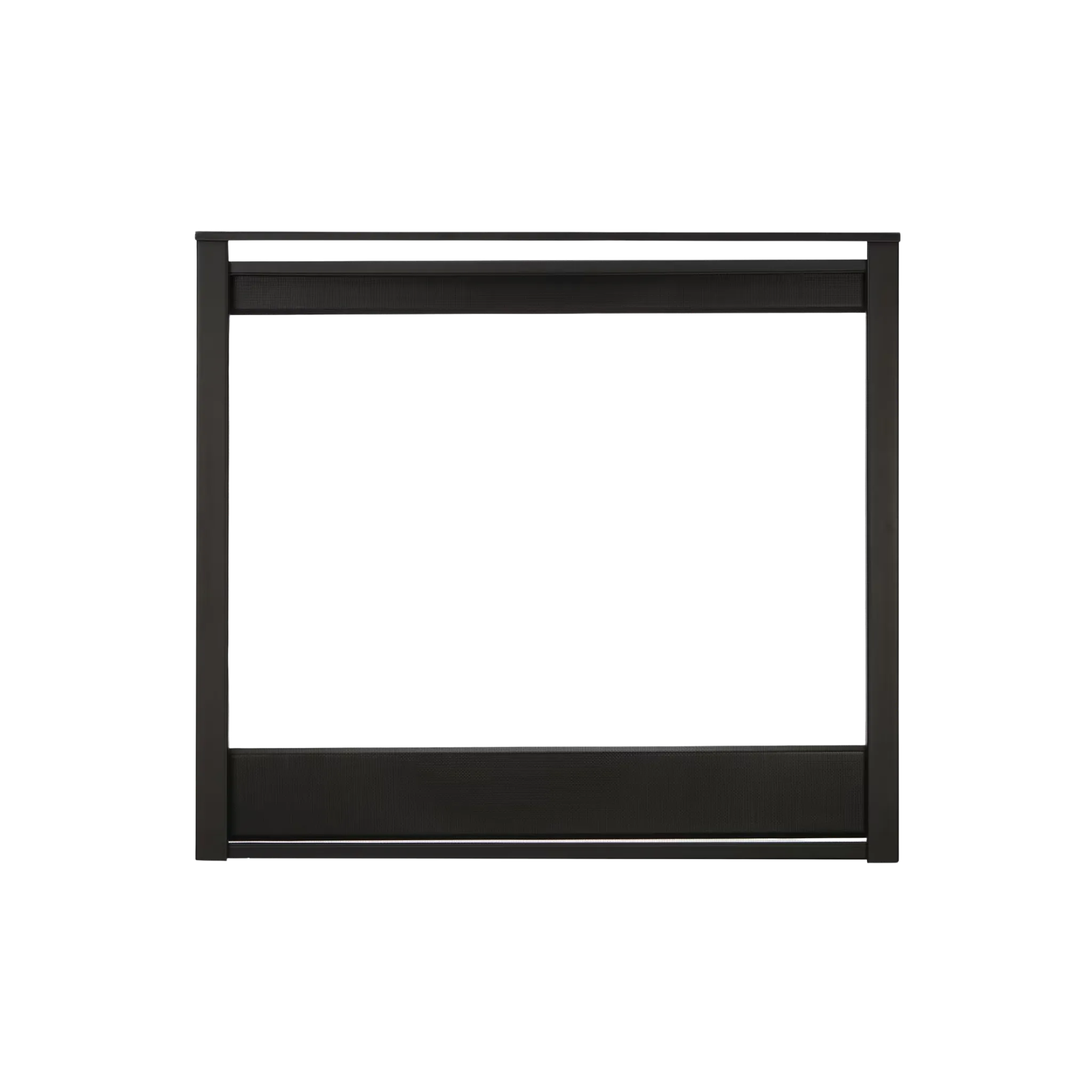

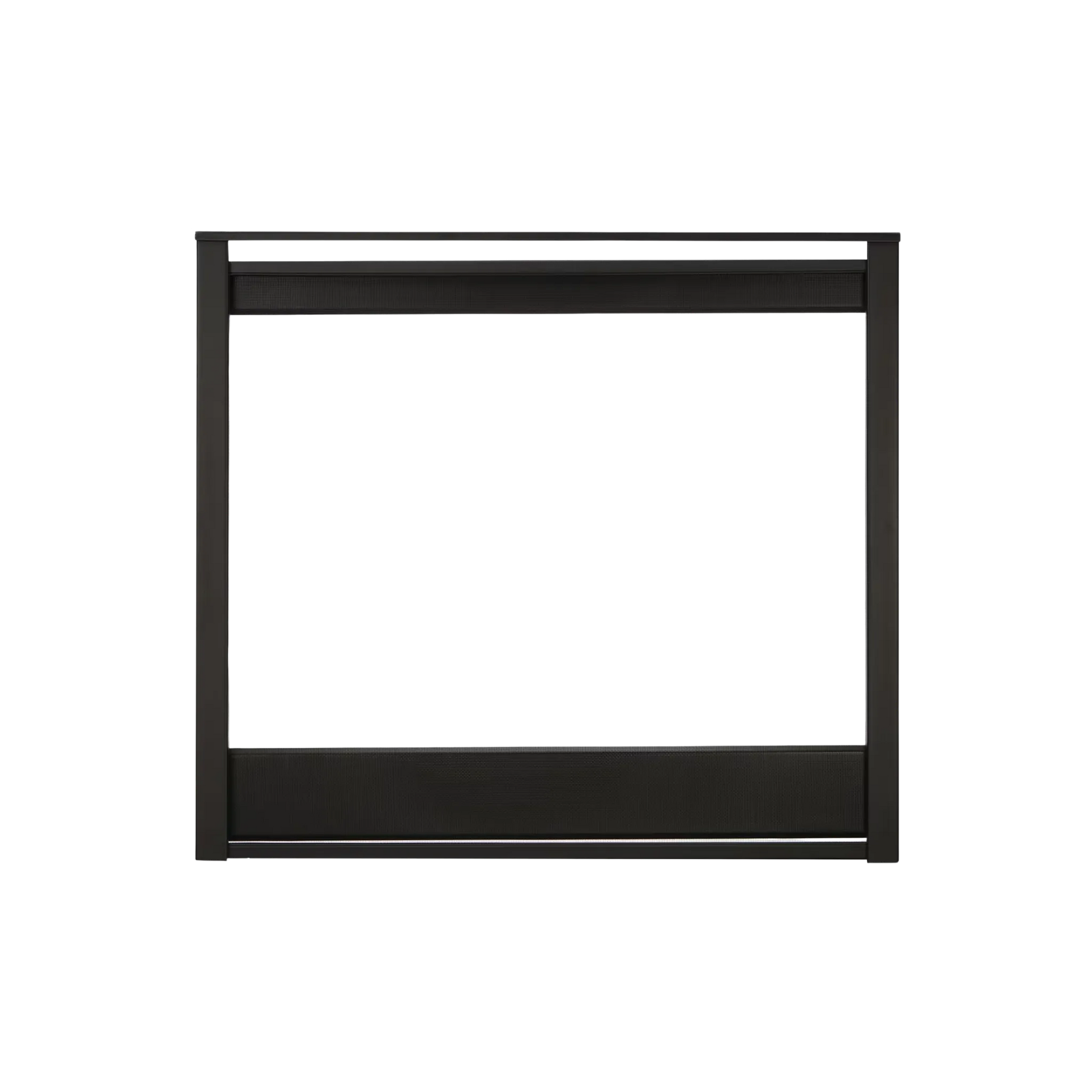

Multi Side Firescreen Front - Black MSFR-36-BK $369
Multi Side End Panel Firescreen Front - Black MSEP-36-BK $399
Interior and media

The interior is what you see behind the fire: a brick liner, a reflective black glass liner, or glass media in place of logs.

Interior or media Part Price
Reflective Black glass interior panels for Peninsula LINER-36PIER $629

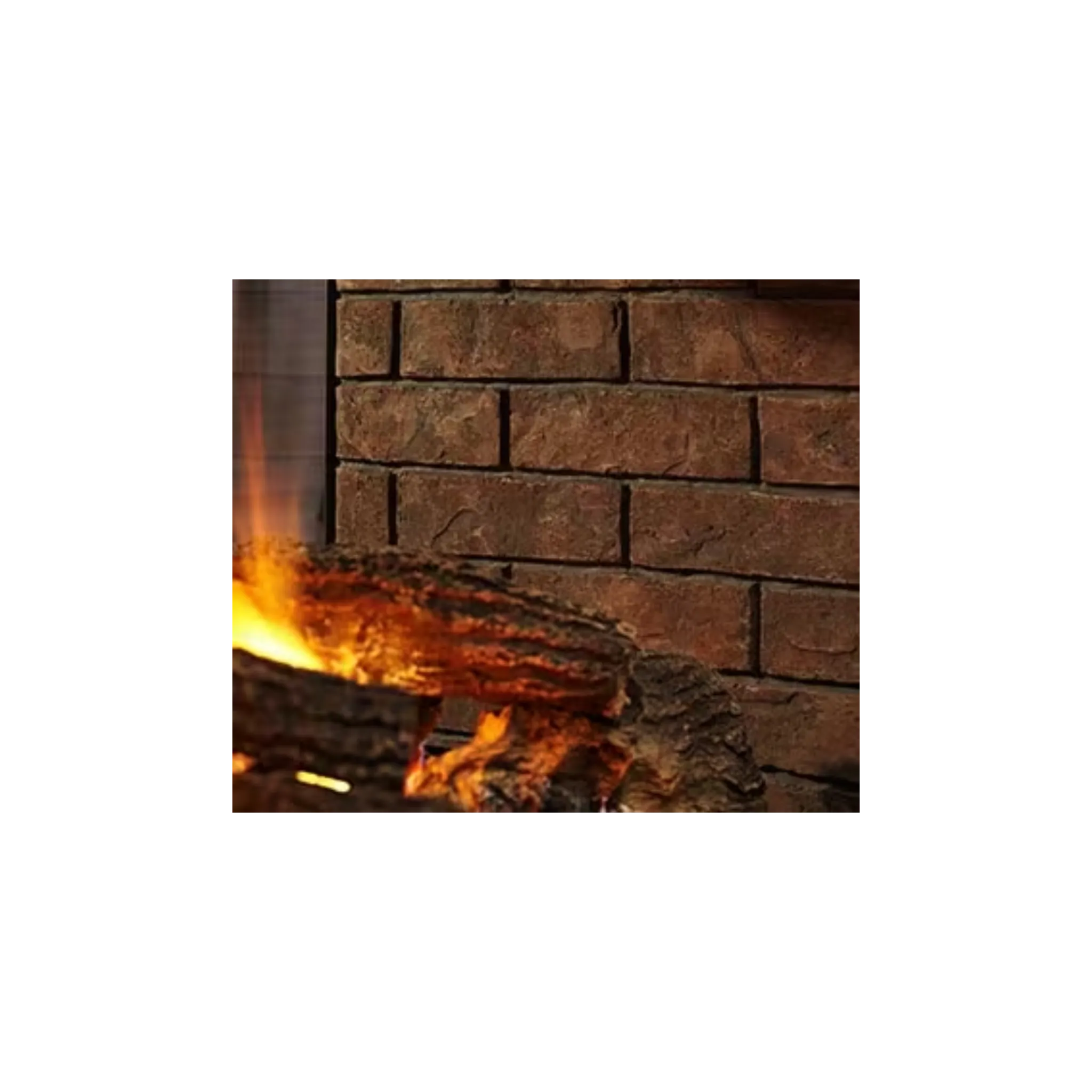

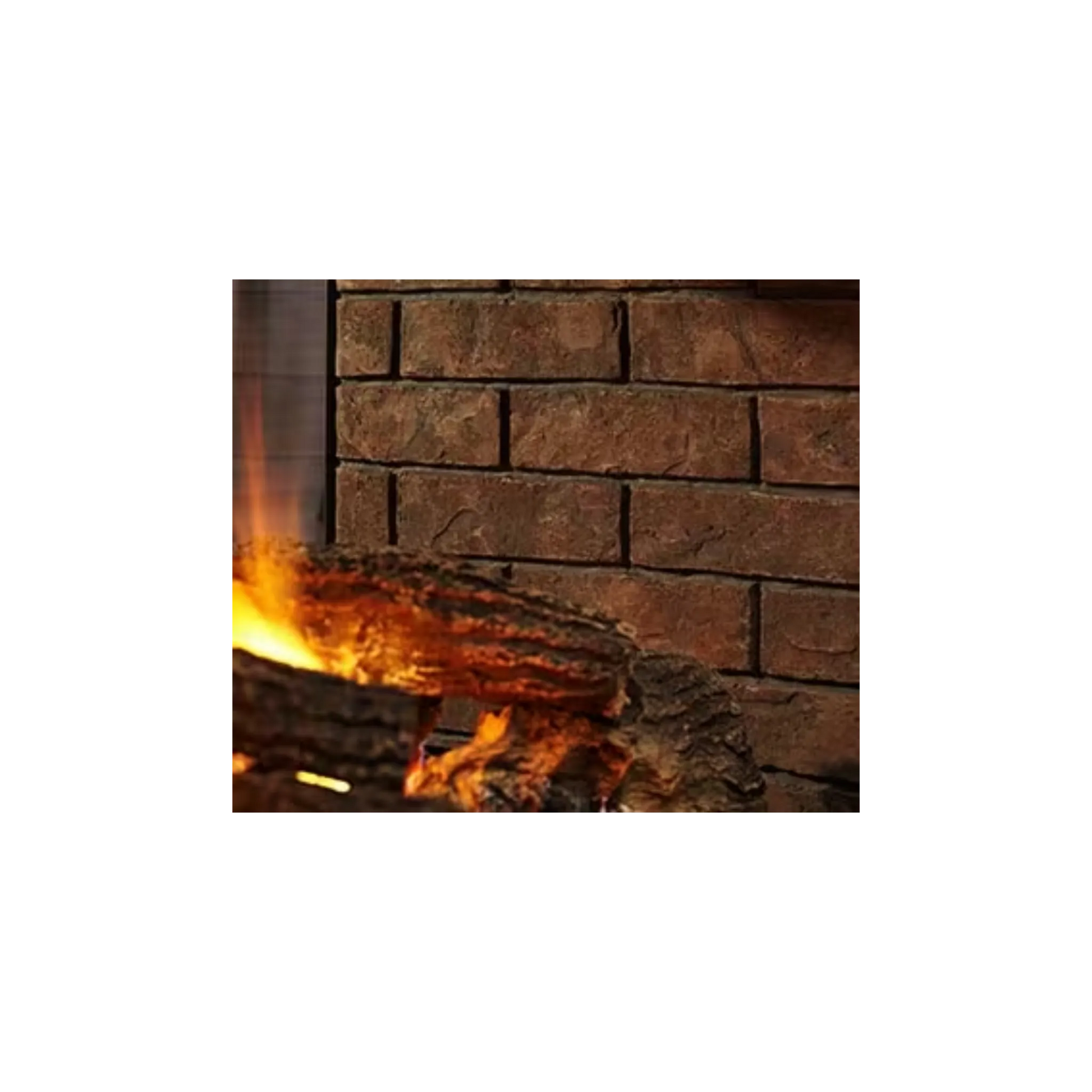

Traditional brick interior liner 36" Peninsula - Weathered Traditional Brick WTB36-PR $329

What arrives

  • Battery backup
  • (NG)
  • IntelliFire Touch ignition system

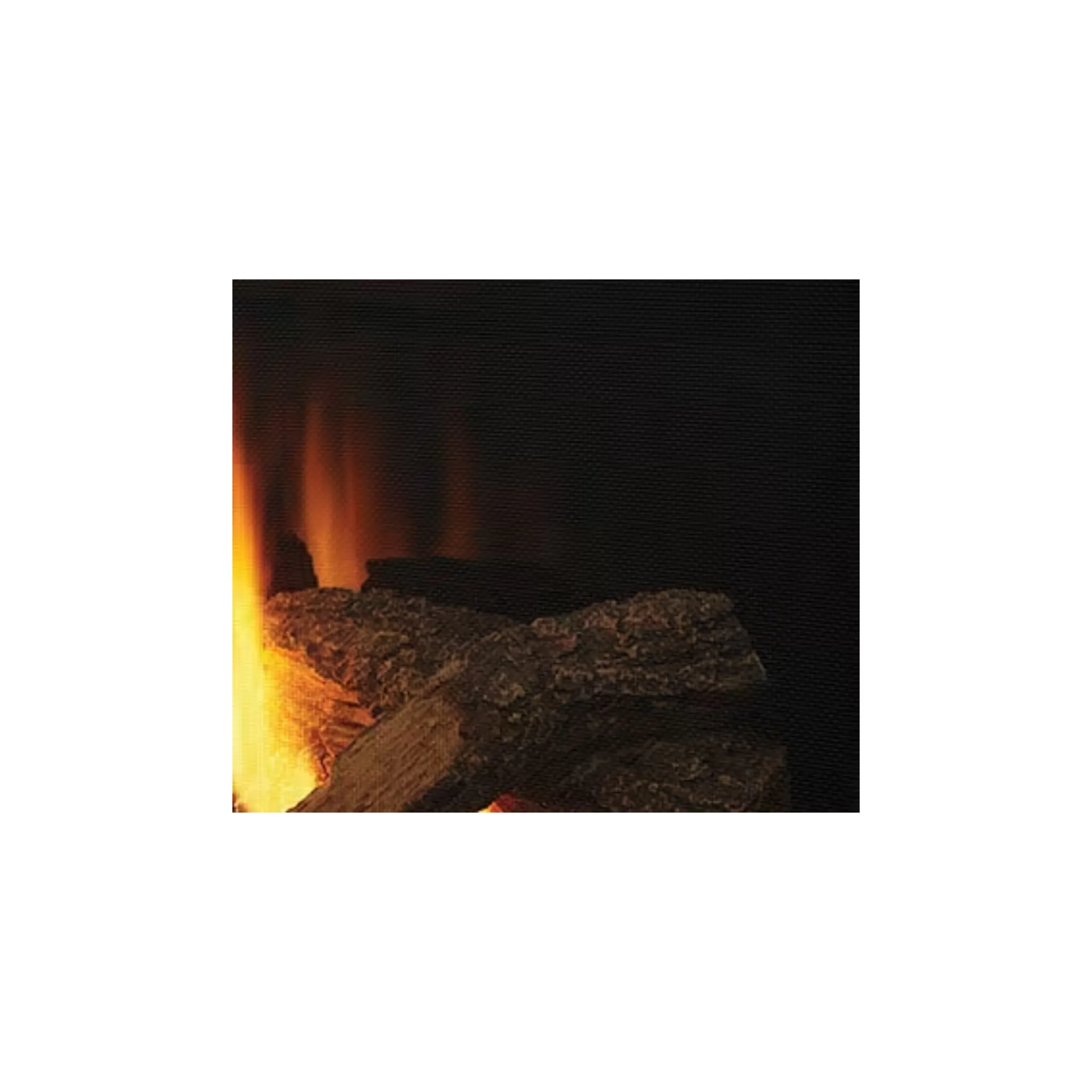

  • 6 ceramic fiber logs
  • Gas flex connector
  • Glowing embers, lava rock
  • Manual gas shut off valve
  • Tempered glass
  • Black steel refractory
  • 12' control wire
  • Junction box
  • The front, interior and any accessories ship as their own cartons.

Installation

Venting Requirement
Type Direct vent
Pipe DVP or SLP

Framing callouts: DVP pipe 10" [254]; SLP pipe 8-5/8" [219].

Direct vent: a sealed coaxial pipe carries exhaust out and combustion air in, through the roof or an outside wall, with no chimney. The vent pipe, elbows and termination are sold separately and quoted from your installer's plan.

Planning the install

  • Installation is by a licensed gas installer. The fireplace, its venting and the gas line are inspected together, and the warranty depends on it.
  • Framing, clearances to combustibles, mantel heights and the vent run come from the installation manual for your size. Send us your plan and we will check it before anything ships.
  • Venting is sold separately and priced from the installer's plan: the pipe, elbows and termination depend on where the vent exits. Ask us for a vent quote with your order.
  • Propane: every model is also made in an LP version at the same price. Add a note to your order and we will confirm the LP model before it ships.
  • A 120-volt outlet or junction box at the fireplace is needed for the fan, lights and accessories; the ignition itself has battery backup.
  • Special-order goods ship by freight. Confirm the size and the front before you order.

Questions
What is a front, and why is it required?

A Majestic direct-vent fireplace ships as the firebox and glass. The front is the finished face that covers the frame and the vents: a clean-face trim that disappears into the wall, or a decorative front with a screen. The fireplace cannot be finished without one, which is why the page will not let you order without choosing it.

What is IntelliFire Touch?

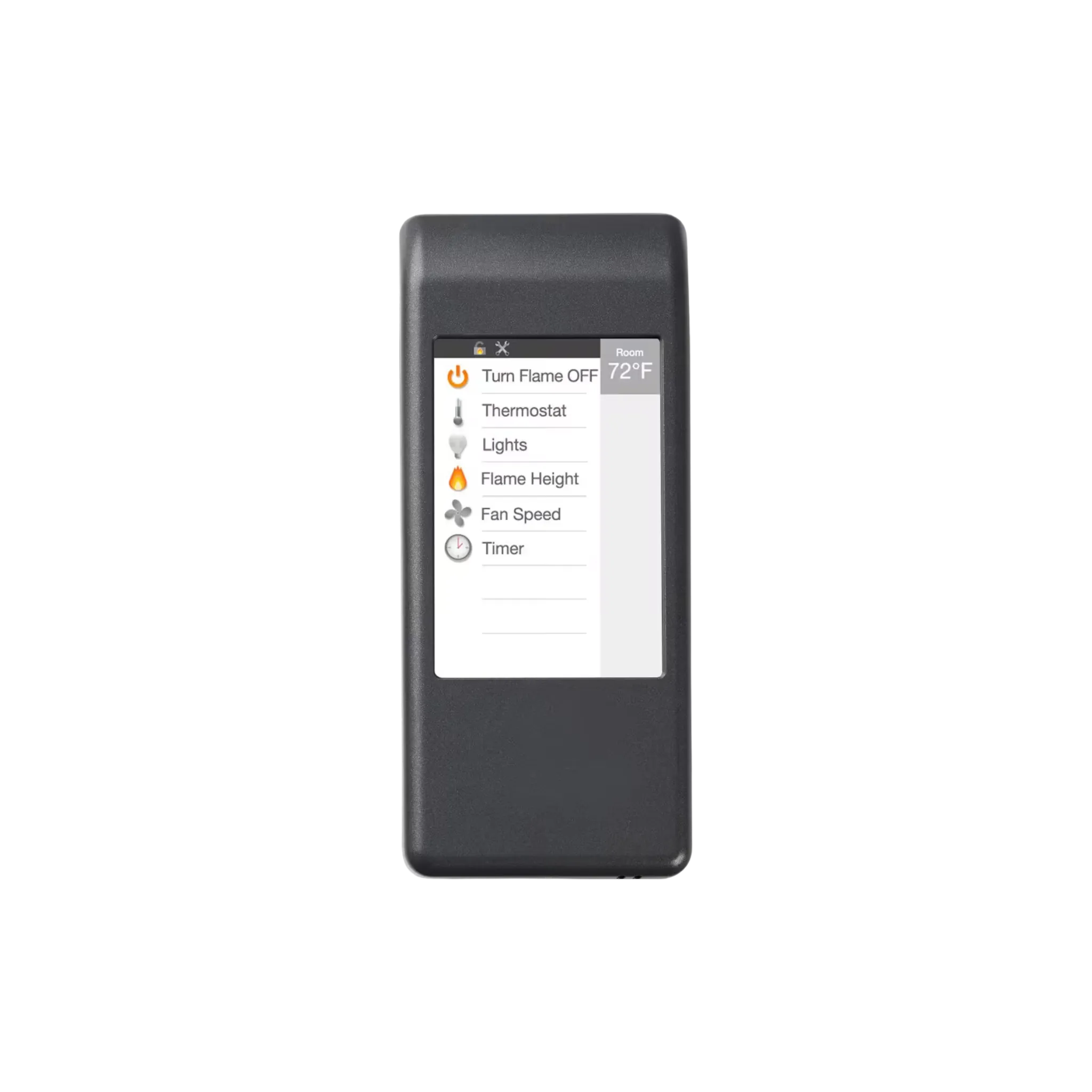

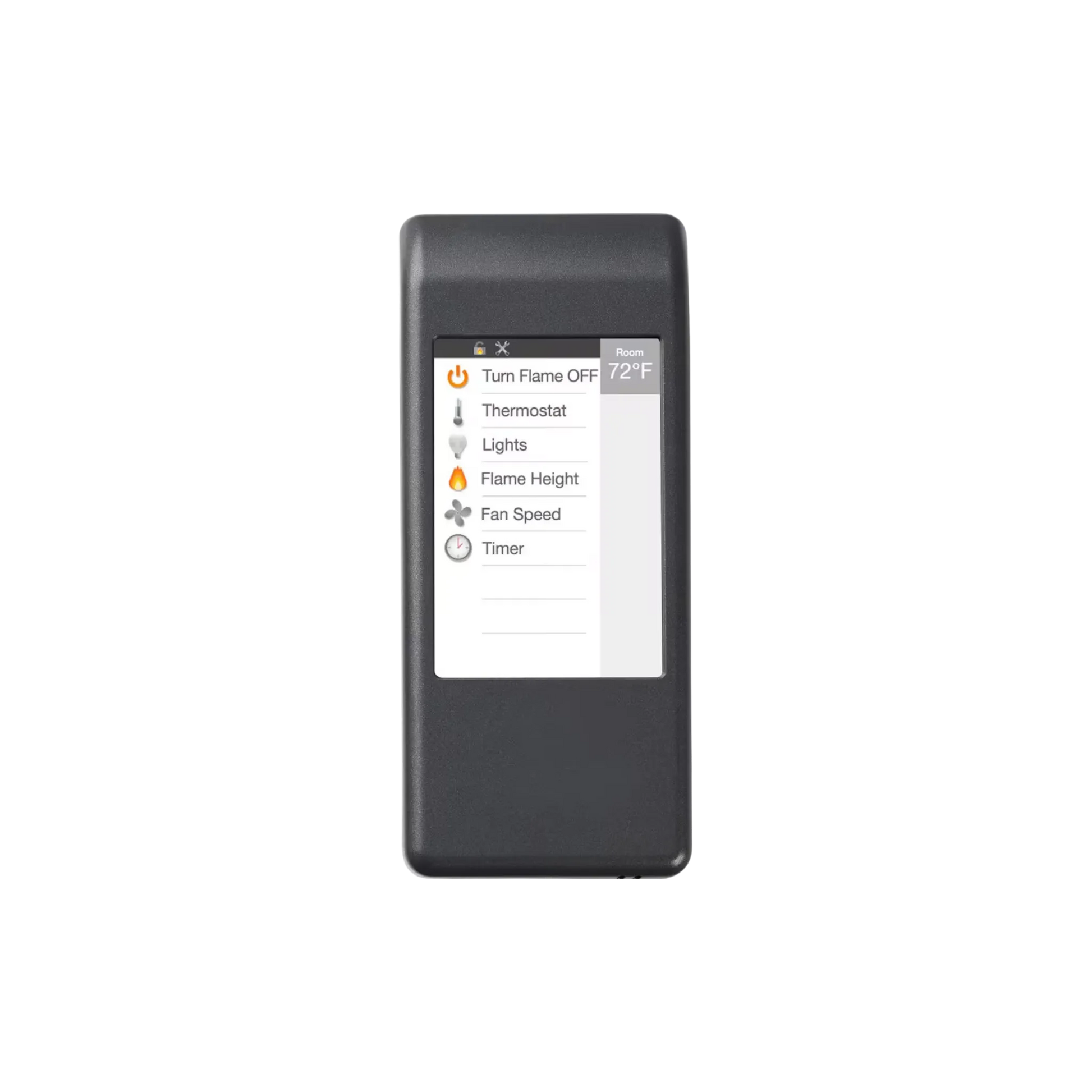

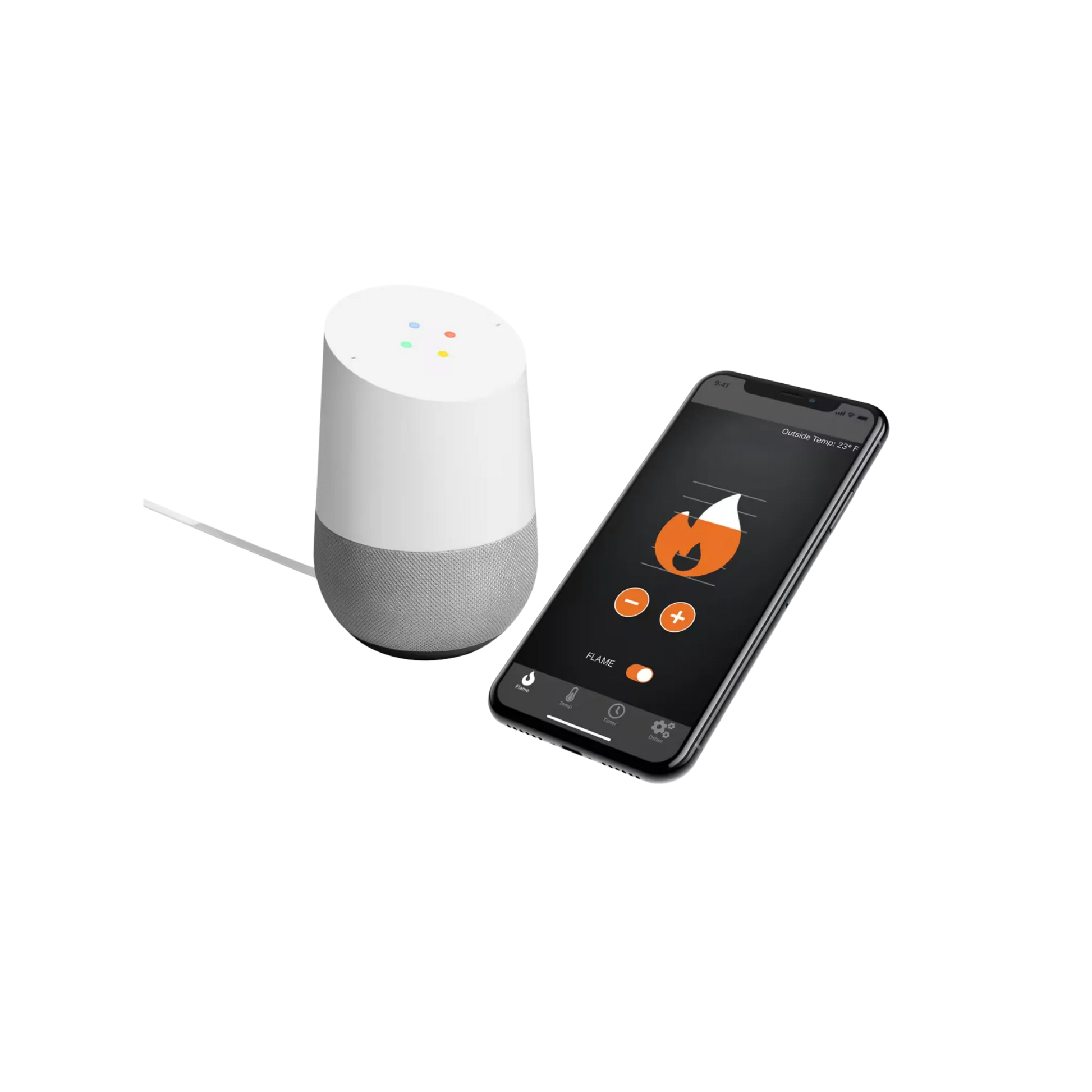

Majestic's intermittent-pilot ignition system. There is no standing pilot burning all year; the fireplace lights when you turn it on, from the wall switch, the remote or the app. It has a battery backup, so it still lights in a power outage. Flame height, the fan and the lights are controlled from the RC400 remote or the IntelliFire app with the Wi-Fi module.

Does it heat the room?

Yes. A direct-vent fireplace is a sealed heater: it draws combustion air from outside and sends its exhaust outside, so all the heat from the glass goes into the room. With the optional fan it warms a good-sized room; the passive heat and heat-zone kits move heat to another room or out of the wall above.

How is it vented?

Through a coaxial direct-vent pipe out the top or the rear, to a termination on the roof or through an outside wall. No chimney is needed. The pipe, elbows and cap are sized to your house and sold separately.

Can I get it in propane?

Yes. Add a note to your order and we will confirm the LP model, which is the same price.

Can I return it?

Fireplaces are special-order freight items. Confirm the size, the front and the interior with us before you order, and contact us before returning anything.
