Performance
Fuel: Dry cordwood (16″ recommended)
Heating Area: 500–2,100 ft²
Max Heat Output: 75,000 BTU/h (22 kW)
Burn Time: Up to 8 hours
Efficiency: ~77% optimal (72 % HHV, 77 % LHV)
Firebox Volume: 2.4 ft³
Emissions: 2.3 g/h
Dimensions

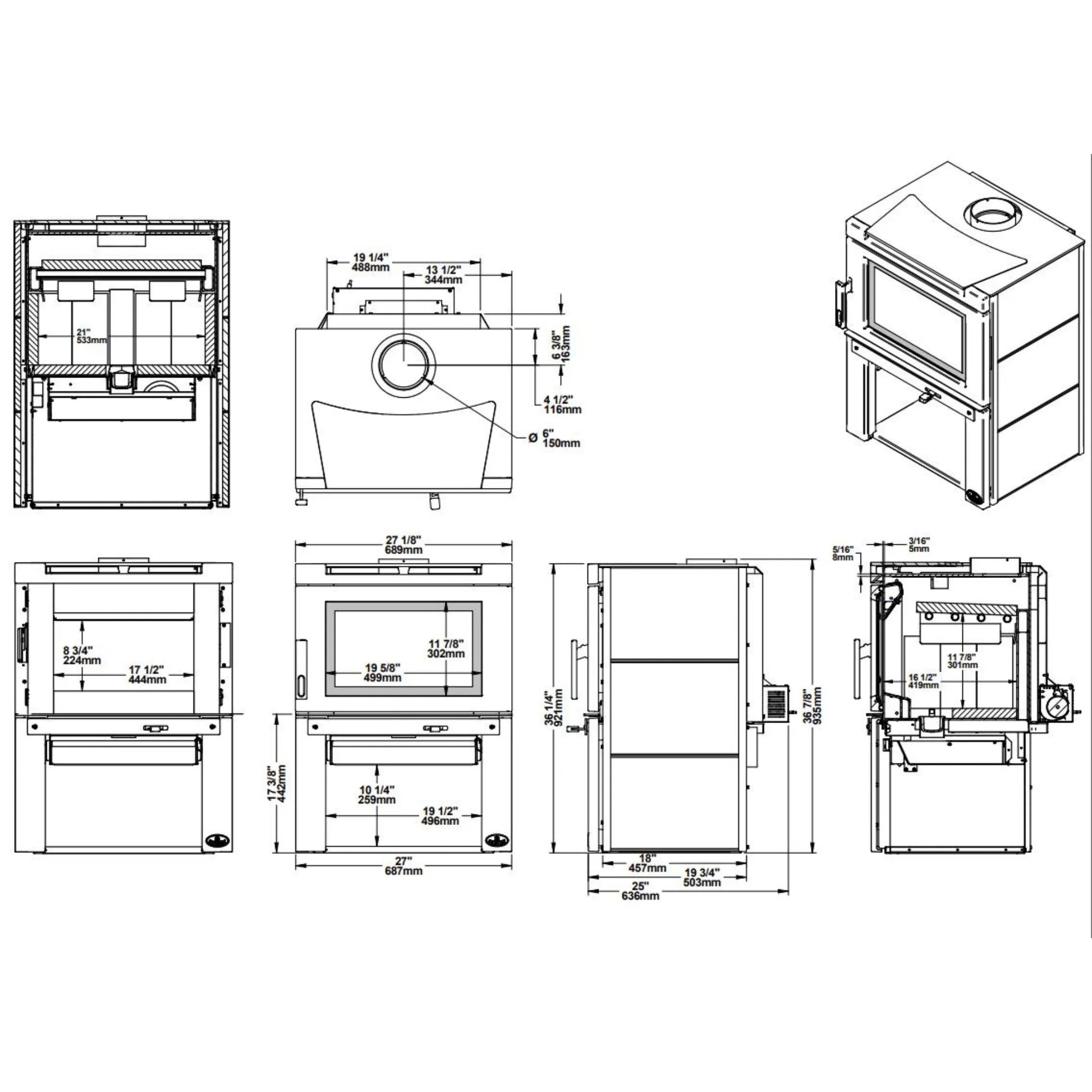

Unit Size (H × W × D): 36 7/8″ × 27 1/8″ × 25″
Weight: 506 lb

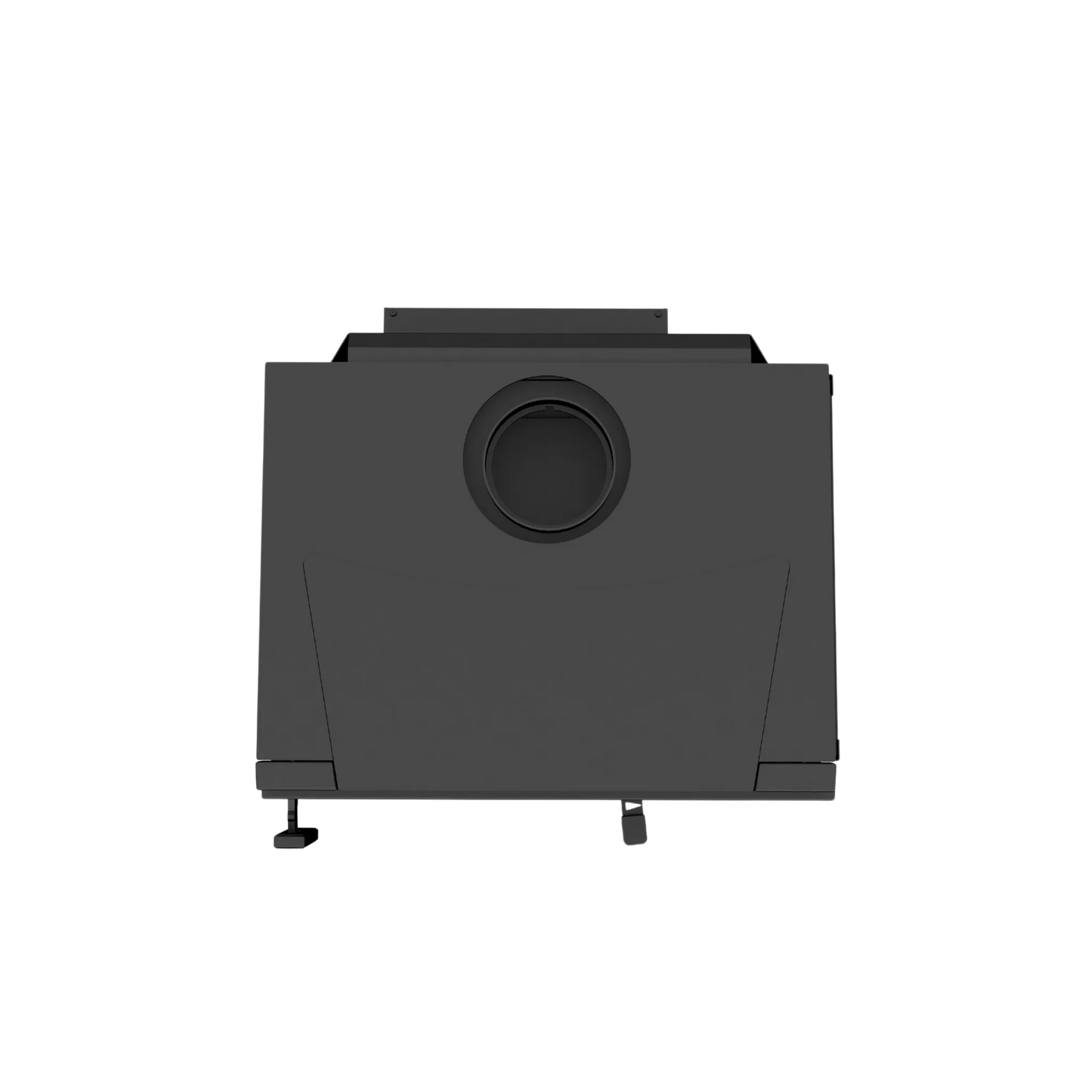

Chimney: 6″ diameter, minimum 12′ height
Clearances (US, double-wall pipe): Back: 6″ Side: 16″ Corner: 7″ Top: 84″
Features
Combustion Type: Non‑catalytic
Certification: EPA 2020 approved
Max Log Length: 20″
Glass Door: Ceramic, air-wash system; viewing area ~19 5/8″ × 11 7/8″
