Performance
Fuel: Electric
Heating Area:
All models: up to 400 ft²
Max Heat Output:
All models: 5,000 BTU/h (110–120 V) or 10,000 BTU/h (220–240 V)
Efficiency: 100% (electric, zero direct emissions)
Dimensions

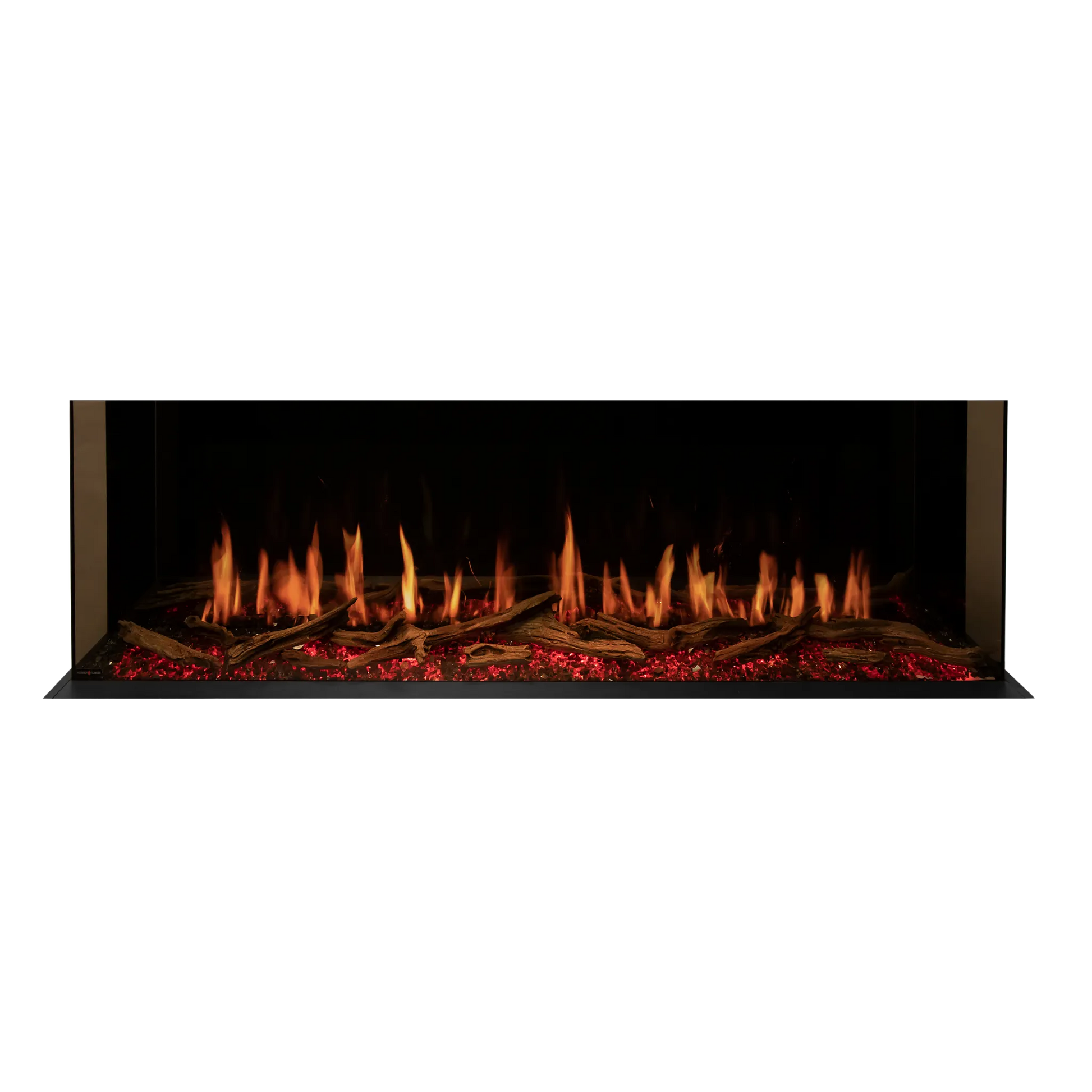

Orion Multi – Unit Size (H × W × D):
- 52″ model: 24 ¼″ × 51 ½″ × 8 13⁄16″

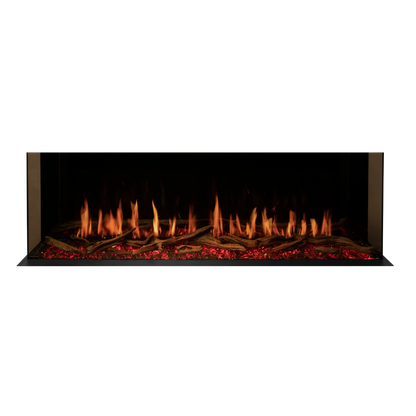

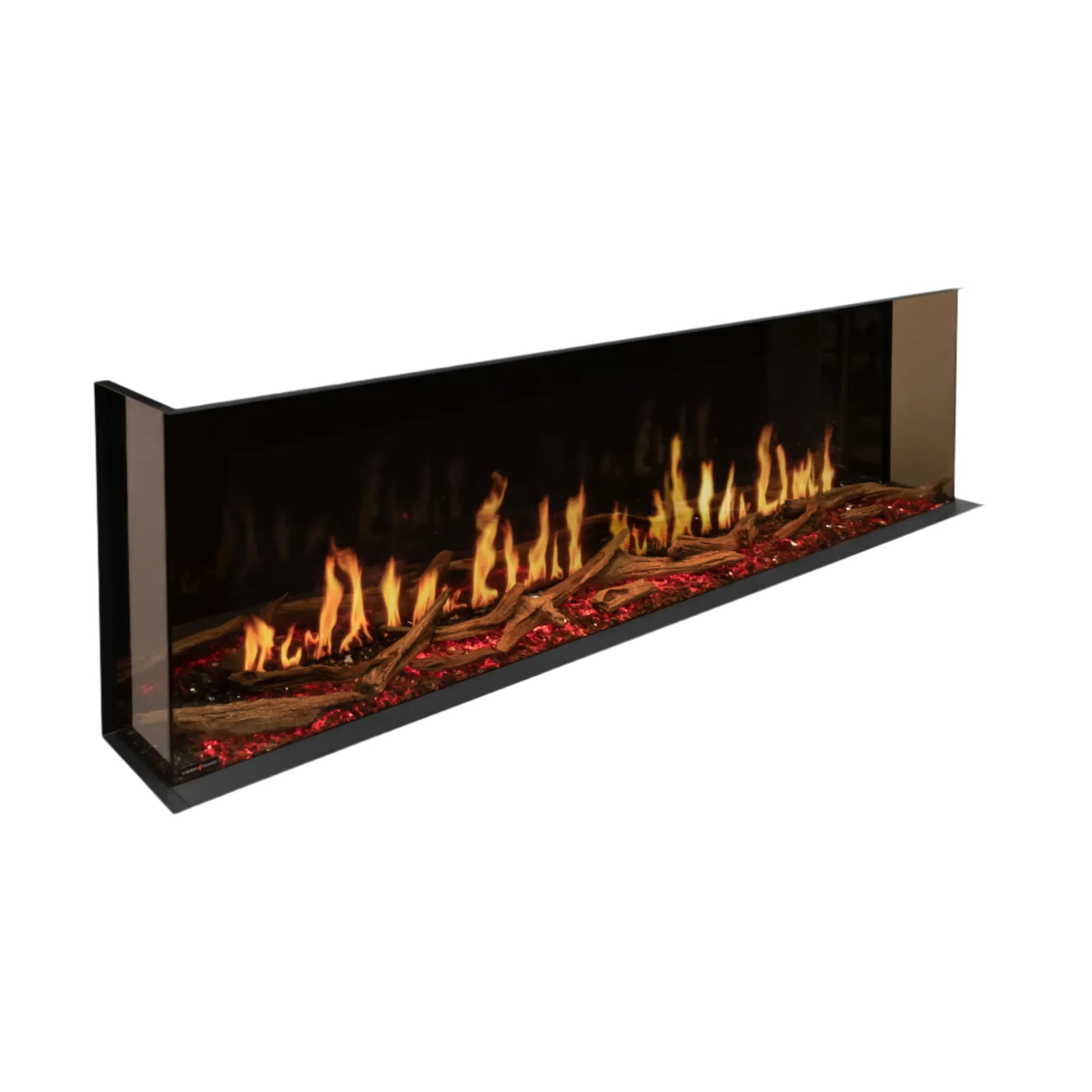

- 60″ model: 24 ¼″ × 60″ × 8 13⁄16″
- 76″ model: 24 ¼″ × 75 ¾″ × 8 13⁄16″
- 100″ model: 24 ¼″ × 100″ × 8 13⁄16″
- 120″ model: 24 ¼″ × 124 3⁄8″ × 7 13⁄16″

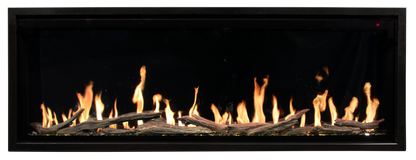

Orion Slim – Unit Size (H × W × D):

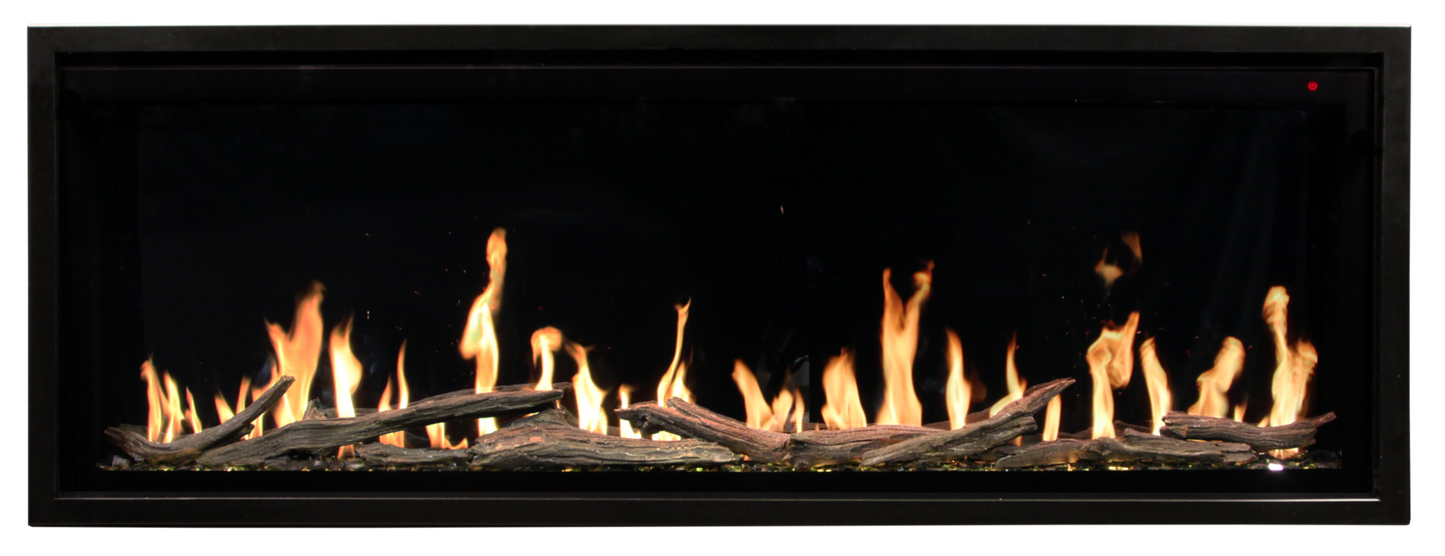

- 52″ model: 24 ¼″ × 51 ½″ × 5 ½″
- 60″ model: 24 ¼″ × 60″ × 5 ½″

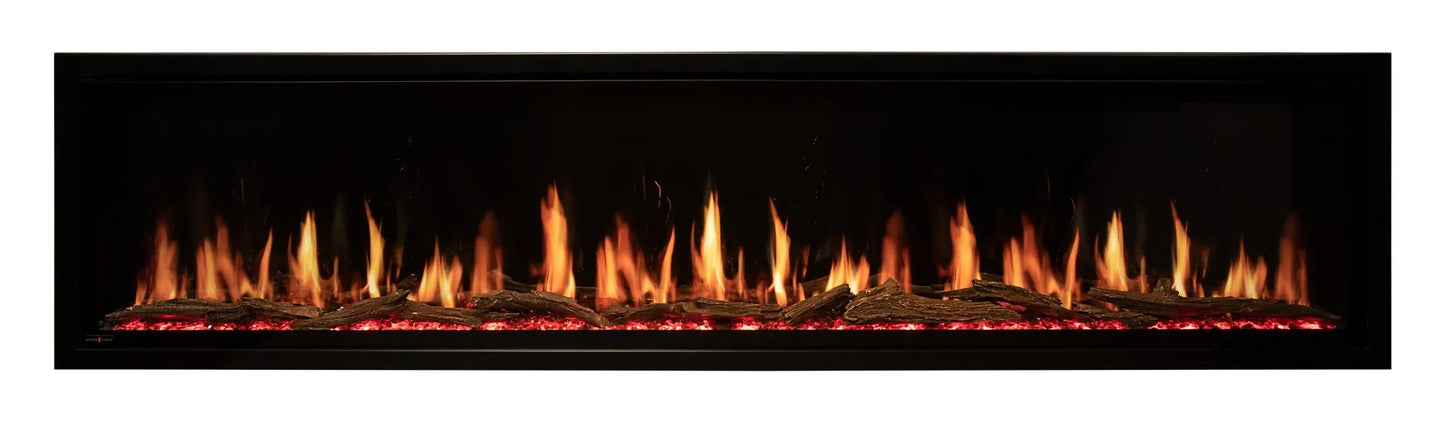

- 76″ model: 24 ¼″ × 75 ¾″ × 5 ½″
- 100″ model: 24 ¼″ × 100″ × 5 ½″
Viewing Area (H × W):
- 52″ model: 50 ⅛″ × 18 7⁄16″
- 60″ model: 58 5⁄8″ × 18 7⁄16
- 76″ model: 74 7⁄16″ × 18 7⁄16″
- 100″ model: 98 ¾″ × 18 7⁄16″
- 120″ model: 123″ × 18 7⁄8″
Weight:

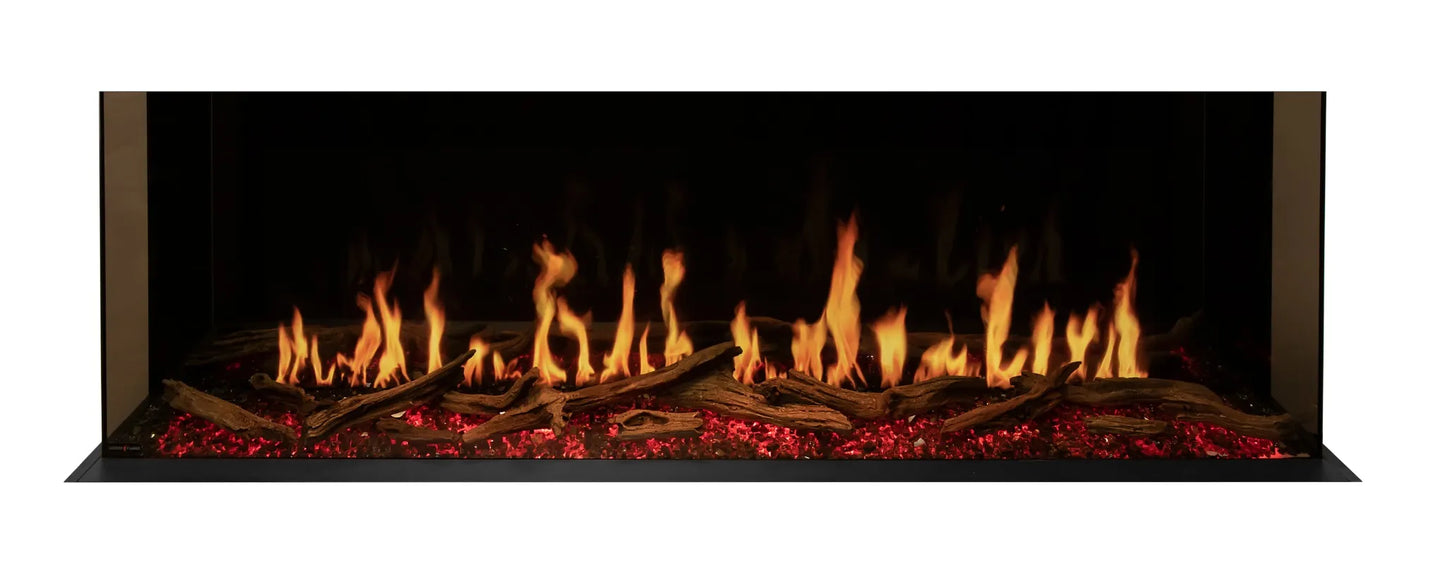

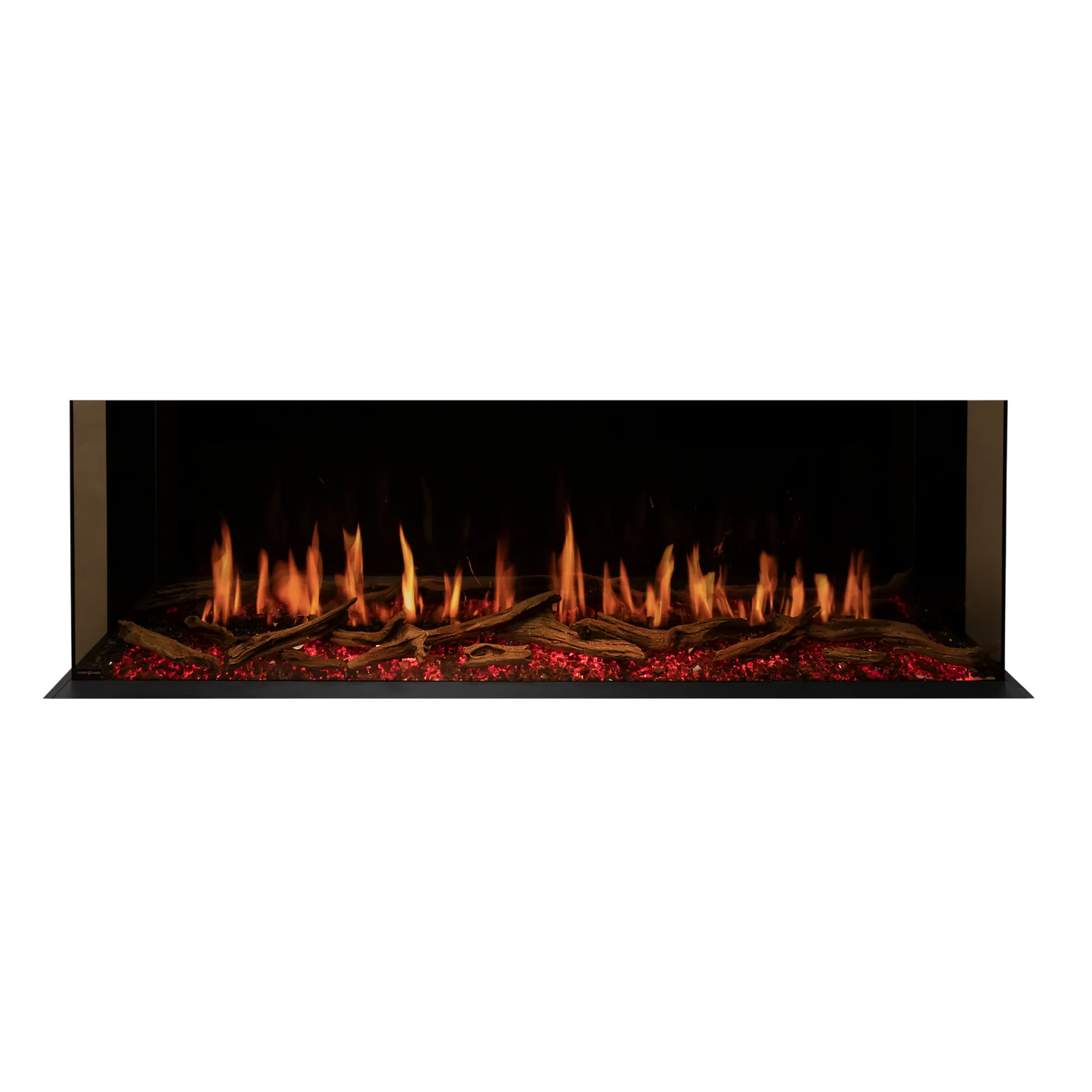

Orion Multi
- 52″ model: 146 lb
- 60″ model: 165 lb
- 76″ model: 206 lb
- 100″ model: 262 lb
- 120″ model: 314 lb

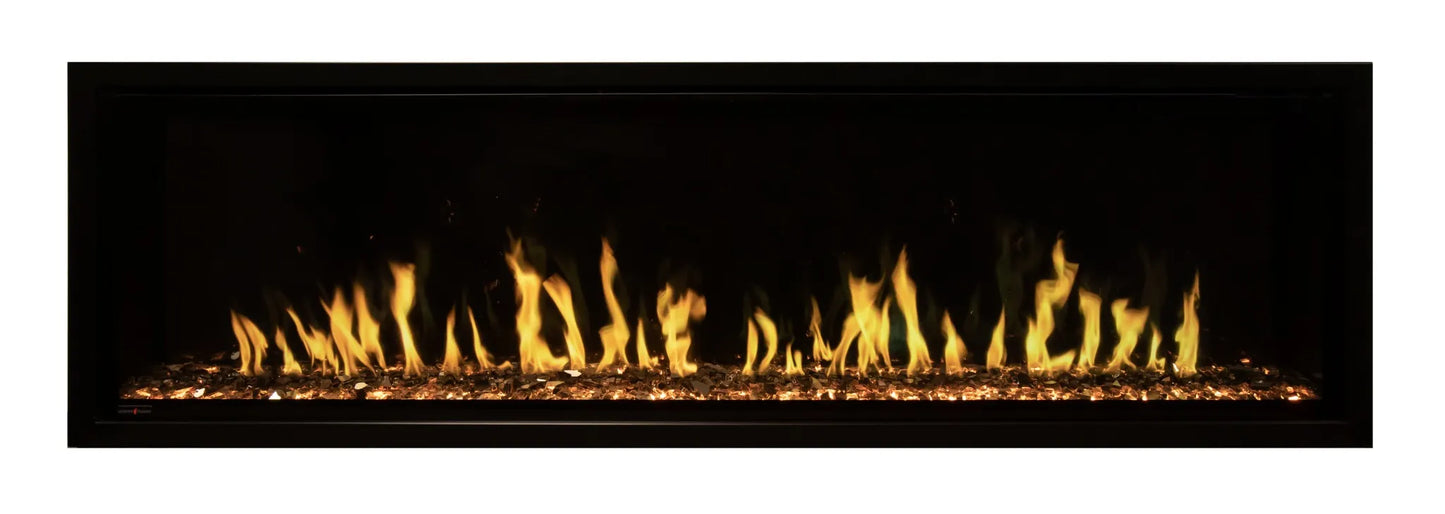

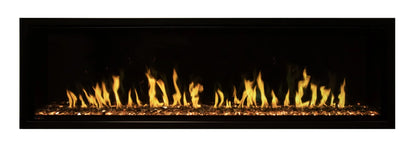

Orion Slim
- 52″ model: 105 lb
- 60″ model: 119 lb
- 76″ model: 137 lb
- 100″ model: 186 lb
Features
Combustion Type: Electric infusion with HELIOVISION 3-D flame technology
Certification: CSA & UL/ULC listed; ETL/CE; 5‑year warranty
Glass Door: Full glass front (18″ high viewing area)
