Performance
Fuel: Electric
Heating Area:
All model: up to 500 ft²
Max Heat Output:
- Orion 26 & 30: 5,000 BTU/h
- Orion 36, 42 & 54: 8,300 BTU/h
Efficiency: 100% (electric, zero emissions)
Dimensions
Unit Size (H × W × D):

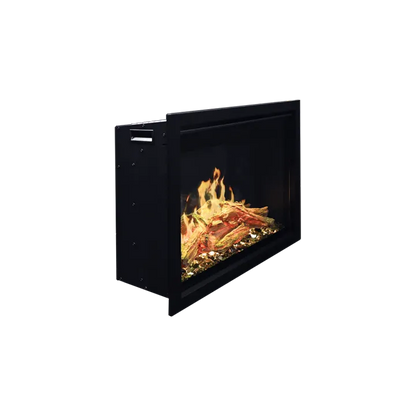

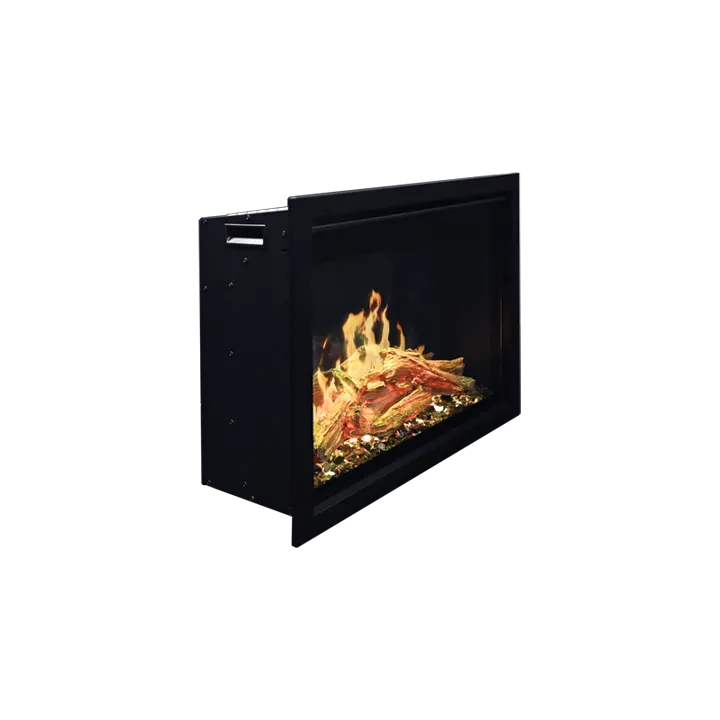

- Model 26: 19 5⁄8″ × 25″ × 9 7⁄8″

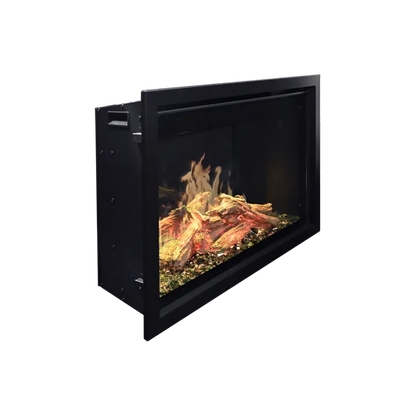

- Model 30: 19 5⁄8″ × 30 ½″ × 9 7⁄8″

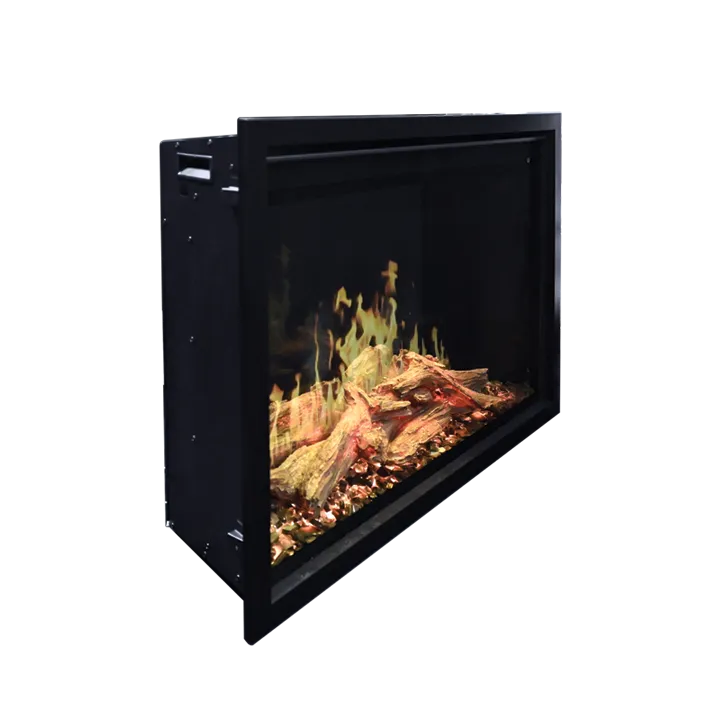

- Model 36: 24 13⁄16″ × 35″ × 9 7⁄8″
- Model 42: 27 13⁄16″ × 41″ × 9 7⁄8″

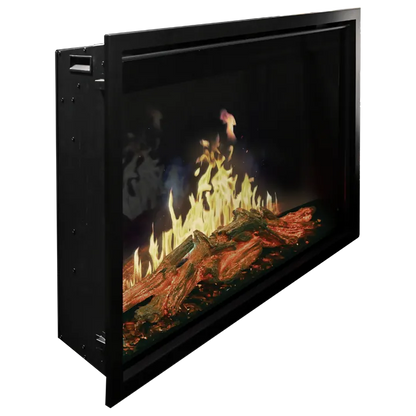

- Model 54: 33 13⁄16″ × 53 3⁄8″ × 9 7⁄8″
Viewing Area:
- Model 26: 22 7⁄16″ × 16 1⁄16″
- Model 30: 27 5⁄8″ × 16 1⁄4″
- Model 36: 32 1/8″ × 21 3⁄8″
- Model 42: 38 1⁄8″ × 24 3⁄8″
- Model 54: 50 3⁄8″ × 30 3⁄8″
Weight:
- Model 26: 59 lb
- Model 30: 66 lb
- Model 36: 92 lb
- Model 42 : 117 lb
- Model 54 : 170 lb
Chimney: Not required (electric, plug-in or direct-wire)
Features
Combustion Type: Electric infusion with Heliovision flame technology
Certification: CSA & UL/ULC listed; ETL/CE; 5‑year warranty
Glass Door: Full glass front
